EM-7812-AM Rev.1 P. 1 / 5

INSTRUCTION MANUAL

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Totalized pulse input module .............................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVE

• Use dual-shield cables (Shinko Seisen Industry Model

ZHY262 PBA) for the network. If it is not sufﬁcient, use

a ferrite core (Kitagawa Industries Model GRFC-13) for

the network cable.

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■POWER INPUT RATING & OPERATIONAL RANGE

• Locate the power input rating marked on the product and

conﬁrm its operational range as indicated below:

24V DC rating: 24V ±10%, approx. 50mA

■GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power

supply and input signal for safety.

• DO NOT set the switches on the module while the power

is supplied. The switches are used only for maintenance

without the power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

TOTALIZED PULSE INPUT MODULE, 4 points

(High-speed Link System, e-CON connector, non-isolated) MODEL

R7HL-PA4E

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7HL-PA4E

EM-7812-AM Rev.1 P. 2 / 5

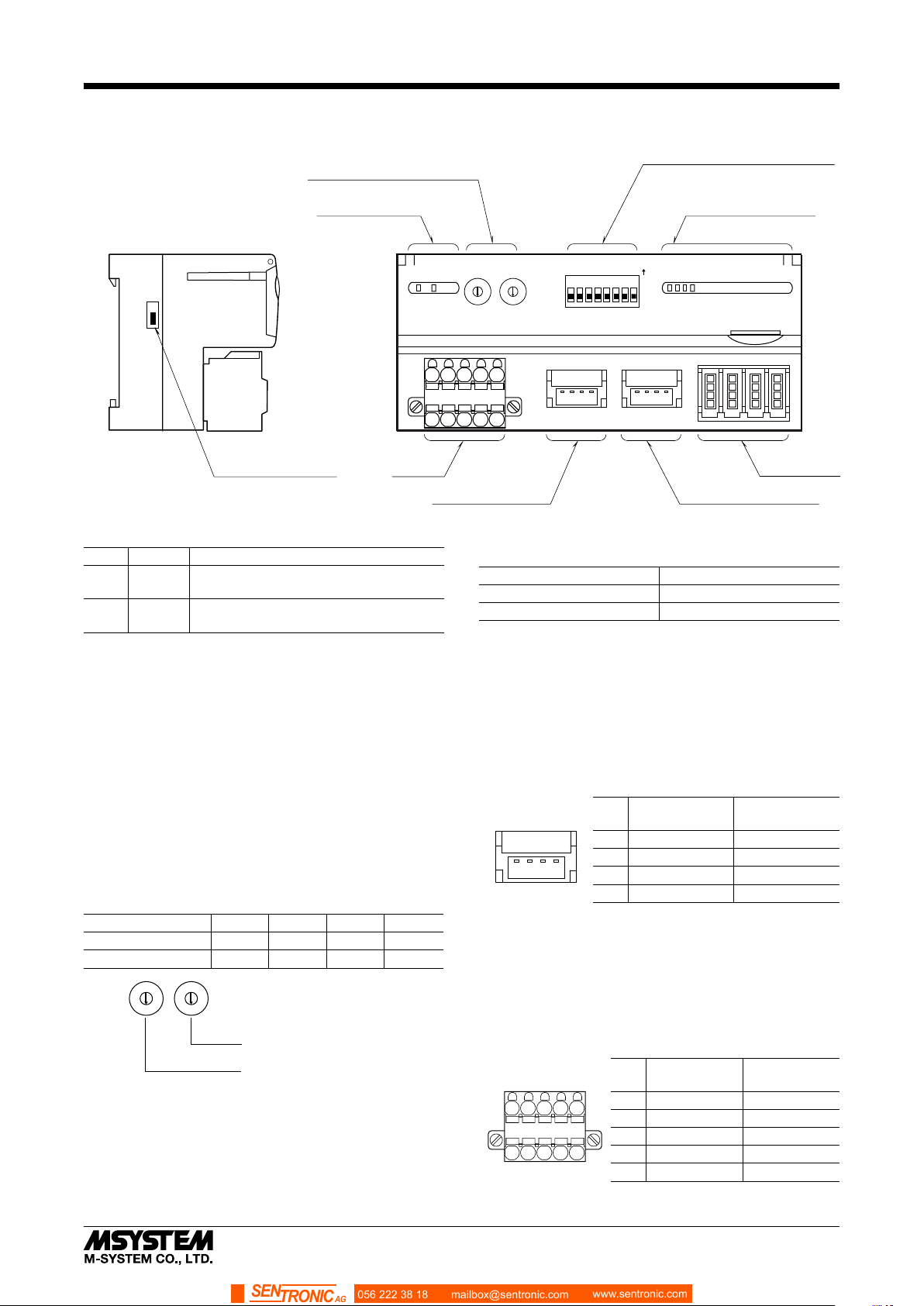

COMPONENT IDENTIFICATION

X10 X1

STATION ADD.

12345678

Station Address Setting Rotary SW

Status Indicator LED

Operating Mode Setting DIP SW (SW1)

Terminating Resistor SW Input Connector

Network

Terminals

Power Supply Connector

TERM

ON OFF

RUNPWR

0123

Input Status Indicator LED

■FRONT VIEW

■

SIDE VIEW

54321

CH0

SNSR EXCPWR

CH1 CH2 CH3

Sensor Excitation Connector

■STATUS INDICATOR LED

ID COLOR FUNCTION

PWR Green Turns on when the internal 5V is sup-

plied normally.

RUN Green Turns on when the refresh data is re-

ceived normally.

■INPUT STATUS INDICATOR LED

LED indicators shows signal status.

ON (Lo between GND and IN0 thr. IN3): LED ON (red)

OFF: LED OFF

■STATION ADDRESS

The left switch determines the sixteenths place digit, while

the right switch does the ones place digit of the address.

Data allocation is 4.

• Full-duplex communication

When the switch setting is n, the addresses will be n, n+2,

n+4 and n+6. (Range: 01H to 39H)

• Half-duplex communication

The addresses will be continuous four from the switch

setting. (Range: 01H to 3CH)

Address Allocation CH0 CH1 CH2 CH3

Full-duplex n n+2 n+4 n+6

Half-duplex n n+1 n+2 n+3

Station Address Setting (x1)

Station Address Setting (x16)

■OPERATION MODE

• Transfer rate (SW1-8)

SW1-8 TRANSFER RATE

OFF 12 Mbps (*)

ON 6 Mbps

(*) Factory setting

Note: Be sure to set unused SW1-1 through 1-7 to OFF.

■TERMINATING RESISTOR

To use the terminating resistor, turn the switch ON, and

OFF to invalidate. (Factory setting OFF)

■POWER SUPPLY, SENSOR EXCITATION

Recommended cable connector: 38104-00x-000FL*2(3M)

(not included in the package)

4321

No. ID

(

Power Supply

)

(

Sensor Excitation

)

4 0V GND

3 0V GND

224 V DC +24 V

124 V DC +24 V

■NETWORK

Recommended cable connector: TFKC2,5/5-STF-5,08AU

(Phoenix Contact) (included in the package)

Applicable wire size: 0.2 − 2.5 mm2; stripped length 10 mm

Recommended solderless terminal

For ZHY262PS, ZHT262PS and ZHY262PBA: TUB-0.5

(Japan Solderless Terminal MFG. Co., Ltd.)

For ZHY221PS: AI0,5-10WH (Phoenix Contact)

54321

No. ID

(Full-duplex)

(Half-dulex)

5 RXD- NC

4 RXD+ NC

3 TXD- TRD-

2 TXD+ TRD+

1 SHIELD SHIELD

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7HL-PA4E

EM-7812-AM Rev.1 P. 3 / 5

■INPUT

Recommended cable connector: 37104-x-000FL*2(3M)

(not included in the package)

CH0 CH1 CH2 CH3

No. ID FUNCTION

4IN0 through IN3 Input 0 through 3

3 GND GND

2 NC No connection

1 +24V Sensor excitation

*2 ‘x’ shows wire size. Refer to the manufacturer’s catalogue.

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

115 (4.53)

30 (1.18)

54 (2.13)

17 (.67)

[5 (.20)]

50 (1.97) 18.5 (.73)

5.5 (.22)

DIN RAIL

35mm wide

3 (.12)

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7HL-PA4E

EM-7812-AM Rev.1 P. 4 / 5

■CONNECTION DIAGRAM

24V DC

SHIELD

TXD+ (TRD+)

TXD– (TRD–)

RXD+ (NC)

RXD– (NC)

24V DC

Note: Te rminal numbers in parentheses are for half-duplex

communication model.

IN0

GND

+24V

IN1

GND

+24V

IN2

GND

+24V

IN3

GND

+24V

GND

+24V

INPUT

CH0

INPUT

CH1

INPUT

CH2

INPUT

CH3

SENSOR

EXCITATION

NETWORK

POWER

SUPPLY

GND

+24V 1

■Input Connection Examples

IN1

GND

+24V

IN2

GND

+24V

IN3

GND

+24V

IN4

GND

+24V

GND

+24V

NPN output 3-wire sensor

Sensor

circuit

Sensor

circuit

•

■2-Wire Sensor

Detecting Circuit

COMMUNICATION CABLE CONNECTIONS

Master Module

RXD+

RXD–

TXD+

TXD–

(SHIELD)

Slave Module

RXD+

RXD–

TXD+

TXD–

(SHIELD)

Slave Module

TXD+

Terminating

Resistor

TXD–

RXD+

RXD–

SHIELD

Terminating

Resistor

Master Module

TR+

TR–

(SHIELD)

Slave Module

TR+

TR–

(SHIELD)

Slave Module

TR+

TR–

SHIELD

Note: Be sure to turn ON the switch of the terminating resistor located at both ends of the modules.

Terminating

Resistor

Terminating

Resistor

■

MASTER CONNECTION

• Full-duplex communication

•Half-duplex communication

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7HL-PA4E

EM-7812-AM Rev.1 P. 5 / 5

I/O DATA DESCRIPTIONS

• Di area

ADD.n CH0

CH1

CH2

CH3

(ADD.n)

ADD.n+2

(ADD.n+1)

ADD.n+4

(ADD.n+2)

ADD.n+6

(ADD.n+3)

The data is 16-bit binary.

Addresses in parentheses are for half-duplex mode.

• Do area

Command data

(Refer to the command description)

Command data

(Refer to the command description)

Command data

(Refer to the command description)

Command data

(Refer to the command description)

COMMAND DESCRIPTION

• Do area

ADD.n

(ADD.n)

ADD.n+2

(ADD.n+1)

ADD.n+4

(ADD.n+2)

ADD.n+6

(ADD.n+3)

Addresses in parentheses are for half-duplex mode.

Count reset CH0 (0: Count up, 1: Reset)

Not used (0)

Count reset CH1 (0: Count up, 1: Reset)

Not used (0)

Count reset CH2 (0: Count up, 1: Reset)

Not used (0)

Count reset CH3 (0: Count up, 1: Reset)

Not used (0)

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG
