M-system M6NPS2 Manual de usuario

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7914 Rev.5 P. 1 / 3

INSTRUCTION MANUAL

POWER SUPPLY MODULE

(dual redundant) MODEL M6NPS2

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Power supply module ......................................................... (1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES OR UL

• The equipment must be mounted inside a panel.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

• Install lightning surge protectors for those wires connect-

ed to remote locations.

■POWER INPUT RATING & OPERATIONAL RANGE

• Locate the power input rating marked on the product and

conﬁrm its operational range as indicated below:

24V DC rating: 22 – 27V, 2A

■GENERAL PRECAUTIONS

• Before you remove the unit from its base or mount it, turn

off the power supply for safety.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -20 to +55°C

(-4 to +131°F) with relative humidity within 30 to 90%

RH in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

COMPONENT IDENTIFICATION

Body

Front Cover

DIN Rail Adaptor

Specifications

■FRONT VIEW (with the cover open)

Power 2 LED

Power 1 LED

INSTALLATION

Installation Base (model: M6NBS) is required. Refer to the

Installation Base instruction manual for the mounting pro-

cedure.

M6NPS2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7914 Rev.5 P. 2 / 3

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the connection diagram on the side of the unit.

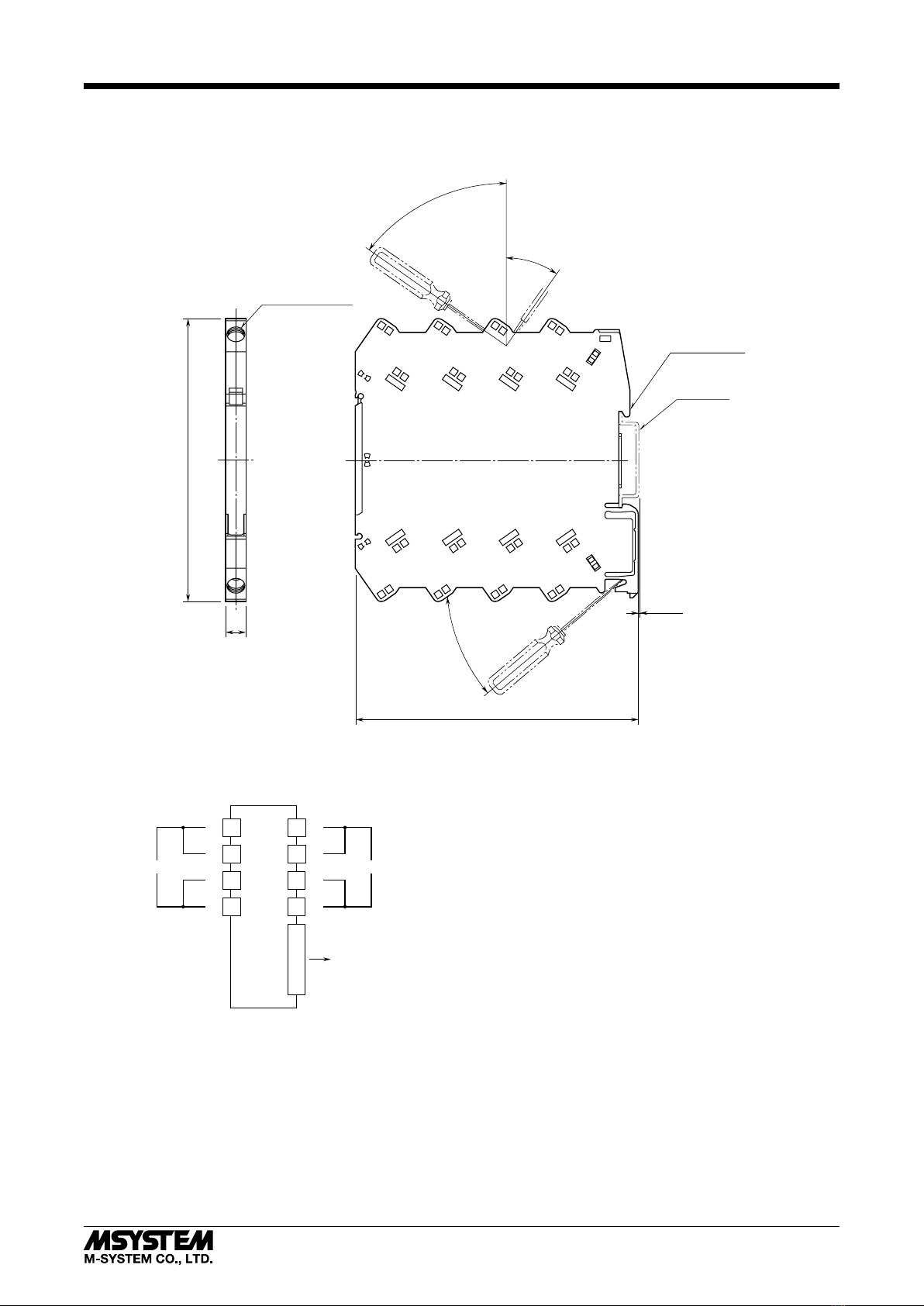

■EXTERNAL DIMENSIONS unit: mm (inch)

102 (4.02)

7.5 (.30)

DIN RAIL HOOK

102 (4.02)

[1 (.04)]

8–M3

SCREW TERMINAL

WIRE INSERTION ANGLE

: approx. 35°

SCREWDRIVER

INSERTION ANGLE

: approx. 55°

SCREWDRIVER

INSERTION ANGLE

: approx. 40°

DIN RAIL

35mm wide

5678

1234

• When mounting, no extra space is needed between units.*Screwdriver stem diameter: 6 mm (.24”) or less

■CONNECTION DIAGRAM

CONNECTOR

–

––

POWER SOURCE 2

POWER SOURCE 1

24VDCPOWER

M6NPS2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7914 Rev.5 P. 3 / 3

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.5 N·m

■SOLDERLESS TERMINAL unit: mm (inch)

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable.

Solderless terminals with insulation sleeve do not ﬁt.

Applicable wire size: 0.2 – 2.5 mm2

3.2 (.13) dia.

4 min.

(.16)

5.8 max.

(.23)

5.5 max.

(.22)

CHECKING

1) Terminal wiring: Check that all cables are correctly con-

nected according to the connection diagram.

2) Power input voltage: Check voltage across the terminal

7 – 8 and 3 – 4 with a multimeter.

LIGHTNING SURGE PROTECTION

M-System offers a series of lightning surge protector for

protection against induced lightning surges. Please contact

M-System to choose appropriate models.
