M-Audio FireWire Solo Manual de usuario
This guide is intended to help get you started quickly.
In order to achieve optimal usage of your new FireWire
Solo, we recommend that you carefully study the
enclosed product manual, either after completing the
process described in this guide or before.
Quick Start Guide
FIREWIRE SOLO™
Table of Contents
Introduction ...................................................................................................................... 3
Minimum System Requirements .................................................................................... 4
Windows ......................................................................................................................... 4
MacOS ............................................................................................................................ 4
Front Panel Controls and Connectors ............................................................................ 4
Rear Panel Connectors .................................................................................................... 5
Hardware Installation ..................................................................................................... 5
Software Control Panel .................................................................................................. 6
Mixer Page ..................................................................................................................... 6
Hardware Page .................................................................................................................7
Sample Rate Detected ....................................................................................................7
ASIO/WDM Buffer Size ....................................................................................................7
Sync Source .....................................................................................................................7
S/PDIF Output Source ......................................................................................................7
Contact Us ..........................................................................................................................7
3
Introduction
Thank you for choosing the M-Audio FireWire Solo. The FireWire Solo has been designed to give
you a professional, portable audio interface for your laptop or desktop computer. Using the
convenience and dependability of the IEEE 1394 (FireWire™) bus, the FireWire Solo provides your
computer with a high-performance, high-resolution audio interface, complete with microphone,
instrument and line-level inputs, in a rugged, lightweight, and highly portable design.
This Quick Start Guide is meant to get you up and running as quickly as possible. Please consult
the User’s manual for more detailed information.
IMPORTANT:

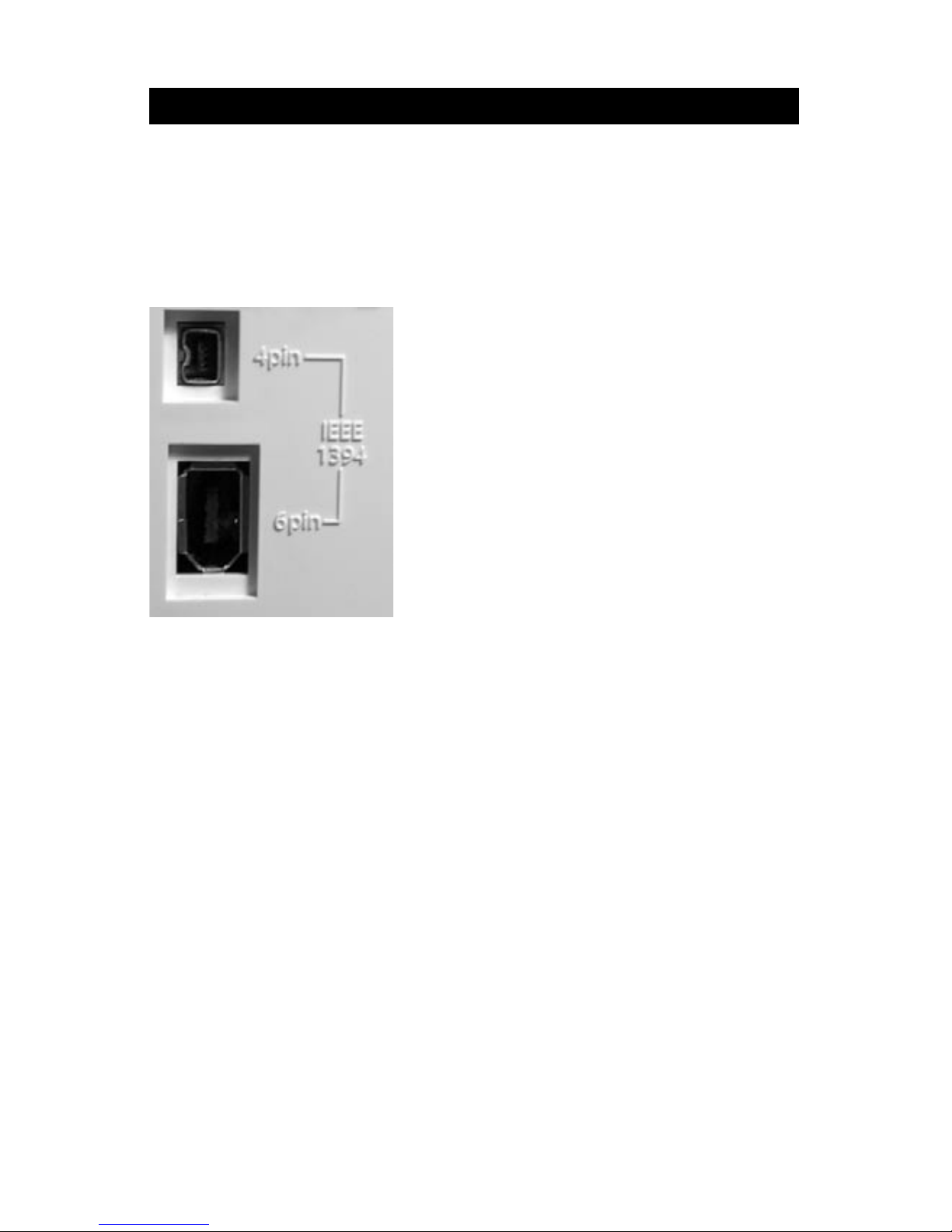

The FireWire Solo comes with a high-quality six-pin to
six-pin FireWire cable. We strongly suggest you use this
cable, or one of equal quality, to ensure optimum audio
performance. If your computer is equipped with only a four-
pin interface, you will need to use the included four-pin to
six-pin FireWire cable. Note that the FireWire Solo requires
a six-pin FireWire connection in order to supply bus power;
if you have a four-pin connection you will need to use the
supplied power adapter.
NOTE:
Some computer manufacturers may use a different
nomenclature to refer to their FireWire connections, such as
Sony’s “iLink”, or simply “1394.” When in doubt, consult your
computer’s owner’s manual.
IMPORTANT - IEEE 1394 “FireWire” Users :
Reports have come to our attention of isolated problems when hot-plugging IEEE 1394 (aka
“FireWire”) devices. Hot-plugging refers to making connections to1394/FireWire ports while one or
more of the devices (including the computer) are still powered on. There have been rare occurrences
when, after hot-plugging, either the FireWire peripheral or the host computer’s FireWire port are
rendered permanently inoperable. While M-Audio products adhere rigidly to the FireWire industry
standard and pass stringent internal testing, the possibility remains that hot-plugging your M-
Audio FireWire interface to some computers may result in the this type of problem.
We strongly encourage you to protect your equipment by refraining from hot-plugging
any bus-powered FireWire device, including the M-Audio family of FireWire products. Connect
your FireWire device while both the computer and FireWire device are powered off. Always
connect the FireWire device first, and then turn the computer on last. If you are using bus power
(on systems with IEEE 1394 6-pin connectors), make sure you first connect the 6-pin cable securely
to the FireWire device and to your computer’s FireWire port, and only turn the computer system on
after the connections are made.
M-Audio is being proactive in investigating any issues that may adversely affect our
customers. Please consult the Knowledge Base in the Support section at
www.m-audio.com for updates on this important issue.
4
Minimum System Requirements
Be sure that your computer meets these minimum requirements before installing your FireWire
SOLO.
Windows
< Pentium III – 500 MHz or higher
< 128 MB RAM
< Windows XP (SP2) with DirectX 9.0b or higher
< Onboard FireWire connection or installed PCI card
The FireWire Solo is not supported under Windows 98, Windows ME or Windows 2000.
MacOS
< Macintosh G3/G4* 500 MHz or higher
< OS X 10.2.8 or later, 256 MB RAM or
< OX X 10.3.5 or later, 512 MB RAM
< Onboard FireWire connection or installed PCI card
*G3/G4 accelerator cards not supported
OS X 10.3.5 or later required for Dolby Digital and DTS pass-through with Apple DVD player.

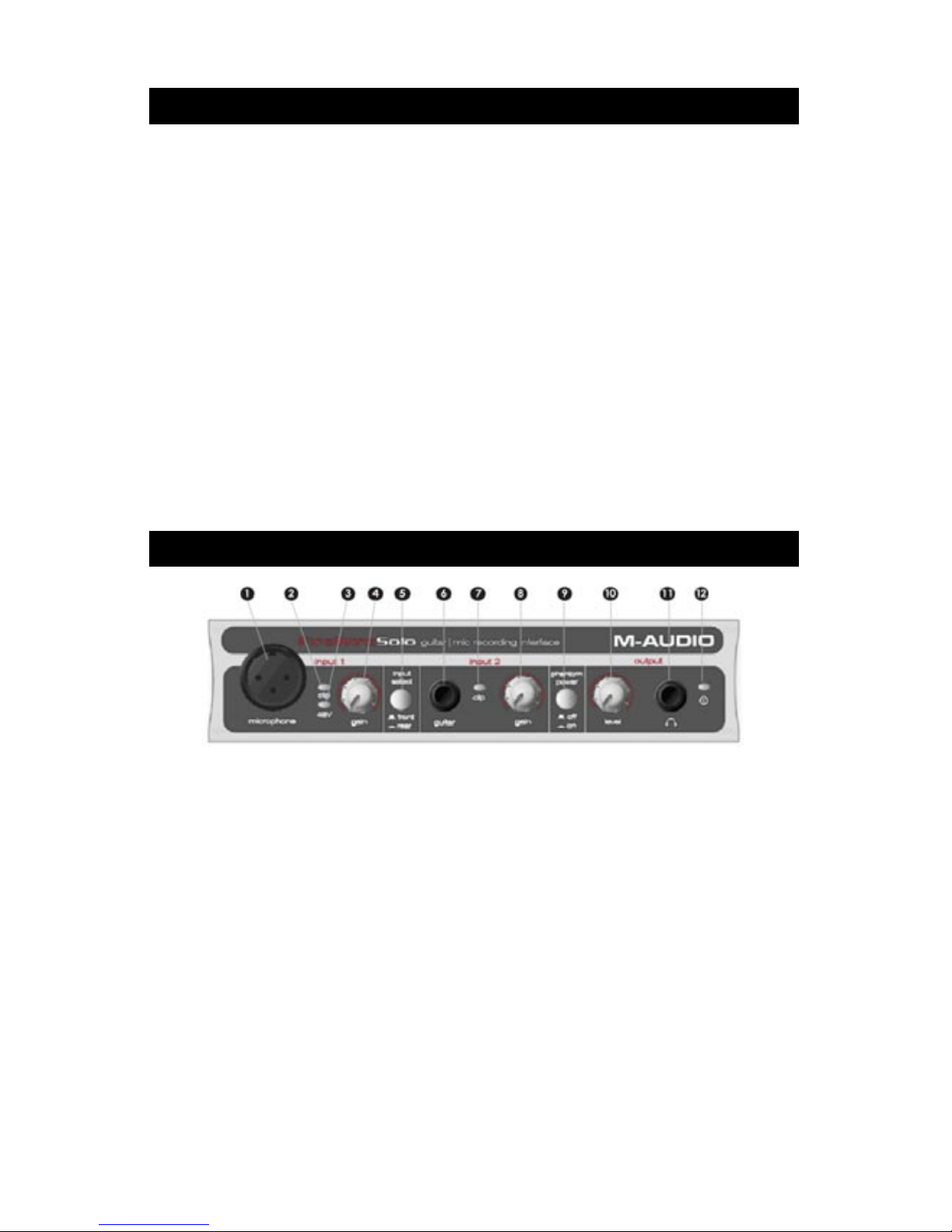

Front Panel Controls and Connectors
1. Microphone Input - Mic-level input on balanced XLR connector. This connector is only active when the
Front/Rear Input Selector (5) is set to “Front” (OUT position). Input from this connector appears in your
DAW software as a mono signal on the left side of the stereo input pair.
2. Clip indicator - This LED illuminates when the Microphone Input signal level exceeds –1 dBFS. If the Clip
Indicator glows steadily, reduce the Microphone Input gain level (4).
3. Phantom Power Indicator - This indicator illuminates when the Phantom Power Switch (9) is pressed,
indicating that +48VDC is being applied to the Mic Input (1).
4. Microphone Input Gain - This knob controls the amount of gain at the Microphone Input (1), over a
range of 0dB to +40dB or greater.
5. Front/Rear Input Selector - This switch selects which pair of analog inputs will be active. When the
switch is in the OUT position, the front panel Microphone Input (1) and Guitar Input (6) are active. When
the switch is in the IN position, the rear panel Line Inputs (19) are active.
6. Guitar Input - Instrument-level input on unbalanced 1/4” phone connector, for use with guitars, basses
or other instrument-level sources. This connector is only active when the Front/Rear Input Selector (5) is
set to “Front” (OUT position). Input from this connector appears in your DAW software as a mono signal
on the right side of the stereo input pair.
7. Clip indicator - This LED illuminates when the Guitar Input signal level exceeds –1 dBFS. If the Clip
Indicator glows steadily, reduce the Guitar Input gain level (8).
8. Guitar Input Gain - This knob controls the amount of gain at the Guitar Input (6), over a range of 0dB
to +30dB or greater.
5
9. Phantom Power Switch - This switch activates the +48V phantom power, for use with condenser mics
requiring external power. When Phantom Power is active, the Phantom Power Indicator LED (3) is lit.
NOTE: It is safe to connect most modern dynamic microphones or line level devices to the channel
inputs when phantom power is activated. However, be aware that some older ribbon microphones
may be damaged by phantom power, and certain unbalanced line level devices may malfunction or
produce an audible hum when phantom power is active. Consult the owner’s manual for these devices
before you connect them to phantom power sources.
10. Output Level Control - This knob controls the amount of output gain to the rear-panel Line Output (18)
and the front-panel Headphone Output (11).
11. Headphone Output - Stereo 1/4” TRS phone jack output for connection of headphones for monitoring
the output signal. The volume level is controlled by the Output Level Control (10).
12. Power Indicator - This LED illuminates when the FireWire Solo is powered on, either via buss power or
the AC adaptor.

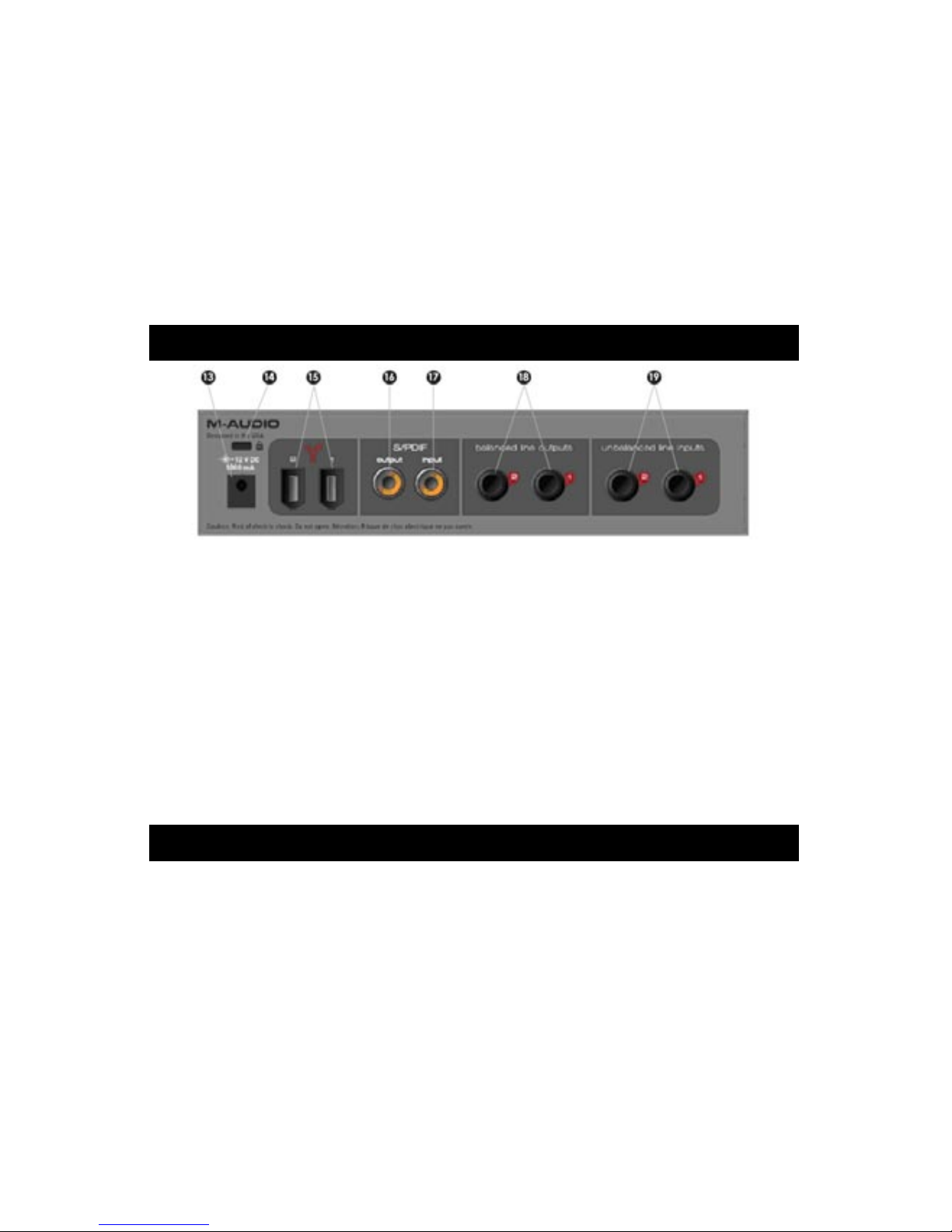

Rear Panel Connectors
13. AC Input - Connect the supplied AC adaptor to this input. The AC adaptor is required when operating
the FireWire Solo with only a 6-pin to 4-pin FireWire connection, or when using the FireWire Solo as
a stand-alone A/D converter. The AC adaptor is not needed when running the FireWire Solo on a
standard 6-pin to 6-pin FireWire connection.
14. Lock Port - This port is provided for use with a standard Kensington-type computer cable anti-theft
device.
15. FireWire Ports - Two FireWire (IEEE 1392) connectors. Use one to connect to your computer’s FireWire
port. The second may be used as a throughput, to chain additional devices on the FireWire bus.
16. S/PDIF Output - S/PDIF digital output on coaxial RCA connector.
17. S/PDIF Input - S/PDIF digital input on coaxial RCA connector.
18. Line Outputs - Balanced/unbalanced analog line outputs on 1/4” TRS phone connectors. The signal
level to these outputs is controlled by the front-panel Output Level Control (10).
19. Line Inputs - Unbalanced analog line inputs on 1/4” phone connectors. These connectors are only
active when the front-panel Front/Rear Input Selector (5) is set to “Rear” (IN position). Input from these
connectors appears in your DAW software as a stereo input pair.
Hardware Installation
NOTE:
Do NOT connect the FireWire Solo to your computer until you have run the installer program and
completed the installation.
Once you have run the installer, power down your computer. Then connect the FireWire Solo to
your host computer’s FireWire port using the included cables. If you are using bus power (on
systems with IEEE 1394 6-pin connectors), make sure you first connect the 6-pin cable securely to
the FireWire device and to your computer’s FireWire port, and only turn the computer system on
after the connections are made.
6
Software Control Panel
The FireWire Solo control panel is installed in your system when you complete the driver installation
procedure. To open the control panel:
In Windows – A tiny “knob icon” will by placed in the system tray, generally located at the bottom
of your Windows desktop. Double-click this icon to open the control panel.
On the Mac – The FireWire Solo control panel can be found in the system preferences.
Mixer Page
The Mixer page provides output routing and control of the FireWire Solo’s analog and digital inputs,
as well as the four virtual channels returning from your Digital Audio Workstation software. It also
provides input and output level meters, level controls, stereo linking, solo and mute functions.
7

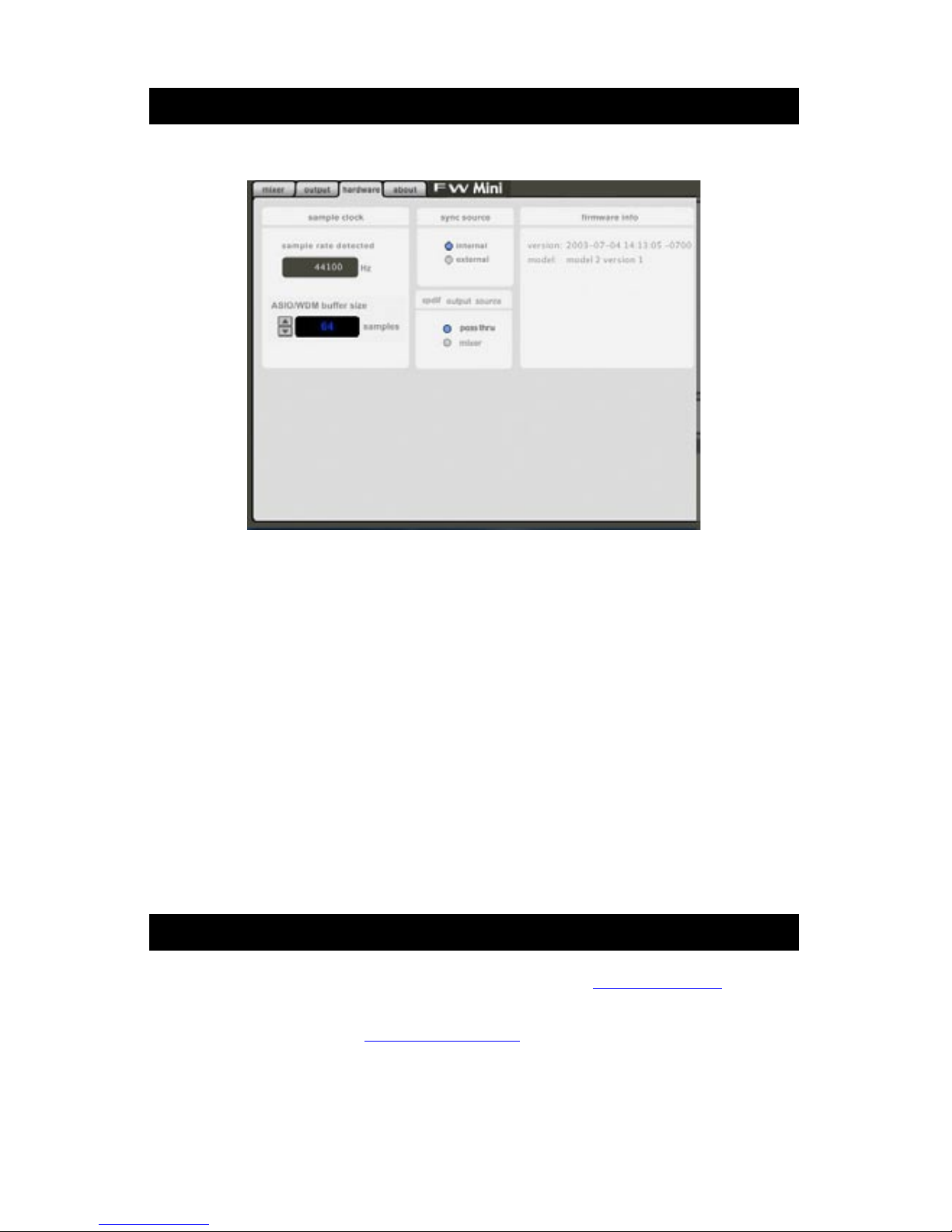

Hardware Page
The Hardware page gives you access to important information and functions of the FireWire Solo.
Sample Rate Detected
This field displays the currently-detected sample rate from the currently selected incoming sync
source.
ASIO/WDM Buffer Size
In this field you can select the buffer size you wish to work with. Smaller buffer sizes result in lower
latency (latency refers to the time it takes for your input signal to pass through your audio software
and appear at the outputs), but may not function well with slower systems.
Sync Source
This field allows you to choose between the FireWire Solo’s INTERNAL clock and an EXTERNAL
S/PDIF clock source.
S/PDIF Output Source
Selecting “mixer” routes the signals assigned to the S/PDIF output from the control panel mixer to
the S/PDIF output. Selecting “Pass Thru” allows a surround-encoded stream such as AC3 or DTS
to be sent to the S/PDIF output.
Contact Us
For additional help, technical support is available on our website at www.m-audio.com, where you
can fill out our technical support form.
Alternatively, you can email us at [email protected], or contact us by phone at: (626) 633-9055
Technical support is available by telephone from 7am - 7pm PST.
FWSOLO_QS_EN1
