OT-14

™

1x4 Digital Audio

Opticial S/PDIF

Thru Box

OT-14

MANUAL

OT-14

1x4 Digital Audio Opticial S/PDIF Thru Box

Thank you for purchasing the OT-14, by M Audio. The

OT-14 accepts one optical digital audio signal via TOSlink

connector, and duplicates it to four TOSlink optical digital

outputs, all on the rear of the OT-14. This allows you to

take the optical output of any digital audio source, ADAT

8-channel or S/PDIF optical format, and send it

simultaneously to four digital audio targets capable of

receiving that same optical format. The OT-14’s active

electronics assure that the integrity of your digital signal is

never compromised.

NOTE: The OT-14 will handle any ADAT or optical S/PDIF

signal having sample rates 100kHz or less, and supports

all data widths. However, since it is not a converter, it

will pass only one digital format at a time. The digital

format signal present at the OT-14 input is the digital

format that is duplicated to the OT-14 outputs, i.e. ADAT

to ADAT, or S/PDIF to S/PDIF.

The setup example that follows shows what might be a typical

mixing scenario. The output of a Hard disk recorder or the

output of a digital audio card is connected to the OT-14 input,

while a DAT, computer-based digital audio card (such as an

M Audio “Delta DiO 2496” or “DiO 2448”), a CD recorder,

and a D/A Converter (to feed your monitors) are

connected to the OT-14 outputs. This setup allows the user

to take one mix output and simultaneously record to several

mixdown decks, saving hours of time and possible frustration.

To set up the OT-14 in your system, first make sure all of your

external devices are turned off. Then, using good-quality TOSlink

optical cables, follow this simple procedure:

1. With the OT-14 power button in the “out” (off) position, plug the

appropriate end of the supplied 9-Volt DC “wall-wart” power

adapter into your OT-14 and the other end into a wall socket or

power strip. The OT-14 power indicator LED should be off.

2. Take the output of your digital audio source device and plug it into

the OT-14 TOSlink input connector located on the rear of the OT-14.

3. Connect the OT-14’s TOSlink digital output connectors to the

inputs of your receiving or “target” digital audio devices. You may

want to connect the analog audio output of one of these devices

to a sound system for monitoring purposes.

4. With all volumes turned down, turn on your source device.

5. Turn on the OT-14 by pressing its power button and allowing it to

latch in the “in” position. The power indicator LED will light on the

front of the OT-14 unit.

6. Turn on your target devices. Your OT-14 is now ready for use.

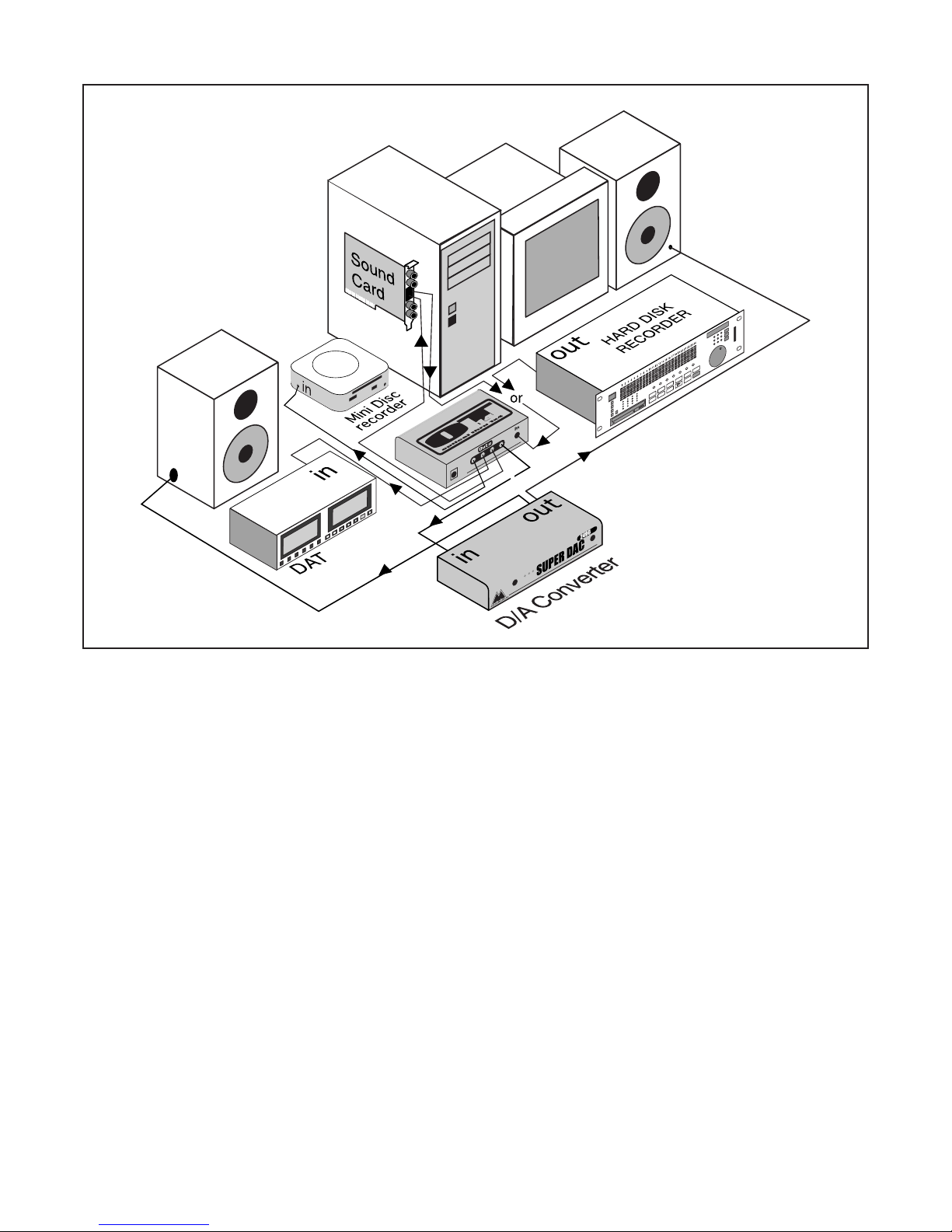

OT-14

Hook-Up

Diagram

NOTE: When any signal is present at the OT-14 input, the

“Signal Present” LED will light on the front of the unit. The

OT-14 is “format neutral” and does not analyze the incoming

signal. Therefore, although signal presence is detected by

the OT-14, it may not necessarily be a valid ADAT or S/PDIF

format signal.

Other Typical uses of the OT-14

•Sending a single digital out to multiple digital effects units.

•Outputting to several D/A converters simultaneously.

•Using a single digital out to both monitor your system’s

output and master to DAT and/or CD at the same time.

•Multiplying the sends on your digital mixer

If you have any questions about your OT-14, please

contact our tech support in any of the following ways:

voice: (626) 445-8495

email: [email protected]

fax: (626) 445-7564

USA: 45 E. St. Joseph Street • Arcadia, CA 91006-2861 • Tel: (626) 445-2842

Fax: (626) 445-7564 • Web: http://www.midiman.net • Email: [email protected]

UK: Unit 22, Harrogate Business Park • Freemans Way • Harrogate • N Yorks • HG3 1DH •

England Tel: 44 1423 886692 • Fax: 44 1423 886693• Email: [email protected]

Germany: Kuhallmand 34 • D-74613 Ohringen • Germany • Tel: 49 7941 98 7000

Fax: 49 7941 98 70070 • Web: http://www.midiman.de • Email: [email protected]
