Lutron Electronics Sivoia QED Manual de usuario
Sivoia QEDTM
Installation
and Operating
Instructions
Drapery
System
Open
Close
LUTRON
Sivoia QEDTM |drapery system
Installation Instructions
SIVOIA QEDTM Drapery Installation Instructions 1
Tools Required:
Tape Measure 1/8 inch Straight Blade Screwdriver
Wire Cutter/Stripper Level
Pliers Power Drill: Drill Bits, Screwdriver Attachments
#2 Phillips Screwdriver
One way Draw System — right draw shown wall mount brackets with cam lock
(quantity depends on system width)
ceiling mount cam locks
(quantity depends on system width)
one Hook Eye
(split draw only)
OR
One way Draw System — left draw shown
OR
Split Draw System — right motor shown
Carton Contents:
auxiliary carriers
(quantity depends
on system width)
(Keypad, Transformer,
SV-IR Infrared Receiver
Module, and Infrared
Handheld Transmitter
not included)
Open
Close
LUTRON
Keypad
Transformer
SV-IR Infrared Receiver Module
Infrared Handheld Transmitter
Drapery System
SIVOIA QEDTM Drapery Installation Instructions 2

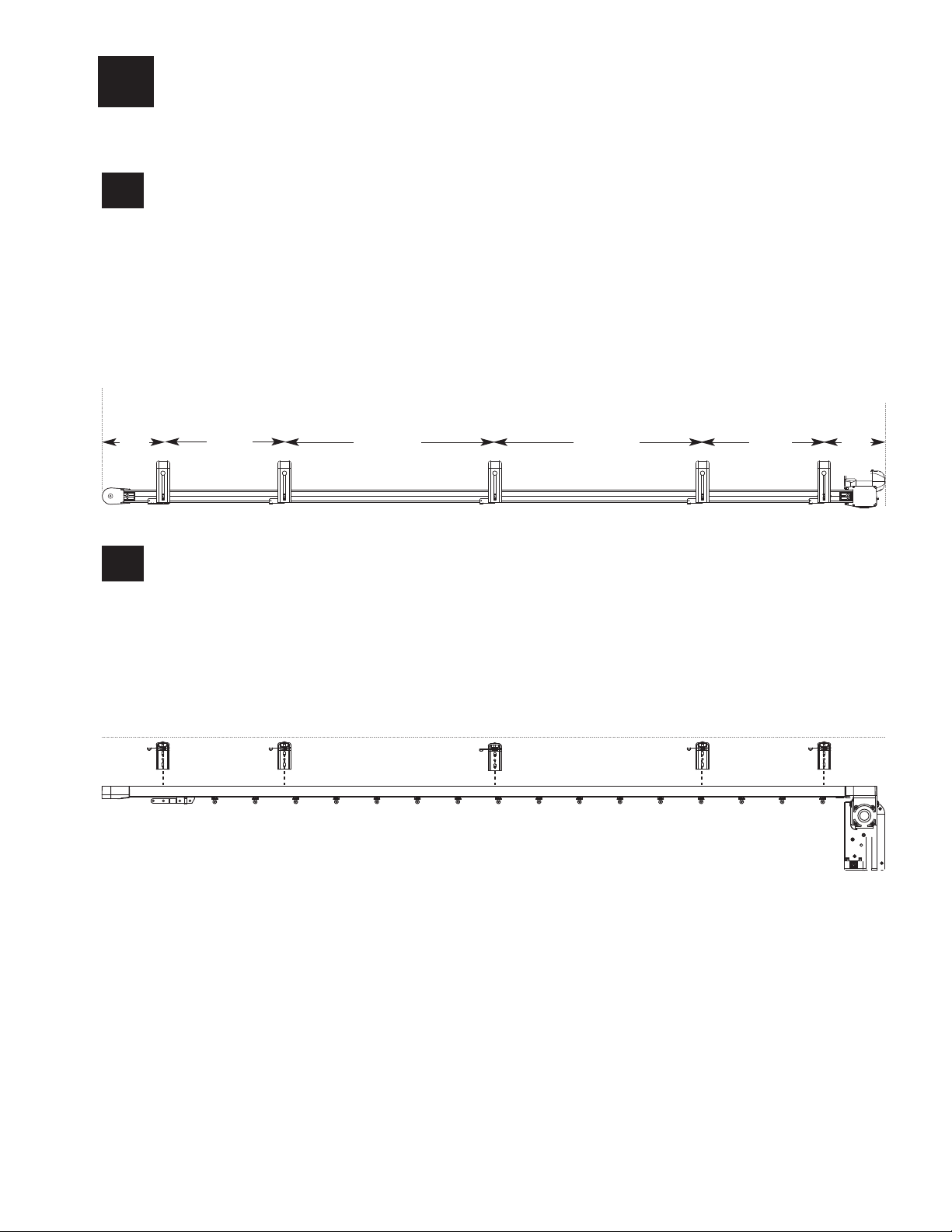

11 Wall Mounting the Drapery Track
Mount the brackets using the spacing illustrated below.
Mount the drapery track to the wall using the wall mount L brackets. Mount each end bracket at a
maximum dimension of between five (5) and six (6) inches from each end of the track. Space the next
bracket on both sides 16 in from the end brackets. Space the remaining brackets 16-24 in apart.
Note: All screws must be securely fastened to stud or structural member.
1.1
Install the track to the brackets using the cam locks.
The drapery track must be straight and level to operate properly. When the wall brackets are securely
mounted, install the track to the brackets using the cam locks. (SEE ILLUSTRATIONS BELOW FOR CAM
LOCK OPERATION)
Brackets MUST be mounted STRAIGHT AND LEVEL
1.2
Window/Wall Side
16 in 16-24 in
5-6
in
16-24 in 16 in
5-6
in
Top View
Side Elevation View
Level
Line
SIVOIA QEDTM Drapery Installation Instructions 3
1Ceiling Mounting the Drapery Track
1.3
Position cam lever to engage track
CAM LEVER
CAM LEVER
track
Top View
Top View
bracket
bracket
3.5-6 in
Adjustability
Push in cam lever until the
tab is against the track.
2
Cam is fully
engaged when
the tab on the
cam is against
the track.
Orient the cam lever in this position to
engage the track with the cam lock.
1
SIVOIA QEDTM Drapery Installation Instructions 4
1Ceiling Mounting the Drapery Track
1.4
Mount the drapery track to the ceiling
Track Mounting
Mount the drapery track to the ceiling using ceiling mount cam lock brackets. Mount the cam locks using
the spacing guidelines shown below. Mount each end cam lock at a maximum dimension of between five
(5) and six (6) inches and minimum dimension of five (5) inches from each end of system. Space the next
bracket on both sides 16 in from the end brackets. Space the remaining brackets 16-24 in apart.
Note: All screws must be securely fastened to stud or structural member.
16 in 16-24 in
5-6
in
Window/Wall Side
16-24 in 16 in
5-6 in
Top View
The brackets should be mounted on a straight and level line. If the contour of the ceiling is not straight
and level, use shims between the cam lock bracket and the ceiling to compensate for the irregularities.
Side Elevation View
Level
Line
SIVOIA QEDTM Drapery Installation Instructions 5
1Ceiling Mounting the Drapery Track
1.5
Mount the track to the brackets
To mount the track to the brackets, position all the cam lock lever arms to the unlocked position (see
unlocked diagram). Position the track up against the cam lock brackets and rotate the cam lock arm to
the locked position.
Orient each cam lever in the position shown.
This unlocked position allows the track to
engage the cam.
1
Top View
Top View
Swing cam lock arm to lock track to
cam lock bracket. Cam is fully engaged
when the tab on the cam is against the
track.
2
Track
Track
Unlocked
Locked
CAM LEVER
CAM LEVER
SIVOIA QEDTM Drapery Installation Instructions 6
2Carrier Installation – Left and Right Draw Systems
2.1
Loading the Carriers
Left and right single draw systems
The drapery carriers are installed at the factory, however, the required number of carriers must be verified.
Draperies require one carrier per hook. The first two drapery hooks should hook on the master carrier for
left, right and split draw systems (see respective diagrams on the next two pages). The number of carriers
required is equal to the number of drapery hooks in fabric minus four (4).
The number of carriers
required is four less
than the total number of
hooks on the drapery.
The first two drapery
hooks should hook to
the master carrier and
the last two drapery
hooks should hook to
the motor housing.
Idle End
Motor Housing
hooks for last
two (2) drapery
hooks
Master Carrier
First two (2)
drapery hooks
should hook
here
Auxiliary Carriers Motor End
TO ADD OR REMOVE CARRIERS:
Single Draw: Left or Right
Pry out square plug on the motor side of
the track.
Insert or remove auxiliary carriers through
the square hole in the track until the proper
number of carriers are installed.
Replace plastic square plug by pushing it up
into the square hole until it snaps into place.
3
2
1
Pry out here using
flat blade screw
driver
1
Square
hole
2
Push up
3
SIVOIA QEDTM Drapery Installation Instructions 7
2
2.2

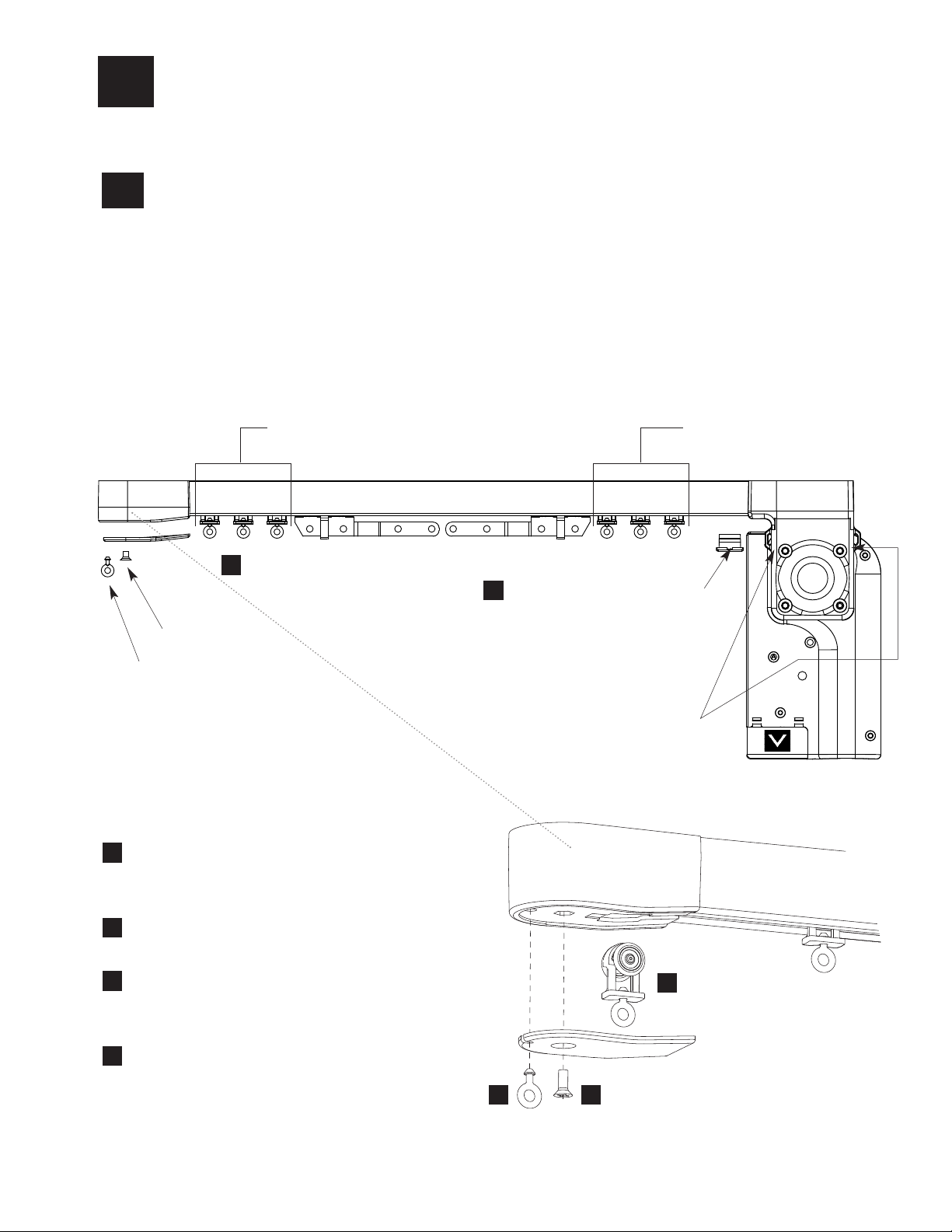

Split draw systems
The motor side of the drapery track requires four less carriers than the total number of hooks on the
drapery track. The first two drapery hooks should hook to the master carrier and the last two drapery
hooks should hook to the motor housing.
The number of carriers required is different for the idle side. The idle side of the drapery requires three less
carriers than the total number of hooks on the drapery. The first two drapery hooks should hook to the
master carrier, and the last drapery hook should hook onto the hook eye on the idle end cap. See
diagram below.
Carrier Installation – Split Draw Systems
Idle end hook eye
Remove idle end cover
2
TO ADD OR REMOVE CARRIERS:
Split Drive Systems
Follow the directions on page 6 for motor
side plug removal, and installation of the
auxiliary carriers.
Remove screw that retains the idle end cover.
Remove idle and hook eye.
Insert or remove auxiliary carriers through the
square hole in the idle end cap until the
proper number of carriers are installed.
Install idle end hook eye and replace the idle
end cover using the screw removed in step 2.
4
3
2
1
Remove track plug on the
motor side. Follow the directions
given on page 6.
1
3
Idle end cover
retaining screw
4 2
Motor Housing hooks
Number of drapery
hooks minus three (3)
Number of drapery
hooks minus four (4)
SIVOIA QEDTM Drapery Installation Instructions 8
3
3.1
Drapery hook setting
For the best system performance, a drapery hook setting of 1/2 in should be used.
This allows the system to operate with minimal noise.
Hanging Drapery Fabric
DRAPERY FABRIC RETURN
4.0-6.5 in
(depends on wall
mount bracket extension)
.50 in
SIVOIA QEDTM Drapery Installation Instructions 9
4
4.1
Wire each EDU to a Sivoia QEDTM plug-in
transformer, junction-box-mount
transformer, or a Sivoia QED power panel.
Each EDU must be EARTH grounded.
Each transformer, of any type, can
power ONLY ONE EDU, regardless of
drapery size.
System Wiring – Multiple EDUs
Communications Link 4 Conductors
Power Wires 3 Conductors
A
B
Lutron Sivoia QED
seeTouch keypad BACK
Common
12V
MUX
MUX
AC
AC
EGND
Common
12V
MUX
MUX
AC
AC
EGND
female EDU
connector
p/n 443353
female EDU
connector
p/n 443353
4
3
2
1
B
A
