Lutron Electronics QS Timeclock Manual del propietario

QS Timeclock

(for lights and window treatments/shades)

Quick Installation

and Operation Guide

Please Read

The QS Timeclock is a premier energy-saving astronomic timeclock for lights

and window treatments, which integrates seamlessly with the Lutron Energi

Savr Node components and QS window treatments.

Model Number: QSGR-TC-3S-WH

Rating: 120–240 V~50/60 Hz 100 mA

Output: 24 V-150 mA IEC PELV/NEC®Class 2 supply

English

Français Español Português Deutsch Italiano Nederlands 中文

Contents

Features and Functions..................2

Line Voltage Wiring .....................3

Terminations ..........................3

Line Voltage Wiring Details ...............4

Overview of IEC PELV/NEC®Class 2 Wiring..5

QS Link Wiring ........................6

Completing Installation ..................8

Programming Mode ....................9

Timeclock Operation

Setting Time and Date.................10

Setting Location .....................11

Setting Daylight Saving Time ...........11

Adding an Event .....................12

Deleting/Viewing an Event .............13

Setting/Viewing/Deleting a Holiday ......14

Copying/Deleting a Schedule...........15

Troubleshooting.......................16

Warranty, Contact Information ...........18

For additional features and advanced functions,

see the complete installation and operation guide

(P/N 032383) at www.lutron.com

123456Info screen

Displays programming

functions

Program buttons

Shade (window treatment)

button groups

Preset and raise/lower

buttons with integral LEDs

(maximum of 3 button

groups)

Timeclock button

Displays current

timeclock info

OK button

Used for programming,

navigation

USB type mini B

For programming via PC

Features and Functions

QS Timeclock Quick Installation and Operation Guide 2

QS Timeclock Quick Installation and Operation Guide 3

D1 D1 D2 D2

• Pull power wiring from distribution panel to QS Timeclock.

• Each line voltage terminal can accept one 12 AWG (4.0 mm²) wire.

Line Voltage Wiring

D1 D1 D2 D2

NOT USED

Rear of

QS Timeclock

1234

12 ABC

123456LN

Line voltage (Line/Hot)

is labeled L.

100–240 V~ only

Distribution Panel

1234

12 ABC

123456LN

Terminations

QS Communication link

Contact closure input and 24 V-power

NOT

USED

Input Power

L: Line/Hot

N: Neutral

: Ground

Line Voltage Wiring Details

• Use properly certified cable for all line

voltage/mains cables.

• Proper short-circuit and overload

protection must be provided at the

distribution panel.

• Install in accordance with all local and

national electrical codes.

• IEC PELV/NEC®Class 2 terminals may

be temporarily unplugged for ease of

contact closure and control wiring.

• Notice: Risk of damage to unit. Do not

connect line voltage/mains cable to IEC

PELV/NEC®Class 2 terminals.

Step 1: Install wallbox. Mount a 3`in

(89 mm) deep 4-gang U.S. wallbox on a

dry, flat indoor surface that is accessible

and allows for system programming and

operation. Allow at least 4`in (110 mm)

clearance above and below the faceplate

to ensure proper heat dissipation. Allow

1 in (25 mm) for faceplate overhang on

all sides.

Note: 4-gang wallbox available from

Lutron; P/N 241400.

Step 2: Check wiring.

•Earth/ground terminal connection must

be made as shown in wiring diagrams

(see page 3).

• Follow all local and national electrical

codes when installing IEC PELV/NEC®

Class 2 wiring with line voltage/mains

wiring.

WARNING! Electric Shock hazard.

May result in Serious Injury or

Death. Always turn off circuit

breaker or remove main fuse from

power line before doing any work.

Step 3: Connect line voltage.

• Strip 9in (8 mm) of

insulation off the line

voltage/mains cables in

the wallbox.

• Connect the line voltage/mains and

ground wires to the appropriate terminals

on the back of the timeclock.

L: Line/Hot

N: Neutral

: Ground

The recommended installation torque is

5.0 in∙lb (0.6 N∙m) for line voltage/mains

connections and 5.0 in∙lb (0.6 N∙m) for

the earth/ground connection.

Notice: Risk of damage to unit.

The QS Timeclock must be installed by

a qualified electrician in accordance with

all applicable regulations and building

codes. Improper wiring can result

in damage to the timeclock or other

equipment.

QS Timeclock Quick Installation and Operation Guide 4

Faceplate overhangs

wallbox on all sides;

allow 1 in (25 mm)

4`in

(110 mm)

9in

(8 mm)

Contact Closure Input Wiring

24 V-50 mA

For settings, see CCI Setup.

12 ABC

NH123456

1234

Note: Use appropriate wire

connecting devices as

specified by local codes.

Example:

Third-party contact

closure to enable/

disable timeclock

1: COM

2: 24 V-*

3: MUX

4: MUX

Control Wiring

24 V-100 mA

Overview of IEC PELV/NEC®Class 2 Wiring

18 AWG (1.0 mm2)

each terminal

A: CCI SIG

B: 24 V-

C: CCI COM

To other

QS devices

Data (terminals 3 and 4):

Twisted, shielded pair 22 AWG (0.5 mm2) each terminal

Common and power (terminals 1 and 2):

Two 18 AWG (1.0 mm2) each terminal (for link <500 ft/153 m)

Two 12 AWG (4.0 mm2) each terminal (for link 500–2000 ft/153–610 m)

*Do not connect terminal 2

between a QS Timeclock

and any other power supply.

QS Timeclock Quick Installation and Operation Guide 5

IEC PELV/NEC®Class 2 control wiring

(2) 18 AWG (1.0 mm2)

1: Common

2: 24 V-

Wiring Detail

For links 500–2000 ft (153–610 m)

Data link: (1) twisted, shielded pair

22 AWG (0.5 mm2)

3: MUX

4: MUX

(2) 12 AWG

(4.0 mm2)

(2) 12 AWG

(4.0 mm2)

NOT

USED

QS Timeclock Quick Installation and Operation Guide 6

• Each IEC PELV/NEC®Class 2 terminal

accepts up to two 18 AWG (1.0 mm²)

wires.

• Connect the terminal 1, 3, and 4

connections to all control units,

wallstations, and control interfaces.

• Total length of control link must not

exceed 2000 ft (610 m).

• Do not allow IEC PELV/NEC®Class 2

wires to contact line/mains wires.

• The QS Timeclock provides 3 PDUs

(Power Draw Units) on the QS Link.

For more information, see Lutron

P/N 369405, “Power Draw Units on the

QS Link” at www.lutron.com

QS Communication Link

Terminal Detail

QS Link Wiring

D1 D1 D2 D2

MUX

24 V-

COM

LUTRON

LUTRON LUTRON LUTRON

Energi Savr Node

Sivoia QS

smart

power

panel

Sivoia QS

shade Sivoia QS

shade

QS Timeclock

Wallstation

Wallstations

Connect all 4

terminals within a

power group:

1: Common

2: 24 V-

3 and 4: Data

Connect only 3

terminals between

power groups:

1: Common

3 and 4: Data

Do not connect

Terminal 2: 24 V-

Power Group 1

Power Group 2

Power Group 3

Power Group 4

Energi Savr Node

Wiring Example

• System communication uses

IEC PELV/NEC®Class 2 wiring.

• Follow all local and national electrical

codes when installing IEC PELV/NEC®

Class 2 wiring with line voltage/

mains wiring.

• Make all connections in the control

unit’s wallbox.

• Wiring can be T-tapped or daisy-chained.

• 24 V-100 mA IEC PELV/NEC®Class 2.

QS Link Wiring (continued)

QS Timeclock Quick Installation and Operation Guide 7

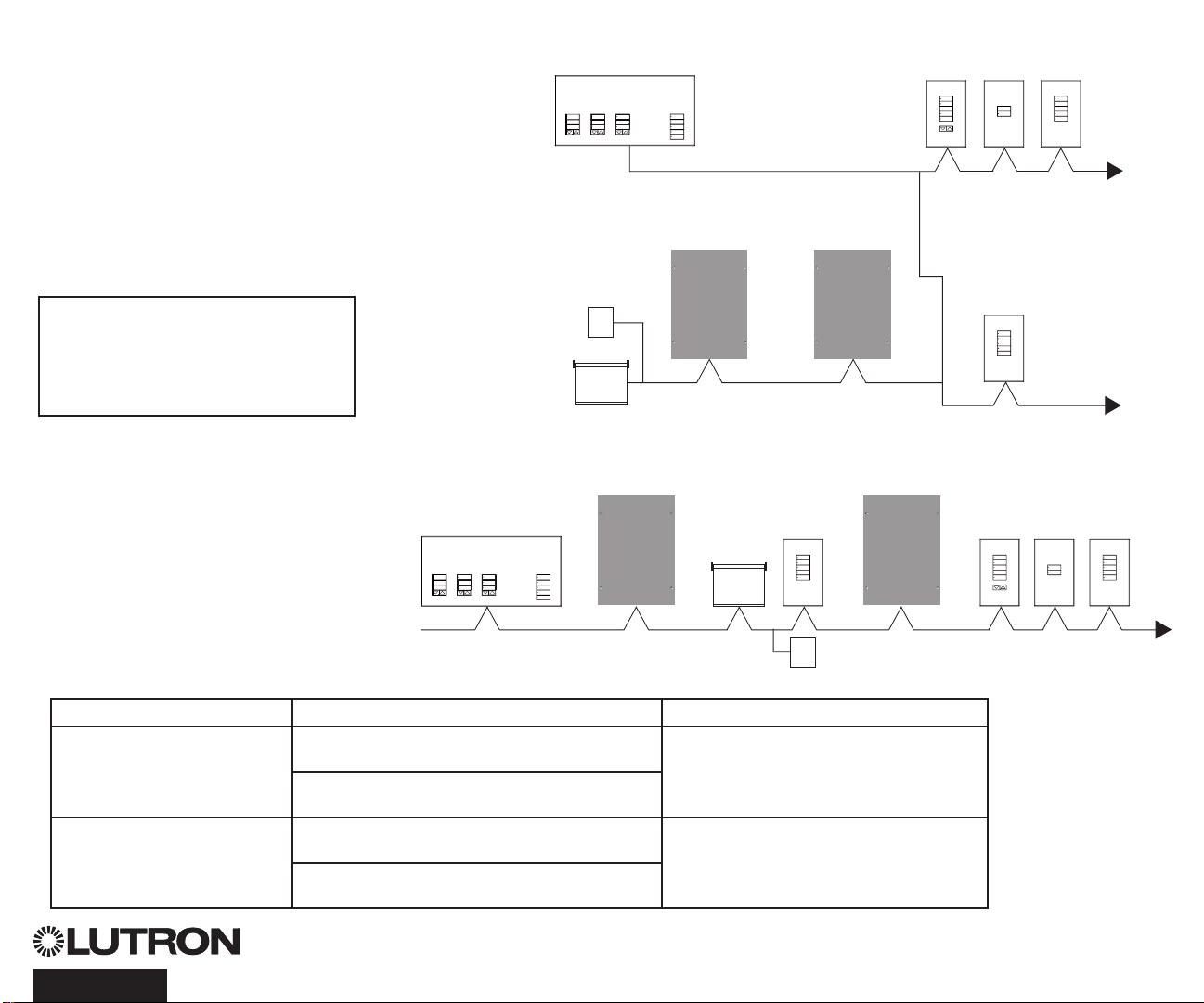

T-Tap Wiring Example

LUTRON LUTRONLUTRON LUTRON

LUTRON LUTRON LUTRON

LUTRON

LUTRON LUTRON LUTRON

QS Timeclock seeTouch QS

Sivoia QS

Shade

Sivoia QS

smart panel

Energi Savr Node Energi Savr Node

LUTRON LUTRONLUTRON LUTRON

LUTRON LUTRON LUTRON

LUTRON

LUTRON LUTRON LUTRON

Sivoia QS

smart panel

QS Timeclock

Sivoia QS

Shade

seeTouch QS

Daisy-Chain Wiring Example

Energi Savr Node Energi Savr Node

Note: The QS Timeclock provides

3 power draw units on the QS link.

For more information on PDUs, see

“Power Draw Units on the QS Link”,

PN 369405 at www.lutron.com

Wire Sizes (check compatibility in your area)

QS Link Wiring Length Wire Gauge Lutron Cable Part Number

Less than 500 ft (153 m) Power (terminals 1 and 2)

1 pair 18 AWG (1.0 mm2)GRX-CBL-346S (non-plenum)

GRX-PCBL-346S (plenum)

Data (terminals 3 and 4)

1 twisted, shielded pair 22 AWG (0.5 mm2)

500 to 2000 ft

(153 to 610 m)

Power (terminals 1 and 2)

1 pair 12 AWG (4.0 mm2)GRX-CBL-46L (non-plenum)

GRX-PCBL-46L (plenum)

Data (terminals 3 and 4)

1 twisted, shielded pair 22 AWG (0.5 mm2)

Completing Installation

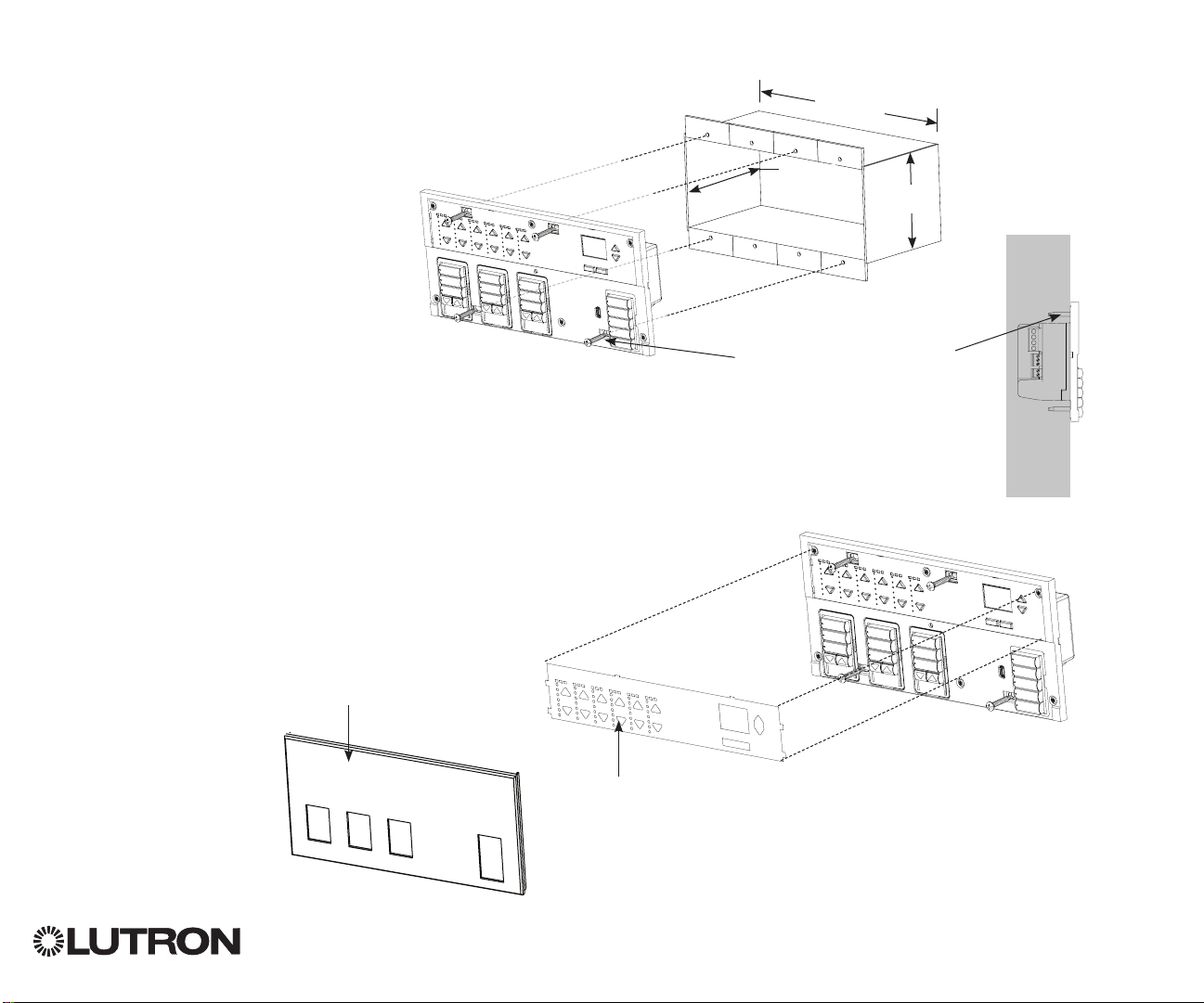

1.Mount the QS Timeclock in the wallbox

as shown using the four screws provided.

Note: Follow all local and national

electrical codes when installing IEC PELV/

NEC®Class 2 wiring with line voltage/

mains wiring.

2.Verify installation.

3.Restore power.

4.Apply the protective overlay to the QS

Timeclock.

QS Timeclock Quick Installation and Operation Guide 8

Note: When tightening mounting

screws, make sure that the hinged

cover and faceplate will open fully,

as shown.

Wall

7.9 in

(200 mm)

3.5 in

(87 mm) 3.75 in

(95 mm)

Protective overlay

(apply after installation)

Faceplate

(apply after installation)

Entering and Exiting Programming Mode

To enter programming mode:

Press and hold the top and bottom

programming buttons simultaneously for

3 seconds. The LEDs in the scene buttons

will scroll from top to bottom, confirming

that you are in programming mode, and the

info screen will display the main menu.

To exit programming mode:

Press and hold the top and bottom

programming buttons simultaneously for

3 seconds.

Navigating Menus in Programming Mode

Master Buttons

The Master buttons allow you to move through the menu

choices. The current choice is highlighted on the info screen.

OK Button

The OK button chooses the current highlighted menu choice.

This will either take you to the next menu or accept a setting you

have selected. When the screen displays a Yes/ No question, the

OK button is “Yes”.

Timeclock Button

The timeclock button functions as a “back” button during

programming mode. Pressing the timeclock button takes you

back one step in the current menu. Pressing it repeatedly

will eventually return you to the main menu, but will not exit

programming mode. When the screen displays a Yes/No

question, the Timeclock button is “No”.

Programming Mode

Main menu

CCI setup

Timeclock

QS Timeclock Quick Installation and Operation Guide 9

123456

Press and hold the top

and bottom buttons for

3 seconds to enter or exit

programming mode

Master buttons

OK button

Timeclock (back) button

QS Timeclock Quick Installation and Operation Guide 10

Timeclock Operation

Setting Time and Date

1. Enter programming mode.

2. Use the Master buttons to highlight “Timeclock” and press the

OK button to accept.

3. Use the Master buttons to highlight “Time & date” and press

the OK button to accept.

4. Use the Master buttons to highlight either “12 Hr” or “24 Hr”

format for time display and press the OK button to accept.

5. Use the Master buttons to highlight the current hour and press

the OK button to accept. Repeat for the current minutes.

6. Use the Master buttons to highlight the current year and press

the OK button to accept. Repeat for the current month and

date.

7. The info screen will confirm that your time and date have

been saved.

8. Exit programming mode.

Main menu

Timeclock

Scene setup

Timeclock

End afterhours

Time & date

Set time

: 00 AM

Timeclock

Set date

: 00 2009

Set date

Set format

12 Hr

March

Set date

Set time

08 : AM

Saved

1 2 3 4 5 6

Master

buttons

button

Timeclock

(back) button

Otros manuales para QS Timeclock

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unidad de control de Lutron Electronics

Lutron Electronics

Lutron Electronics Vive PowPak Manual de usuario

Lutron Electronics

Lutron Electronics LCP128 Manual de funcionamiento

Lutron Electronics

Lutron Electronics seeTouch guestroom solutions Manual de usuario

Lutron Electronics

Lutron Electronics Maestro Wireless MRF2-3PD-1 Manual de usuario

Lutron Electronics

Lutron Electronics RadioRA RA-SBT-CHR Instrucciones de funcionamiento y seguridad

Lutron Electronics

Lutron Electronics RadioRA RAMC-5W Manual de usuario

Lutron Electronics

Lutron Electronics Energi Savr Node Manual de usuario

Lutron Electronics

Lutron Electronics Vive Series Manual de usuario

Lutron Electronics

Lutron Electronics GRAFIK 6000 Manual de usuario

Lutron Electronics

Lutron Electronics TriPak Series Manual de usuario

Lutron Electronics

Lutron Electronics QSN-2DALUNV-S Manual de usuario

Lutron Electronics

Lutron Electronics GRAFIK Eye QSGRJ-3P Instrucciones de funcionamiento

Lutron Electronics

Lutron Electronics PowPak RMJS-16R-DV-B Manual de usuario

Lutron Electronics

Lutron Electronics QSGRK-6D Manual del propietario

Lutron Electronics

Lutron Electronics QSGRK-3PCE Manual del propietario

Lutron Electronics

Lutron Electronics LMM-16R-DV-B Manual de usuario

Lutron Electronics

Lutron Electronics PowPak RMK-CCO1-24-B Manual de usuario

Lutron Electronics

Lutron Electronics PowPak RMJ-CCO1-24-B Manual de usuario

Lutron Electronics

Lutron Electronics AYFSQ-F Manual de usuario

Lutron Electronics

Lutron Electronics LQR-WPM-6D Instrucciones de funcionamiento

Lutron Electronics

Lutron Electronics GFS-5E Manual de usuario

Lutron Electronics

Lutron Electronics Pico QSR4P-3R Manual de usuario

Lutron Electronics

Lutron Electronics GRAFIK Eye QSGRJ-3P Instrucciones de funcionamiento

Lutron Electronics

Lutron Electronics GRAFIK Eye QS Manual del propietario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
