Lovibond EC 2000 Gardner Instrucciones de montaje

EC 2000 Gardner

LM162020 Version 1.1

Operator Instruction Manual

Lovibond® Water Testing and Colour Measurement

Table of Contents

Environment:................................................................................................ 4

Introduction: ................................................................................................ 5

Keypad:......................................................................................................... 6

Display Icons:................................................................................................ 6

Power- USB: ................................................................................................. 6

Power- Battery: ............................................................................................ 6

Firmware and Version Number:................................................................... 7

Settings......................................................................................................... 8

Instrument Diagnostics ............................................................................ 8

Instrument Settings.................................................................................. 9

Information ............................................................................................ 11

Power Saving Settings ............................................................................11

Regional Settings.................................................................................... 12

Date and Time........................................................................................12

Projects: .....................................................................................................13

New Projects ..........................................................................................13

Set Tolerances........................................................................................14

Averaging and Automatic Log (automatic saving) .................................15

Edit a Project ..........................................................................................16

Delete a Project......................................................................................16

Make a Project Default .......................................................................... 17

Make a Project Current.......................................................................... 18

View the Measurements........................................................................18

Delete a Measurement ..........................................................................18

Save a Measurement (manual saving)................................................... 19

Error Warnings: .......................................................................................... 20

Updating the firmware:.............................................................................. 21

EC 2000 Kit Contents - Gardner: ................................................................ 23

EC 2000 Technical Data - Gardner .............................................................24

Performing a Zero –Gardner: ....................................................................26

Performing a Test - Gardner: .....................................................................28

Performing a Liquid Instrument Validation–Gardner ................................ 30

Performing an Instrument Validation using a Glass Standard –Gardner..33

Sales Offices ............................................................................................... 35

Environment:

This appliance is marked according to the

European Directive 2002/95/EC on the waste of

Electrical and Electronic Equipment (WEEE). By

ensuring this product is disposed of correctly, you

will help prevent potential negative consequences

for the environment and human health, which

could otherwise be caused by inappropriate waste

handling of this product.

Introduction:

The Lovibond® EComparator Series provides an easy way to transition from

subjective visual measurement to a non-subjective, accurate electronic

measurement.

Colour graders who are used to the traditional comparator series sometimes

find the upgrade or transition to an electronic system daunting. The

assurance of relying on physical colour difference is diminished.

With the EComparator Series, users can view the colour in two different

ways:

On-Screen Numerical Display

On-Screen Colour Display of sample and nearest colour scale standards

Touch screen technology allows the EComparator Series to show simple,

specific and intuitive menus on screen. Users can set language, date and time,

view preferences and create projects with individual tolerance settings. An

on-screen warning system of:

Within Tolerance = Green;

Outside Tolerance = Red;

On Border of Tolerance = Amber

provides the user with immediate information on the sample.

The user friendly ergonomics and intuitive interface guarantee new users can

be quickly trained and easily supported. Large data storage (> 20,000

readings), USB connectivity ensure readings can be stored and shared easily

and quickly. Flexibility is further enhanced with software packages for

Windows®, IOS® and AndroidTM with multiple language support on-screen.

Keypad:

Display Icons:

Power- USB:

Power- Battery:

Icon

Function

Battery Low

SD Card OK

Warning

Test

Zero

Power

The USB port can be accessed

by sliding the panel at the rear

of the instrument.

The batteries can be replaced

by removing the 4 x screws at

the back of the instrument and

removing the battery cover.

Ensure the cable connector is inserted

into the socket in the correct

orientation. The symbol on the USB

connector should be facing down.

Top of Connector

Top of Instrument

Firmware and Version Number:

The Firmware and Version Number

will be displayed when the

instrument is switched on.

(Please Note: “Scale Name” will be

replaced by the Scale your

EComparator measures).

Settings

1 - To enter the settings menu,

press the settings icon at the

bottom tool bar.

1a -The settings display will show.

Instrument Diagnostics

2 - For Instrument Diagnostics,

press the Diagnostics Icon.

2a - The instrument will perform

diagnostics on the Memory, SD

Card, LED and Light Sensor.

2b - Any errors will be shown in red.

To view detailed information select

Report.

Please contact you local service centre

for help.

www.lovibondcolour.com/ServiceCenter

2c - The instrument will display the

report. When finished, select Done.

Instrument Settings

3 - For Instrument Settings, press

the Instrument Icon

3a –To set the integration time,

ensure the sample chamber is

empty, and then press Set.

(This will set the optimum time for

taking a measurement).

3b–The instrument will advise to

check the Sample Chamber. Press

OK when empty.

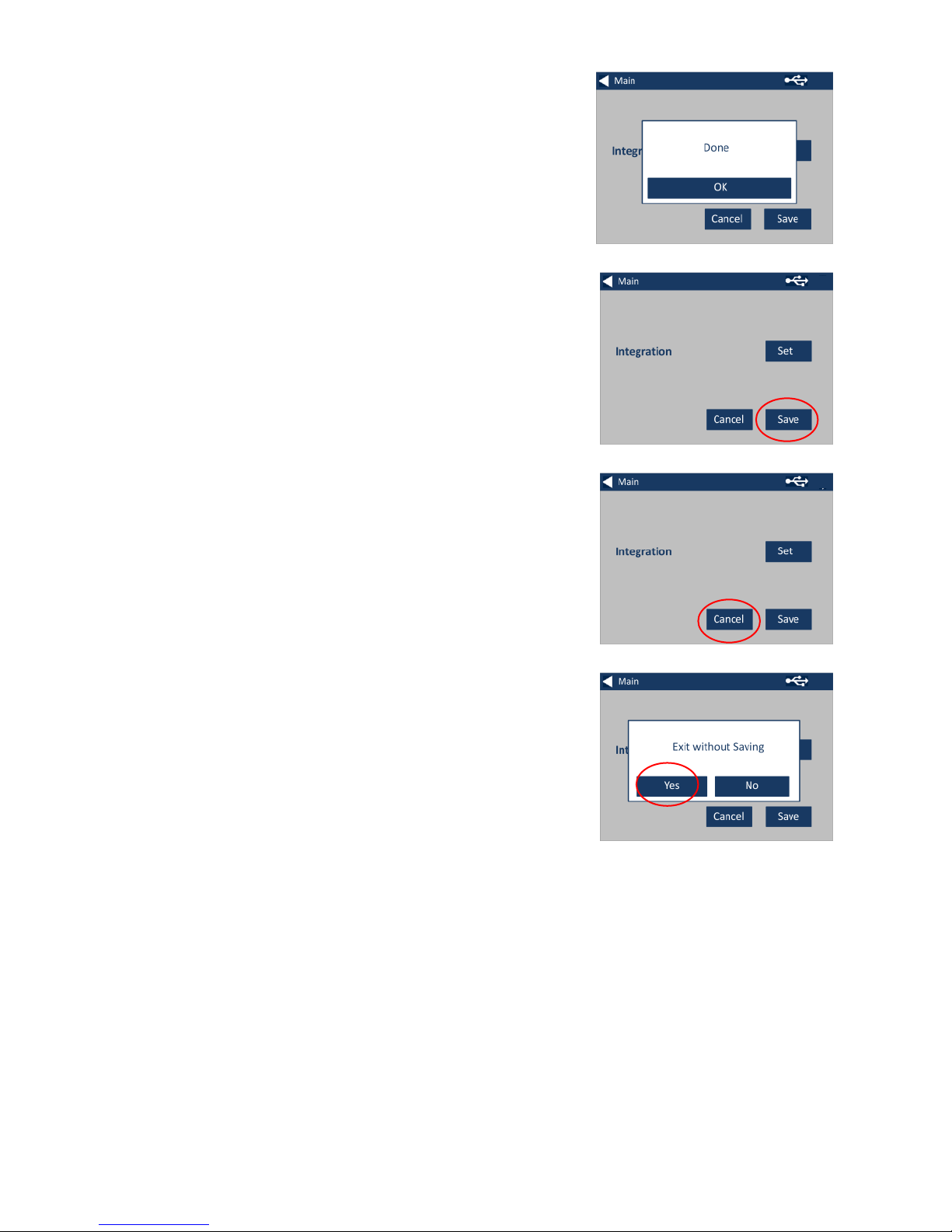

3c –The instrument will determine

the integration time, a series of

numbers will appear on the screen.

3d –Click OK when complete.

3e - To save the settings, press

Save.

3f - To cancel the settings, press

Cancel.

3g –To exit without saving, press

Yes, or press No to continue.
