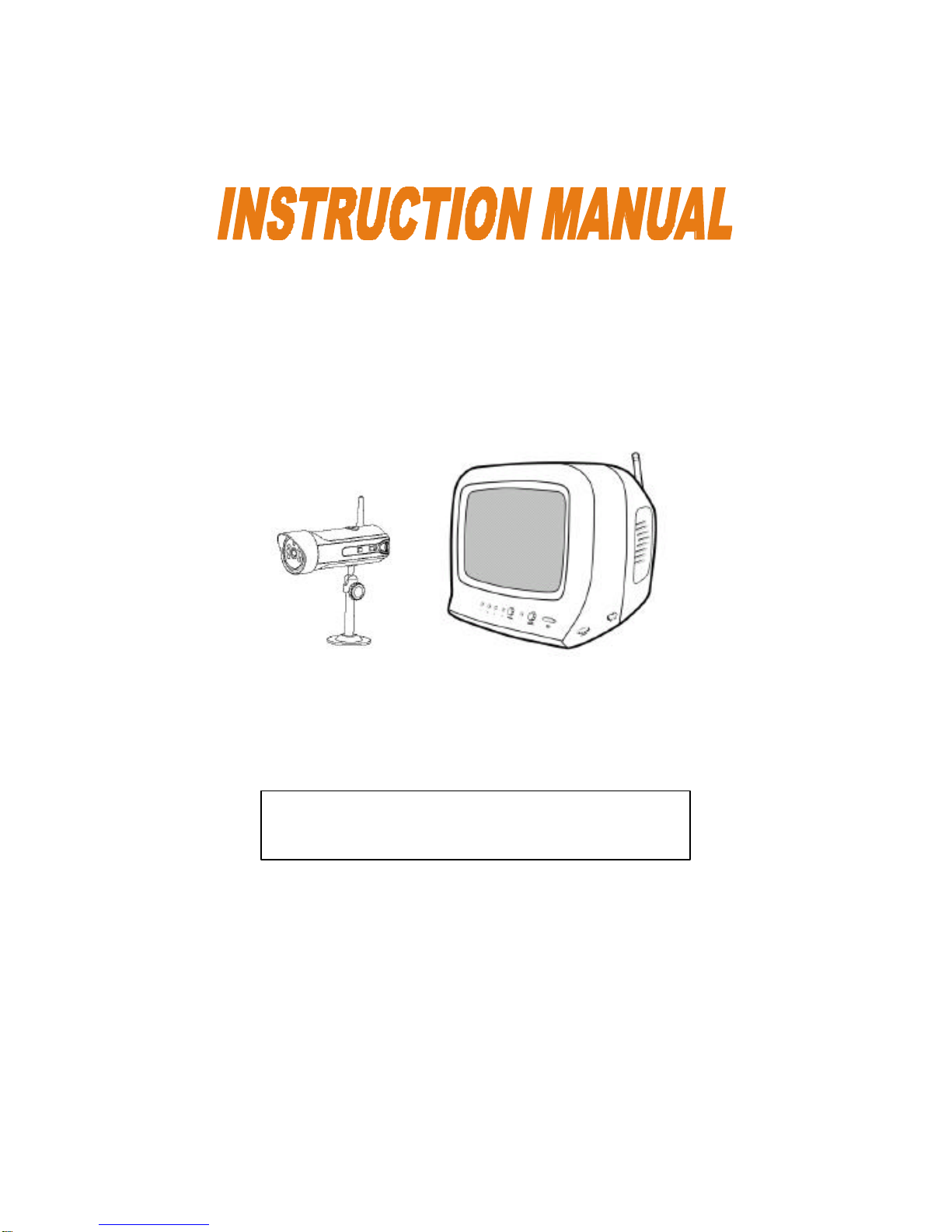

Lorex SG4230 Manual de usuario

2.4 GHz Wireless Black & White

Video Security System with

1 camera

FOR MORE INFORMATION

WWW.STRATEGICVISTA.COM

Before operating the system, please read this manual

thoroughly and retain it for future reference.

This product broadcasts over public airwaves and its

video and audio signals may be intercepted without

your consent.

Explanation of two Symbols

The lightning flash with arrowheadsymbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage“within the

product's enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in

the literature accompanying the appliance.

THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON

THE BOTTOM OF THE SYSTEM.

WARNING: To prevent fire or shock hazard, do not expose this unit to

rain, water, or wet locations. Do not insert any metallic object

through the ventilation grills.

FCC CLASS B NOTICE

Note:

This equipment has been tested and found to comply with the limits For a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, (which can be determined by turning the equipment off

and on), the user is encouraged to try to correct the interference by one or more

of the following measures:

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

•Reorient or relocate the receiving antenna

•Increase the separation between the monitor and the camera.

•Connect the equipment into an outlet on a circuit different from that to which

other devices may be connected.

•Consult the dealer or an experienced radio or television technician for help.

SAFETY INSTRUCTIONS

IMPORTANT SAFEGUARDS

All the safety and operating instructions should be read before the

Appliance is operated and retained for future reference.

1. HEED WARNINGS -All warnings on the appliance and in the operating

instructions should be adhered to.

2. FOLLOW INSTRUCTIONS -All operating instructions should be

followed.

3. WATER AND MOISTURE -Do not use this video product near water –

for example, a bath tub, wash bowl, kitchen sink, laundry tub or

swimming pool, or in a wet basement.

4. POWER SOURCES -This product should be operated only from the type

of power source indicated on the marking label.

5. OVERLOADING -Do not overload outlets and extension cords, which

can result in a risk of fire or electric shock.

6. SERVICING -Do not attempt to service this product yourself. Opening or

removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing or repairs to qualified service personnel.

7. DAMAGE REQUIRING SERVICE -Unplug this product from the wall

outlet and refer servicing or repairs to qualified service personnel under

the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the

operating instructions.

e. If the product has been dropped or the cabinet has been damaged.

f. When the product exhibits a distinct change in performance.

8. REPLACEMENT PARTS -When replacement parts are required, be

sure the service technician has used replacement parts that are

specified by the manufacturer or have the same characteristics as the

original part. Unauthorized substitutions may result in fire, electric

shock, or other hazards.

9. SAFETY CHECK -Upon completion of any service or repairs to this

video product, ask the service technician to perform safety checks to

determine if the video product is in proper operating condition.

10. An appliance and cart combination should be moved with care.

Do not place this equipment on an unstable cart, stand, or table.The

equipment may fall, causing serious injury to a child or adult, and

serious damage to the equipment. Wall or shelf mounting should

follow the manufacturer's instructions and should be done with

a mounting kit approved by the manufacturer.

TABLE OF CONTENTS PAGE

iii

INTRODUCTION & FEATURES………………………………………

SYSTEM INCLUDES…………………………………………………..

CONTROLS AND FUNCTIONS

Monitor …....................................….……………………..……...

Camera ...….……………..............................……….……...……

INSTALLATION

Camera ......................................................……………….…....

Monitor .....................................................................………......

SYSTEM OPERATION

Additional camera connection…………………………………….

Auto Scanning………………………………………………………

Auto & Manual Viewing Options………………………………….

Selectable Dwell Settings…………………………………………

Connecting The Monitor To A VCR ……...………………..…….

OPTIONAL ACCESSORIES ..........................................................

TROUBLE SHOOTING ..............................................………..…...

TECHNICAL SPECIFICATIONS ....................................................

CARE & MAINTENANCE……………………………..……………….

INTRODUCTION:

Thank you for purchasing the 2.4 GHz Wireless B&W Video System.

This is an ideal solution for monitoring your business or home, or for

safeguarding your valuables. The package contains a 5.5” B&W

Monitor, and 1 wireless B&W camera.

The system allows you to automatically scan between locations with the

convenience of connecting up to 4 cameras. (additional cameras sold

separately). Use the Listen-in Audio feature to pick up sound within a

specific location. Avoiding the hassle of running wires, this system is

easy to install and operate for your immediate security applications.

The RCA audio/video outputs also allow you to connect a time lapse

VCR or standard VCR for recording purposes.

To learn more about this 2.4GHz Wireless B&W Video System and our

complete range of accessory products, please visit our website at:

www.strategicvista.com

FEATURES:

•Auto Scanning –Up to 4 cameras;

•Wireless range of up to 300 ft (open space, no obstacles)

•Sequential or Full Screen Viewing options;

•Listen-in Audio;

•Built-in Speaker with volume control

•Audio/Video outputs allow user to record picture to any standard VCR

•LED indicator lights show system status

•Camera with battery option (4 “AA”batteries, not included)

•Camera ideal for ceiling, wall or table mounting

SYSTEM INCLUDES:

5.5”–2.4 GHz B&W Monitor 1 -2.4 GHz B&W Wireless Camera

with camera stand & screws

Owner’s Manual

Also includes:

1 –9V DC 500mA Adapter (Camera)

1 –13.8V DC 1000mA Adapter (Monitor)

1 –RCA Audio/Video Cables

Mounting hardware

Window decals

MONITOR CONTROLS –FRONT & BACK PANEL

MONITOR BACK VIEWMONITOR FRONT VIEW

Location of Receiver Monitor controls

1. 2.4GHz Antenna -High gain dipole patch antenna receives audio

and video signal from the camera.

2. CRT -5.5”Diagonal Screen

3. Brightness Control –Allows you to adjust the brightness of the picture

4. Channel Selector -Switches between channel 1-4 / AUTO selection.

5. Auto/Manual Button -Allows you to switch from AUTO mode to the

MANUAL mode

(a) Push this button for the Auto mode, sequences between cameras 1-4

(b) When the Manual mode is selected, press the channel button to see

each channel

6. Audio Mute Button –Push this button to mute the sound on the monitor

7. Volume Control –Turn this dial to adjust the volume on the monitor

8. ON/OFF Switch –Used to switch the power on the monitor ON or OFF

9. Speaker -Emits sound from the camera location

10. DC Input Jack –Connect to the supplied 13.8V DC 1.0A AC adapter.

11. Audio Output Jack -RCA jack for Audio output connection

12. Video Output Jack -RCA jack for Video output connection

13. Contrast Control –Allows you to adjust the contrast of the picture

10 11 12 13

45678

CAMERA CONTROLS

1. Microphone –Built-in condenser microphone provides listen-in audio

capability from camera to monitor

2. Lens –B&W CMOS Image Sensor

3. 6 Infrared LED’s–Enhances the picture quality in low light conditions

4. Channel Selector Switch –Slide switch for channels 1-4

5. ON/OFF Power Switch –Controls power to the camera. Note: Please

ensure that you set the switch to the OFF position before plugging the

AC adapter into the unit

6. Battery Compartment –Optional 4 “AA” batteries (not included) can

be used to power the camera

7. Bracket –Metal bracket connects to camera for mounting to walls,

ceilings or table

8. DC IN Jack –Connects to the 9V DC (500mA) adapter.

9. 2.4GHz Antenna –High gain dipole antenna sends audio and video

signals to the monitor

Back View

Front/Side View

CAMERA INSTALLATION

1. Attach the stand base to the wall or ceiling where you want to install the

camera. Locate a wall stud or ceiling, and secure the bracket using the

four supplied screws.

2. Attach the camera to the stand and firmly tighten the swivel.

3. Attach the camera with the stand to the stand base, and firmly tighten the

joint knob on the stand base.

4. Connect the supplied 9V 500mA DC adapter to the DC IN jack at the rear

of the camera, and plug it into the electrical outlet.

MONITOR INSTALLATION

DC INPUT Jack

13.8V 1.0 A

AC Adapter

1. Connect the supplied AC adapter to the DC INPUT JACK at the rear of

the receiver monitor and plug it into the 120V electrical outlet.

Ensure the power switch on the monitor and camera are set to

the OFF position before proceeding with the following steps.

NOTE

To Power

Adapter

OPERATION

Camera

(1) Connect the power adapter to the camera power input and ensure the

camera is turned “ON”. Ensure the camera is set to channel 1.

Monitor

(1) Connect the supplied power adaptor to the power input of the monitor.

(2) Use the channel selection switch button and ensure the monitor is set

to the same channel as the camera to view the picture. Note: If you

experience transmission reception problems (eg. poor picture), you

may need to select another channel on the camera and monitor

and/or adjust the antennas on the monitor and camera to ensure they

are pointing at each other.

(3) Adjust the volume to the desired level. You may also mute the audio

option by pressing the mute button which is located at the front of the

monitor.

(4) Adjust the brightness and contrast level as required

Try to position both the Camera and Monitor as high off the ground as

possible for better picture reception

NOTE

ADDITIONAL CAMERA CONNECTION

This video security system allows you to view up to four different camera

locations. Additional cameras are sold separately, please refer to

www strategicvista.com for more information.

When connecting more than one camera to the monitor/camera system,

you will need to set each camera to a different channel (Channels 1-4).

CH 1

CH 3 CH 4

CH 2

Otros manuales para SG4230

Tabla de contenidos

Otros manuales de Sistema de seguridad de Lorex

Lorex

Lorex SG17LD800 Manual de usuario

Lorex

Lorex SG15F5584 Manual de usuario

Lorex

Lorex LW2201 Series Manual de usuario

Lorex

Lorex LHB900 Series Manual de usuario

Lorex

Lorex LW2101 series Manual de usuario

Lorex

Lorex SY14S1044C-A Manual de usuario

Lorex

Lorex SHS-2S7LD Series Manual de usuario

Lorex

Lorex SG21FD3044-161 Instrucciones de montaje

Lorex

Lorex SG 6040 Manual de usuario

Lorex

Lorex L154-81C4 Manual de usuario

Lorex

Lorex LHB926 Series Manual de usuario

Lorex

Lorex VANTAGE LH110 ECO SERIES Manual de usuario

Lorex

Lorex LHA4100 series Manual del operador

Lorex

Lorex VANTAGE LH110 ECO SERIES Manual de usuario

Lorex

Lorex LW2100 Series Manual de usuario

Lorex

Lorex LW1000P Series Manual de usuario

Lorex

Lorex L19LD800 Series Manual de usuario

Lorex

Lorex SG19LD80 Series Instrucciones de funcionamiento

Lorex

Lorex SG17LD800 Manual de usuario

Lorex

Lorex H32A Series Manual de usuario

Lorex

Lorex U222AA-Z Manual de instrucciones

Lorex

Lorex SHS-4QM Series Manual de usuario

Lorex

Lorex QLR1660 Manual de usuario

Lorex

Lorex WIRELESS HOME MONITORING SYSTEM Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
