HIGH RESOLUTION, DAY/NIGHT, INTERNET REMOTE VIEWING

VIDEO SURVEILLANCE SYSTEM

L204 Series COMPONENT SURVEILLANCE SYSTEM

www.lorexcctv.com

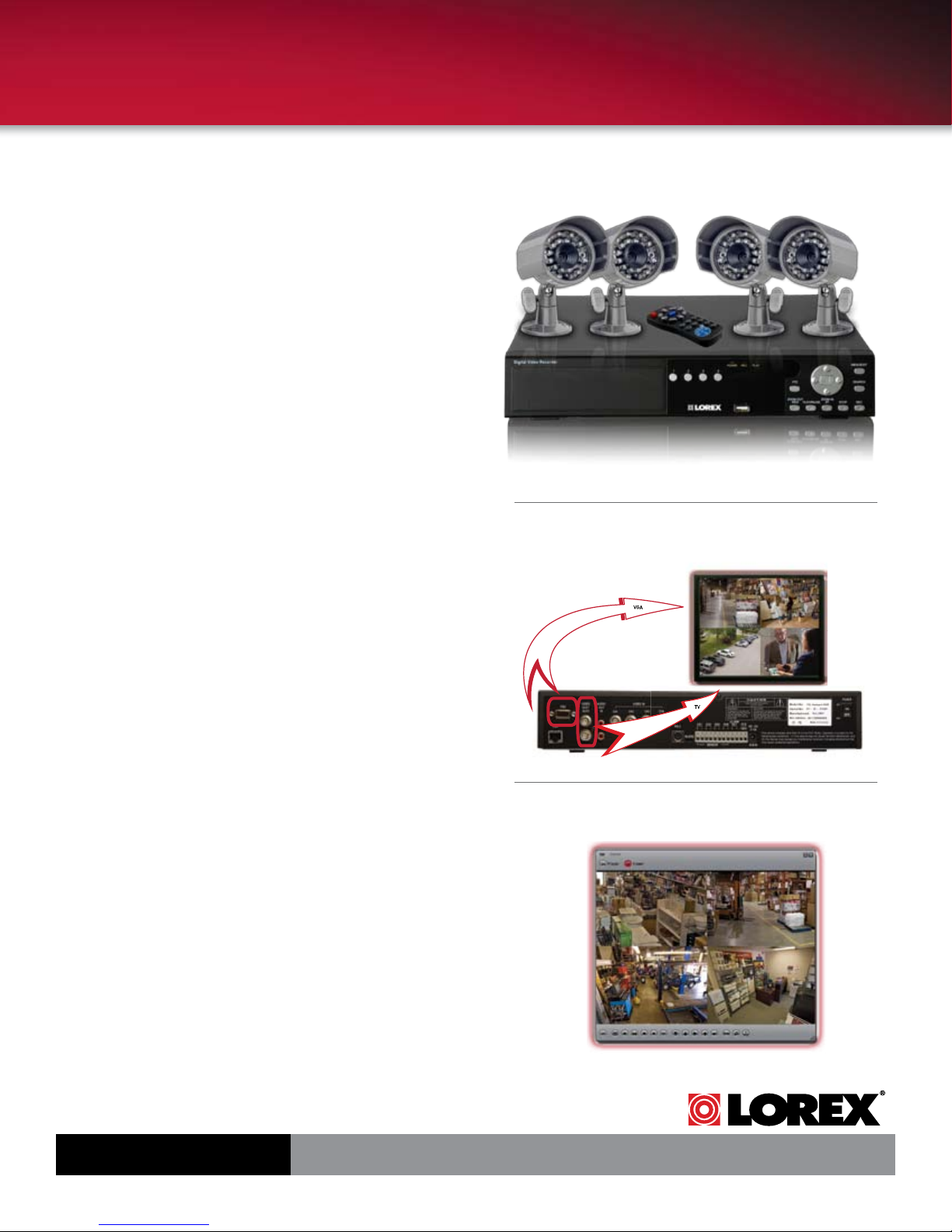

A versatile Surveillance Solution

SEE everything: Connect the included 4 high-resolution

weatherproof night-vision cameras. Monitor your property,

indoors and outdoors, day or night

RECORD what happens: High-capacity, security-certified hard

drive provides a reliable solution for your critical data. Extend

recording duration with flexible recording triggered by motion,

alarm or schedules. Triplex operation allows you to view, record

and playback simultaneously.

PROTECT what matters: Connect anytime, from anywhere in the

world using the internet remote monitoring software to view or

playback video that is important to you.

•

HOME & BUSINESS SECURITY

Safeguard your business or home. Includes DVR,

Cameras, Cables, Remote Access Software and

Quick Start Guide. It’s complete!

HOME BUSINESS

RETAIL INDUSTRY

Digital Video Recorder:

Triplex (view, record & playback simultaneously) Digital Video

Recorder with 1 channel audio

Large storage capacity recording (Supports 2 internal “security

certified” disk drives up to 1TB total)*

USB port for convenient transferring of critical data to USB

flash drive

Support an optional internal optical drive (CDRW or DVDRW

sold separately)

Pan-tilt-zoom camera control, RS485 interface (PTZ camera

not included)

Multiple recording modes (continuous, motion, alarm sensor,

schedule)

Adjustable frame rate for each channel (optimize recording

characteristics)

Mouse enabled menu system for easy set up and configuration

(mouse sold separately)

MJPEG video compression enables high resolution video

recording

Alarm input-4/output-1 (connect to existing intruder alarm or

alarm panel)

•

www.lorexcctv.com

* Recording capacity may vary based on recording resolution & quality, lighting conditions and movement in the scene.

** IR illumination range up to 50 ft (15M) under ideal conditions. Objects at or beyond this range may be partially or

completely obscured, depending on the camera application.

*** Not for use in direct exposure to water, rain or snow.

**** Requires a high speed internet connection and router - not included.

L204 Series COMPONENT SURVEILLANCE SYSTEM

EASY TO USE REMOTE SOFTWARE

08/09/2008 TUE

07:13:34

Monitor not included.

Pictures simulated.

Moniteur non inclus.

Images simulées.

Monitor no incluido.

Cuadros simulados.

VGA OUTPUT - CONNECTS TO ANY PC MONITOR

Cameras:

Advanced high resolution image sensor produces sharp and

clear video with 450 TV Lines

30 IR LEDs provides class leading night vision range of 50ft

(15m)**

True Day/Night operation using built-in IR Filter Changeable

Mechanism to achieve accurate color representation in

changing lighting conditions

Advanced Day/Night mode: picture automatically switches to

B&W delivering better clarity in low light conditions

Weatherproof Design: ideal for Outdoor and Indoor applications

(IP66***)

•

Software:

Internet Remote Functions****: View, Search & Playback, Back-

up and Setup

Microsoft Windows Vista™ Compatible

Free Lorex DDNS (Dynamic Domain Name System) service

keeps you connected anywhere all the time

•

Microsoft Windows™ XP™, Vista™ are trademarks of Microsoft Corporation.

Other trademarks are the property of Lorex Technology Inc. We reserve the right to change models, conﬁgurations or

speciﬁcations without notice or liability. Product may not be exactly as shown.

HIGH RESOLUTION, DAY/NIGHT, INTERNET REMOTE VIEWING

VIDEO SURVEILLANCE SYSTEM

Speciﬁcations:

Product Information:

Model#: L204251C4F: NTSC, Universal Package

UPC: L204251C4F: 7-78597-20403-2

Weight: 9.3 kg /20.6 lb

Package

Dimensions:

16.75 x 10.5 x 16.25 (“)/ 425x279x419 (mm)

(W x H x D)

Includes: DVR, HDD Pre-Installed, Remote Control,

Power Supply, 4 Cameras & stands, 4

camera extension cables, 10 ft. Ethernet

cable, Software application CD, Quick

Start Guide

As our product is subject to continuous improvement, Lorex

Technology & subsidiaries reserve the right to modify product

design, specifications & prices without notice and without

incurring any obligation. E&OE

3700 Koppers Street

Baltimore, Maryland 21227,

USA.

Lorex Technology Inc.

300 Alden Road, Markham,

Ontario L3R 4C1

Canada.

1-03112008

DVR:

Dimensions:

368mm/14.5”

DVR

70mm/2.75”

324mm/12.75”

CAMERA

3.2” /

80mm

3.9” /

100mm

2.7” /

68mm

Image Sensor: High Resolution 1/4” Advanced

Color Image Sensor

Video Format: NTSC

Effective Pixels: H: 656, V: 492

Resolution: 450 TV Line

Scan System: 2:1 Interlace

Sync System: Internal

S/N Ratio: More than 48dB

Iris: AES

AES Shutter Speed: 1/60~1/50,000 Sec

Min Illumination: 0.6 Lux without IR LED, 0 Lux with

IR LED

Video Output: Composite 1.0Vpp @ 75 ohm

Lens/ Lens Mount: 5mm F 2.0/ Fixed

FOV (Diagonal): 50 degree

Termination: BNC

IR LED/ Night Vision Range: 30 pieces / 850 nm / 50ft

Power Requirement: 12Vdc

Power Consumption: 220 mA or 3W max

Operating Temp Range: -10° ~ 50° C

Environmental Rating: IP 66

L204 SERIES

Operating system Realtime (RTOS)

Video Input 4 Channel (BNC)

Video Output 2 Channel

(2-composite/1-VGA)

Video Input Standard NTSC / PAL

Display Resolution 720 x 480 Pixels / 720 * 576 Pixels (NTSC/PAL)

Recording Resolution 640 * 224 Pixels / 640 * 272 Pixels (NTSC/PAL)

Display 120 fps / 100 fps real time (NTSC/PAL)

Recording 60 fps / 50 fps (15fps/12.5) per channel (NTSC/PAL)

Display Mode SINGLE/QUAD

Recording Compression Motion JPEG

Network Compression MPEG4

Image Size Low 12 kbytes/frame

(Each Channel) Normal 15 kbytes/frame

High 20 kbytes/frame

Recording Mode Continuous/Motion/

Schedule/sensor

HDD Capacity HDD * 2

(Max 500GB ea = 1TB)

Motion detection ON / OFF Control

Audio Input 1 Ch.

LAN Yes (DHCP, Static IP, PPPoE)

PTZ Yes (RS485)

Sensor / Alarm 4 Ch Input / 1Ch Output

CD-RW/DVD-RW No (optional)

VGA Yes (1024x768)

Mouse support Yes (PS/2) optional

Camera Control Color, Tint, Brightness

USB backup and

ﬁrmware upgrade Yes (USB 2.0)

Video Inputs

BNC Video inputs

Audio inputs PS/2

Ethernet

VGA

Alarm Block

DC Input

Master Switch

Back Panel:

CAMERA: (CVC6993R)
