L15LD420/LD17LD420 Series

QUICK START GUIDE

NOW WITH

L15LD420/L17LD420 Series Quick Set-Up Guide R1

System Contents:

1 x 4 Channel LCD DVR* with pre-installed HDD*

1 x 10 ft Ethernet Cable

1 x Remote Control

2 x AAA Batteries

1 x Power Adaptor (for monitor)

1 x “4 in 1” Power Adaptor (for cameras)*

4 x Color IR Cameras*

4 x 60 ft Extension Cables*

4 x Metal Camera Stands with Mounting Screws*

1 x Lorex Client 2.2 Software CD

1 x PS2 Mouse

1 x User’s Manual

1 x Software Manual

1 x Quick Start Guide

PACKAGE CONTENTS, INSTALLATION GUIDE, NAVIGATION & CONTROLS

INSTALLATION GUIDE

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Tools Skills - Easy

Under 20 Minutes* Hand Tools Plug & Play connections,

On screen set up

* Installation time may vary based on

application and camera cabling

STEP 1

STEP 2

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Plug & Play connectors,

On screen set up

Time Skills - Intermediate

Under 30 Minutes*

* Installation time may

vary based on application

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Hardware

Computer &

Router*

* Minimum System Requirement: Windows XP, Pentium

IV, 256MB Ram (512MB Recommended), 200MB Storage,

Internet, DSL or Cable Modem

STEP 3

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Hardware Skills - Advanced

60 Minutes Computer &

Router*

Basic Computer Skills,

Router Port Forwarding

* Installation time may vary based

on application

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

* Minimum System Requirement: Windows XP, Pentium IV,

256MB Ram (512MB Recommended), 200MB Storage, Internet,

DSL or Cable Modem

ATTENTION:

Broadband Router

and Computers are

required for local and

remote monitoring

(not included).

INSTRUCTIONS:

For detailed setup

information, please

refer to your User’s

manual.

SOFTWARE

REQUIREMENTS:

For Lorex Client Software

requirements, please refer

to Lorex Client Software

Manual.

Check Pages

9-10

ATTENTION:

*Number of channels,

cameras and hard drive

capacity may vary by

model. Check your

package for speciﬁc

content information.

* Screen size, number of cameras, accessories and hard drive capacity

may vary by model. Check your package for speciﬁc content information.

MOUSE:

LEFT BUTTON

• Double click in

viewing mode to

display camera in

full screen.

RIGHT BUTTON

• Click to open/exit

the Mouse MENU

in Viewing Mode.

SCROLL WHEEL

• Used to change

values in the

MENU mode.

RECOMMENDED

FOR EASY USE AND

NAVIGATION

REMOTE CONTROL: RECOMMENDED

FOR USE FROM A

DISTANCE

L15LD420/L17LD420 Series Quick Set-Up Guide R1

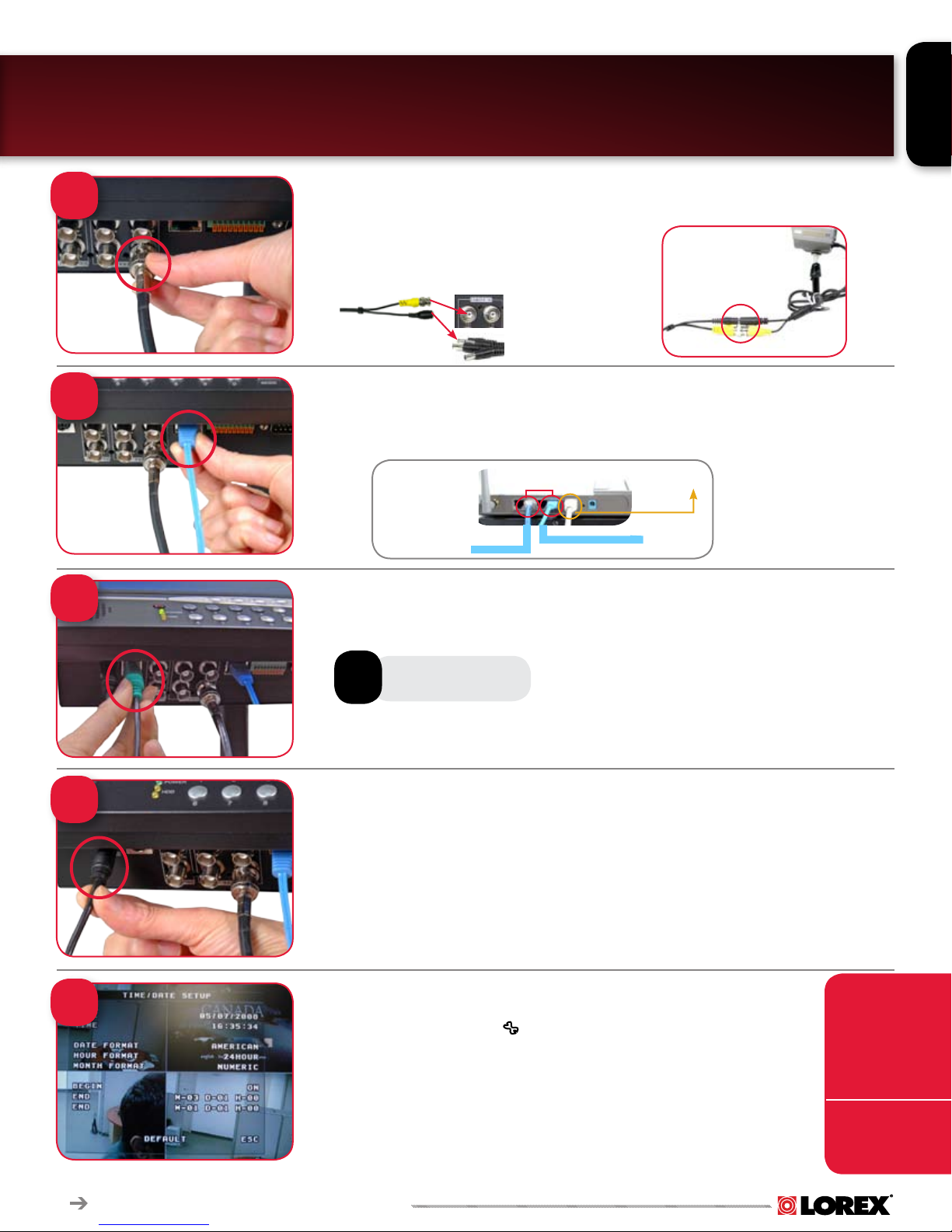

STEP 1 - SET UP YOUR MONITOR FIRST

Congratulations! You have completed Step 1 successfully. You can now view,

record and playback images on your monitor.

Connect the ﬁrst camera to the CH1 input. Follow the same steps to connect the

additional cameras.

CONNECT CAMERAS TO THE MONITOR:

Connect one end of the ethernet cable to one of the router’s (not included) LAN

PORTS and the other end to Monitor’s Network Port located at the bottom of the

monitor. See picture below showing a generic LAN/WAN connection.

CONNECT THE ETHERNET CABLE:

Connect the Mouse to the PS2 port of the monitor.

CONNECT THE MOUSE:

WAN (WIDE

AREA NETWORK)

LAN (LOCAL AREA NETWORK)

TO YOUR COMPUTER

TO YOUR MONITOR

BACK OF THE ROUTER SHOWN



MOUSE CONTROL

AVAILABLE

1. Connect the Female BNC end of the supplied 60’ extension cable to the camera.

Connect the male Power end of the extension cable to the camera.

2. Connect the Female end of the supplied 60’ extension cable to an open BNC

camera input on the back of the System. Connect the female Power end of the

extension cable to one of end of the 4 in one power adaptor.

Connect one end of the Power adaptor to the monitor, the other end to an electrical

outlet. This unit powers ON once it is plugged in to the power outlet.

CONNECT POWER CABLE:

1. Press the MENU button from the Front Panel of the Monitor (or Remote Control), or use the

Mouse and Click the Menu Icon .

2. DVR LOG IN screen appears soon after the Menu button is pressed asking for a password.

Note: USER ID by default is ADMIN. Password is numeric and is not needed for initial MENU

setup. Press ENTER to enter the MAIN MENU.

3. On the MAIN MENU screen select CONFIGURATION and select TIME & DATE.

4. Change or alter the factory default settings and press ESC to exit this menu.

SET THE TIME AND DATE:

IMPORTANT NOTE: The ends of the extension cable are NOT

the same - one end has a Male power port, and the other has

a Female power port. Before permanently running the Camera

Extension Cable, make sure that the cable has been oriented

between the Camera and the unit correctly

Make sure that

the Date and Time

are set prior to

recording.

After you see

camera images

on your monitor

screen, remove

the protective ﬁlm

from camera(s)

and monitor

screen.

L15LD420/L17LD420 Series Quick Set-Up Guide R1

1. Access the Main Menu Setup screens, and navigate to the MAIN

MENU - EXTERNAL DEVICE - TCP/IP SETUP - IP SETUP option.

2. Record the MAC Address of your system. This information is NECESSARY

for the DDNS Setup process.

3. Conﬁrm that the DHCP MODE is set to AUTOMATIC. This will allow your

system to lease an IP ADDRESS from your router. If the system is not set to

AUTOMATIC, change the setting in the DHCP SETUP menu and click

DETECT IP.

4. The IP PORT is 50000 by default.

STEP 2 - SET UP LOCAL VIEWING ON YOUR PC

RETRIEVE SYSTEM INFORMATION:

RECORD THE IP AND MAC ADDRESSES IN THE SECTION BELOW:

*YOUR SYSTEM MUST BE CONNECTED TO

A ROUTER PRIOR TO POWERING IT ON.

IP ADDRESS: . . .

MAC ADDRESS:

(Required for DDNS registration)

NOTE: The system will lease networking

information from your Router. If you wish

to set your information manually, then

set the DHCP MODE to MANUAL. Please

consult your Hardware Manual for further

Menu options.

Insert the LOREX CLIENT 2.2 SOFTWARE CD into your local

computer’s CD ROM drive and proceed with the installation.

INSTALL SOFTWARE:

(on your local computer for local viewing)

Follow the installation screens to complete Lorex Client 2.2

Software installation.

LOREX CLIENT 2.2 SOFTWARE:

(on your local computer for local viewing)

For Lorex Client Software

requirements, please refer to

the Software User Manual.

2 3 4 5

Close the CD Menu Screen. A Lorex Client Icon will appear on your

desktop.

LOREX CLIENT 2.2 SOFTWARE:

(on your local computer for local viewing)

Double-click the LOREX CLIENT 2.2 SOFTWARE icon on your

desktop to run the program.

RUN THE LOREX CLIENT 2.2 SOFTWARE:

(on your local computer)

THIS STEP RELATES TO REMOTE VIEWING OVER THE LAN (LOCAL AREA NETWORK)

BY USING A PC LOCATED ON THE SAME NETWORK AS THAT OF THE SYSTEM.

L15LD420/L17LD420 Series Quick Set-Up Guide R1

STEP 2 - SET UP LOCAL VIEWING ON YOUR PC

CONTINUED

Congratulations! You

have completed Step 2

successfully. You can

now view and playback

images on your local

computer over the Local

Area Network (LAN).

Click the IRS Setup tab to conﬁgure the DDNS Settings (must be setup prior to using the H.264 Viewer).

LOREX CLIENT 2.2 IRS SETUP - MAIN SCREEN

(on your local computer for local viewing)

ADMIN

Click on the “REGISTERING SITE” button to add a new site to

your system.

LOREX CLIENT 2.2 IRS SETUP - REGISTERING SITE

(on your local computer for local viewing)

1. Once you see the registered site, press the SAVE button.

2. Click the OK button. You will be asked to key in the User ID and

Password.

USER ID: By default is ADMIN

PASSWORD: Leave it blank

LOREX CLIENT 2.2 IRS SETUP - REGISTERING SITE

(on your local computer for local viewing)

1. Once a site is registered for use, the interactive buttons part of the Main

Software Screen become active.

2. Click the H.264 VIEWER button to view your local site.

3. From the H.264 VIEWER screen (as shown in the picture), press the Connect

button to connect to Local Live site to view your cameras.

VIEW CAMERAS LOCALLY:

(on your local computer for local viewing)

1. ADDRESS: Add the IP address recorded earlier at Step 2 - 1

2. PORT: By default is set to 50000

3. USER ID: By default is ADMIN

4. PASSWORD: Leave it blank

5. Press OK to add the new site you have created

LOREX CLIENT 2.2 IRS SETUP - REGISTERING SITE

(on your local computer for local viewing)

L15LD420/L17LD420 Series Quick Set-Up Guide R1

6STEP 3 - SET UP INTERNET REMOTE SECURITY MONITORING

PORT FORWARD YOUR ROUTER:

Open your web browser (Internet Explorer by default) and enter

http://www.lorexddns.net in the address bar.

DDNS (Dynamic Domain Name System) Set-up:

Port forward your router ﬁrst before proceeding with the set-up. You muse foward

Ports: 50000 (TCP/IP), 80: (WEB)

All routers are different. To port forward your router, please refer to your router’s user manual.

A router conﬁguration guide featuring the most commonly used routers in the market is available on your

Lorex Client Software CD and also on www.lorexcctv.com/support in the Consumer’s Guide Section. An

example of a port forwarding screen is shown for illustration purposes.

VISIT WWW.LOREXCCTV.COM/SUPPORT TO

VIEW THE ROUTER CONFIGURATION GUIDE

System

50000 50000

80 80

EXAMPLE

http://www.lorexddns.net

CREATE ACCOUNT:

From the http://www.lorexddns.net website, click the CREATE ACCOUNT option.

Create Account

COMPLETE NEW ACCOUNT INFORMATION:

1. FOR PRODUCT LICENSE select the L15LD420 / L17LD420 Series

from the drop down menu.

2. FOR PRODUCT CODE enter the Monitor’s MAC address (recorded

in step 2, section 1).

3. FOR URL REQUEST enter a unique URL name (e.g. tomsmith).

Note: URL name should not be more than 15 characters.

REGISTRATION EMAIL:

An automated REGISTRATION CONFIRMATION EMAIL will be

sent to your email. Print and Save this conﬁrmation. You will

need this information to access your System remotely.

DDNS Server Name: LOREX

Domain Name: tomsmith.lorexddns.net

User Name: tomsmith

Password: (your password)

L15LD420/L17LD420 Series Quick Set-Up Guide R1

STEP 3 - SET UP INTERNET REMOTE SECURITY MONITORING

ENTER DDNS SET-UP ON YOUR SYSTEM:

Mouse navigation (recommended)

1. Right click the MOUSE and press the Menu icon.

2. You will be to prompted to key in the User ID (ADMIN by default) and Password (leave it blank).

3. Press the Enter button and navigate to the MAIN MENU.

4. On the MAIN MENU, click on “EXTERNAL DEVICE”.

5. On “EXTERNAL DEVICE” select “TCP/IP SETUP”.

6. On TCP/IP SETUP select DDNS SETUP.

• Set the DDNS ENABLE to ON

• DOMAIN - Enter the DDNS DOMAIN NAME from the Registration Email sent to you

(e.g. tomsmith.lorexddns.net)

• USER NAME - Enter the USER NAME from the Registration Email sent to you (e.g. tomsmith)

• PASSWORD - By default is left blank

• DDNS STATUS - Indicates the status of DDNS connection.

• Click on REGISTER - This will register your system with LOREX DDNS. If the information you have

entered is correct, the system will display a “Success” message.

ENABLE DDNS SETTINGS:

Insert the LOREX CLIENT 2.2 SOFTWARE CD into your remote

computer’s CD ROM drive and proceed with the installation.

INSTALL SOFTWARE:

(on your remote computer for remote viewing)

For Lorex Client Software

requirements, please refer to

the Software User Manual.

Follow the installation screens to complete Lorex Client 2.2

Software installation.

LOREX CLIENT 2.2 SOFTWARE:

(on your remote computer)

2 3 4 5

Close the CD Menu Screen. A Lorex Client Icon will appear on your desktop.

LOREX CLIENT 2.2 SOFTWARE:

(on your remote computer for remote viewing)

Double-click the LOREX CLIENT 2.2 SOFTWARE icon on your desktop to run the program.

RUN THE LOREX CLIENT 2.2 SOFTWARE:

(on your local computer)

NOTE: The DDNS service supports Dynamic IP addresses for remote connection. When this feature is conﬁgured on the remote system, you can access it remotely using

the domain name instead of IP address. To use this feature, the system should be registered on the Lorex DDNS server.

Alternatively, if you have a static IP address you can enter it here. Please refer to the LOREX CLIENT Manual for network setup and conﬁguration.

CONTINUED

L15LD420/L17LD420 Series Quick Set-Up Guide R1

STEP 3 - SET UP INTERNET REMOTE SECURITY MONITORING

CONTINUED

Congratulations! You have completed Step 3 successfully. You can now view

and playback images on your remote computer over the Internet.

Click the IRS Setup tab to conﬁgure the DDNS Settings (must be setup prior to using the H.264 Viewer).

LOREX CLIENT 2.2 IRS SETUP - MAIN SCREEN

(on your remote computer for remote viewing)

Click on the “REGISTERING SITE” button to add a new site to your system.

LOREX CLIENT 2.2 IRS SETUP - REGISTERING SITE

(on your remote computer for remote viewing)

1. Once you see the registered site, press the SAVE button.

2. Click the OK button. You will be asked to key in the User ID and Password.

USER ID: By default is ADMIN

PASSWORD: Leave it blank

LOREX CLIENT 2.2 IRS SETUP - REGISTERING SITE

(on your remote computer for remote viewing)

1. Click the H.264 VIEWER screen (as shown in the picture) and press the Connect

button to connect to the Remote Live site.

VIEW CAMERAS REMOTELY:

(on your remote computer for remote viewing)

1. ADDRESS: Enter the DDNS DOMAIN NAME from the Registration Email sent to you

(e.g. tomsmith.lorexddns.net)

2. PORT: By default is set to 50000

3. USER ID: By default is ADMIN

4. PASSWORD: Leave it blank

5. Press OK to add the new site you have created

LOREX CLIENT 2.2 IRS SETUP - REGISTERING SITE

(on your remote computer for remote viewing)

L15LD420/L17LD420 Series Quick Set-Up Guide R1

RECOMMENDED TIPS

Tilt the monitor UP to loacte your monitor’s connections.

LOCATE MONITOR CONNECTIONS:

DISPLAY CONFIGURATION / FUNCTION ICONS

The system provides a Storage Calculator to calculate the amount of recording time available on your Hard Drive, based on the System

Recording Settings.

Click on the Menu icon to enter MAIN MENU. On the MAIN MENU, click on the RECORD MENU. On the RECORD MENU, click on

RECORD SET UP.

RECORD SETUP (storage calculator):

1. [QUALITY]: Set up the recording picture quality

Quality level: Normal / High / Highest. Data size of image in PAL system is a little

bigger than NTSC system, but the total recording time is same.

2. [FRAME RATE]: Adjust recording frame rate.

3. [PRE ALARM RECORD]: Displays the amount of time included from the Pre Recording

(in seconds).

4. [HDD REMAINING]: Indicates HDD capacity remaining by size (GB). / Indicates total

HDD capacity (GB).

5. [REMAIN TIME]: Indicates HDD capacity remains by time. (D- days, H- hours, M- Minutes).

L15LD420/L17LD420 Series Quick Set-Up Guide R1

FORMATTING THE NEW HARD DRIVE:

The New Hard Drive MUST be formatted. If a new HARD DRIVE is

detected, the system will prompt you to FORMAT the drive. Please

refer to the system’s user manual for HDD installation.

HDD INSTALLATION:

The System comes with a pre-installed Hard Drive, however the

unit will work with a replacement single SATA Hard Drive (up to

500GB).

NOTE: Make sure that the System is OFF and the power cable has been

disconnected before changing the Hard Drive. For detailed instructions,

check the user’s manual.

TIP ON CAMERA MOUNTING:

Note: Test the cameras prior to selecting a permanent mounting

location by temporarily connecting the Cameras and Cables to

your System.

RECOMMENDED TIPS CONTINUED

NOTE: You must have an active internet connection to the System

to be able to perform Remote viewing or playback. Remote access

is dependant on your connection speed, internet trafﬁc and other

network factors - the speed is normally 1~2 FPS (frames per second).

This may impact the audio and PTZ functions.

For faster playback, it is recommended to download previously

recorded video using the backup function and play it back using

Backup Player 2.2 Software - refer to the user manual for details.

Regardless of the network playback speed, video is being recorded

on your system in real time, and can be viewed when you are at the

system or through the backup player.

TIP ON REMOTE VIEWING AND PLAYBACK

OVER THE INTERNET (WAN):

Otros manuales para L15LD400 series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de seguridad de Lorex

Lorex

Lorex LW2960 SERIES Manual de usuario

Lorex

Lorex Vantage Edge+ CVC6996 Manual de usuario

Lorex

Lorex WA-410 Manual de usuario

Lorex

Lorex SG21CD7484UQ-A80 Manual de usuario

Lorex

Lorex LW2201 Series Manual de usuario

Lorex

Lorex SG19LD804-161 Guía de instalación

Lorex

Lorex LHB926 Series Manual de instrucciones

Lorex

Lorex LW292 SERIES Manual de usuario

Lorex

Lorex LW2201 Series Manual de usuario

Lorex

Lorex mCAM DMC2030 Manual de usuario

Lorex

Lorex L204 Manual de usuario

Lorex

Lorex LWB3800 Series Manual de instrucciones

Lorex

Lorex L15LD420 SERIES Manual de usuario

Lorex

Lorex LW2602 Manual de usuario

Lorex

Lorex LWB3801 Series Manual de instrucciones

Lorex

Lorex L15LD424-251 Manual de usuario

Lorex

Lorex SG21FD3044-161 Instrucciones de montaje

Lorex

Lorex L23WD SERIES Manual de usuario

Lorex

Lorex SG15F6584 Manual de usuario

Lorex

Lorex SG19LD804-161 Guía de instalación

Lorex

Lorex mCAM DMC2030 Manual de usuario

Lorex

Lorex LW2760 Series Manual de usuario

Lorex

Lorex SG17LD800 Manual de instrucciones

Lorex

Lorex SHS-2SA series Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
