Lorex CNC1020 Guía del usuario

Camera Features

•Patented Mirroring Technology Makes Camera Invisible to the Human Eye Yet Allows The

Camera to Properly View

•Security Mirror Form Factor is Ideal

for Commercial/Retail Applications

•Cable Pass-through Wall Mount

Bracket Conceals and Protects

Connection Cables

•Ceiling flush mountable or wall

mountable using included cable pass-

through bracket.

Package Contents

WARNING - REGULATED 12V DC 500mA power supply is provided for use with this camera. Use of

a non-regulated, non-conforming power supply can damage this product and will void the warranty.

1 x Color Concealed Security Mirror

Camera with Mounting Stand

1 x HEX Adjustment Key

(For Mounting Stand)

Ceiling Flush

Mount

Wall Mount

Mounting Options

The Camera can be installed to a wall or ceiling, or can be ceiling flush mounted using included

cable pass-through bracket.

Wall Mounting:

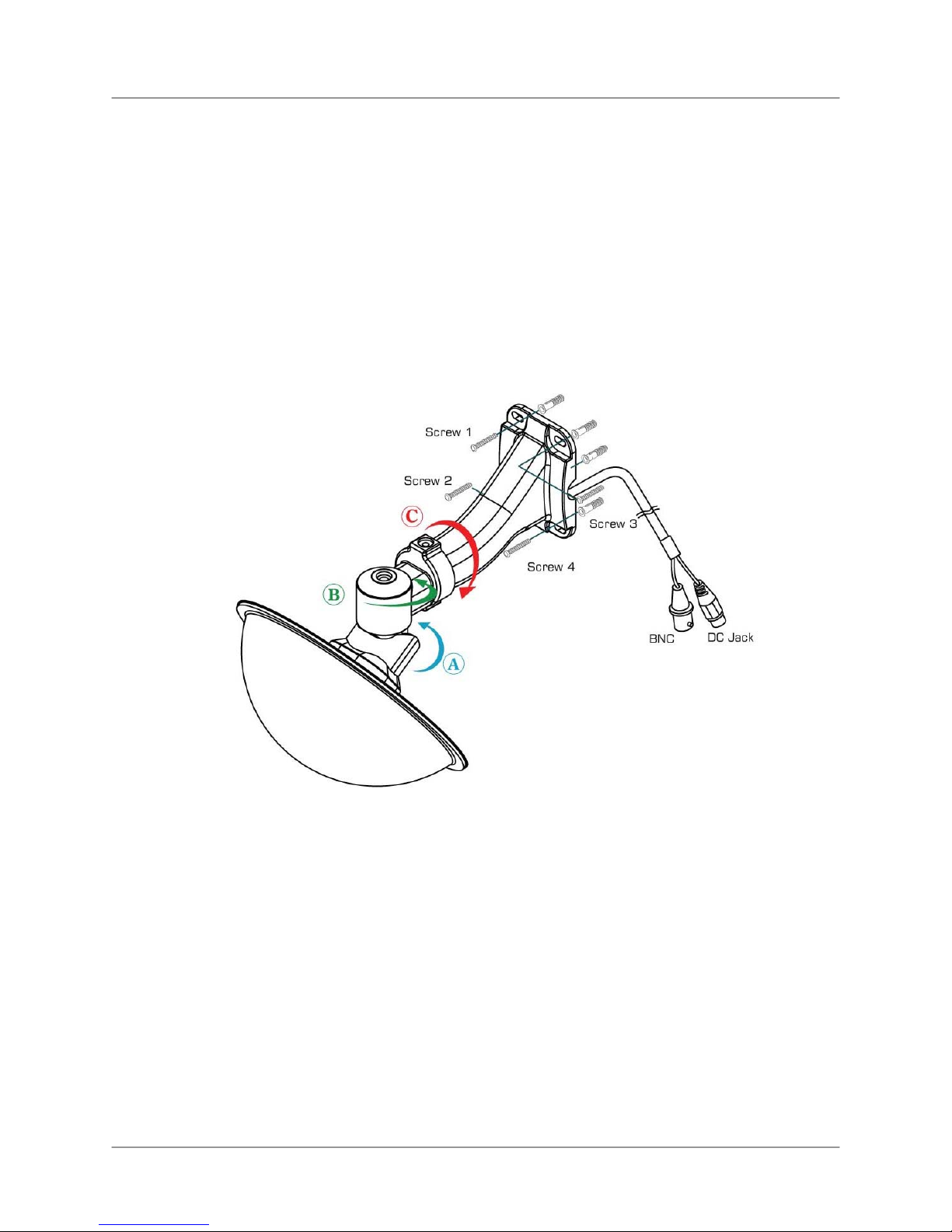

1. Mount the camera to the desired mounting surface by firmly attaching the Mounting Bracket

using 4 screws (at points listed as Screws 1~4 on the below diagram).

2. Use the Hex Adjustment Key to set the desired angle of the camera (at points A, B and C on

the above diagram).

3. Connect the Extension cable to the camera.

Installing the Camera & Optional Extension Cable

Ceiling Mounting:

1. Remove the Mounting Bracket from the back of the

Camera (4 screws)

2. Drill a hole in the ceiling large enough to pass the

BNC/Power Cable through.

NOTE: If using the Ceiling Mounting method, run the

Extension Cable to the location prior to mounting the

Camera.

3. Connect the BNC/Power Cable end of the Camera

to the BNC/Power connections on the Extension cable

before installing the Camera Base.

4. Screw the Camera Base to the ceiling.

5. Angle the Camera by loosening the side screws.

Set the desired angle, and tighten the screws.

6. There are two screw holes on the Dome cover –

align these holes with the screw holes on the base.

Once the holes are aligned, adjust the Dome Insert

so that the opening is aligned with the Lens.

Place the Dome Cover over the Camera and Base,

making sure to align the dome cover holes with the

holes on the camera base.

7a. Screw the two side clip screws on the Dome Cover

into the base to hold the dome cover in place.

7b. Use the Rubber Dome Ring to seal the Dome to

the Base.

Installing the Camera & Optional Extension Cable

1. Connect the optional Extension cable to the Camera:

•Connect the BNC & Power ends of the cable to

the Camera

•Connect the Power Adaptor connector to the AC

Power Cable attached to the camera.

Remember to check the ends of the cable before

permanent installation, as the power connection

ends are different (one side has a female barrel

power connection, and one end has a male power

plug.

CAMERA:

Connect the BNC

and Power cables

to the Camera

VIDEO INPUT:

Connect the BNC

cable to the video

input of the monitor,

and connect the

power adaptor to an

outlet.

Camera Setup Diagram

2. Connect the BNC end of the Extension Cable to the

DVR / Observation System or to a TV/VCR.

NOTE: Connect the BNC to RCA Adaptor as needed to

allow for proper connectivity.

3. Connect the A/C Power Adaptor to the Extension

Cable (Black connector). Plug the Power adaptor to a

wall outlet

Camera Specifications

Image Sensor Type 1/3” Color CCD Image Sensor

Video Format NTSC

Effective Pixels 510H x 492V (251K)

Horizontal Resolution 420 TV Lines

Scan System 525 Lines 2:1 Interlace

Sync System Internal

S/N Ratio More than 52dB without AGC

Iris AES

AES Shutter Speed 1/60 ~ 1/120,000

Min Illumination 0.2 LUX (Sens-up up to x32)

Video Output Composite 1.0Vp-p @ 75ohms

Audio Output Not Supported

Lens / Focal Length Fixed 3.6mm F2.0

FOV (Diagonal) 92°

Termination BNC, Power DC Jack

IR LED / Night Vision Range N/A

Power Requirement 12V DC ±10%

Power Consumption 110mA or 1.4W

Operating Temperature 14°F ~ 122°F / -10°C ~ 55°C
