Lorex SG6173 Manual de usuario

LOREX Technology Inc.

products are subject to continuous improvement,

LOREX and its subsidiaries reserve the right to mod-

ify product design, specifications and prices, without

notice and without incurring any obligation. E&OE

Quick Set-up Guide

It’s all on the web

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

VISIT

www.lorexcctv.com

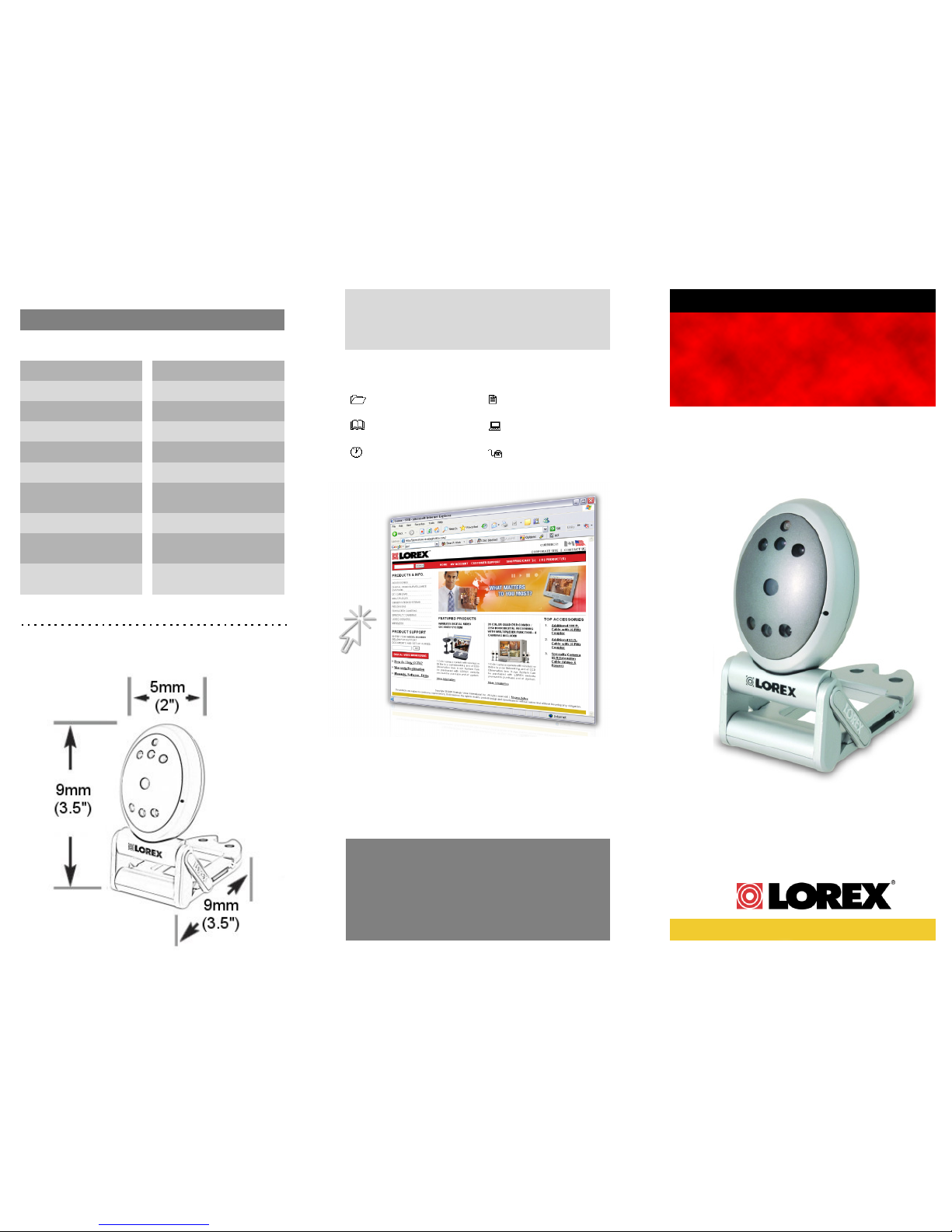

4. Camera Specifications H O M E & B U S I N E S S S E C U R I T Y

MINI COLOR DIY CAMERA

WITH NIGHT VISION

Specifications:

Dimensions:

Horizontal Res. 380 TV lines

Shutter Control

Lens

Min. Illumination

Power Supply

Operating Temp

Weight

Dimension

1/60 – 1/15,000 sec.

3 Lux, 0 Lux with LED’s

DC 9V ± 10% 300mA

14°F ~ 113°F

(-10°~ 45°C)

3.1 oz (86g)

Model: SG6173

Image Sensor Color CMOS (510 X 492)

3.6mm F2.0

1.9” (H) x 3.2” (D)

50mm (H) x 80mm (D)

Housing ABS Plastic

(weather resistant)

1. Package Contents 2. Installing the Video Camera 3. Connecting the Camera

1 x 100 ft. (30m) Cable

1 x AC Power Adaptor

1 x SG6173 Camera and

Stand

1 x Bonus Clip

1. Mount the camera stand to the desired

mounting surface using the provided screws.

2. Connect the 100ft Extension cable to the

camera:

The mounting stand can be used to position

the camera in any location, and is also

designed to permanently mount the camera

to a surface (if desired).

CAMERA INPUT

CABLE

AV / POWER

CONNECTIONS

CONNECTIONS:

WHITE: Audio Connection

YELLOW: Video Connection

RED: Power Connection

3. Connect the 100ft Extension Cable to a TV /

Monitor / VCR.

4. Connect the A/C Power Adaptor to the 100ft

Extension cable (Red connector). Plug the

Power adaptor to a wall outlet

Setup Diagram:

WHITE: Connect to the AUDIO port

YELLOW: Connect to the VIDEO port

Features:

• Includes DIY camera and 100 ft. (30m)

extension cable

• Superior video quality

• 6ft. (2m) IR illumination*

• Easily Connects to any TV or VCR with RCA

A/V inputs

• Mounts easily to walls or ceilings

• Weather resistant design**

*IR illumination range of 6’ under ideal condition. Objects at or

beyond this range may be partially or completely obscured

** IP44 rated camera is resistant to weather but not considered

weather proof

2 x Screws (for Camera

Base attachment)
