Logitech Z553 Manual de usuario

Logitech® Speaker System Z553

Setup Guide

Guide d’installation

Logitech Speaker System Z553

English. . . . . . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . . . . . 10

www.logitech.com/support . . 19

Logitech Speaker System Z553

English 3

Package contents

1. Left satellite speaker, stand, and cable

2. Subwoofer and AC power cable

3. Right satellite speaker, stand, and cable

4. Control pod with cable

5. 3.5mm audio cable

2 3

Logitech Speaker System Z553

4 English

Know your product

Control pod

1. System volume

2. Power LED

3. Audio 3.5mm input

4. Bass volume

5. Headphone jack

Subwoofer (back)

6. Auxiliary 3.5mm input

7. Left audio RCA input

8. Right audio RCA input

9. Left satellite RCA output

10. Right satellite RCA output

11. Controller port

3 4

Logitech Speaker System Z553

English 5

Setup your product

1. Place the satellites on their adjustable

stands and the subwoofer on the ﬂoor.

2. Set up subwoofer:

•Connect satellites: Right satellite R

plugs into right (black) output and left

satellite Lplugs into left (grey) output.

•Connect AC power.

Logitech Speaker System Z553

6 English

3. Connect audio source:

•For smartphones, tablets, music

players, and PCs:

– Connect to control pod or subwoofer.

– Use 3.5mm audio cable (included).

•For TVs:

– Connect to audio inputs on

subwoofer: Right channel to red

RCA input and left channel to white

RCA input.

– Use RCA audio cables (not included).

Logitech Speaker System Z553

English 7

Visit Product Central

There’s more information and support

online for your product. Take a moment

to visit Product Central to learn more about

your new Logitech speaker system.

Browse online articles for setup help,

usage tips, or information about additional

features.

Connect with other users in our Community

Forums to get advice, ask questions,

and share solutions.

At Product Central, you’ll ﬁnd a wide

selection of content:

•Tutorials

•Troubleshooting

•Support community

•Software downloads

•Online documentation

•Warranty information

•Spare parts (when available)

Go to www.logitech.com/support/Z553

Use your product

Power on and volume

Turn top of control pod right to power

on speakers. Power LED on control

pod turns red. Rotate top left or right

to adjust volume.

Bass level

Rotate bass control right to increase bass

output or left to lower it.

Optional headphones

Connect optional headphones (not

included) to control pod. When connected,

sound is muted through the speakers.

Logitech Speaker System Z553

8 English

Troubleshooting

The speakers are not working

or produce weak or no sound

•Check power connection. Check that

the AC power cable is securely connected

to the subwoofer and an AC outlet.

•Turn on the speakers. Turn top of control

pod right to power on the speakers.

The power LED on control pod turns red.

•Adjust the volume. Turn top of control

pod left or right to adjust the volume.

Check the volume at source and in

your media application.

•Check cable connections:

– Control pod connects to controller port

on the back of the subwoofer.

– Satellites connect to the subwoofer

back: Right satellite connects to black

RCA output and left satellite connects

to grey RCA output. Do not use

the white and red audio inputs.

– Audio source connects to the control

pod or subwoofer back using the

3.5mm input. For TVs, use the red and

white RCA inputs. Do not use the black

and grey RCA outputs.

•Headphones, when connected to control

pod, mute sound through the speakers.

•For computers, specify the speakers as

the default output source, set operating

system volume to 80%, and make sure

the volume is not on mute:

– Windows® 8: From Start Menu, select

Desktop tile. From Charms menu,

select Settings > Control Panel >

Hardware and Sound > Sound >

Speakers / Headphones > Properties >

Levels> adjust Speaker slider

(deselect mute)

– Windows 7: Start > Control Panel >

Hardware and Sound > Sound >

Speakers / Headphones > Properties >

Levels > adjust Speaker slider

(deselect mute)

– Mac OS X: System Preferences >

Sound > Output > Headphones or Line

Out > adjust Output volume slider

(deselect mute)

For more troubleshooting help,

go to www.logitech.com/support/Z553

Logitech Speaker System Z553

English 9

What do you think?

Please take a minute to tell us.

Thank you for purchasing our product.

www.logitech.com/ithink

Logitech Speaker System Z553

10 Français

Contenu

1. Haut-parleur satellite gauche, support

et câble

2. Caisson de basses et câble

d'alimentation secteur

3. Haut-parleur satellite droit, support

et câble

4. Boîtier de commande et câble

5. Câble audio de 3,5 mm

2 3

Otros manuales para Z553

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Logitech

Logitech

Logitech Z-5500 - THX-Certified 5.1 Digital Surround Sound Speaker... Instrucciones de funcionamiento y seguridad

Logitech

Logitech X-540 Manual

Logitech

Logitech 980-000101 - AudioHub PC Multimedia Speaker... Manual de usuario

Logitech

Logitech Z906 User's Guide Manual de usuario

Logitech

Logitech z533 Instrucciones de montaje

Logitech

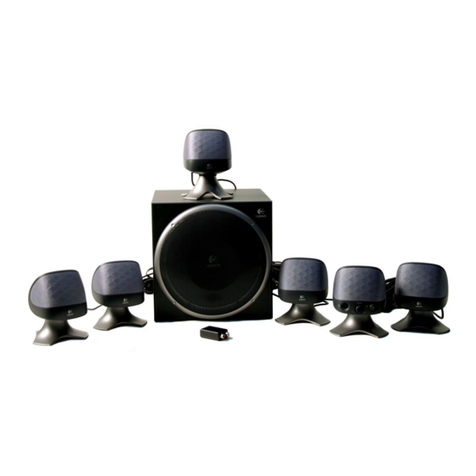

Logitech X-620 Instrucciones de funcionamiento y seguridad
