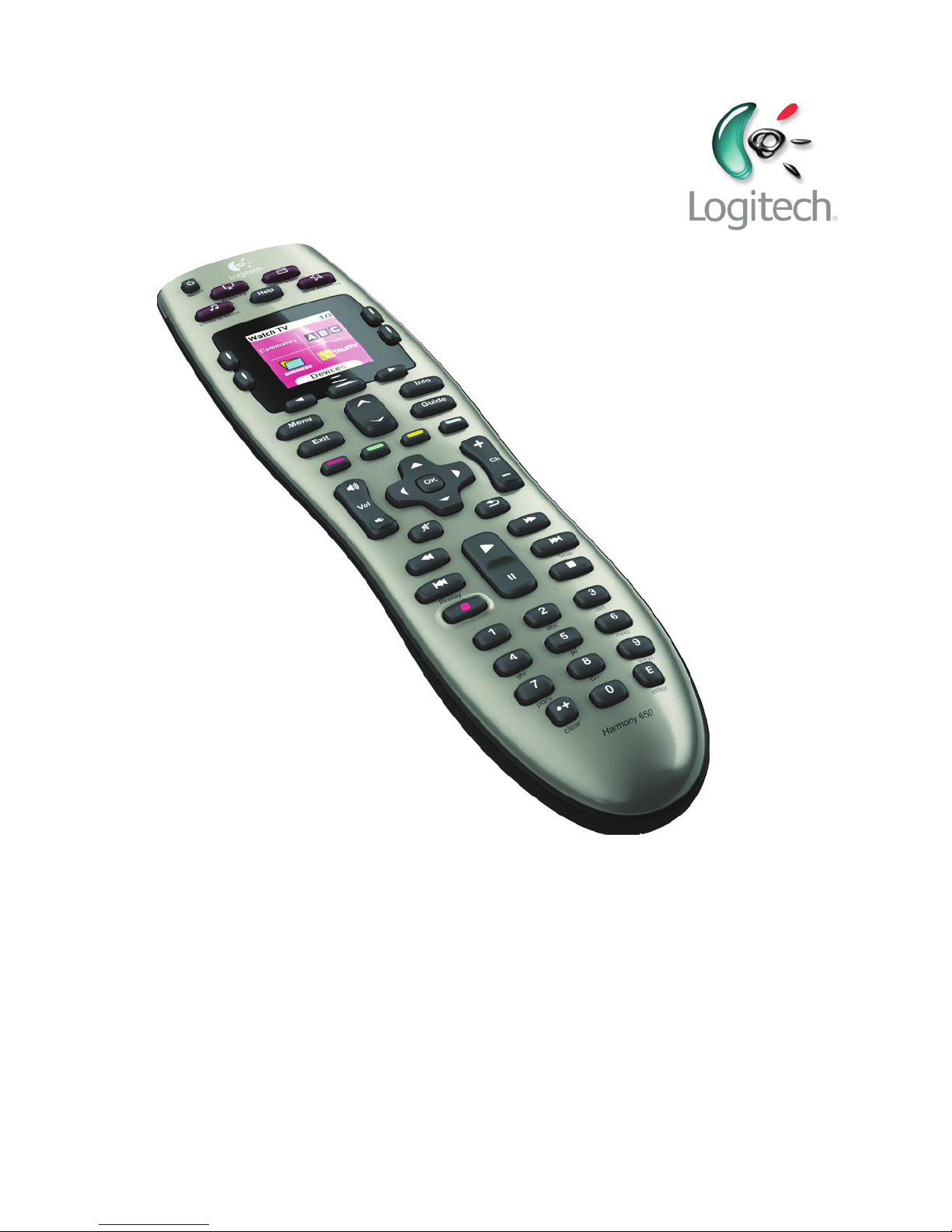

Logitech Harmony 650 Manual de usuario

User

Manual

Version 1.0

Logitech®

Harmony®

650 Remote

marks or trademarks of Logitech in the US and other countries. All other trademarks are the

property of their respective owners.

III

LOGITECH HARMONY 650 USER MANUAL

Contents

Introduction.........................................................................................................................1

Getting to know your Harmony 650 ................................................................................1

How your Harmony 650 works.....................................................................................1

Devices, inputs, and Activities ......................................................................................1

The buttons on your Harmony 650..............................................................................2

What’s on the Harmony 650’s screen..........................................................................3

Navigating screen options ............................................................................................3

Using your Harmony 650 ...................................................................................................4

Selecting an Activity......................................................................................................4

Using the Remote Assistant ..........................................................................................4

Controlling your devices individually ...........................................................................4

Using your favorite channels ........................................................................................5

Turning off your devices................................................................................................5

Using the Help button...................................................................................................6

Setting up your Harmony 650 for the ﬁrst time ............................................................7

Overview ........................................................................................................................7

Creating your user account ..........................................................................................8

Connecting your Harmony 650 to your computer .....................................................8

Setting up the devices you want to control ................................................................8

Setting up Activities.......................................................................................................9

Updating the remote ....................................................................................................9

Determining your inputs.............................................................................................10

Device worksheet ........................................................................................................11

Testing your remote ....................................................................................................12

Changing your setup ........................................................................................................13

Adding and changing Activities..................................................................................13

Adding and changing devices.....................................................................................13

Adding a passthrough device to an Activity ..............................................................14

Changing buttons for a device or Activity .................................................................15

Teaching commands using your old remote .............................................................15

LOGITECH HARMONY 650 USER MANUAL

Setting up favorite channels .......................................................................................16

Troubleshooting problems with your Harmony 650...................................................17

Getting help with your Harmony 650............................................................................18

Using the on-remote help...........................................................................................18

Glossary...............................................................................................................................19

Product Speciﬁcation .......................................................................................................21

LOGITECH HARMONY 650 USER MANUAL

Introduction

The Logitech Harmony 650 remote is your answer to effortless home entertainment.

With one-button Activities, you can go from watching TV to watching a DVD or

listening to music with a single touch. The guided online setup steps you through the

conﬁguration of your Harmony 650, so you’ll soon be ready to sit back and relax!

Whether you’re new to Harmony products or you consider yourself an expert, this User

Manual provides you with the information you need to get you going.

Getting to know your Harmony 650

How your Harmony 650 works

The Harmony 650 is an Activity-based infrared (IR) universal remote control. Using

Harmony software, you can set up the Harmony 650 to control up to 5 devices.

The Harmony 650 delivers powerful Activity-based control using Smart State

Technology®. This technology allows the Harmony 650 to keep track of the devices it

controls, so it always knows which of your devices are on.

Devices, inputs, and Activities

To make the most of your Harmony 650, you need to understand the following terms:

devices, inputs, and Activities.

Devices

Devices are the components of your entertainment system. They’re things like your TV,

cable box, DVD player, or game console.

Inputs

Inputs are connections on the back of your devices. Inputs are used to connect your

devices to each other. When you want to go from watching TV to watching a DVD or

listening to music, you typically need to switch your TV and/or audio receiver to the

correct input. For example, if your DVD player is connected to your TV using the HDMI

1 input, then the TV needs to be set to HDMI 1 to watch a DVD.

Activities

An Activity is something you do with your entertainment system, like watching TV,

listening to music, or playing a game. Your Harmony remote automates Activities so

that a single button turns on all the necessary devices for each Activity, and switches

them to the required inputs. For example, pressing the Watch TV button might turn

on your TV, your cable or satellite receiver, and your audio receiver, and switch to the

correct video and audio inputs.

For information on how to select an Activity, or how to switch between Activities, see

Selecting an Activity on page 4.

LOGITECH HARMONY 650 USER MANUAL

The All Off button turns off all the devices in the current

Activity.

The Activity buttons start the appropriate Activity. The

More Activities button displays a list of all Activities on the

remote screen.

The Help button starts the on-remote help. For more

information, see Using the Help button on page 6.

The arrow buttons below the screen allow you to move

through various options on the remote screen. The center

button below the remote screen and the side buttons

beside the screen let you choose those options.

The Menu button opens the menu on the screen of the

appropriate device.

The Exit button closes the menu or guide on the screen of

the device.

The Info button opens the information section of the guide

on the screen of the appropriate device.

The Guide button opens the guide on the screen of the

appropriate device.

The page up and page down arrows help you move

quickly through the guide or menu on the screen of the

appropriate device.

The color-coded buttons perform cable, satellite, and

teletext functions.

The volume button changes the volume for the appropriate

device.

The directional pad arrows allow you to move through

menus or on-screen guides.

The channel button changes the channels.

The mute button mutes the sound.

The previous channel button returns you to the last channel

you were on.

The playback area includes play, pause, fast forward, rewind,

skip and other buttons for your PVR, DVD player, or VCR.

The number pad has the digits 0-9.

The enter button enters a selection from the number pad.

The clear button clears an entry from the number pad.

It is also used to enter the decimal place for HD channel

numbers.

The buttons on your Harmony 650

Vol

123

456

ChOK

Help

GuideExit

InfoMenu

abc def

ghi jkl mno

pqrs tuv wxyz

clear

All off

WatchTV Watch a Movie

More ActivitiesListen to Music

enter

The buttons on the

Harmony 650 may have

different functions or

control different devices

depending on the

Activity or device. For

more information, see

Changing buttons for

a device or Activity on

page 15.

LOGITECH HARMONY 650 USER MANUAL

What’s on the Harmony 650’s screen

Activities

When you press an Activity button – Watch TV, Watch a

Movie, or Listen to Music – the Activity starts, and the

commands for that Activity appear on the screen. The

commands that appear may apply to any of the devices that

you use for that Activity. For example, if you’re watching a

DVD, your remote screen displays functions and commands

for your DVD, your TV, and other devices you use in the Watch

a DVD Activity.

When you press the More Activities button, the remote screen shows all Activities you

have deﬁned.

Devices

When you are viewing Activities on your remote’s screen, you

switch to device mode by pressing the center button below

Devices. The Harmony 650’s screen displays a list of your

devices. From this screen, you can select a device, then view

the commands that are available for that device.

Favorite channels

If you have favorite channels set up on your Harmony 650,

they will appear on the remote’s screen when you start the Watch TV Activity then

select Favorites. If the favorite you are looking for doesn’t appear on ﬁrst page, press

the Next button to move to next page of favorites.

IR Status Indicator

The status indicator ﬂashes in the bottom right corner whenever command is being

sent from your Harmony 650.

Navigating screen options

The buttons surrounding the remote’s screen allow

you to navigate the screen options.

The arrow buttons help you move through each

page of options, while the side buttons allow you to

choose an option.

The center button lets you switch between Activities

and devices, or return to the devices list.

The upper right corner of the screen shows the current page number and how many

pages there are in total.

LOGITECH HARMONY 650 USER MANUAL

Using your Harmony 650

Selecting an Activity

You can start an Activity by pressing the appropriate

Activity button or by pressing the More Activities button

and selecting one of the Activities that appear on the

remote’s screen.

To switch to a new Activity, press the appropriate Activity

button or use the More Activities button to choose

another Activity.

The Harmony 650 will take care of powering on the

required devices, powering off the ones not needed, and

changing inputs if necessary.

Using the Remote Assistant

The Harmony 650’s Remote Assistant appears on the remote screen when you

disconnect the remote after syncing, and when you start an Activity. It guides you

through the Activity. For example, when you select the Watch TV Activity, the Remote

Assistant asks you if the TV is on and if the other devices in the Activity are conﬁgured

properly.

You can temporarily turn off the Remote Assistant by pressing the button beside the

Turn off Assistant option on the remote’s screen. The Remote Assistant will reappear

after the next sync.

Controlling your devices individually

In some cases, you may want to control a device individually. You may, for example,

want to access a function not included in the current Activity (such as picture-in-

picture).

When you are in an Activity or on the More Activities screen, pressing the center

button shows you a list of your devices. Choose the device you want to control. If

necessary, use the arrow buttons to ﬁnd the page with the desired device. Once you

select the device, the Harmony 650 screen shows the commands for that device.

Choose the desired command.

Once you’ve ﬁnished, press the center button to return to Activities mode.

If you ﬁnd yourself regularly switching to device mode to perform a

particular function, you should consider adding that function to an

Activity. For more information, see Setting up Activities on page 9.

LOGITECH HARMONY 650 USER MANUAL

Using your favorite channels

You can set up favorite channels for your TV, or your cable or satellite receiver. For

more information, see Setting up favorite channels on page 16.

To select a favorite channel:

Press the1. Watch TV button.

On your remote’s screen, select the2. Favorites option. Your favorite channels will

appear on the screen.

If you have set up more than four favorite channels, they will appear on multiple3.

pages. Use the buttons below the screen to move between pages.

To jump to a favorite channel, simply press the button beside the channel number or4.

icon.

Turning off your devices

Press the All Off button to power off all the devices used in the Activity.

You don’t need to turn off devices when switching between

Activities. The Harmony 650 ensures the proper devices for the

Activity are on or off.

LOGITECH HARMONY 650 USER MANUAL

Using the Help button

Because obstacles or distance can interfere with the signals the Harmony 650 sends

when it starts an Activity (for example, someone walks between your Harmony 650

and the TV when you press Watch TV, or you’re very far away from the system when

you start an Activity), your Harmony 650 can become “out of sync” with your devices.

Before pressing the Help button, be sure you’ve addressed the cause

of the problem (for example, remove any obstacles from the line of

sight).

To ﬁx the problem, use the Help feature on your remote.

On the remote, press the1. Help button.

Answer the questions and follow the instructions on2.

the Harmony 650’s screen. The Harmony 650 re-sends

commands to make your remote “in sync” with your

devices.

To access advanced help features, press and hold the3. Help

button for 5 seconds.

If you have used the Help feature to ﬁx the problem several

times in the past, you may be asked some questions to

help ﬁx the problem permanently. When you’re done with

this process, the Harmony 650 will be “in sync” with your

devices.

Exit Help

Did that fix

the problem?

No Yes

obl

Otros manuales para Harmony 650

Tabla de contenidos

Otros manuales de Mando a distancia de Logitech

Logitech

Logitech Harmony Ultimate Hub Manual de usuario

Logitech

Logitech Harmony 1000 Manual de usuario

Logitech

Logitech Cordless Mini Manual de usuario

Logitech

Logitech Harmony 1100 Manual de usuario

Logitech

Logitech Harmony One Manual de usuario

Logitech

Logitech Harmony Touch Manual de usuario

Logitech

Logitech Harmony Smart Control Instrucciones de funcionamiento

Logitech

Logitech Harmony 300 Manual de usuario

Logitech

Logitech Harmony for Xbox 360 Manual de usuario

Logitech

Logitech Remote Controller Manual de usuario

Logitech

Logitech Harmony 550 - Harmony 550 Universal Remote Manual de usuario

Logitech

Logitech HARMONY 700 Manual de usuario

Logitech

Logitech Harmony 785 Manual de usuario

Logitech

Logitech Harmony 350 Remote Manual de usuario

Logitech

Logitech HARMONY 520 Manual de usuario

Logitech

Logitech Harmony 350 Remote Manual de usuario

Logitech

Logitech 880 Pro Harmony Manual de usuario

Logitech

Logitech Harmony 550 - Harmony 550 Universal Remote Manual de usuario

Logitech

Logitech Harmony 300 Manual de usuario

Logitech

Logitech SPOTLIGHT Guía del usuario

Logitech

Logitech Harmony 300 Manual de usuario

Logitech

Logitech Harmony 350 Remote Manual de usuario

Logitech

Logitech Harmony 650 Manual de usuario

Logitech

Logitech Harmony 1000 Manual

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
