Logitech Ultrathin T630 Manual de usuario

Ultrathin Touch Mouse T630

Setup Guide

Bluetooth wireless technology

English. . . . . . . . . . . . . . . . . 4

Deutsch . . . . . . . . . . . . . . . . 11

Français . . . . . . . . . . . . . . . 18

Italiano. . . . . . . . . . . . . . . . 25

По-русски . . . . . . . . . . . . . . . 32

Magyar . . . . . . . . . . . . . . . 39

Česká verze . . . . . . . . . . . . . 46

Po polsku . . . . . . . . . . . . . . 53

Eesti . . . . . . . . . . . . . . . . . 60

Latviski . . . . . . . . . . . . . . . 67

Lietuvių . . . . . . . . . . . . . . . 74

Hrvatski . . . . . . . . . . . . . . . 81

Srpski . . . . . . . . . . . . . . . . 88

Slovenščina . . . . . . . . . . . . . 95

Slovenčina. . . . . . . . . . . . . .102

Română . . . . . . . . . . . . . . .109

Български . . . . . . . . . . . . . . . 116

Українська . . . . . . . . . . . . . . 123

www.logitech.com/support . .130

Get to know your mouse

Touch

surface

Status

light

Micro-USB

charging cable

O

Connect

Bluetooth

Connect

button

Bluetooth

Easy Switch

On/O switch

Micro-USB port

4English

O

Connect

O

Connect

O

Connect

Set up Bluetooth

2. Select Bluetooth

channel

On your mouse

3. Press Connect

The status light

blinks blue rapidly

to indicate the

mouse is ready

for pairing with

your PC.

Slide the Bluetooth

Easy Switch to

position 1 or 2.

Slide the switch

to the On

position.

1. Power on

The status light

blinks while

the mouse is

discoverable—

about three minutes.

English5

Set up Bluetooth

On your PC

Windows 8 and Windows RT:

Open the Settings charm and tap

or click Devices (in PC settings).

Tap or click Add a Device and

select Ultrathin Touch Mouse from

the list of wireless devices.

Windows 7: Right-click

the Bluetooth icon on the taskbar

and select Add a Device from the

context menu. Select Ultrathin

Touch Mouse from the list of

available devices and click Next.

When pairing is complete,

the status light glows blue

steadily for 30 seconds.

Install software

Don’t miss out on all your mouse

has to oer! Install Logitech

software for smoother

performance, customizable

settings, and optimal gestures.

Download the software from:

www.logitech.com/support/t630

6English

Pair with another PC

Slide the Bluetooth Easy Switch

to the remaining unused channel,

press the Connect button, and

repeat the steps in “Set up

Bluetooth.”

Afterwards, reconnect to a PC

by ﬁrst selecting the channel you

used to pair with it.

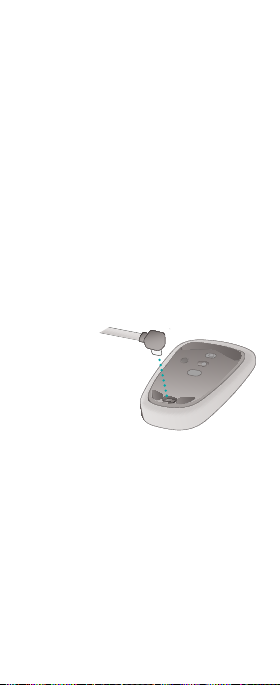

Charge the battery

Use the charging cable to

recharge the mouse from

your computer. The status light

blinks green until the mouse

is fully charged. On average, one

minute of charging adds an hour

of use.

What do you think?

Take a moment to tell us.

Thank you for purchasing

our product.

www.logitech.com/ithink

English7

Gestures

Click. Press the left side of

the touch surface.

Lift the non-

clicking ﬁnger

completely o

the surface.

Right-click. Press the right side of

the touch surface.

Scroll. Swipe up, down,

or sideways.

8English

Middle-click. Press the lower

portion of the touch surface.

Start menu. Double-tap on

the touch surface with two ﬁngers.

App switching. Swipe from the

left edge of the touch surface with

one ﬁnger.

Swipe from

the right edge

to display the

Charms bar.

English9

Troubleshooting

Mouse not working?

•OnyourPC,conrmthat

Bluetooth is turned on.

•Isthemousepoweredon?

•Ifthestatuslightisblinkingred,

recharge the battery.

•ConrmthattheBluetooth

channel (1 or 2) is the same one

you used for pairing.

•RestartyourPC.

•Ifyourmouseislistedas

a Bluetooth device, remove it

from the list and repeat the

steps to pair it with your PC.

www.logitech.com/support/t630

Support

Visit the product page

While online check out

the Ultrathin Touch Mouse

product page, your destination

for world-class support.

There you will ﬁnd tutorials,

guidelines, and troubleshooting

tips for your mouse.

www.logitech.com/support/t630

10English
