Logitech PRO X 2 LIGHTSPEED Manual de usuario

PRO X 2 LIGHTSPEED

SETUP GUIDE

English . . . . . . . . . 3

Deutsch . . . . . . . . 16

Français . . . . . . . .29

Italiano . . . . . . . .42

Español . . . . . . . .55

Português . . . . . . .68

Nederlands . . . . . . 81

Svenska . . . . . . . .94

Dansk . . . . . . . . 107

Norsk. . . . . . . . . 120

Suomi . . . . . . . . 133

Ελληνικά. . . . . . . 146

-. . . . . . 159

Po polsku . . . . . . 172

Magyar . . . . . . . 185

Česká verze . . . . . 198

Slovenčina. . . . . . 211

 . . . . . 224

Eesti . . . . . . . . . 237

Latviski . . . . . . . 250

Lietuvių . . . . . . . 263

. . . . . . 276

Hrvatski . . . . . . . 289

Srpski . . . . . . . . 302

Slovenščina . . . . . 315

Română . . . . . . . 328

Türkçe . . . . . . . . 341

354. . . . . . . . . ةيبرعلا

367 . . . . . . . . . תירבע

3 ENGLISH

GENERAL HEADSET OPERATION

1 Power switch

–When power on LED will light solid green for 5 seconds

if battery power >= 10%. Light will be red for 5 seconds

if battery power is <=10%. Headset will power down

automatically aer 30 minutes of no audio to save

battery life. To resume use, turn the power o, then back

on again. Timeout value can be adjusted in G HUB

2 Volume wheel

–Rotate up to increase OS volume

–Rotate down to decrease OS volume

3 Microphone mute toggle

–Microphone is active when red is not visible.

Microphoneis muted when red is visible

4 USB C charging port

–Use provided USB A to USB C charging cable to charge

headset by plugging into USB port on PC

–Cable is for charging and rmware update only –

audiowill not play over USB

5 Microphone

–For optimal voice pickup, place foam ball approximately

two ngers’ width from the corner of your mouth

–Blue VO!CE functionality can be enabled using G HUB

soware

6 Bluetooth / LIGHTSPEED Toggle

–Press to toggle between BT and LIGHTSPEED modes.

LEDindicator will turn xed blue for 5 seconds when put

intoBluetooth mode, or cyan for 5 seconds when put

into LIGHTSPEED mode.

4 ENGLISH

PC SETUP INSTRUCTIONS

1 Insert the mic boom completely into headset

2 Insert LIGHTSPEED wireless adapter into USB port

ofyourPC

5 ENGLISH

3 Toggle headset power switch on (green light will appear

when rst powered on when battery is at or above 10% -

LED will turn red if battery below 10%)

6 ENGLISH

4 Open Windows sound settings and conrm that

theheadset is set as default Output and Input device Sound

Output

Choose your output device

Certain apps may be set up to use dierent sound devices than the

one selected here. Customize app volumes and devices in advanced

sound options.

Master volume

Device properties

Manage sound devices

Speakers (PRO X 2 LIGHTSPEED)

Input

Choose your output device

Microphone (PRO X 2 LIGHTSPEED)

Troubleshoot

5 (Optional) Download Logitech G HUB soware to access

advanced features. Download at logitechG.com/ghub

logitechG.com/ghub

logitechG.com/support/pro-x-2

7 ENGLISH

PAIRING HEADSET WITH LIGHTSPEED

WIRELESSADAPTER

1 Plug in LIGHTSPEED Wireless Adapter

(ifalreadyplugged in, un-plug and re-plug in)

2 Remove the le earpad cushion

8 ENGLISH

3 Use a paperclip to long press the headset

pairing button

4 Use a paperclip to press the LIGHTSPEED

wirelessadapter pairing button

9 ENGLISH

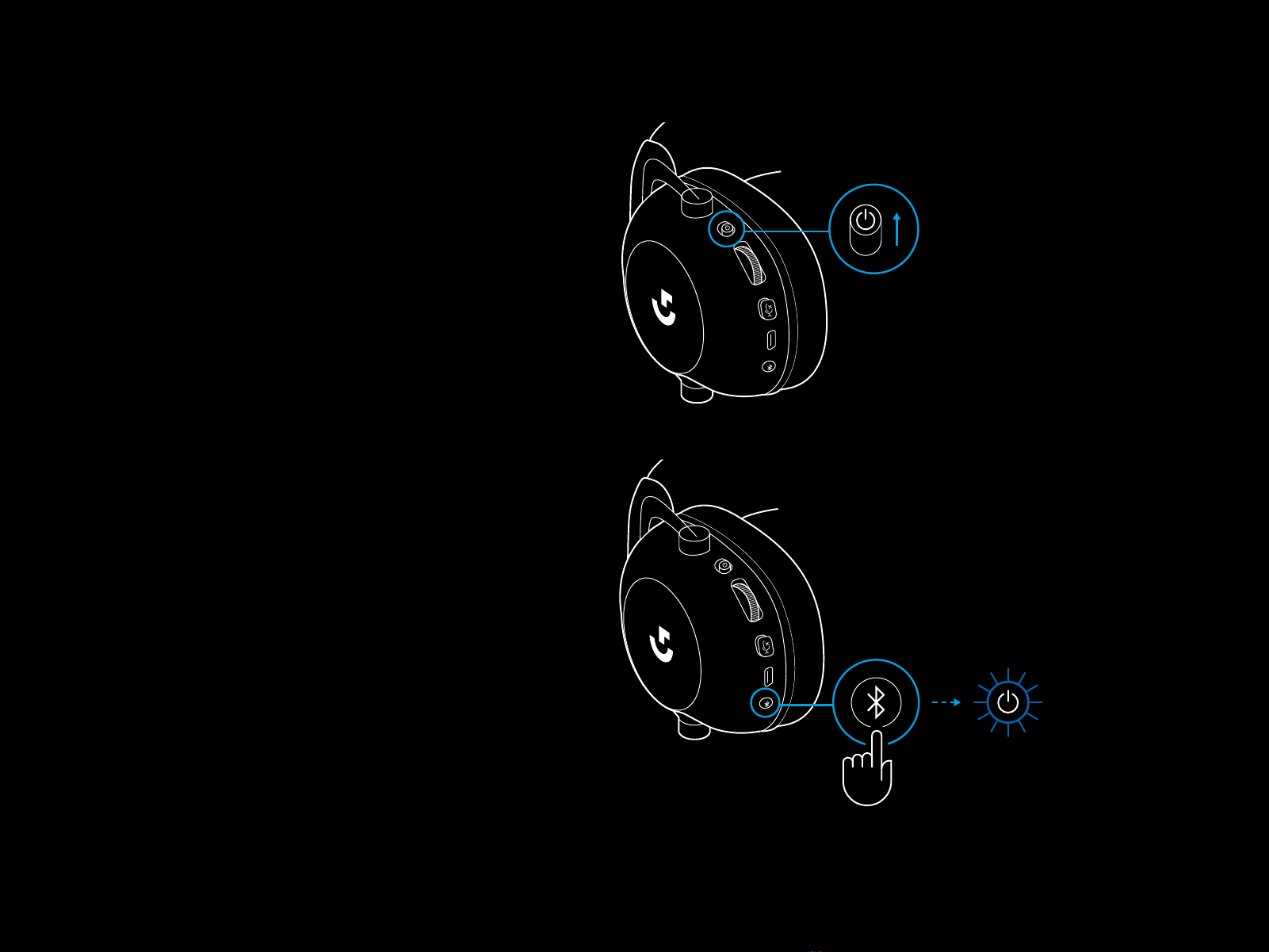

BLUETOOTH PAIRING

1 Turn on headset by sliding power switch

2 Press BT / LIGHTSPEED toggle button.

Power light willturnblue to indicate BT mode

10 ENGLISH

3 Press and hold BT / LIGHTSPEED button

–Headset LED will quickly blink blue

4 Follow Bluetooth connection steps

foryour device

–LED will turn solid blue for 5 seconds

when pair is complete

5 sec.
