SD80MAC Diesel Locomotive

Owner’s Manual

Lionel

SD80MAC Diesel Locomotive

Owner’s Manual

Congratulations!

Congratulations on your purchase of this Lionel LEGACY diesel locomotive! On the outside, this

locomotive features numerous details and expert decoration in your favorite livery. Inside the

body, this locomotive is equipped with some of the most advanced sounds and controls in model

railroading. This powerful locomotive is ready for duty on your layout.

Contents of your locomotive box

1 Powered locomotive

2 Replacement traction tires

1 Owner's manual

1 Engine memory module

1 Smoke fluid funnel

The following Lionel marks are used throughout this Owner’s Manual and are protected under

Lionel®, LEGACY™, FasTrack®,TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™,

DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®Remote

Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®, Lionelville®, Wireless

Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar Celebration Series™,

TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®, Accessory Motor

Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder Controller™, ARC™, Track

Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC 400™, Block Power

Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel Lines®, Joshua Lionel

Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™, Choo-Choo™

Table of contents

Running your locomotive

LEGACY Control operations 4

TrainMaster Command Control (TMCC/Command) operations 5

Conventional transformer operations 6

Locomotive basics

Adding smoke fluid to your locomotive's smoke generator 7

Locomotive switch locations 8

Installing the battery 9

Assigning your locomotive a new ID# (LEGACY and TMCC) 10

Lash-ups (for LEGACY operations only) 11

LEGACY Control System operations

The LEGACY CAB-2 Remote Controller 12

The Velocity Throttle 13

The Multi-Controller 13

The Train Brake Slider 13

The Warning Sound Controller 14

The Speed Bar 14

EFX Trim and EFX Bar Graph 15

Leaving the Preset Speed Screen 15

LEGACY RailSounds Sound System operations

LEGACY RailSounds sound system 16

LEGACY RailSounds Sequence Control 17

CrewTalk dialog and TowerCom announcements in the LEGACY environment 18

LEGACY RailSounds sound system dialog on a round trip 19

TrainMaster Command Control operations

CAB-1 Remote Controller commands 20

CAB-1 Remote Controller numeric keypad commands 21-22

Setting the smoke level 22

Conventional transformer operations

Using the LEGACY RailSounds sound system in the conventional environment 23

Activating CrewTalk dialog and TowerCom announcements 24

Locking your locomotive into a single direction 25

Odyssey II Speed Control system operations

Odyssey II Speed Control operations 26

Odyssey II Speed Control LEGACY Control operation 26

Odyssey II Speed Control TrainMaster Command Control operation 26

Odyssey II Speed Control conventional transformer operation 26

Maintaining and servicing your locomotive

Reprogramming your locomotive to restore features 27

Lubricating your locomotive 28

Servicing your locomotive’s lamps 29

Replacing the traction tires 29

Locomotive diagnostics 30

Notes 30

Lionel Warranty 32

Power your locomotive with an alternating-current (50-60Hz AC) transformer only.

Powering your locomotive with a direct-current (DC) transformer, or in excess of

19 volts AC, may result in damage to sensitive electronic components.

Your locomotive requires Lionel or Lionel-compatible O-36 or larger track curves.

1. Turn off track power, and then plug in the

LEGACY Base and connect it to the track.

2. Place your locomotive on the track.

3. Increase track power voltage to full power

(no more than 19 volts AC). If a circuit breaker

trips when you turn on the Lionel power supply, check

the wheels of your locomotive to make sure they are all

securely on the track. Check to make sure the track is free

of all metals that may cause a short circuit.

4. As illustrated in Figure 1, press ENG and 1

(or your selected ENG ID#) to address the

locomotive with your LEGACY CAB-2 Remote

Controller.

5. Press the Start Up button on your LEGACY

CAB-2 Remote, shown in Figure 2. Then,

throttle up and move 'em out! Your engine sound

will start up, and the locomotive-specific touch screen

buttons will populate the remote. For more information

on operating your locomotive with the LEGACY system,

please refer to the LEGACY section of this manual.

Additional information is also found in the LEGACY

System Manual, available online at www.lionel.com.

Note!

Running your locomotive

Figure 1. LEGACY engine selection

Figure 2. LEGACY start-up

LEGACY Control operations

For the finest operating experience, your locomotive is fully compatible with the LEGACY Control

System. To operate in LEGACY mode, you need a LEGACY Command Base and LEGACY CAB-2

Remote Controller (6-14295).

Your commands are sent by the CAB-2 Remote Controller to the Command Base, which sends

a digital code through the rails to your locomotive. Your locomotive will not respond until it

recognizes its unique ID#, so you can operate multiple Command-equipped locomotives on the

same track at the same time.

Running your locomotive

Power your locomotive with an alternating-current (50-60Hz AC) transformer only.

Powering your locomotive with a direct-current (DC) transformer, or in excess of 19

volts AC, may result in damage to sensitive electronic components.

Your locomotive requires Lionel or Lionel-compatible O-36 or larger track curves.

TrainMaster Command Control (TMCC) operations

For operation in the TrainMaster Command Control environment, you need a TrainMaster

Command Base (6-12911) and a CAB-1 Remote Controller (6-12868). Refer to your TMCC

System Manual for complete information. To access all the locomotive's features, you

must operate in the LEGACY environment, as discussed on the previous page.

Your commands are sent by the CAB-1 Remote Controller to the Command Base, which

translates the command into digital code. That code is sent through the outside rails to your

locomotive, which will not respond until it recognizes its unique ID#. TrainMaster Command

Control gives you the power to operate multiple Command-equipped locomotives on the same track

at the same time.

1. Turn off track power, and then plug in the Command Base and connect it to the

track.

2. Place your locomotive on the track.

3. Increase track voltage to full power (no more than 19 volts AC). If a circuit

breaker trips when you turn on the Lionel power supply, check the wheels of your locomotive to

make sure they are all securely on the track. Check to make sure the track is free of all metals

that may cause a short circuit.

4. Press ENG and 1 (or the ENG ID# you set) to address your locomotive with

your CAB-1 Remote Controller.

5. Throttle up and move ‘em out.

For more information, please refer to the TrainMaster Command Control operations section

of this manual or the TMCC System Manual, available online at www.lionel.com.

Note!

Running your locomotive

Conventional transformer operations

For Conventional operation, a Command Base must not be powered up anywhere

in the area, even if it is not connected to the track. If a base is detected, your

locomotive will default to Command mode.

Power your locomotive with an alternating-current (50-60Hz AC) transformer only.

Powering your locomotive with a direct-current (DC) transformer, or in excess of 19

volts AC, may result in damage to sensitive electronic components.

Your locomotive requires Lionel or Lionel-compatible O-36 or larger track curves.

1. With track power off, place your locomotive on the track.

2. Power up the track (8-18 volts AC). Starting voltage will vary based on the

locomotive's load. If a circuit breaker trips when you turn on the Lionel power supply, check

the wheels of your locomotive to make sure they are all securely on the track. Check to make

sure the track is free of all metals that may cause a short circuit.

3. Move ‘em out! When the locomotive’s headlight illuminates and the LEGACY RailSounds

sound system starts, press the DIRECTION button on your transformer to sequence your

locomotive through the repeating pattern of operations: neutral, forward, neutral, reverse,

neutral, and so on. You may also briefly turn off track power to advance the locomotive to the

next operating state. Adjust the throttle until your locomotive moves at your desired speed.

When placing your locomotive on your layout for the first time and after power

interruptions lasting longer than five seconds, it will start out in neutral.

We recommend that you operate your LEGACY locomotive with Odyssey II

Speed Control turned on. You may choose to operate your locomotive without speed control by

placing the Odyssey II Speed Control System switch to the NO ODY position. See Figure 4 on page 8

for the location of the switch.

Use the HORN and BELL buttons on your transformer to activate those features. Adjust the

volume using the volume control knob. Refer to Figure 4 on page 8 for the location of this control.

For more information, please refer to the Conventional transformer operations section of this

manual.

Note!

Locomotive basics

Your locomotive is equipped with a smoke generator that produces safe, clean, white smoke dur-

ing operation. Add 10-20 drops to the stack (shown in Figure 3) to prime the unit the first time

you run the locomotive or after being stored for an extended period of time. Add 10 to 20 drops to

refill when smoke production decreases.

When refilling, DO NOT EXCEED 20 DROPS as this can cause your smoke unit to become

oversaturated allowing leakage onto the electronics. Note that operating your locomotive's smoke

unit without smoke fluid will cause damage to the heating element.

If you prefer to operate your locomotive without smoke, locate the smoke unit switch and slide it

to the NO SMK position. Refer to Figure 4 on page 8 for the location of the switch.

For best performance, we recommend using Lionel smoke fluid only. Do NOT use smoke

fluid from ready-to-run train sets.

Adding smoke fluid to your locomotive’s smoke generator

Note!

Figure 3. Smoke fluid location

Add fluid here (no more

than 10 to 20 drops)

The functions of your locomotive's switches are outlined below. Refer to Figure 4 for the location

of the switches. The instructions below are specific to this particular locomo-

tive; note that available features (and switches) may differ from other loco-

motives and locomotive sets.

Smoke Unit Switch (SMK/NO SMK)

Used to turn the smoke unit function on and off.

Program-Run Switch (RUN/PGM)

Used to assign an ID# and to reprogram the locomotive for LEGACY and Command operation

when the switch is in the PGM position. Also used to “lock” your powered locomotive in a single

direction, or neutral, in conventional operation when the switch is placed in the PGM position.

Odyssey II Speed Control System Switch (ODY)

Used to turn the Odyssey II Speed Control System on and off.

Locomotive basics

Locomotive switch locations

Figure 4. Locomotive switch locations

Smoke

unit

switch

Odyssey II

Speed Control

System switch

Command

reverse unit

switch

Volume

control knob

Roof panel

shown removed

Locomotive basics

Installing the battery

Although the LEGACY RailSounds sound system is powered through the track, you may choose

to install a nine-volt alkaline battery if you find that the sound system shuts down during

track power interruptions (for example, over a dirty section of track). Follow these steps to install

the battery.

If the RailSounds sound system turns off during interruptions in track power, you may

need to replace the battery. Use only alkaline batteries.

1. Carefully lift up and remove the roof panel at the rear of the locomotive.

Refer to Figure 5 below.

2. Remove the protective cover from the battery harness.

3. Snap the battery harness onto the nine-volt alkaline battery’s terminals and

then slide the battery into the battery holder.

4. Replace the roof panel.

Note!

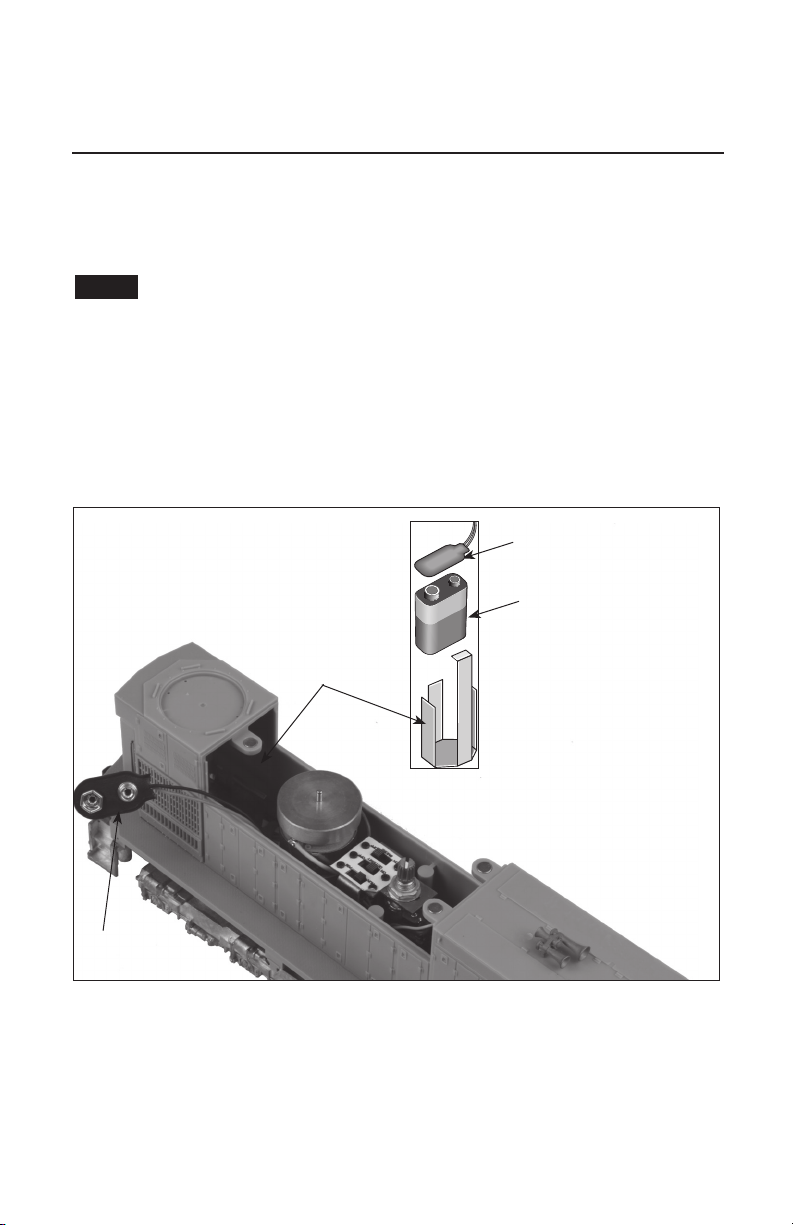

Figure 5. Battery installation

Battery

clip

Battery

harness

Roof panel

shown removed

Nine-volt

battery

REAR

Battery

harness

For operation in the LEGACY or TMCC environment, you will want to give each unit a unique

ID#. The locomotive will respond to commands associated with its ID# while all other units will

disregard these commands. This procedure is not necessary for conventional (non-

Command) operation.

1. Slide the Command reverse unit switch on your locomotive to the PGM

position. See Figure 4 on page 8.

2. Place the locomotive on the track.

3. Connect the Command Base and plug it in.

4. Power up the track.

5. Press ENG on the CAB-1 or CAB-2 remote.

6. Enter the unique ID#. Choose any number from 1 to 98 that has not been

assigned to another locomotive (ENG). We recommend using a part of your

locomotive’s road number.

All LEGACY locomotives respond to ENG 99. We recommend that you reserve ID# 99 as a

"universal" ID#.

7. Press SET. The locomotive's headlight and cab light will turn on, and the horn

will sound if the RailSounds sound system is turned up.

8. Slide the Command reverse unit switch back to the RUN position.

The locomotive’s ID# has been set. Be sure to record the new ID# for your reference.

Locomotive basics

Assigning your locomotive a new ID#

Note!

Tabla de contenidos

Otros manuales de Juguete de Lionel

Lionel

Lionel Southern Pacific RS-3 Diesel Freight Manual de usuario

Lionel

Lionel 72-4153-250 Manual de usuario

Lionel

Lionel Inspection Vehicle Manual de usuario

Lionel

Lionel H16-44 Manual de usuario

Lionel

Lionel Little Lines Freight Set Manual de usuario

Lionel

Lionel Mainline Gooseneck Lamps Manual de usuario

Lionel

Lionel AMERICAN FLYER Sam Manual de usuario

Lionel

Lionel American Flyer SD-9 Freight Set Manual de usuario

Lionel

Lionel Tinplate No. 6 Manual de usuario

Lionel

Lionel Amtrak HHP-8 Manual de usuario

Lionel

Lionel Moe & Joe Flatcar Manual de usuario

Lionel

Lionel Union Pacific Fast Freight Manual de usuario

Lionel

Lionel Pennsylvania ALCo A-A Set Manual de usuario

Lionel

Lionel Allegheny Steam Locomotive Manual de usuario

Lionel

Lionel Union Pacific Manual de usuario

Lionel

Lionel 2343c Non-PoweredF-3 B-Unit Manual de usuario

Lionel

Lionel NW2 Manual de usuario

Lionel

Lionel GG1 Manual de usuario

Lionel

Lionel Celebration Series Manual de usuario

Lionel

Lionel GP-7 diesel locomotive Manual de usuario

Lionel

Lionel Non-Powered LEGACY RailSounds Super Bass F3... Manual de usuario

Lionel

Lionel Junction Dinosaur Diesel LionChief Ready-To-Run... Manual de usuario

Lionel

Lionel 6-36824 Manual de usuario

Lionel

Lionel Lionel Manual de usuario

Manuales populares de Juguete de otras marcas

marklin

marklin 37321 Manual de usuario

Canon

Canon PAPER CRAFT Manual de usuario

GREAT PLANES

GREAT PLANES Pitts M-12S Manual de usuario

NOCH

NOCH 14261 Manual de usuario

Hausler

Hausler 450 SE V2 Manual de usuario

Dynaflite

Dynaflite Daydream Manual de usuario

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manual

Kenner

Kenner Batman 63651 Manual de usuario

LEGO

LEGO 8527 Manual de usuario

iKarus

iKarus ECO 8 Manual de usuario

Multiplex

Multiplex EasyStar II Manual de instrucciones

Walkera

Walkera 38 Manual de instrucciones

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manual de usuario

MD MXION SWD Manual de usuario

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manual de usuario

marklin

marklin 39671 Manual de usuario

Meccano

Meccano 15103 Manual de usuario

LEGO

LEGO TECHNIC 8735 Manual de usuario
