Linksys EFAH05W Manual de usuario

EtherFast®10/100

Auto-Sensing Hubs

he EtherFast 10/100 Auto-sensing Hubs are the

fastest, most economical way to build your

10/100Mbps network. Ideal for workgroups in

all environments, these Auto-sensing Hubs connect

workstations and other network devices together quickly

and easily.

Each port automatically senses and adjusts to its port

speed to optimize your network bandwidth. When

you’re ready for more ports, just connect another hub or

switch through the built-in 10/100 uplink port to expand

your network and add more hardware. Use your

Ethernet network to play multi-user network games,

share high-speed Internet access and any other resource

that you can network...the possibilities are endless.

Virtually any 10/100 Ethernet hardware is compatible

with these EtherFast 10/100 Auto-sensing Hubs. Look

for our higher port density models with fiber optic capa-

bilities and SNMP management.

• Auto-Sensing 10/100 Ports Automatically

Adjust to Optimize Your Network Speeds

• Works with Both 10Mbps Ethernet and

100Mbps Fast Ethernet Hardware

• Choose from 5-Port and 8-Port Models, Plus

16-Port and 24-Port Hubs with SNMP & Fiber

• Compatible with Virtually All Major Network

Operating Systems

• Built-in 10/100 Uplink Port for Port Expansion

• Free 24-Hour Technical Support

• 5-Year Limited Warranty

• Migrate your Ethernet Network to

Blazing 100Mbps Fast Ethernet Speeds

• Integrates 10Mbps and 100Mbps

Hardware for Seamless Performance

• Ideal for a 10/100 Ethernet Network in

Your Home or Small Office

• Easily Expandable with 10/100 Uplink Port

• Free Technical Support - 24 Hours a Day,

7 Days a Week

• 5-Year Limited Warranty

1100//110000AAuuttoo--sseennssiinngg55--PPoorrttHHuubb((EEFFAAHH0055WWvv..22))

1100//110000AAuuttoo--sseennssiinngg88--PPoorrttHHuubb((EEFFAAHH0088WWVV..22))

Reliability and Performance inYour 10/100

Fast Ethernet Networks

Features

Benefits

Migrateto10/100

FastEthernetSpeeds

Specifications

Standards IEEE 802.3, IEEE 802.3u

Protocol CSMA/CD

Ports 5or 810/100 Auto-Sensing RJ-45 Ports

110/100 Autosensing Uplink Port

Cabling Type 10BaseT: Category 3 or 5 UTP

100BaseTX: Category 5 UTP or Better

Topology Star

Speed 10Mbps (10BaseT)

100Mbps (100BaseTX)

LEDs Power, 10/100 Collision, 100Mbps,

Link/ Activity;

SW (EFAH05W only)

Environmental

Dimensions 7.3” x 6.1” x 1.75”

Unit Weight Varies, from 1 to 7 lbs. maximum

Certifications FCC Class B,

CE Mark Commercial,

UL and CSA Listed

Operating Temp. 32ºF to 122ºF (0ºC to 49ºC)

Storage Temp. -4ºF to 158ºF (-20ºC to 70ºC)

Operating Humidity 10% to 85%, Non-Condensing

Storage Humidity 5% to 90%, Non-Condensing

Package Contents

EtherFast 10/100 Auto-Sensing Hubs

• One EtherFast 10/100 Auto-Sensing Hub

• One AC Adapter

• User Guide and Registration Card

Model Numbers:

EFAH05W, EFAH08W

Also in the EtherFast Series:

10/100 Auto-Sensing 16-Port Hub (EFAH16W)

10/100 Rack Mountable 16-Port Hub (EFAH16)

10/100 Rack Mountable 24-Port Hub (EFAH24)

SC-Type Fiber Distance Extender (FFOSCDE1)

ST-Type Fiber Distance Extender (FFOSTDE1)

Sales (800) 546-5797

Support (800) 326-7114

Fax (949) 261-8868

Email [email protected]

Web www.linksys.com

Otros manuales para EFAH05W

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Linksys

Linksys

Linksys SLM224P Manual de operación

Linksys

Linksys Instant EtherFast Series Manual de usuario

Linksys

Linksys SD2005 Manual de usuario

Linksys

Linksys EG005W - Instant Gigabit Workgroup Switch Manual de usuario

Linksys

Linksys Instant EtherFas DSSX12 Manual de usuario

Linksys

Linksys SRW208 Manual de usuario

Linksys

Linksys EG0008 - EtherFast Switch Manual de usuario

Linksys

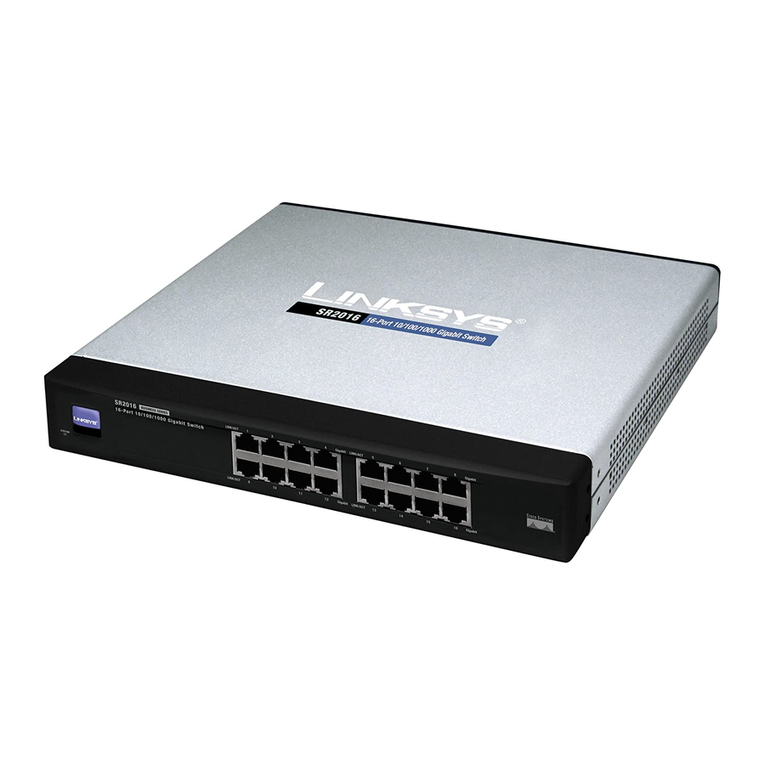

Linksys SR2016 - Cisco - 10/100/1000 Gigabit Switch Manual de usuario
