This sheet will guide you through the basic steps needed to install the

EtherFast Cable/DSL & Voice Router onto your network. If you have

any problems during installation, refer to the Troubleshooting section

of the User Guide.

Preliminary Information

eliminary Information

You will need the following values from your ISP to install the

Cable/DSL & Voice Router (if the information is applicable).

 Your broadband-configured PCs fixed Internet IP Address

 Your broadband-configured PCs Computer and Workgroup

Names

 Your Subnet Mask

 Your Default Gateway

 Your ISPs DNS IP Address

Installing Y

Installing Your EtherFast

our EtherFast

Cable/DSL & V

Cable/DSL & Voice

oice Router Onto

Router Onto

Your Network

our Network

1. Power everything down, including your PCs, cable or

DSL modem, and the Router.

2. Connect a network cable from one of your PCs’ Ethernet

ports to one of the LAN Ports on the back of the Router.

Do the same with all the PCs you wish to connect to the

Router. (LAN Port 4 will become inactive if you use the

Uplink port.)

3. Connect the network cable from your broadband modem

to the WAN port on the rear of the Router.

4. Connect the power-supply cable to the Power port on the

rear of the router, then connect to a power outlet using the

power cord included in the router’s packaging.

• The Power LED will illuminate green as soon as the

power adapter is connected.

• The Diag LED will illuminate red for a few seconds

while the Router goes through its internal diagnostic test.

The LED will turn off when the self-test is complete.

5. Power on one of your PCs and login if you are asked to.

When you reach the desktop, click the Start button, select

Settings, then select Control Panel.

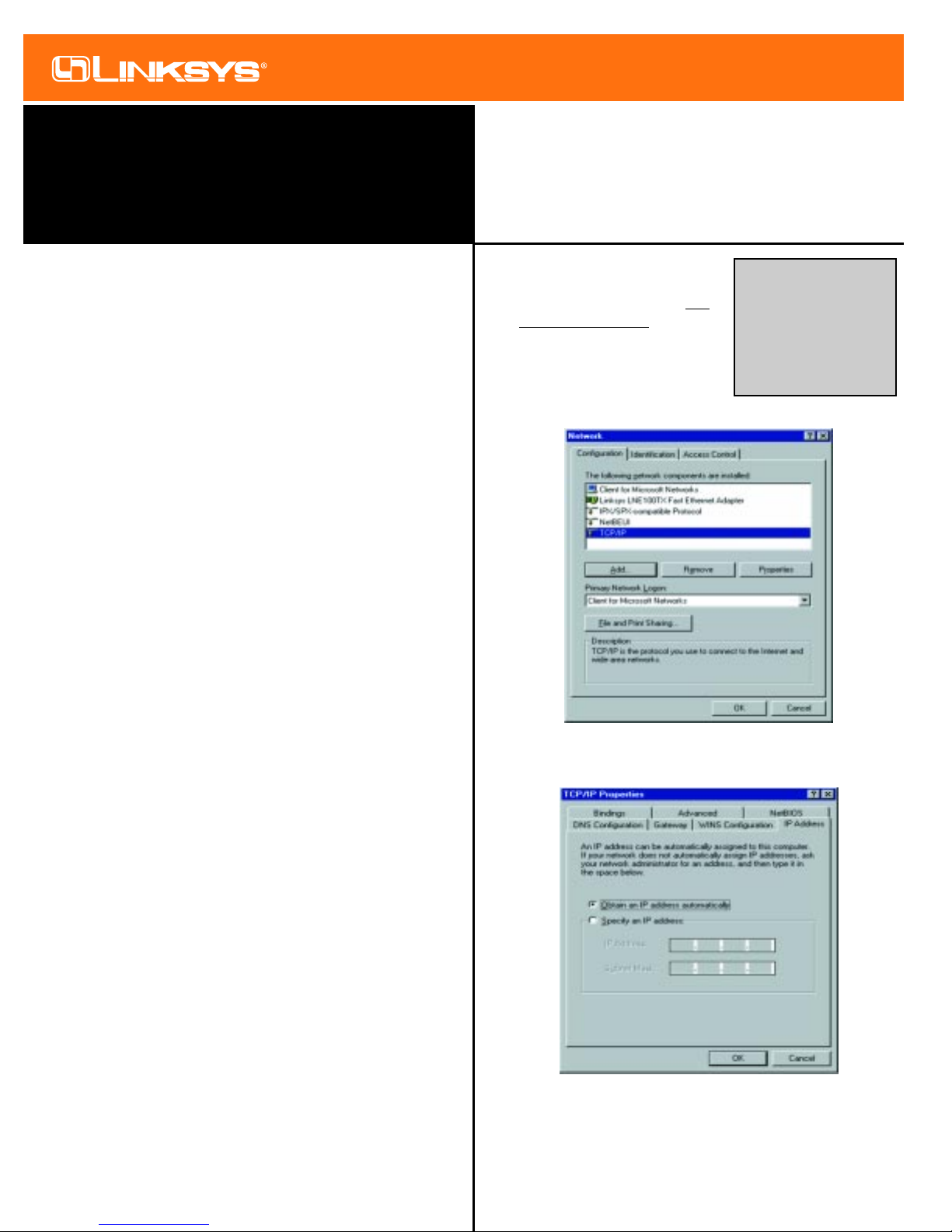

6. Double-click the Network icon.

7. In the Configuration window,

highlight the TCP/IP that has

been associated with your net-

work card or adapter. (Do NOT

configure TCP/IP->Dial-up

Adapter.) Click Properties. If

the TCP/IP Protocol isn’t listed

in the Configuration window,

refer to the User Guide now.

8. Click the IP Address tab. Select Obtain an IP address auto-

matically. Click OK.

9. Click OK again. Windows may begin copying files to your

computer, and then will ask you to restart your PC. Click

Yes to restart your computer and initiate the new settings. If

you aren’t asked, manually restart the computer.

Model No.: BEFN2PS4

EtherFast Cable/DSL &

Voice Router

Instant EtherFast Series

Quick Installation

Making Connectivity Easier™

Continued on back...

NNoottee: Steps 6-9 will only

work in Windows 95 ,98 or

Millennium. If you are using

Windows NT or 2000,

please check your

Windows NT or 2000 doc-

umentation to configure

your TCP/IP protocol.

QI-BEFN2P4S-01219NC DG

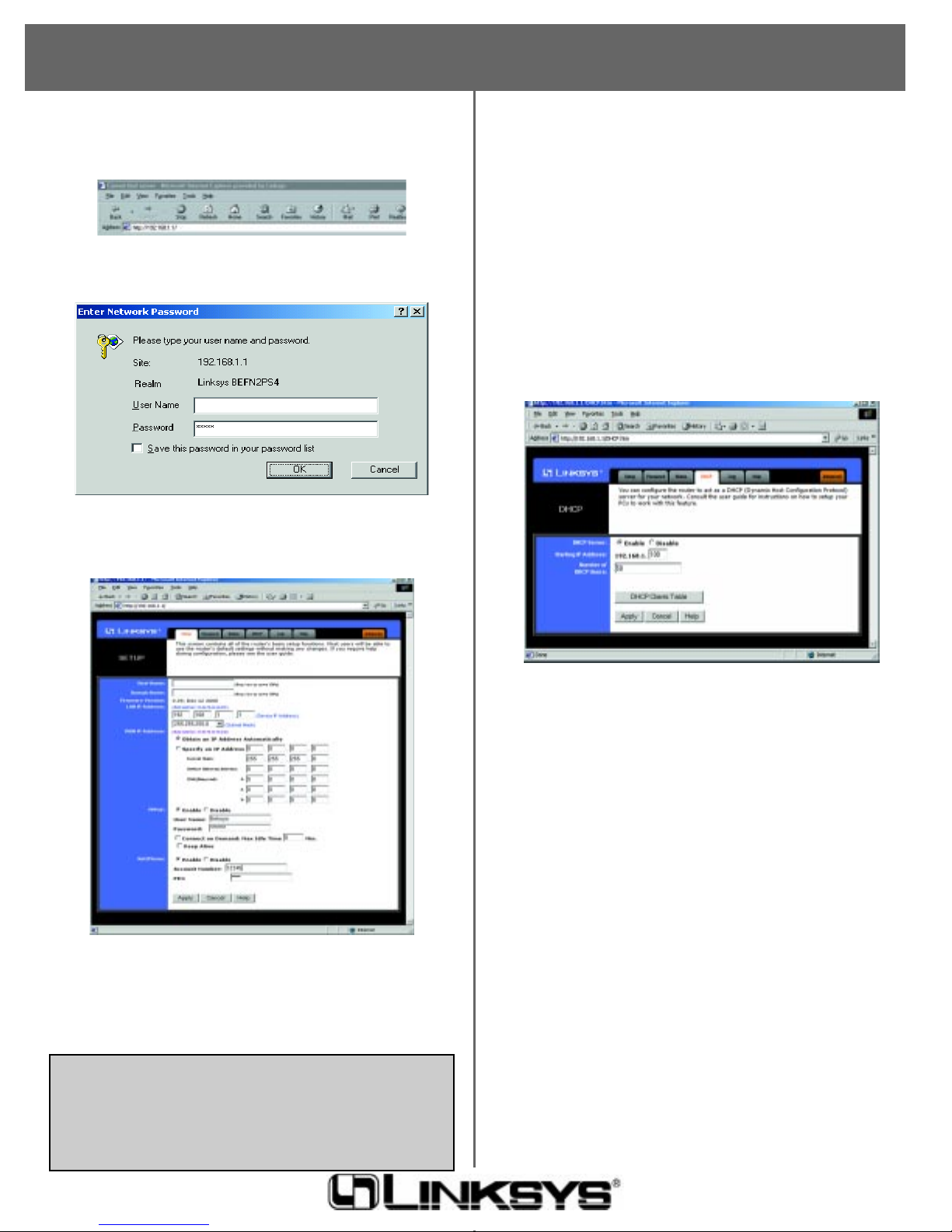

10. Open your PC’s web browser and type http://192.168.1.1 in

the browser’s Address box. Press Enter.

11. A username and password prompt will appear. Leave the

User Name box empty and type “admin” (the default pass-

word) in the Password box. Click OK.

12. Configure the following values into the Cable/DSL & Voice

Router’s Setup page. You can get these values from your

ISP. (Not everyone will require the following settings. Check

with your ISP.)

LAN IPAddress These values refer to the internal network

you are creating with your Cable/DSL & Voice Router.

Unless you have specific internal needs, there should be no

reason to change these values.

WAN IP Address These values refer to the outside network

you connect to every time you access your Broadband

Internet connection. Most Broadband ISPs assign their

clients with a different IP address each time they log on. If

this is the case with your ISP, click Obtain an IP Address

Automatically and continue on to step 14. If your PC has

been assigned a fixed IP address by your ISP, click Specify

an IP Address then enter address into the Subnet Mask,

Default Gateway Address and DNS fields.

13. When you have properly configured the Setup page, click on

the Apply button. Click Continue.

14. Choose the DHCP tab.

15. Unless you already have a DHCP server on your internal

network, choose Enable from the DHCP Server field.

16. In the Number of DHCP Users box, enter the number of

PCs you plan on networking to the Router, then click

Apply.

17. Click the Continue button, then close your web browser.

Restart your computer to apply the new settings.

18. Before your PC reboots, power down your broadband

modem for three seconds, then power it back on.

19. After your PC reboots, open your web browser to test your

Internet connection.

20. Repeat steps 6-9 as necessary for each PC on your network.

Once you have configured all of the PCs on your network,

the Cable/DSL & Voice Router Setup and Installation is

complete. You may now go to the Net2Phone Quick

Installation Guide to set up your Net2Phone account.

NNoottee: Check with your ISP to see if you need to enter RRoouutteerr&&DDoommaaiinn

NNaammeessto be viewed by your ISP’s network. If you do, click on your

SSttaarrttbutton. Choose CCoonnttrroollPPaanneell, then double-click the NNeettwwoorrkk

icon. Choose the IIddeennttiiffiiccaattiioonntab. There will be a CCoommppuutteerrNNaammee

and a WWoorrkkggrroouuppname displayed here. Enter the CCoommppuutteerrNNaammeeinto

the RRoouutteerrNNaammeebox on the

Setup Page

, and enter the WWoorrkkggrroouupp

name into the DDoommaaiinnNNaammeebox on the

Setup Page

QI-BEFN2P4S-01219NC DG
