Linksys SPA2100 Manual de usuario

PLEASE&READ&

"#$%!&%'(!)*+&*,!$%!-(.)!/#'!)*+&-*0/&('(!1!Jive&

Communications&may&not&support&some&features&discussed&

in&this&document2!!

3,'*%'!%''!.&(!.+,$+'!4.0&)'+/*/$.+!.(!0.+/*0/!&%!-.(!*!

0.)5,'/'!,$%/!.-!%&55.(/'4!-'*/&('%2!!

"#*+6%!-.(!0#..%$+7!8$9':!

LINKSYS / SIPURA SPA-1xxx/2xxx/3xxx

CONFIGURATION GUIDE

Minimum Requirements

•ActiveFreshtelInternetPhoneaccount

ohttp://www.freshtel.net

•BroadbandInternetConnection

o256/64kbpsminimum

•BroadbandModem/Router

oMusthaveanEthernetporttoconnecttotheLinksys.

•AnalogueTelephonewithRJ-11line(DesktoporCordless)

Before You Begin

Please note that all information in this guide is applicable to the SPA-1000,

SPA-2000 and SPA-3000 range. These include the SPA-2000, SPA-2100,

SPA-3000 and SPA-3102.

We recommend you ensure that the latest firmware for this device has been

downloaded and installed. For further information, visit the manufacturer’s

website at http://www.linksys.com

If you are using the Freshtel Internet Softphone on your PC with the same

Freshtel number that you wish to use in your Linksys, we advise you to

uninstall or disable the Freshtel softphone. Your Freshtel account can only be

active at one point on our network at any one time, and having two identical

active accounts will cause conflicts.

If you do not yet have a Freshtel account, you should go to our website at

http://www.freshtel.net and register a new account before starting to configure

the Linksys.

Initial Setup

Before configuration, please refer to the Linksys user guide for further

information on how to connect the device to your home network.

If you require more advice, please refer to our help documents on our website

at http://www.freshtel.net/help or contact Customer Care at [email protected]et.

SPA-1xxx/2xxx/3xxx Configuration

Using your telephone handset obtains the IP address of the ATA:

1. Dial **** to enter the Linksys Configuration Menu

2. Dial 110# to get the IP address of the Linksys

3. Write down the IP address of the Linksys.

4. For some models, you may then need to dial 7932#, then 1#,

then 1 to enable the web server of the Linksys ATA.

Enter the IP address of the Linksys in your browser’s address bar to access

the configuration menu.

Figure 1.1

If you are experiencing difficulty trying to connect to the device at this point, try

step #4 above. If you still have problems after this please refer to the user

guide or contact Linksys Technical Support for further assistance.

VoIP Configuration

Once you have logged into the Configuration Center, click the ADMIN LOGIN

link on the top right hand side of the page. Next, click the ADVANCED link

next to it.

If you have a Linksys ATA with a built-in router, such as the SPA-3102, you

will then need to click the VOICE tab at the top of the page.

For more information regarding each property and option, please refer to the

user manual.

SIP Set-up

Figure 1.2

Figure 1.3

Note: All other settings should be left as default.

1. Click on the LINE 1 tab

2. Enter the following:

a. LINE ENABLE: Yes

b. SIP PORT: 5060

c. PROXY: sip.freshtel.net

d. MAKE CALL WITHOUT REG: Yes

e. ANS CALL WITHOUT REG: Yes

f. REGISTER: Yes

g. REGISTER EXPIRES: 3600

h. DISPLAY NAME: Your FRESHTEL Number

(e.g. 81118111)

i. PASSWORD: Your FRESHTEL Password

j. USER ID: Your FRESHTEL Number

k. USE AUTH ID: No

l. PREFERRED CODEC: G729a

m. USE PREF CODEC ONLY: No

n. DTMF TX METHOD: Auto

o. SILENCE SUPP ENABLE: No

p. FAX CED DETECT ENABLE: Yes

q. NAT MAPPING ENABLE Yes

3. Click on SUBMIT ALL CHANGES

DIAL PLAN Set-up

Figure 1.4

1. Click on the LINE 1 tab

2. Enter the following:

DIAL PLAN:

Dial Plan (Australia only -- user has no local call prefix set)

(*123|*xxxxxxxx|<000:61000>S0|<112:61112>S0|<106:61106>S0|61000S0|61112S0|61106S0|

Dial Plan (Australia only -- user has local call prefix set)

(*123|*xxxxxxxx|000S0<:@gw0>|112S0<:@gw0>|106S0<:@gw0>|001[0-

9]x.|0[4569]xxxxxxxx|0[2378][2-9]xxxxxxx|[2-

If you do not know whether you have Local Call Prefix set, refer to the

page titled ‘Setting Local Call Prefix On Your Account’ later in this

document.

3. Click on SUBMIT ALL CHANGES

STUN Set-up

Figure 1.5

1. Click on the SIP tab

2. Enter the following:

a. Handle VIA Received: Yes

b. Insert VIA Received: Yes

c. Handle VIA rport: Yes

d. Insert VIA rport: Yes

e. STUN ENABLE: No

3. ClickonSUBMIT ALL CHANGES

Call Progress Tones

Figure 1.6

1. Click on the REGIONAL tab

Enter the following:

Dial tone: 400@-19,425@-19,450@-19;10(*/0/1+2+3)

Busy Tone: 425@-19;10(.375/.375/1)

Reorder Tone: 425@-19,425@-29;60(.375/.375/1,.375/.375/2)

Ringback Tone: 400@-19,425@-19,450@19;*(.4/.2/1+2+3,.4/2/1+2+3)

MWI Dial Tone: 400@-19,425@-19,450@19;2(.1/.1/1+2);10(*/0/1+2)

Ring1 Cadence: 60(.4/.2,.4/2)

Figure 1.7

Control Timer Values

a. HOOK FLASH TIMER MIN: 0.07

b. HOOK FLASH TIMER MAX: 0.13

Distinctive Call Waiting Tone Patterns

c. CWT8 CADENCE: 30(.2/.2,.2/4.4)

Distinctive Ring Patterns

d. RING 1 CADENCE:

•60(1.5/3.4)

e. RING 3 CADENCE:

•60(1.5/3.4,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.

2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2)

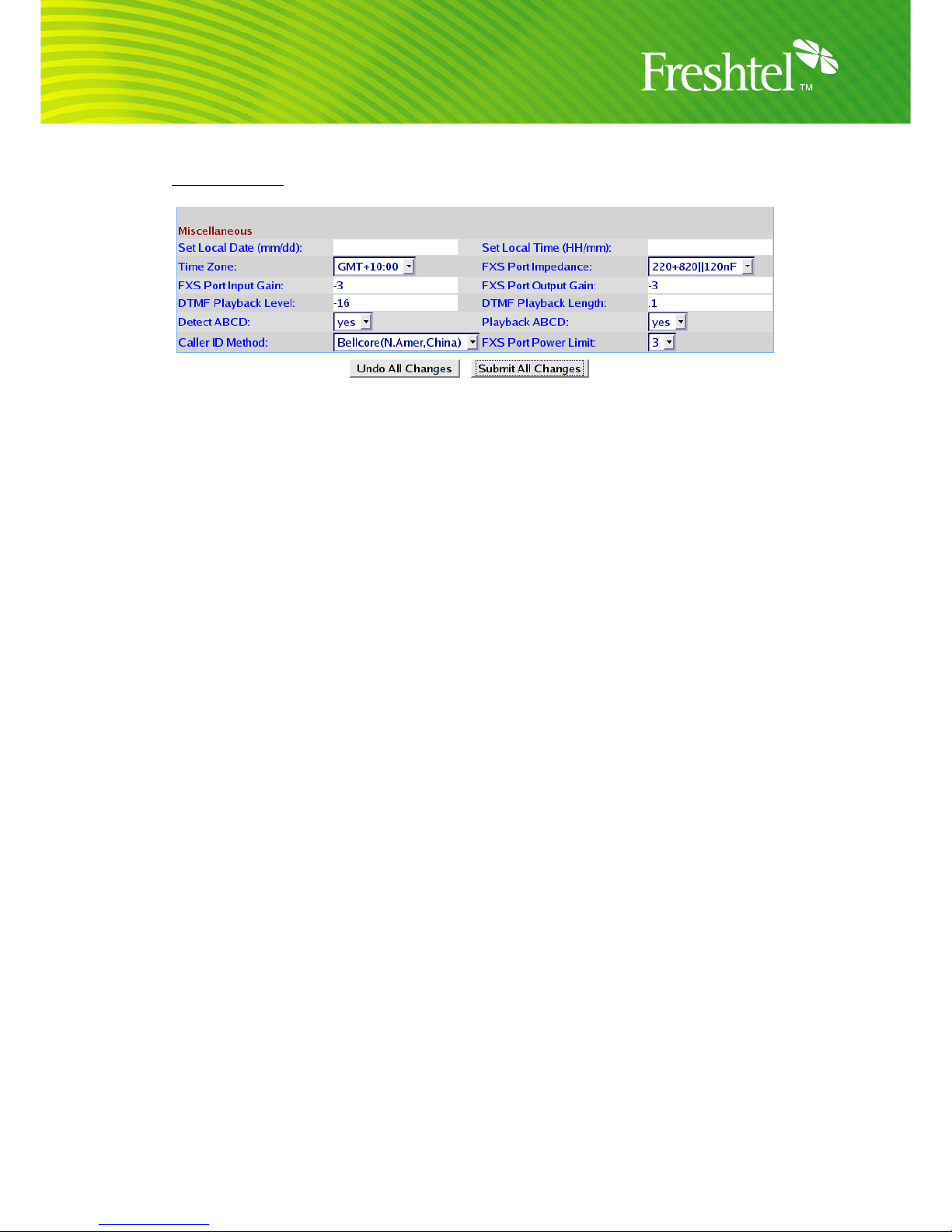

Miscellaneous

Figure 1.8

f. TIME ZONE: GMT+10:00 (or relevant to your area)

g. FXS PORT IMPEDANCE:

220+820||120nF

3. Click on SUBMIT ALL CHANGES
