Lincat EB3F/PB Manual del propietario

IS425 ECN 3607 Page 1 of 13

Installation, Operating and Servicing

Instructions

Electric Auto-Fill Push Button Water Boilers

EB3F/PB and EB3F/PBM

Please make a note of your product details for

future use:

Date Purchased:_________________________

Model Number:__________________________

Serial Number:__________________________

Dealer:_________________________________

_______________________________________

IS425 ECN 3607 Page 2 of 13

CONTENTS

Important Information

Warnings and Precautions

Technical Data

Checklist of Enclosures

Installation and Commissioning

3-4

Operating Instructions

5-7

Cleaning

7-8

Servicing, Maintenance and Component Replacement

Fault Finding

Spare Parts List

Accessories

Service Information and Guarantee

IMPORTANT INFORMATION

Read these instructions carefully before using this product, paying particular

attention to all sections that carry warning symbols, caution symbols and notices.

Ensure that these are understood at all times.

WARNING!

This symbol is used whenever there is a risk of personal injury.

CAUTION!

This symbol is used whenever there is a risk of damaging your Lincat product.

NOTE:

This symbol is used to provide additional information, hints and tips.

KEEP THIS MANUAL FOR FUTURE REFERENCE

IS425 ECN 3607 Page 3 of 13

WARNINGS AND PRECAUTIONS

This appliance must be installed, commissioned and serviced by a qualified person

in accordance with national and local regulations in force in the country of

installation.

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified person.

Ensure that the plug/socket is accessible at all times.

Strip plastic coating and clean the appliance before use.

During operation parts may become hot - avoid accidental contact.

Disconnect this appliance before servicing, maintenance or cleaning.

TECHNICAL DATA

Model

Height (mm)

Width (mm)

Depth (mm)

Weight (kg)

EB3F/PB

655

290

465

13.0

CHECK LIST OF ENCLOSURES

Warranty card

Instructions manual

Drip tray and insert

Inlet hose with ¾” BSP connection

FilterFlow badge

Sample of descaling agent

INSTALLATION AND COMMISSIONING

This appliance must be earthed.

An equipotential bonding terminal is provided to allow cross bonding with other

equipment.

IS425 ECN 3607 Page 4 of 13

If replacing the plug connect the terminals as follows:

Green and Yellow wire Earth E

Blue wire Neutral N

Brown wire Live L

Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary

polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)

Install this appliance on a level surface ensuring all vents are unobstructed.

The serial plate is located on the side of the appliance Fig 1 (H).

Instructions for wall mounting are supplied with the wall mounting kits (see

Accessories).

Power Ratings

Model

Ambient

temperature Deg C

Water inlet pressure

(bar)

Water inlet

pressure (kPa)

EB3F/PB

3.0

5 to 30

1 to 8

100 to 800

The EB3F/PB is supplied with a 13 amp plug.

Water supply and waste connection

Connect the supplied white water inlet hose to the inlet connection point on the

base of the boiler and the other end to the supply via an accessible isolating tap

with a ¾” BSP thread.

If required, the drip tray can be connected to a waste water outlet using a ½”

bulkhead connector (not supplied). Knock out the blank in the tray base. If cables

are required to exit at either side of the boiler the thinner section between the

moulded base sides may be cut away with a hacksaw.

IS425 ECN 3607 Page 5 of 13

OPERATING INSTRUCTIONS

Fig 1

IS425 ECN 3607 Page 6 of 13

First Use

Only qualified or trained personnel should use this appliance.

Switch on the water and electricity supplies. Leave the boiler to fill for 30 minutes.

Drain off approximately 5 litres of water to remove any loose carbon particles from the

filter.

Regular Operation

The boiler starts automatically when the water supply is turned on. During the heating

cycle, only small quantities of water are added to ensure hot water is always available

at the dispenser.

The boiler is designed to be permanently switched on: it is only necessary to turn it off

for de-scaling or maintenance.

Water is drawn off through the dispenser (G).

Adjustment –Water temperature, screen backlight and contrast

Consult Fig 1.

Turn power off and on again. The FilterFlow screen (B) is displayed on the control

panel (A).

Press and hold the power button (D) until the software version is displayed. Press the

function button Fn (C) and the temperature will be displayed.

Press the power button to cycle through the values 70 to 96 Deg C. Press the Fn

button to select the required value.

The backlight adjustment screen is displayed next. Press the power button to cycle

through the values 1-25. Press the Fn button to select the required value.

The contrast adjustment screen is displayed next. Press the power button to cycle

through the values 35 to 60. Press the Fn button to select the required value.

Press the power button to exit.

IS425 ECN 3607 Page 7 of 13

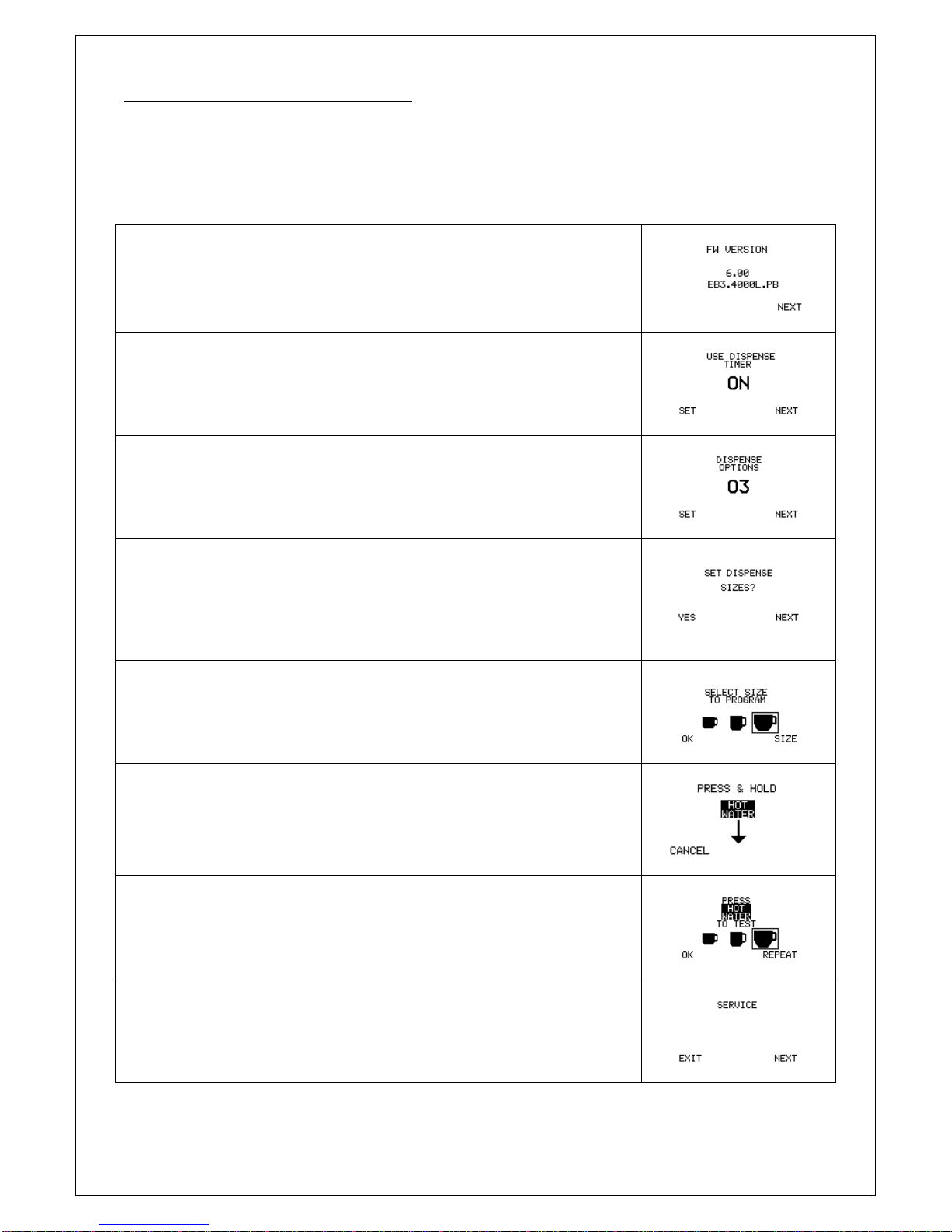

EB3F/PBM PROGRAMMING GUIDE

The PBM version of the EB3F has the option to preset upto 3 measured dispense sizes.

This quick guide shows the procedure for programming the water boiler.

The measured dispense can only be set when the unit is full and upto temperature. So

connect the unit to the water supply and electric, allow 30 minutes for the unit to fill and

heat.

To enter the programming mode, turn the electric off to the unit.

Press and hold the “power button” and turn the electric on. After a

few seconds the programming mode is entered.

Push the “Fn” button until the Use dispense screen is visible.

Pressing set turns off the timed dispense and the unit changes to

Push and hold for dispensing

Press next.

Press set to select 1, 2 or 3 measured dispenses.

Press next.

Press yes to select to set the dispense volumes.

Or next to exit.

Select the size to set.

Press OK.

Press and hold the Hot water button to fill the chosen cup / mug.

Release the button when the cup is full.

After filling there is a chance to test the volume and then either

repeat the setting procedure or accepting the set volume.

Press OK to accept

Press exit to return to the standard User screen or next to

continue and programme more sizes.

IS425 ECN 3607 Page 8 of 13

The unit also has some built-in safety features when in measured dispense mode. These

are

Pressing the “Hot water” button at any time during the filling will stop the fill cycle.

Other size receptacles can be filled be pressing and holding the “Hot Water” button

until full, similarly under-filled receptacles can be topped up in this way.

Standby

If the boiler is left unused for any length of time, turn the element off by pressing the

power button.

Filter replacement

The filter display shows the estimated life remaining in the filter cartridge (Fig 2). A

reminder message is displayed when the filter needs changing. The boiler can be

used without a filter, but scale will quickly build up and water taste may be affected.

Fig 2

To replace the filter

Remove the drip tray from the appliance. Pull the bottom of the lower panel (Fig 1 (F))

outwards and release the two spring pins. Slide the panel downwards to remove.

Twist the base of the filter 90 degrees to the left and lower the cartridge out of the

appliance. It will contain a small amount of water,

Remove the black cap and place it on the new filter.

Re-insert the filter into the recess and lock into place by twisting to the right.

Refit the lower panel.

For EB3F/PB, hold the Fn button for 10 seconds to reset the filter life. For EB3F/PBM

hold the Fn and On/Off buttons down simultaneously for 10 seconds.

Drain off approximately 5 litres of water to remove any loose carbon particles from the

filter.

FILTER

READY

STANDBY

CLEAR

CHANGE

FILTER

IS425 ECN 3607 Page 9 of 13

CLEANING

Do not use a water jet or steam cleaner, and do not immerse this appliance.

Clean all panels with warm water and mild detergent, do not use abrasive

materials. Dry with a soft cloth.

Slide out and empty the drip tray regularly, and wipe the dispensing nozzle daily to

remove limescale deposits.

De-scaling

The boiler should be de-scaled regularly to maintain efficient operation and water

quality. The frequency depends on the hardness of the water and timely

replacement of the filter.

The de-scaling procedure must be performed by trained personnel as it

requires the removal of panels from the boiler giving access to live electrical

components.

De-scaling the boiler at the end of the working day gives the de-scaling agent

several hours to work. Lincat recommend our own de-scaling agent MS19,

available from our Spares department.

Wear protective clothing.

Isolate the boiler from the electrical supply.

Turn off the power and allow the water to cool to 60 Deg C.

Using a 3mm allen key, remove the screw in the top of the boiler.

Remove the insulation from the top of the tank. Unscrew and remove the tank lid.

Add the de-scaling agent slowly to avoid eruption of the water, following the

manufacturers instructions.

Replace tank lid and outer lid and attach an „Out of Use‟ notice to prevent use

during de-scaling.

Turn on the electricity and run the boiler normally for 30 minutes. Isolate the boiler

and allow the water to cool.

Remove both outer and tank lids again. Inspect the tank and level sensor housings

for scale deposits. If necessary, repeat the de-scaling process.

Drain and flush de-scaling agent as follows:

IS425 ECN 3607 Page 10 of 13

Remove the drip tray, lower panel, silicone dispense hose and the inner cover.

Connect a hose from the overflow pipe to a bucket and open the service valve to

drain the water from the tank.

Flush the tank with clean water, shut the valve and replace the covers.

Replace the drip tray and tank lid, ensuring the gasket is sealing the top of the tank

correctly. Re-fit the outer lid and turn on the boiler.

SERVICING, MAINTENANCE AND

COMPONENT REPLACEMENT

Other than replacing the filter, all servicing, maintenance and component

replacement on these appliances should be carried out by one of our recommended

service engineers.

The control panel displays information that can help with fault diagnosis. Before

calling for service, draw off a litre of water, clear the fault code by pressing the Fn

button and turn the boiler off and on again at the supply. If the fault persists, call

service for advice.

Message displayed

Possible causes

Corrective action

Scale on level sensors

Boiler overfilling

Descale

Check water inlet valve

Water turned off

Inlet hose kinked or blocked

Water pressure too high or too

low

Drain valve open

Check water supply and

drain valve

Call service if fault persists

FAULT FINDING

FILTER

DESCALE

STANDBY

CLEAR

CAUTION

SEE MANUAL

FILTER

NO WATER

STANDBY

CLEAR

CAUTION

SEE MANUAL

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Caldera de Lincat

Lincat

Lincat EB3FX/HC Manual del propietario

Lincat

Lincat LWB2 Manual de funcionamiento

Lincat

Lincat EB3HC Manual de servicio

Lincat

Lincat WMB3F/B Manual del propietario

Lincat

Lincat M3F Manual del propietario

Lincat

Lincat Opus OG7003 Guía del usuario

Lincat

Lincat EB3FX/HC/PB Manual del propietario

Lincat

Lincat EB3 Guía del usuario

Lincat

Lincat LWB2 Manual del propietario

Lincat

Lincat M7F Manual del propietario

Lincat

Lincat WMB3F/B Manual de usuario

Lincat

Lincat WMBFX Series Manual del propietario

Lincat

Lincat Opus 800 Series Guía del usuario

Lincat

Lincat WMB5F/B Manual del propietario

Lincat

Lincat EB3FX Manual del propietario

Lincat

Lincat EB3F Manual del propietario

Lincat

Lincat EB3F Instrucciones de funcionamiento

Manuales populares de Caldera de otras marcas

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manual de usuario

Radijator

Radijator BIO max 23.1 Manual de usuario

Brunner

Brunner BSV 20 Manual de usuario

Buderus

Buderus Logamax GB062-24 KDE H V2 Manual de usuario

Potterton

Potterton 50e Hoja de datos

UTICA BOILERS

UTICA BOILERS TriFire Manual de usuario

Joannes

Joannes LADY Series Manual

ECR International

ECR International UB90-125 Manual de instrucciones

Froling

Froling FHG Turbo 3000 Manual de usuario

Froling

Froling P4 Pellet 8 - 105 Manual de usuario

U.S. Boiler Company

U.S. Boiler Company K2 Manual de usuario

Henrad

Henrad C95 FF Manual de usuario

NeOvo

NeOvo EcoNox EF 36 Manual de usuario

Potterton

Potterton PROMAX SL 12 Manual de usuario

Eco Hometec

Eco Hometec EC 25 COMPACT Manual de usuario

Viessmann

Viessmann VITODENS 200 Guía

Baxi

Baxi Prime 1.24 Manual de usuario

REXNOVA

REXNOVA ISA 20 BITHERMAL Manual de usuario
