LINEAR ACTUATOR TECHNOLOGY

THE COMPLETE TECHLINE®PRODUCT RANGE

10 11

THE COMPLETE TECHLINE™

PRODUCT RANGE

1. Turnable back ﬁxture in steps of 30 degrees

2. Optional positioning feedback: Potentiometer or Hall effect sensor

3. Hand crank for manual operation

4. Brake

5. Overload clutch

6. Thermal switch in motor

7. 12, 24, or 36 V DC motor

8. Aluminum housing coated according to corrosion class 4

9. Exchangeable cables

10. High-pressure cleaner proof

11. Built-in end-stop switches (optional)

12. Anodised outer tubes

13. Stroke length up to 999 mm

14. Piston rod eye for ½” or 12 mm PIN

LINAK actuator systems ease the load and make work easier. The

remarkably wide product range offers something for any imaginable

type of movement.

With these actuator systems you can easily reach inaccessible places,

open or close sun blinds and roof windows, regulate ventilators,

close gates automatically - and save yourself exertion.

Workstations and production lines can be set up individually to

increase efficiency and comfort.

For detailed information - please use data sheets

Specifications subject to change without prior notice.

ACTUATOR

There is a colossal number of very different applications in the

industrial sector. To ensure that we focus on exactly the application

you need we have divided the industrial market into three segments,

which share some of the same characteristics and requirements for

linear actuators: MOBILE, MACHINERY & WORKSPACE, and BUILDING

& CONSTRUCTION

LINAK has a wide experience in integrating actuators into applications

and developing solutions, which fit discretely into work processes

- so do not hesitate to contact us.

ELECTRONICS

COLUMN

DESK PANELFOOT SWITCH

CONTROL BOX HANDSET

LINEAR ACTUATOR TECHNOLOGY

ACTUATORS

LA12/

LA12 PLC

Thrust: Max. 750 N

Speed: 5-50 mm/s

Stroke length: 40-130 mm

Duty Cycle: Up to 100%

Voltage: 12/24 V DC

End-stop: Built-in limit

switches

Options:

• PLC interface

• Potentiometer

• Reed switch

• IP 66 housing

Scope of application:

• All kinds of mobile applications

• Factory automation

• Ventilation

• Valves

• Dosage

The LA12 actuator is ideal for

industrial automation, ventilation

systems, and other applications

where small movements are

required.

With LA12 PLC interface.

For detailed information - please use data sheets

Specifications subject to change without prior notice.

Facts:

• Compact and lightweight

• Reinforced glass fibre

Thrust: Max. 6,000 N

Speed: 10-52 mm/s

Stroke length: 50-500 mm

Duty Cycle: 10%

Voltage: 12, 24, or 36 V DC

End-stop: LS/LSD or current

cut-off

Options:

• Powerful strong motor

• Potentiometer

• Reed switch

• Optical encoder

• IP 66 housing

• Hand crank for manual operation

• Ball screw spindle

• Safety nut

Scope of application:

• Agricultural applications

• Lawn and garden equipments

• Floor sweepers

• Satellite dishes

• All kinds of industrial applications

The LA30/30S actuator is a very

versatile actuator for industrial

and system applications. It can

be supplied in many customised

versions, also wheelchairs.

Facts:

• Solid metal construction

• Compact and powerful

• Suitable for harsh conditions

LA30

LA35

Flexible and powerful:

• Max thrust up to 6,000 N in push

and up to 4,000 N in pull

• Heavy-duty aluminimun

housing for harsh conditions

• Protection class IP66 dynamic,

IP69K static

• Stroke up to 600 mm

• Easy to use interface – with

integrated power electronics

for direct connection to control

system

• Potential free limit switches as

an option

• Hall sensors or potentiometer

for relative or absolute feedback,

regardless of the stroke length.

• Built-in limit switches and brake

• Voltage 12 or 24 V DC

Scope of application:

• Agricultural applications

• Mobile “off-highway” applications

• Floorsweeper and scrubber

• All kinds of industrial equipments

The LA35 actuator is a new member

of the TECHLINE™ family. It is

characterised by its robust design

allowing the actuators to be used in

harsh and extreme conditions.

The LA35 actuator is designed to

meet the challenge, based on the

philosophy that it must be able to

operate on off-highway equipment

such as agriculture, forestry

and construction machines.

LINEAR ACTUATOR TECHNOLOGY

LA36

Thrust: 10,000 N

Speed: 8-150 mm/s

Stroke length: 100-999 mm

Duty Cycle: 20%

Voltage: 12, 24, 36 V DC

End-stop: Slip clutch or

built-in limit

switches

Options:

• Potentiometer

• Hall effect sensors

• Adjustable signal swiches

• Integrated electronics

Scope of application:

• Agricultural applications

• Mobile “off-highway” applications

• Floorsweeper and scrubber

• All kinds of industrial equipments

The LA36 actuator is the newest actuator from LINAK®. It has been developed

for harsh conditions and is the most robust actuator in our programme.

The flexibility and integrated electronics makes it suitable for a vast number of

different applications

Facts:

• Solid metal construction

• Hand crank for manual operation

• Suitable for very harsh conditions

• Salt spray testet

• High presure cleaner-proof

ACTUATORS

For detailed information - please use data sheets

Specifications subject to change without prior notice.

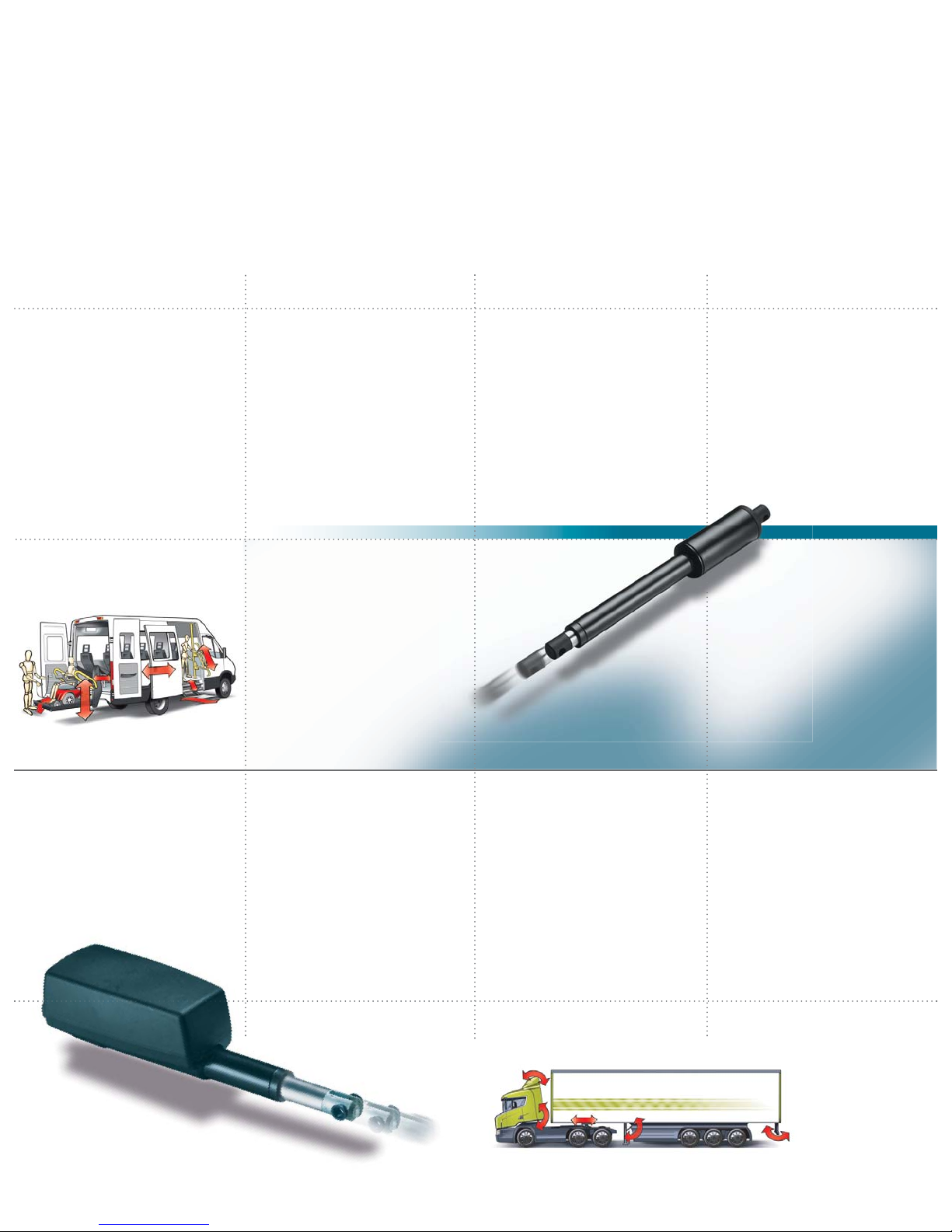

LA28

Thrust: Max. 3,500 N

Speed: 3-46 mm/s

Stroke length: 100-600 mm

Duty Cycle: 10%

Voltage: 12/24 V DC

End-stop: Current cut-off

Options:

• Powerful strong motor

• Reed switch

• IP 66 housing

• Safety nut

• Integrated electronic limit switch

Scope of application:

• Agricultural applications

• Lawn and garden equipment

• Floor sweepers

• Factory automation

Facts:

• Powerful and quiet operation

• Reinforced glass fibre

• Use in “push” appliacations

• Compatible with CB8, CB12,

CB14, and CB18

The LA28/28S actuator (with standard

or fast motor) is a very quiet and

powerful actuator, designed for use

in the furniture, rehabilitation, and

hospital bed industries. Agricultural

machinery and other outdoor

equipment are also other main areas

of application.

Thrust: Max. 400 N

Speed: 13-37 mm/s

Stroke length: 50-200 mm

Duty Cycle: 10%

Voltage: 12/24 V DC

End-stop: LS/LSD or current

cut-off

Options:

• IP 65 housing

• Different back fixtures

• Various piston rod eyes

The LA22 actuator is an in-line

actuator specially designed with

small overall dimensions for use

in industrial, agricultural, and

rehabilitation products.

LA22

Scope of application:

• Agricultural applications

• Wheelchairs

• All kinds of industrial applications

Facts:

• Solid metal construction

• Unique space saving design

• Low noise level

LA31

The LA31

actuator is a

very quiet and

powerful actuator

designed for a variety of

applications including furniture, care

beds etc. It is designed with built-in

limit switches.

Thrust: Max. 6,000 N

Speed: 3-33 mm/s

Stroke length: 50-500 mm

Duty Cycle: 10%

Voltage: 12/24 V DC

End-stop: Built-in limit switches

Options:

• Reed switch

• Hall effect sensor

• IP 66 housing

• Safety nut

• Fast motor

Scope of application:

• Light mobile applications

• Factory automation

• All kinds of indoor applications

Facts:

• Numerous combinations of motor

and spindle pitches

• Zinc alloy back fixture

• Compatible with CB7 and CB9

LA32

The LA32 actuator is a very

quiet and powerful actuator,

designed for hospital beds, patient lifts,

and other demanding applications.

Thrust: Max. 6,000 N

Speed: 5,5-15 mm/s

Stroke length: 100-400 mm

Duty Cycle: 10%

Voltage: 12, 24, or 36 V DC

End-stop: Current cut-off

Options:

• Powerful strong motor

• Potentiometer

• Reed switch

• Optical encoder

• IP 66 housing

• Ball screw spindle

• Safety nut

• Integrated electronic limit switch

Scope of application:

• Agricultural applications

• Lawn and garden equipment

• Floor sweepers

• Factory automation

Facts:

• Powerful and quiet operation

• Reinforced glass fibre

• Use in “push” applications

• Compatible with CB8, CB12,

CB14, and CB18

Thrust: Max. 10,000 N

Speed: 5-18 mm/s

Stroke length: 100-600 mm

Duty Cycle: 10%

Voltage: 12/24 V DC

End-stop: Built-in limit switches

The LA34 actuator is an advanced,

high-tech actuator, which can push

up to 10,000 N. Its compact design,

outstanding performance, and range

of safety options makes the LA34

actuator the ideal choice for

a variety of medical and

industrial applications.

Options:

• Potentiometer

• Reed switch

• IP 66 housing

• Compact housing

• Safety nut

Scope of application:

• Mobile applications

• Factory automation

• Scissor lift

• Various numbers of indoor and

outdoor applications

LINEAR ACTUATOR TECHNOLOGY

LA34

Facts:

• Compact

• Outstanding performance

• Low noise level

For detailed information - please use data sheets

Specifications subject to change without prior notice.

LIFTING COLUMNS

The LC2 column is an update of

the LP2 programme. Depending

on the application, the LC2

column can be operated either

as a single column or several

columns in a parallel system by

the choice of a control box with

microprocessor

Thrust: 5,000 N

Speed: 22 mm/s

Max. Amp.: 6

Voltage: 24 V DC

LC2

Options:

• Different proﬁles

• Reed switch

• Different end plates

• Exchangeable cables

Facts:

• Bending moment 1,400 N

• Built-in end-stop switches

• Safety nut as standard

• Robust anodised aluminium surface

• Compatible with CB8, CB9, CB12,

CB14, and CB18

Scope of application:

• Height adjustable conveyours

• Factory automation

• Ergonomic work spaces

• Workstations

Thrust: Max. 1500 N

Speed: 43 mm/s

Stroke length: 500 mm

Duty Cycle: 5%

Voltage: 12/24 V DC

Options:

• Mounting bracket

(order number 0578006)

• Hall sensors to ensure memory

drive and parallel drive with CBD4

• CBD2 mounted in the DL2

The DL2 column is designed

for workstations and is the

ideal choice for duties such as

height adjustment on computer

workstations, work benches or

a wide selection of other duties.

Inside each column is a modiﬁed

LA31 actuator.

DL2

Scope of application:

• Computer workstations

• Work benches

• Platforms

Facts:

• Low noise level

• Compact and mounting

friendly design

• Single drive (CBD2 and CBD4),

parallel drive (only CBD4)

LP3

Thrust: Max. 2,400 N

Speed: 7-18 mm/s

Stroke length: 300-600 mm

Installation dim.: 360-550 mm

Duty Cycle: 10%

Voltage: 24 V DC

End-stop: Current cut-off

Options:

• Reed switch

• Mounting brackets

• Safety nut

Scope of application:

• Height adjustable conveyors

• Factory automation

• Ergonomic work spaces

• Workstations

The LP3 lifting column is ideal

for applications where there is a

demand for both lifting height and

small installation dimensions. The

telescopic column is compatible

with LINAK’s control units and can

operate individually or in parallel.

Thrust: Max. 6,300 N

Speed: 5-21 mm/s

Stroke length: 195-500 mm

Installation dim.: 405-670 mm

Duty Cycle: 10%

Voltage: 24 V DC

End-stop: Current cut-off

Options:

• Different profiles

• Different end plates

• Integrated gas spring

• Mounting brackets

• Safety nut

Scope of application:

• Height adjustable conveyours

• Factory automation

• Ergonomic work spaces

• Workstations

The LP2 lifting column is the ideal

choice for height adjustment of

examination tables, work benches as

well as for industrial applications. It

can be operated with two, three, or

four columns in parallel.

LP2

Facts:

• Robust anodised aluminium

surface

• Low noise level

• Compatible with CB8, CB12,

CB14, and CB18

Facts:

• Very compact 3-stage column

• Robust anodised aluminium

surface

• Low noise level

• Compatible with CB8,

CB12, CB14, and CB18

LINEAR ACTUATOR TECHNOLOGY

For detailed information - please use data sheets

Specifications subject to change without prior notice.

CONTROLS

The controls are the units used when you want the

LINAK system to perform a movement. They determine

whether the control box makes the actuator move in or

out. There are more variants of LINAK®controls such as

handsets, Foot Switches, Desk Panels, and Attendant

Control Panels. All the handsets are available in both

black and grey.

HB40

Facts:

• Operation of up to four actuators

• Compatible with CB8, CB9, CB12,

CB14, and CB18

• Ergonomic, compact design

• Robust (sturdy) plastic housing

• Protection class up to IP 66

HB50

Facts:

• Operation of up to four actuators

• Compatible with CB8, CB9, CB18

• Ergonomic, compact design

• Robust (sturdy) plastic housing

• Operation of the memory

functions of the actuators

• Protection class up to IP 66

Facts:

• Operation of one or two actuators/

channels

• Compatible with CB8, CB9, CB12,

CB14, or CB18

• Modular system

• Protection class up to IP 66

Facts:

• Operation of the memory

functions of the actuators

• Operation of up to three

actuators/channels

• Compatible with all LINAK®

control boxes

• Mounting under tabletops

• Protection class IP 30

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Linak

Linak

Linak BusLink LA25 Manual de usuario

Linak

Linak TECHLINE LA37 Manual de usuario

Linak

Linak TR-EM-239 Manual de usuario

Linak

Linak ACTUATOR LA36 Manual de usuario

Linak

Linak HOMELINE TWINDRIVE TD2 Manual de usuario

Linak

Linak DL12 Manual de usuario

Linak

Linak TWINDRIVE TD33 Manual de usuario

Linak

Linak TECHLINE LA36 Manual de instrucciones

Linak

Linak LA12 Manual de usuario

Linak

Linak DL12 Manual de usuario

Linak

Linak ACTUATOR LA36 Manual de usuario

Linak

Linak ACTUATOR LA36 Manual de instrucciones

Linak

Linak TECHLINE LA36 Manual de instrucciones

Linak

Linak BusLink LA25 Manual de usuario

Linak

Linak LA12 Manual de instrucciones

Linak

Linak Homeline LA18 Manual de usuario

Linak

Linak LA18 IC Advanced Manual de usuario

Linak

Linak TECHLINE LA25 Manual de instrucciones

Linak

Linak DPA Manual de usuario

Linak

Linak ACTUATOR LA36 Manual de usuario

Linak

Linak Homeline LA10 Manual de usuario

Linak

Linak TECHLINE LA37 Manual de usuario

Linak

Linak LA36 Long Life Manual de usuario

Linak

Linak BusLink LA14 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
