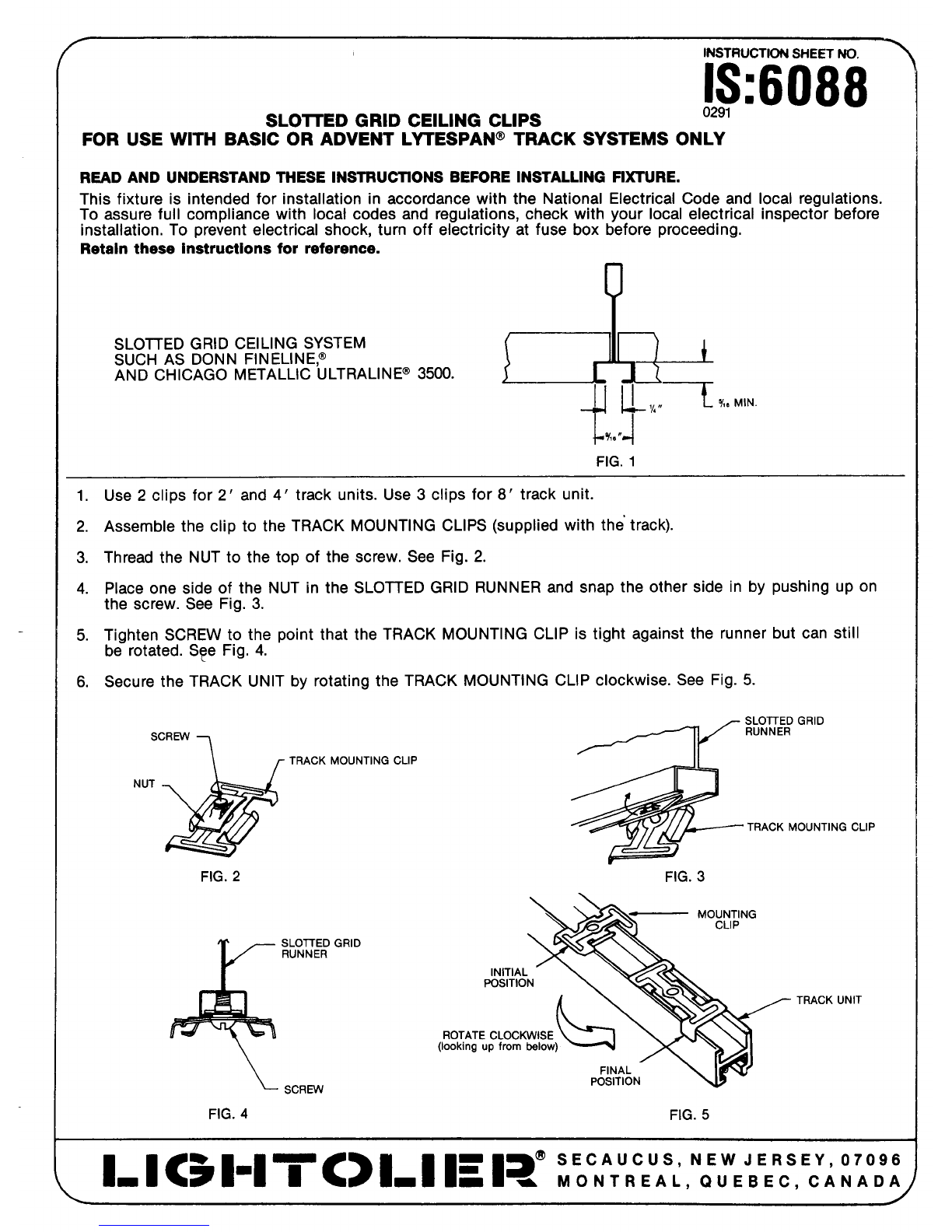

Lightolier SLOITED GRID CEILING CLIPS Manual de usuario

lNSTRIJCTION SHEET NO,

IS:6088

SLOITED GRID CEILING CLIPS 0291

FOR USE WITH BASIC OR ADVENT L~ESPAN” TRACK SYSTEMS ONLY

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.

This fixture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for reference.

SLOITED GRID CEILING SYSTEM

SUCH AS DONN FINELINEP )1

AND CHICAGO METALLIC ULTRALINE” 3500.

?

“L<%,..

%8”

J

FIG. 1

1. Use 2clips for 2’ and 4’ track units. Use 3clips for 8’ track unit.

2. Assemble the clip to the TRACK MOUNTING CLIPS (supplied with the track).

3. Thread the NUT to the top of the screw. See Fig. 2.

4. Place one side of the NUT in the SLOTTED GRID RUNNER and snap the other side in by pushing up on

the screw. See Fig. 3.

5. Tighten SCREW to the point that the TRACK MOUNTING CLIP is tight against the runner but can still

be rotated. S~e Fig. 4.

6. Secure the TRACK UNIT by rotating the TRACK MOUNTING CLIP clockwise. See Fig. 5.

SLOITED GRID

SCREW

&

RUNNER

TRACK MOUNTING CLIP

NUT

TRACK MOUNTING CLIP

FIG. 2FIG. 3

—MOUNTING

4

SLOITED GRID

RUNNER

INITIAL

POSITION

TRACK UNIT

ROTATECLOCKWISE

(lookingup from below)

FINAL

SCREW POSITION

FIG. 4FIG. 5

1- I<5 I“ric>m-lE R“:v:::::L,N:
