Lighting Systems CL-2

Page 1 of 2 Covelite 2-Lamp T8

C1101

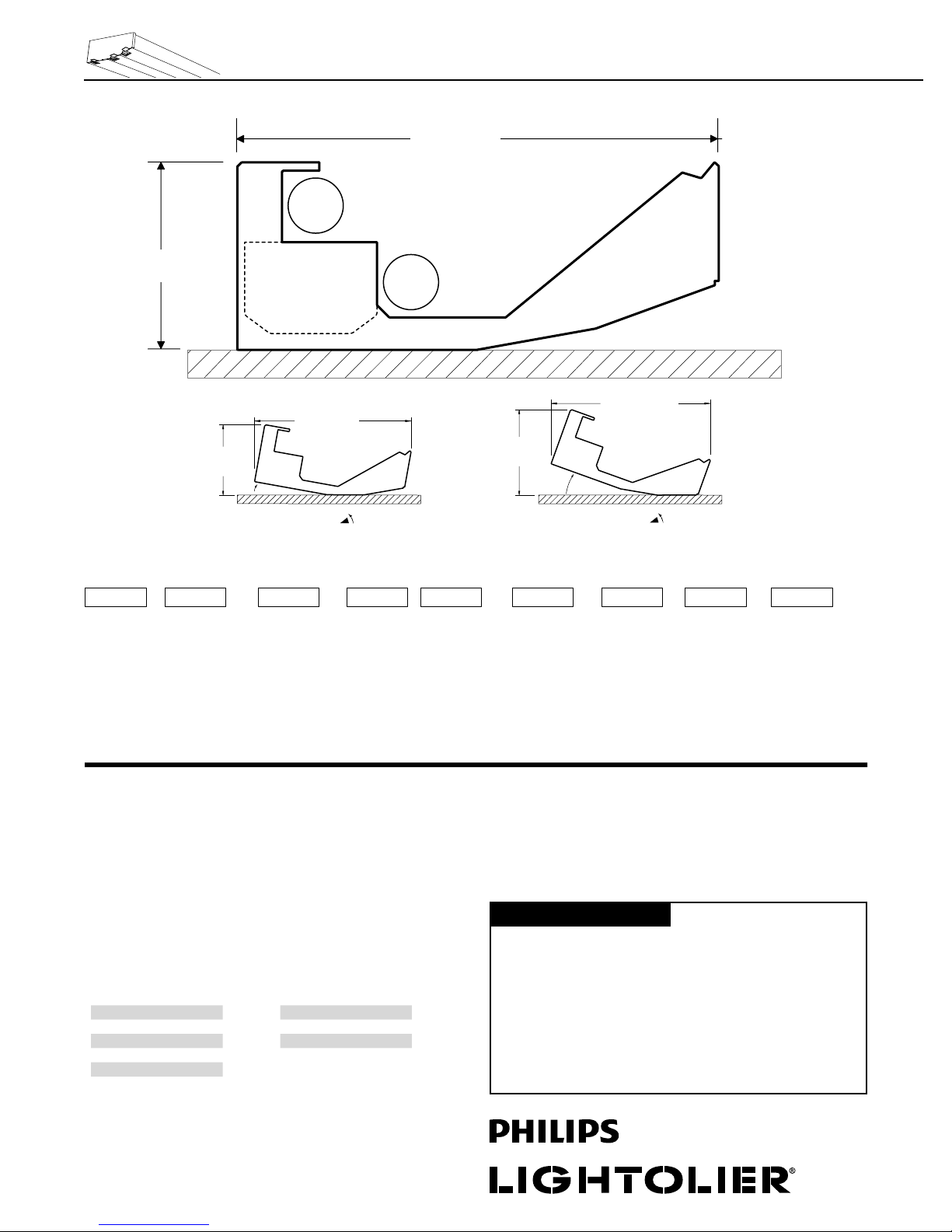

3 3/8"

(8.57cm)

8-5/8" (21.91cm)

Half ScalePosition A

Position B 10° Position C 20°

20°

9-1/8" (23.2cm)

(12.7cm)

10°

9" (22.9cm)

(10.2cm)

Ordering Information

Style Lamps Length

T02 = 2-Lamp T8 1= 1 circuit

3= 1 circuit w/

Emergency circuit

5= 1 circuit w/

Battery Pack

2= 2 circuits

4= 2 circuits w/

Emergency circuit

6= 2 circuits w/

Battery Pack

7= 1 circuit Dimming

02 = 2 ft.

03 = 3 ft.

04 = 4 ft.

06 = 6 ft.

08 = 8 ft.

CL08 T02

Wirirng

D= Dual

120v/277v

3= 347v

Voltage

E= Standard

Ballast

BallastLower Optics

E= Solid Housing

Upper Optics

N= None

W= High

Reflective

White

Color & Finish

Features

Additional Information

Electrical

Labels

Die-formed 20 gauge cold-rolled steel painted white.

Housing:

Weight

:: 3.0 lb/ft.

Optical System: Constructed of highly specular Miro IV ®

aluminum and highly

reﬂective white 20 gauge steel to produce an asymmetric distribution.

Lamping:

Two T8 fluorescent lamps in cross section. 18 watt 2 foot,

32 watt 4 and 8 foot, 25 watt 3 and 6 foot lengths.

Mounting: Fixtures can be screwed down in multiple positions and orientations

to enable precise coordination of optical distributions.

Factory pre-wired to section ends with quick-wire connectors.

Maximum ballast size is 2.5" (6.4cm) by 1.5" (3.8cm).

Standard dimming ballast is Advance Mark VII.

Certiﬁed to UL & CSA standards. Damp locations.

Modules Lengths

Module Nominal Length

2ft 2’0”

3ft 3’0”

4ft 4’0”

6ft 6’0”

8ft 8’0”

Peak Candela Angles

Mounting Peak

Position A 128˚

Position B 118˚

Position C 108˚

Dust cover is available:

CL380L240 Dust cover for 2 lamp T8 2 foot luminaire

CL380L340 Dust cover for 2 lamp T8 3 foot luminaire

CL380L440 Dust cover for 2 lamp T8 4 foot luminaire

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lighting Systems CL-2

Page 2 of 2 Covelite 2-Lamp T8

C1101

69 69 69 59 59 59 40 40 40

60 57 55 53 51 49 35 34 32

52 48 45 48 45 41 30 28 27

46 41 37 44 39 35 27 24 22

40 35 31 40 34 30 23 21 19

35 30 26 37 30 26 21 18 16

31 26 22 33 27 23 18 16 13

28 23 19 31 24 20 17 14 12

25 20 17 28 22 17 15 12 10

23 18 14 26 20 15 13 11 9

21 16 13 24 18 14 12 98

Efficiency: 72.8%

Max. Candela/Angle: 1986/128˚

Quick Calculators and Ceiling Brightness

2Lt, 1 Fixture, 1 Wall, 10" (0.25m) from Ceiling

Distance from wall

0' 2' 4' 6' 8' 10' 12' 14'

Distance From Ceiling

0 0.61m 1.22m 1.83m 2.44m 3.05m 3.66m 4.27m

10" (0.25m)

7'6" (2.29m)

10'0" (3.05m)

34 11 76 54

29 28 24 19 14 11

62 16 86 54

33 32 26 19 14 10

2Lt, 2 Fixtures, 2 Walls, 10" (0.25m) from Ceiling

Distance from wall

0' 2' 4' 6' 8' 10' 12' 14'

Distance From Ceiling

0 0.61m 1.22m 1.83m 2.44m 3.05m 3.66m 4.27m

10" (0.25m)

7'6" (2.29m)

10'0" (3.05m)

2Lt, 1 Fixture, 1 Wall, 14" (0.35m) from Ceiling

Distance from wall

0' 2' 4' 6' 8' 10' 12' 14'

Distance From Ceiling

0 0.61m 1.22m 1.83m 2.44m 3.05m 3.66m 4.27m

14" (0.35m)

7'6" (2.29m)

10'0" (3.05m)

2Lt, 2 Fixtures, 2 Walls, 14" (0.35m) from Ceiling

Distance from wall

0' 2' 4' 6' 8' 10' 12' 14'

Distance From Ceiling

0 0.61m 1.22m 1.83m 2.44m 3.05m 3.66m 4.27m

14" (0.35m)

7'6" (2.29m)

10'0" (3.05m)

Readings are rounded off based on initial footcandles at center of 20-foot run of luminaires. Room reflectance is 80% ceiling, 50% wall and 20% floor.

39 16 13 13 16 39

39 42 42 42 42 39

66 21 14 14 21 66

43 45 44 44 45 43

Candela Distribution

0.0 45.0 90.0 135.0 180.0

Coefﬁcients of Utilization (%)

50 30 10 70 50 30 50 30 10

RCR

70 50

Based on a ﬂoor reﬂectance of 0.2

Ceiling:

Wall:

Distribution Summary

Zone Lumens % Barelamp %Luminaire

0.00.000-90

100.072.8421690-180

100.072.842160-180

Candlepower Curve

Report Number: 2100279

Lamp: (2) F32T8

Lumens: 5800

Performance

750

1500

2250

180˚ 165˚ 150˚

135˚

120˚

105˚

90˚

90 0 0 0 0 0

95 324 300 39 11 5

105 935 877 179 84 66

115 1510 1394 330 193 151

125 1973 1534 479 273 267

135 1961 1532 612 365 333

145 1792 1423 725 484 425

155 1541 1290 809 612 552

165 1270 1126 870 739 693

175 994 954 902 857 837

180 904 904 904 904 904
