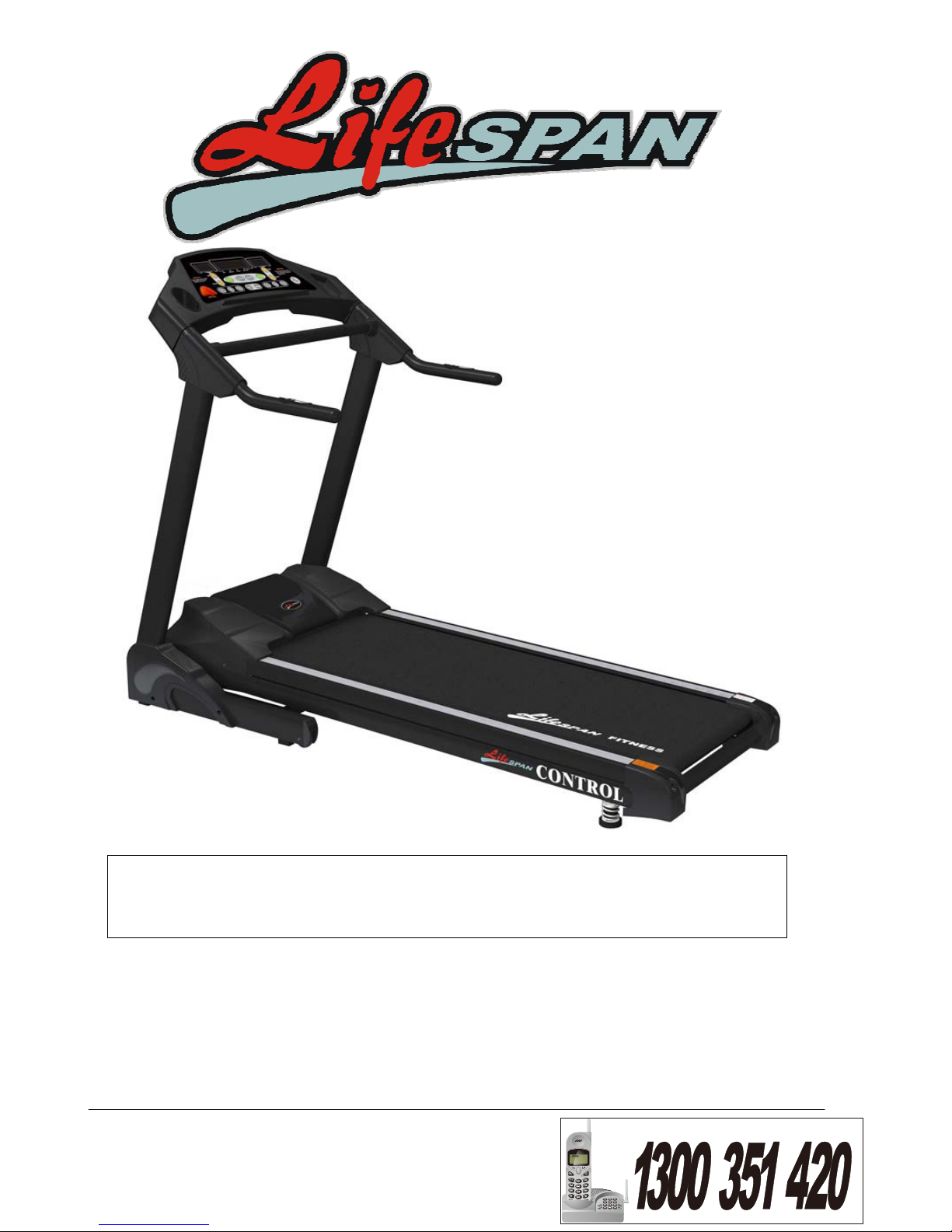

Life Span Control Manual de usuario

CONTROL

USER’S

MANUAL

This is HIGH-POWER item; please DO NOT USE THE SAME OUTLET WITH OTHER

HIGH-POWER HOUSEHOLD APPLIANCE like air-conditioning etc.

Please choose an outlet exclusively for the machine and make sure the fuse is 10A.

Special tips:

1. Before installation and operation, please read this operation manual carefully.

2. Please save this manual for future reference.

3. Product may vary slightly from the item pictured due to model upgrades

http://www.lifespanfitness.com.au/

Table of Contents

1Brief Description………………………………………………………………………………2

2Main Technical Features…………………………………………………………………………2

3Tips for safety…………………………………………………………………………………3-4

4Installation………………………………………………………………………………………4

5Use and Operation…………………………………………………………………………… 4-6

6Maintenance………………………………………………………………………………… 7-11

7Guides for malfunction…………………………………………………………………11-12

8Warranty……………………………………………………………………………………12

9Error and self-inspection………………………………………………………………12-13

10 Installation Sketch…………………………………………………………… 13-16

- 1 -

1. Brief Description

Treadmill CONTROL (diagram 1) can help complete your goal of keeping fit

together with unique and elegant appearance. Easily read panel parameter.

Easily operated folding system realizes space-saving. Auto speed range

1-20km/h and auto incline range1-20. Evaluating bodyfat and MP3 are available .

All makes it a hot home use fitness equipment.

Heart rate senso

Meter accessories Handle

Power switch Pillar accessories

Running belt

Footplate

Running belt adjustor

Safety key

Diagram 1: Treadmill CONTROL

2. Main Technical Features

Main use: Body and beauty building

This treadmill is for home use

Panel displays speed, time, distance, incline, calories, pulse, etc.

Display Mode：LED

Input voltage: 240V±15%

Frequency: 50 Hz or 60 Hz

Input current: ≤8A

Temperature for working: 0∽40℃

Speed range: 1∽20km/h

Auto incline: 0-20%

Time display range: 00:00 - 99:59(minute: second)

Distance display range: 0.000 - 9.999 KM

Machine size (L*W*H):：1854x845x1400（mm）

N/W: 93 KG; GW: 110 KG

- 2 -

3. Tips for Safety

3.1Insert the power plug into the socket directly. Current load should not be

less than 10A.

3.2The constant running time is less than 2 hours, max weight is less than

250kgs.

3.3Place your treadmill on the clean floor，not on the thick carpet, otherwise

it will not convenient for ventilation. Also please don’t put the treadmill in

the moist place or outdoors; If there is something wrong with the electrical

wire, please replace it with the electrical wire provided by our company.

For the replacement, please contact with the local distributor.

3.4The treadmill should be placed in the convenient position for electric

socket.

3.5The freshman should grip the handrails when jogging and running until

familiarly. Please don’t stand on the running belt, after the machine is

power on (the safe key is at the appointed position).Please stand on the

footplates besides the treadmill, press the “start” button, it runs at the

lowest speed, at this time you can run on the belt.

3.6While running, you should dress properly. Don’t dress too loosely in case

your clothes are entangled by the machine .And please wear sport shoes

with soft sole.

3.7Before taking down the protecting cover of the treadmill, please keep the

machine is power off.

3.8Don’t let children and non-sporters get close to the running treadmill to

avoid unnecessary injury.

3.9Please make sure one end of the safe key has been placed in the appointed

position and the other one has been nipped to your clothes when you are

running on the machine. In this way, you can pull the safe key for the

machine’s sudden stop under the dangerous condition. Then you will not

be injured.

3.10 If you are enjoying other entertainment while running such as watching TV,

reading. Please be particularly careful. These activities will distract your

attention, which may make you lose your balance and get hurt.

3.11 Please pull the plug off from socket and keep the safe key, when the

treadmill is unused.

3.12 Please don’t put anything under treadmill and don’t let your children play

near it after folding.

3.13 Please consult your doctor at first before running, if you have one of the

following diseases.

a) Cardiopathy, hypertension, sugar diabetes, respiratory disease,

smoking, and other chronic diseases, complication disease.

b) If you are over 35 years old and heavier than common weight.

c) Women in pregnant or in breasting period.

- 3 -

3.14 Please stop exercising immediately and consult your doctor if you’re feel

giddy, surfeit, thorax ache or other symptoms.

3.15 Please drink adequate water after taking exercises on our treadmill for

more than 20 minutes.

4. Installation: See “Installation sketch”

5. Use and Operation

5.1 Panel Keys and Function

（9）incline-down

（11）safety key

（1）on

（3）MODE

（8）set

（6）speed-down

（7）select

(10)incline-up

（13）speed shortcut key

（14）incline shortcut key

（12）speed window

（15）incline window

（5）speed-up

（4）stop

（16）time ,distance, calorie ,hear rate windows

（2）clear/set

（1）“on”

Under ready condition, press this key, it runs at the lowest speed. All windows

display in a dynamic model.

（2）“clear/set”

Under ready condition, press this key once, all windows will be in the original

conditions.

（3）“profile”

Press this key to enter own programs mode, you have 3 own programs, C1~C3,

P1-P99 are fixed programs.

- 4 -

（4）“off”

Press this key to make machine stop working.

（5）“speed up”

Under running condition, press this key, speed can be speeded up to the one

you need.

（6）“speed down”

Under running condition, press this key, speed can be speeded down to the one

you need.

（7）“select”

Press this key, time, distance and calorie will be displayed.

（8）“set”

Under original mode, press this key, you can set a countdown time, a

countdown distance, a countdown calorie.

（9）“incline up”

Press this key, you can choose the incline you need, except for the alarm

condition.

（10）“incline down”

Press this key, you can choose the incline you need, except for the alarm

condition.

（11）“safety key”

Under urgent condition, pull this key, machine stops immediately.

（12）Speed Window

Press “fast’ or “slow” , the window shows the results.

(13）“speed short cut key”

Under running condition, press this key, speed can be set to the value directly.

（14）“incline short cut key”

Press this key, the incline goes directly to the chosen height.

(15) Incline window

Press “incline-up”, “incline-down” , this window shows the results .

(16) Time, distance, calorie and heart rate window

This window automatically .shows time, distance, calorie and hear rate

5.2 Unload operating

1) Insert power plug into the socket with earth wire, turn the switch to “1”

position which is on the frame.

2) Put the safe key in the right position, then circuit is on, press “on/off”, keep

it run in unload condition. Do not let anyone run on the belt at this time .Test

the condition of running belt (testing from low speed to high ones), after

testing, press “on/off”.

3) If everything is ok, then start to run.

5.3 Meter operating instruction

5.3.1

1) Insert power plug into the socket with earth wire, turn the switch to “1”

- 5 -

position which is on the frame. Place the safe key to the appointed position.

After a few seconds, panel will show that the machine is ready.

2) Nip another end of safe key to your clothes, and stand on the footplate on

both sides.

3) Press “on/off” key, running belt moves at the lowest speed (1.0km/h). Speed

windows will display your running speed.

4) Start to run.

5) Press speed key or incline key to adjust speed and incline, speed window and

incline window will display your speed and incline.

6) To end your exercise in a safe way, please first press “on/off” key to close the

treadmill. Please leave the running belt until it stops slowly. Turn off the

power.

5.3.2 Heart Rate Testing

Our treadmill can test your heart rate via the heart rate sensor. The data is only

for reference.

5.4 Folding and Opening Treadmill

5.4.1 Folding

Firstly lift and fold the back part of the frame board by hand till you hear a light

sound, which means the folding system has been locked. At this time running

board can’t be turned to the opposite direction

5.4.2 Opening

Put the folded treadmill in a capacious position when you want to run. Then pull

the adjusting parts by hand to keep it is unlocked. Press the back part by your

hands down to about 10%, release it, then it will open automatically.

- 6 -

6. Maintenance

Reasonable cleaning/lubricating should be made to extend the life time of this

unit. Performance is maximized when the belt and mat are kept as clean as

possible.

WARNING: THE MAT/DECK FRICTION MAY PLAY A MAJOR ROLE IN THE

FUNCTION AND LIFE OF YOUR TREADMILL AND THAT IS WHY WE

RECOMMEND YOU CONSTANTLY LUBRICATE THIS FRICTION POINT TO

PROLONG THE USEFUL LIFE OF YOUR TREADMILL. FAILING TO DO THIS

MAY VOID YOUR WARRANTY.

WARNING: UNPLUG POWER CORD BEFORE MAINTENANCE.

WARNING: STOP TREADMILL BEFORE FOLDING.

6.1 Maintenance and servicing

AFTER EACH USE (DAILY)

Clean and inspect, following these steps:

• Turn off the treadmill with the on/off switch, then unplug the power cord at the

wall outlet.

• Wipe down the running belt, deck, motor cover, and console casing with a

damp cloth. Never use solvents, as they can cause damage to the treadmill.

• Inspect the power cord. If the power cord is damaged, contact Lifespan Fitness.

• Make sure the power cord is not underneath the treadmill or in any other area

where it can become pinched or cut.

• Check the tension and alignment of the running belt. Make sure that the

treadmill belt will not damage any other components on the treadmill by being

misaligned.

EVERY WEEK

Clean underneath the treadmill, following these steps:

• Turn off the treadmill with the on/off switch, then unplugs the power cord at the

wall outlet.

• Fold the treadmill into the upright position, making sure that the lock latch is

secure.

• Move the treadmill to a remote location.

• Wipe or vacuum any dust particles or other objects that may have accumulated

underneath the treadmill.

• Return the treadmill to its previous position.

- 7 -

EVERY MONTH -IMPORTANT!

• Inspect all assembly bolts of the machine for proper tightness.

• Turn off the treadmill with the on/off switch, then unplug the power cord and

wait 60 seconds.

• Remove the motor cover. Wait until ALL LED lights turn off.

• Clean the motor and lower board area to eliminate any lint or dust particles

that may have accumulated.

Failure to do so may result in premature failure of key electrical components.

EVERY 6 MONTHS

It may be necessary to lubricate your treadmill running deck at least once every

six months to maintain optimal performance of your treadmill (refer to section

4.4 for information). Only use lubricant provided by Lifespan Fitness! Please

contact Lifespan Fitness with questions about applying lubricant to your

treadmill.

• Turn off the treadmill with the on/off switch, then unplug the power cord at the

wall outlet.

• Loosen both the rear roller bolts. (For best results, place two removable marks

on both sides of the frame and note roller position).Once the belt is loosened,

take the bottle of lubricant and apply it to the entire top surface of the running

deck. Tighten both rear roller bolts (matching up the marks for proper position)

to original position. After you have applied lubricant, plug in the power cord, key,

start the treadmill and walk on the belt for two minutes to spread the lubricant.

• Lubricate the air shocks with Teflon based spray.

EVERY 2 YEARS

It is necessary that you change your treadmill motor brushes once every 2 years

to avoid damaging your motor. If you fail to change the brushes this may cause

the motor to burn out, voiding any warranty.

SERVICING: IF YOU FAIL TO COMPLY WITH LIFESPAN’S MAINTENANCE

AND SERVICING STEPS ABOVE, YOU MAY VOID YOUR WARRANTY. IF

YOU REQUIRE A SKILLED LIFESPAN REPRESENTATIVE TO UNDERTAKE

ONE OF THE STEPS ABOVE, PLEASE EMAIL US AT

[email protected].

6.2 General Cleaning

Use a soft, damp cloth to wipe the edge of the belt and the area between

the belt edge and frame. A mild soap and water solution along with a nylon

scrub brush will clean the top of the textured belt. This task should be done

once a month. Allow to dry before using.

- 8 -

On a monthly basis, vacuum underneath your treadmill to prevent dust

build up. Once a year, you should remove the black motor shield and

vacuum out dirt that may accumulate.

6.3 General Care

Check parts for wear before use.

Pay particular attention to the fixing knobs and make sure they are tight.

Always replace the mat if worn and any other defective parts.

If in doubt, do not use the treadmill and contact our helpline.

TAKE CARE TO PROTECT CARPETS AND FLOOR in case of leakages. This product

is a machine that contains moving parts which have been greased / lubricated

and could leak.

6.4 Belt/Deck/Roller Lubrication

The mat/deck friction may play a major role in the function and life of your

treadmill and that is why we recommend you constantly lubricate this friction

point to prolong the useful life of your treadmill.

Lubrication is provided with this unit. You should apply the enclosed lubrication

after approximately the first 50 hours of operation. We recommend lubrication of

the deck according to the following timetable:

Light use (less that 3 hours per week) every 6 months

Medium use (3-5 hours a week) every 3 months

Heavy use (more than 5 hours per week) every 6-8 weeks.

See below procedures for lubricating:

1) Use a soft, dry cloth to wipe the area between the belt and deck.

2) Spread lubricant onto the inside surface of belt and deck evenly (make sure

the machine is turned off and power is disconnected).

3) Periodically lubricate the front and rear rollers to keep them at there peak

performance.

If the treadmill belt/deck/roller is kept reasonably clean, it is possible to expect

over 1200 hours before additional re-lubing is necessary.

6.5 How to check the running mat for proper lubrication

1) Disconnect the main power supply.

2) Fold the treadmill up into the storage position.

- 9 -

Otros manuales para Control

Tabla de contenidos

Otros manuales de Rueda de andar de Life Span

Life Span

Life Span LFTM-VFOLD Manual de usuario

Life Span

Life Span Viper M4 Manual de usuario

Life Span

Life Span SPIRIT Manual de usuario

Life Span

Life Span TR3000i Manual de uso y cuidado

Life Span

Life Span PERFORMER PLUS Manual de usuario

Life Span

Life Span Dash Manual de usuario

Life Span

Life Span Workplace DT-5 Manual de usuario

Life Span

Life Span TR5500iC Manual de usuario

Life Span

Life Span Super Manual de usuario

Life Span

Life Span WALKSTATION ML Manual de usuario

Life Span

Life Span Power Manual de usuario

Life Span

Life Span BOOMER PLUS Manual de usuario

Life Span

Life Span BOLT M2 Manual de usuario

Life Span

Life Span EXPLORER Manual de usuario

Life Span

Life Span BOOST Manual de usuario

Life Span

Life Span PERFORMER II Manual de usuario

Life Span

Life Span Torque Manual de usuario

Life Span

Life Span TR200i Manual de usuario

Life Span

Life Span Pursuit 2 Manual de usuario

Life Span

Life Span STRIDE Manual de usuario

Life Span

Life Span Dymo Manual de usuario

Life Span

Life Span TR3000i Manual de usuario

Life Span

Life Span Diamond Manual de usuario

Life Span

Life Span ARROW Manual de usuario

Manuales populares de Rueda de andar de otras marcas

Treadly

Treadly TREADLY 2 Manual de usuario

HEALTH ONE

HEALTH ONE Walk Ro Manual de usuario

NordicTrack

NordicTrack NTL12941 Manual de usuario

NordicTrack

NordicTrack T7.5 S Manual de usuario

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manual de usuario

Merax

Merax MS282992 Manual de usuario

FYTTER

FYTTER RU-2SX Manual de usuario

Precor

Precor 903 Manual de usuario

FitLogic

FitLogic freewill d225 Manual de usuario

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manual de usuario

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manual de usuario

Stamia

Stamia InMotion II Manual de usuario

Smooth Fitness

Smooth Fitness EVO 3i Manual de usuario

NordicTrack

NordicTrack NETL81810.0 Manual de usuario

Schwinn

Schwinn 830/Journey 8.0 Manual de usuario

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manual de usuario

Spirit

Spirit XT8 Manual de usuario

NordicTrack

NordicTrack T 14.0 Treadmill Manual de usuario
