CLASSIC

2 in 1 ELLIPTICAL TRAINER

ITEM NO.: 93266

OWNER’S MANUAL

IMPORTANT: Read all instructions carefully before using this product. Retain this

owner’s manual for future reference.

The specifications of this product may vary from this photo, subject to change without notice.

2011, July

TABLE OF CONTENTS

WARRANTY---------------------------------------------------------------------------------1

SAFETY INSTRUCTIONS ------------------------------------------------------------- 2

PARTS LIST ------------------------------------------------------------------------------- 3

HARDWARE PACKING LIST --------------------------------------------------------- 5

TOOLS -------------------------------------------------------------------------------------- 6

OVERVIEW DRAWING ----------------------------------------------------------------- 7

ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8

OPERATING THE COMPUTER ------------------------------------------------------ 16

ADJUSTMENTS -------------------------------------------------------------------------- 17

MAINTENANCE -------------------------------------------------------------------------- 18

TROUBLESHOOTING ------------------------------------------------------------------ 18

WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 19

ONE YEAR LIMITED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in

material and workmanship when used for the purpose intended, under the conditions that it

has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's

obligation under this warranty is limited to replacing or repairing, free of charge, any parts

which may prove to be defective under normal home use. This warranty does not include

any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.

This warranty is extended only to the original owner and is not transferable.

When ordering replacement parts please have the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following safety

instructions when using this equipment: Read all instructions before using this

equipment.

1. Read all the instructions in this manual and do warm up exercises before using this

equipment.

2. Before exercise, in order to avoid injuring the muscle, warm-up exercise of every

position of the body is necessary. Refer to Warm Up and Cool Down Routine page.

After exercise, relaxation of the body is suggested for cool-down.

3. Please make sure all parts are not damaged and fixed well before use. This

equipment should be placed on a flat surface when using. Using a mat or other

covering material on the ground is recommended.

4. Please wear proper clothes and shoes when using this equipment; do not wear clothes

that might catch any part of the equipment.

5. Do not attempt any maintenance or adjustments other than those described in this

manual. Should any problems arise, discontinue use and consult an Authorized

Service Representative.

6. Be careful when step on or leave the pedal always hold the handlebars first. Make the

pedal at your side at the lowest position, step on the pedal, and stride over the main

frame then step on the other pedal. When using, please hold the handlebar by hands,

make the pedals running smoothly by push or pull handlebars, then run the equipment

regularly by cooperation of hands and feet. After exercise, please also make one

pedal at the lowest position and leave your foot on the higher pedal first and then

another.

7. Do not use the equipment outdoors.

8. This equipment is for household use only.

9. Only one person should be on the equipment while in use.

10. Keep children and pets away from the equipment while in use. This machine is

designed for adults only. The minimum free space required for safe operation is not

less than two meters.

11. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop

exercising immediately and consult your physician before continuing.

12. The maximum weight capacity for this product is 110kgs.

WARNING:Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have

pre-existing health problems. Read all instructions before using any fitness

equipment.

CAUTION:Read all instructions carefully before operating this product.

Retain this Owner’s Manual for future reference.

PARTS LIST

No. Description Qty No. Description Qty

001 Main Frame Ø50x2 1 027 Nylon Nut M6 8

002L Left Foot Bar 40x25x1.5 1 028 Washer Ø6 7

002R Right Foot Bar 40x25x1.5 1 029 Bolt M6x40 6

003L Left Handrail Arm Ø32x1.5 1 030 Tension Cable L=1600 1

003R Right Handrail Arm Ø32x1.5 1 031 Bolt Cap S13 2

004L Left Handrail Ø32x1.5 1 032 Screw ST4.2x25 7

004R Right Handrail Ø32x1.5 1 033L Foot Bar Cover-A 2

005 Front Post Ø50x1.5 1 033R Foot Bar Cover-B 2

006 Handlebar Ø28x1.5 1 034 Big Washer Ø20xØ8x2 3

007 Bolt M6x10 1 035 Bolt Ø15.8x62.5 2

008 Screw ST2.9x10 2 036 Left Foot Pedal 395x150x65 1

009 Hexagon Head Bolt M8x30 1 037 Right Foot Pedal 395x150x65 1

010 Front Stabilizer Ø50x1.5x480 1 038 Front Stabilizer End Cap Ø50 2

011 Rear Stabilizer Ø50x1.5x480 1 039 Bolt M6x48 2

012 Bolt M10x57 4 040 Transport Wheel Ø23xØ6x32 2

013 Rear Stabilizer End Cap Ø50x1.5 2 041 Bolt M8x16 8

014 Big Curve Washer Ø10 4 042 Curve Washer Ø20xØ8 6

015 Cap Nut M10 4 043 Bolt M10x18 2

016L Bolt for left U Shape Bracket

Ø16x88.5xL23

1 044 Spring Washer Ø18xØ10x2 2

016R Bolt for right U Shape Bracket

Ø16x88.5xL23

1 045 Washer Ø28x5 2

017L Left Nylon Nut 1/2” 1 046 Powder Metal Bushing

Ø33xØ29xØ16x14x4

017R Right Nylon Nut 1/2” 1 047 Bolt M6x35 4

018 Wave Washer Ø28xØ17x0.3 2 048 Curve Washer Ø6 4

019 Powder Metal Bushing

Ø29xØ16x14

8 049 Bolt Cap S16 2

020 Spring Washer Ø12 2 050 Cap Nut M6 4

021 Bearing 6000 2Z 2 051 Plastic Bushing Ø32xØ16x5xØ50 2

022 Washer Ø40xØ24xδ2.5 1 052L Left Handrail Arm Cover-A 1

023 U Shape Bracket 2 052R Right Handrail Arm Cover-A 1

024 Nylon Nut M8 5 053L Left Handrail Arm Cover-B 1

025 Washer Ø16xØ8x1.5 5 053R Right Handrail Arm Cover-B 1

026 Bolt M8x50 2 054 Tension Control Knob

0325-BC62003-0101

PARTS LIST

No. Description Qty No. Description Qty

055 Screw ST2.9x12 8 079 Powder Metal Bushing Ø18xØ8x5 4

056 Computer JVT 29104 1 080 Nut for Flywheel M10x1.25 2

057 Bolt M5x12 4 081 Flywheel Ø230x40x32 1

058 Hand Pulse Sensor with Wire

L=750

2 082 Belt PJ330 J6 1

059 Handrail Foam Grip

Ø31xØ37x480

2 083 Idle Wheel Bracket 1

060 Spring Washer Ø8 6 084 Bolt M8x20 2

061 Handrail End Cap Ø32x1.5 2 085 Eyebolt M6x36 2

062 Handlebar End Cap Ø28x1.5 2 086 Tension Bracket 31x31xδ1.0 2

063 Screw ST4.2x20 2 087 Spring Washer Ø6 2

064 Curve Washer for Tension

Control Knob Ø20xØ5.2

1 088 Hexagon Nut M6 2

065 Bolt for Tension Control Knob

M5x25

1 089 Bolt M8x10 1

066 Phillips Self Tapping Screw

ST4.2x25

4 090 Handlebar Foam Grip

Ø33xØ27x360

067 Sensor Wire I L=1100 1 091 Seat Sliding Tube 38x38x1.5 1

068 Sensor Wire II L=950 1 092 Seat Sliding Tube End Cap

38x38x1.5

069 Screw ST4.2x20 4 093 Seat Post 60x20x2 1

070 Left Cover 544x345x86 1 094 Seat Adjustment Knob M8 1

071 Right Cover 544x345x84 1 095 Seat Post Knob M16x1.5 1

072 Bearing Cup Ø51.5 2 096 Seat Post Bushing 1

073 Bearing 2 097 Seat Cushion DD-982AT 1

074 Bearing Nut I 15/16” 1 098 Seat Post Cover 1

075 Bearing Nut II 7/8” 1 099 Cover Cap Ø40xØ25x10 2

076 Washer Ø34.5xØ23x2.5 1 100 Big Washer Ø20xØ10x2 2

077 Hexagon Nut 7/8” 1 101 Curve Washer Ø16xØ8x1.5 2

078 Belt Pulley with Crank Ø240 1 102 Washer Ø10.2xØ14xδ1.0 2

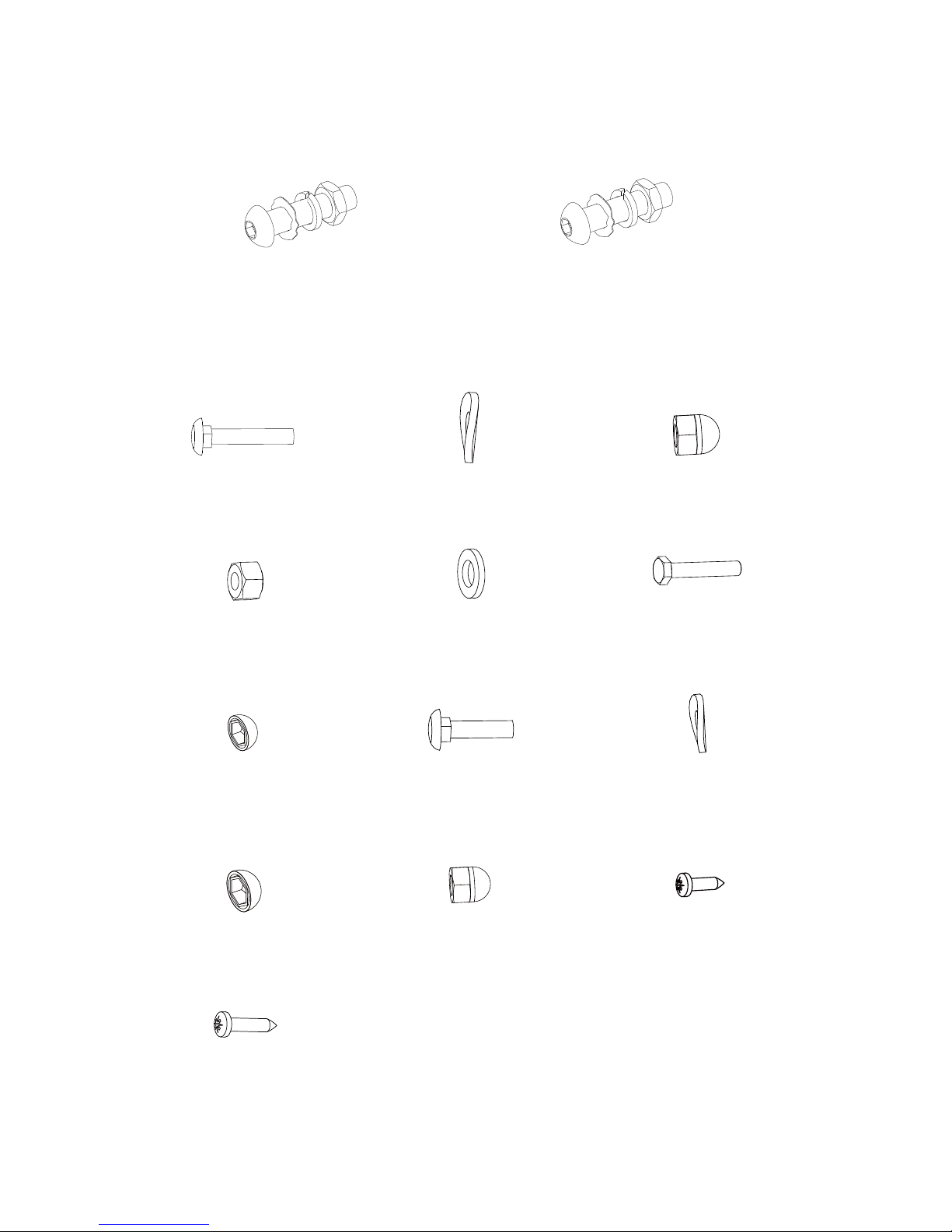

HARDWARE PACKING LIST

(12) Bolt M10x57

4 PCS

(15) Cap Nut M10

4 PCS

(16R) Bolt for right U Shape

Bracket Ø16x88.5xL23 1 PC

(17R) Right Nylon Nut 1/2” 1 PC

(18) Wave Washer

Ø28xØ17x0.3 1 PC

(20) Spring Washer Ø12 1 PC

(16L) Bolt for left U Shape

Bracket Ø16x88.5xL23 1 PC

(17L) Left Nylon Nut 1/2” 1 PC

(18) Wave Washer

Ø28xØ17x0.3 1 PC

(20) Spring Washer Ø12 1 PC

(27) Nylon Nut M6

6 PCS

(28) Washer Ø6

6 PCS

(29) Bolt M6x40

6 PCS

(31) Bolt Cap S13

2 PCS

(14) Big Curve Washer Ø10

4 PCS

(47) Bolt M6x35

4 PCS

(48) Curve Washer Ø6

4 PCS

(55) Screw ST2.9x12

8 PCS

(69) Screw ST4.2x20

4 PCS

(49) Bolt Cap S16

2 PCS

(50) Cap Nut M6

4 PCS

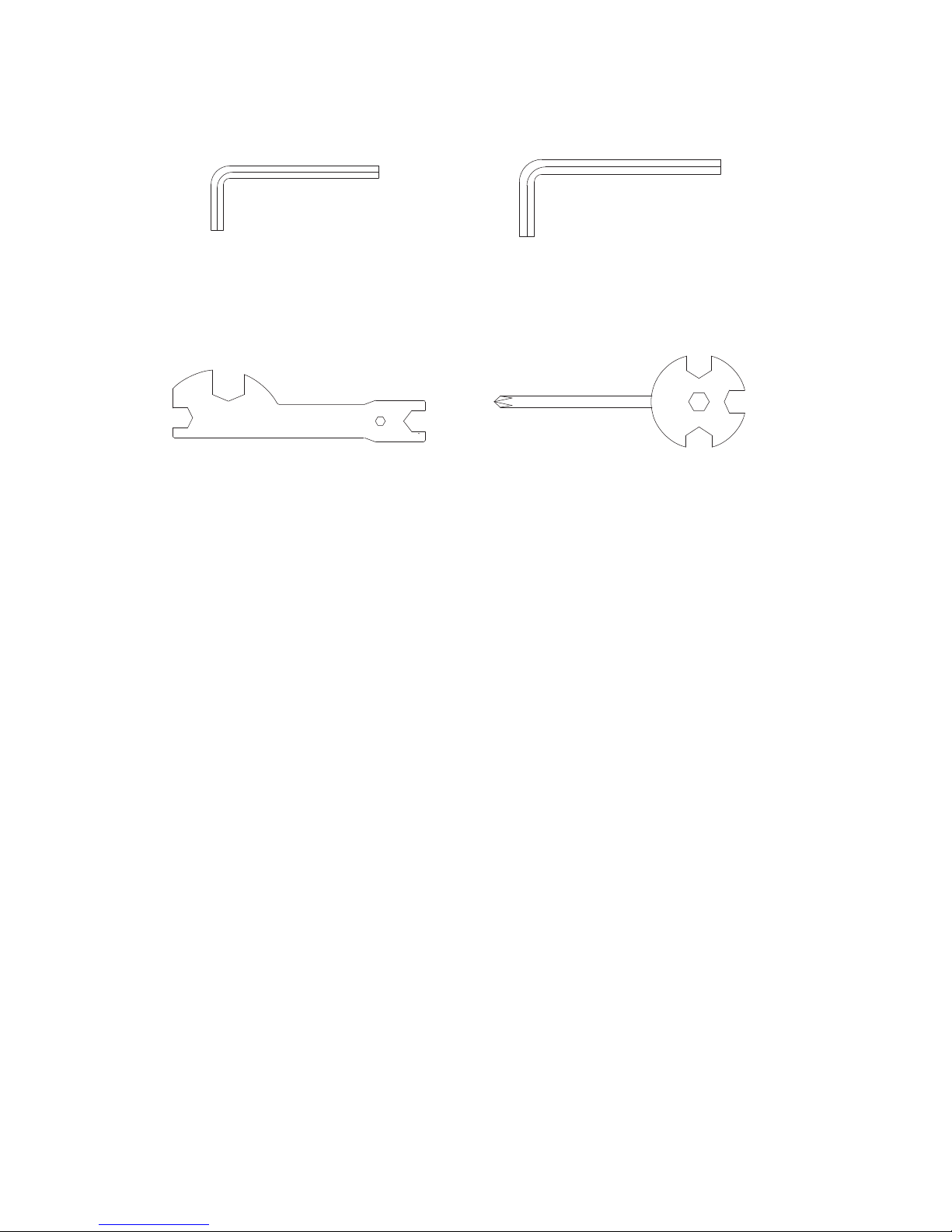

TOOLS

Multi Hex Tool

S10, S13, S17, S19

1 PC

Allen Wrench S6

1 PC

Allen Wrench S8

1 PC

Multi Hex Tool with Phillips Screwdriver

S10, S13, S14, S15

1 PC

OVERVIEW DRAWING

101

52L

43 44

45 46 51

52R

53R

45 44

12 27 40 39

33L

33R

35 19

33L

33R

81 80

88 86

50 48

84 34

53L

16L

17L

18 16R

17R

85 27

100

72 73 74

73 72

102

ASSEMBLY INSTRUCTIONS

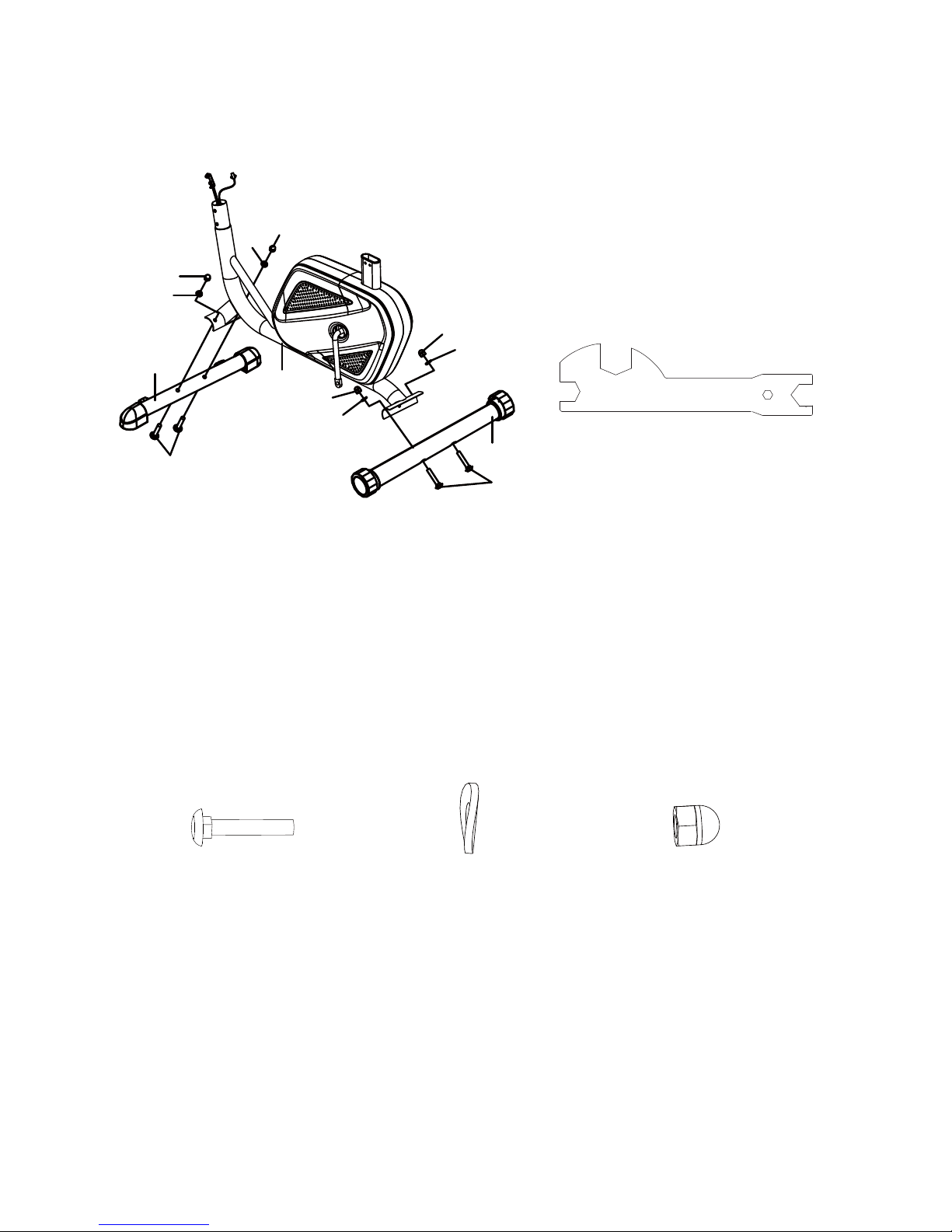

1. Front and Rear Stabilizers Installation

Position the Front Stabilizer (10) in front of Main Frame (1) and align bolt holes.

Attach the Front Stabilizer (10) onto the front curve of the Main Frame (1) with two M10x57

Bolts (12), two Ø10 Big Curve Washers (14), and two M10 Cap Nuts (15). Tighten cap nuts

with the Multi Hex Tool provided.

Position the Rear Stabilizer (11) behind the Main Frame (1) and align bolt holes.

Attach the Rear Stabilizer (11) onto the rear curve of the Main Frame (1) with two M10x57

Bolts (12), two Ø10 Big Curve Washers (14), and two M10 Cap Nuts (15). Tighten cap nuts

with the Multi Hex Tool provided.

Hardware:

Multi Hex Tool

S10, S13, S17, S19

Tool:

4 Bolts (M10x57) 4 Cap Nuts (M10)4 Big Curve Washers (Ø10)

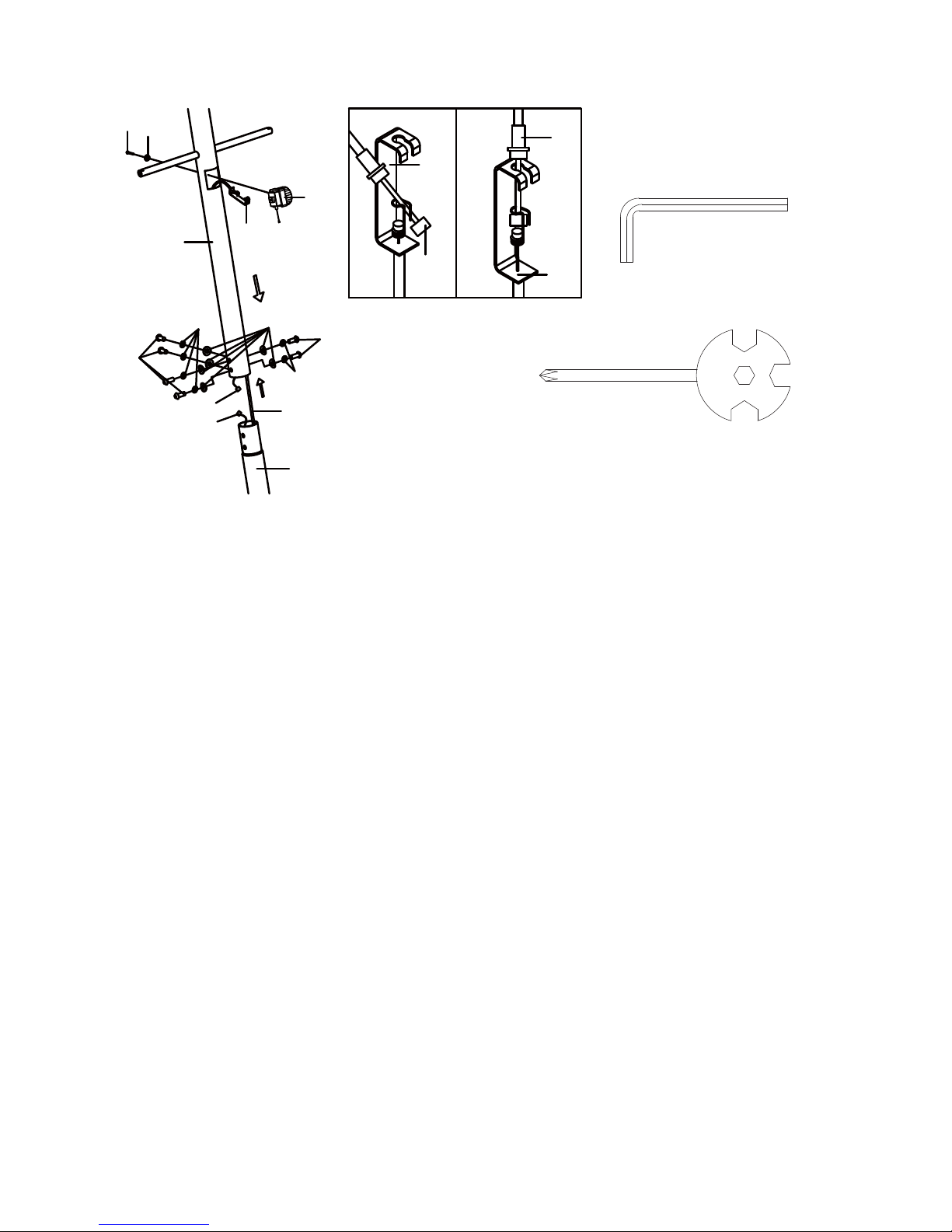

2. Front Post and Tension Control Knob Installation

Remove six M8x16 Bolts (41), six Ø8 Spring Washers (60), and six Ø20xØ8 Curve Washers

(42) from the Main Frame (1). Remove bolts and washers with the S6 Allen Wrench

provided.

Insert the Tension Cable (30) through into the bottom hole of Front Post (5) and pull it out

from the square hole of Front Post (5).

Connect the Sensor Wire II (68) from the Main Frame (1) to the Sensor Wire I (67) from the

Front Post (5).

Insert the Front Post (5) onto the tube of the Main Frame (1) and secure with six M8x16

Bolts (41), six Ø8 Spring Washers (60), and six Ø20xØ8 Curve Washers (42) that were

removed. Tighten bolts and washers with the S6 Allen Wrench provided.

Remove the Ø20xØ5.2 Curve Washer for Tension Control Knob (64) and M5x25 Bolt for

Tension Control Knob (65) from the Tension Control Knob (54). Remove bolt and curve

washer with the Multi Hex Tool with Phillips Screwdriver provided.

Put the cable end of resistance cable of Tension Control Knob (54) into the spring hook of

Tension Cable (30) as shown in drawing A of figure 2. Pull the resistance cable of Tension

Control Knob (54) up and force it into the gap of metal bracket of Tension Cable (30) as

shown in drawing B of figure 2. Attach the Tension Control Knob (54) onto the Front Post

(5) with the Ø20xØ5.2 Curve Washer for Tension Control Knob (64) and M5x25 Bolt for

Tension Control Knob (65) that were removed. Tighten bolt curve washer with the Multi

Hex Tool with Phillips Screwdriver provided.

530

54 30

Allen Wrench S6

Multi Hex Tool with Phillips Screwdriver

S10, S13, S14, S15

Tool:

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Entrenador elíptico de Life Gear

Life Gear

Life Gear 93290 Manual de usuario

Life Gear

Life Gear TRANSPORT ML 93680 Manual de usuario

Life Gear

Life Gear 93470 Manual de usuario

Life Gear

Life Gear CLASSIC PRO 93795 Manual de usuario

Life Gear

Life Gear XINGGUI 93046 Manual de usuario

Life Gear

Life Gear 93385 Manual de usuario

Life Gear

Life Gear 93320 Manual de usuario

Life Gear

Life Gear Orbi trac 28320 Manual de usuario

Life Gear

Life Gear 93390 Manual de usuario

Life Gear

Life Gear FORMULA 93586N Manual de usuario

Life Gear

Life Gear 93772 KNIGHT Manual de usuario

Life Gear

Life Gear CLASSIC PRO 93790 Manual de usuario

Life Gear

Life Gear 93250 Manual de usuario

Life Gear

Life Gear 93296 Manual de usuario

Life Gear

Life Gear 76140 E1 Sit-Up Bench Manual de usuario

Life Gear

Life Gear 93390 Manual de usuario

Life Gear

Life Gear 93280 Manual de usuario

Life Gear

Life Gear 93580 Manual de usuario

Life Gear

Life Gear 93580 Manual de usuario

Life Gear

Life Gear mercury 93575 Manual de usuario

Life Gear

Life Gear 26560 Manual de usuario

Life Gear

Life Gear 93286 Manual de usuario

Life Gear

Life Gear 93590 Manual de usuario

Life Gear

Life Gear 93560 Manual de usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
