LG UQ80 Series Manual de usuario

1. Model Name: 43UQ801C0SB

2. Sux: TR

3. Part No: MFL71833944

4. REV REV00

5. Number of pages 16

6. Folded/Unfolded 3 Folded

7. Trim size (W x H)_Unfolded (mm) 296 x 420 (+/-5)

8. Trim size (W x H)_folded (mm) 148 x 105

9. Bindery -

10. Color (Cover) -

11. Paper (Cover) -

12. Weight (cover) (g/㎡) -

13. Color (inner) 4 (CMYK)

14. Paper (inner) Wood free

15. Weight (inner) (g/㎡) 70 (+/-10)

16. Coating No

17. Thomson No

18. Sub-material No

[Country Name]

LGERS/ LGEMX : Mexico

LGEKR: Korea

Changes the Country name. LGEMA: Poland

Printed in [Country Name] LGEIL: India

Others: Each Country name.

[Restriction of Hazardous Substances ]

Hazardous substances on this product should be satised by substance regulation of Level A-I, A-II, SVHC according to LG(52)B5011 standard.

(1) Hazardous substances test report should be submitted when part certication test and rst mass production.

(2) Especially, Don’t use or contain lead (Pb) and cadmium (Cd) in ink.

REV07

REV06

REV05

REV04

REV03

REV02

REV01

Checked Aditya.K

Approved Nitin.H

Rev. Number Date ECO Number Owner Aditya.K

REV00

2 . Origin N ot ificat ion

ENG

19. Languages

Printing Specication

1 . Specification 1 .1 Folding / C over

Models

SIZE

COVER

INNER

3 . History

Description

NOTE Especially, Part should be followed and controlled the following specication.

05/03/2022

Barcode

Front Back

Folded Step

Folded

Front

420 mm

296 mm

105 mm

148 mm

UQ80*

www.lg.com

12 3

X 2

(M4 x L16)

6 7

1 2 3 4

*M F L 7 1 8 3 3 9 4 4 2 2 0 5 R E V 0 0*

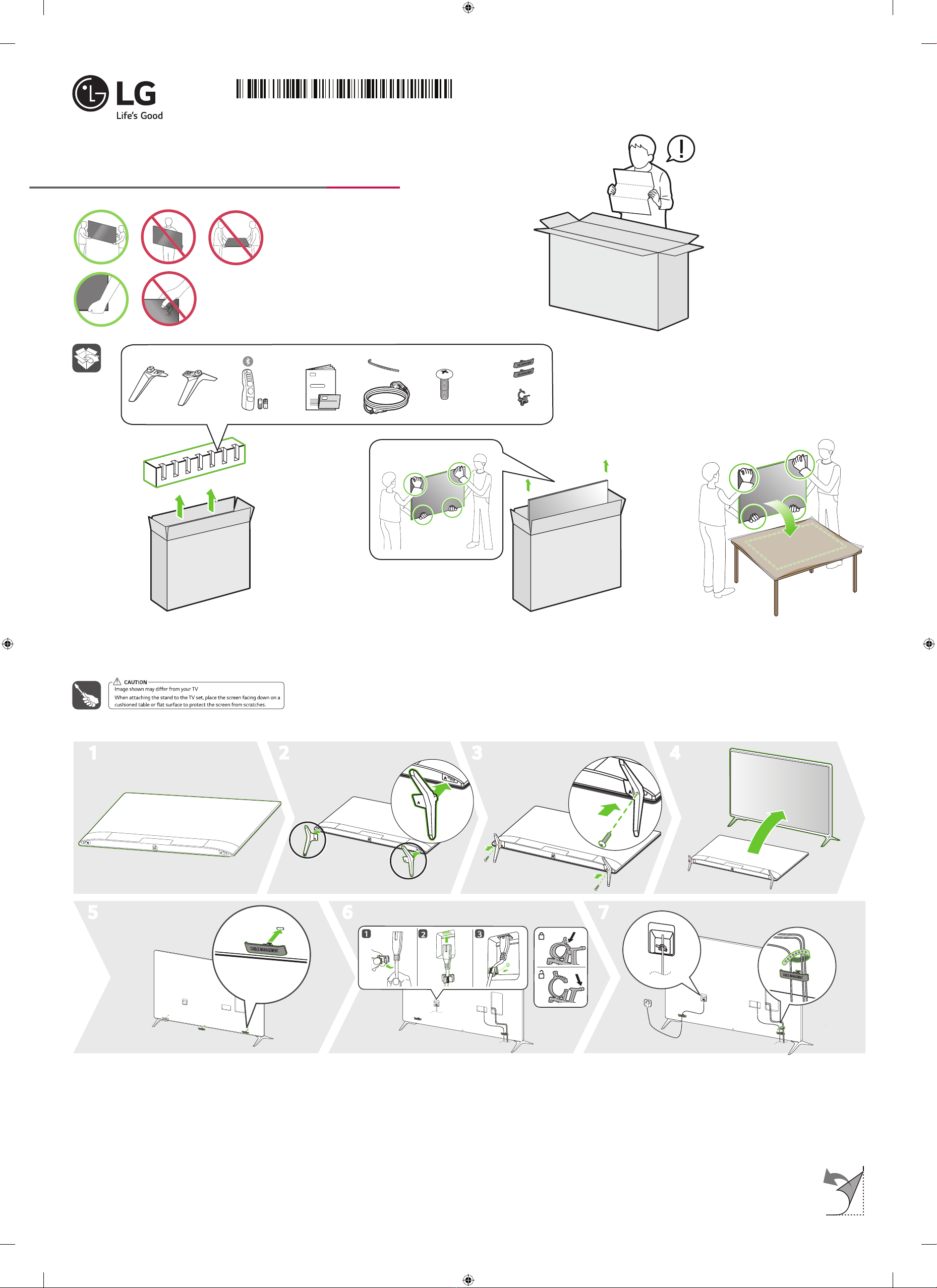

Quick Start Guide

Unpacking

Images shown in manual may vary depending

on model

Check your product box for the following items.

If there are any missing accessories, contact the

local dealer where you purchased your product.

The illustrations in this manual may differ from

the actual product and item.

A B C D(mm) E

Wallmount 43UQ80* 200 x 200 M6

90°

AB C D E F F G

43UQ801C0SB 967 622 216 564 57.1 8.9 8.8

AC 100-240 V~ 50/60 Hz

Do not look into the optical

output ports, looking at the

laser beam may damage

your vision

Audio with ACP (Audio Copy

Protection)function may

block digital audio output.

Some USB Hubs may not

work, if a USB device con-

nected using a USB Hub is

not detected, connect it to

the USB port on the TV

directly

Connect the external power

source if your USB is needed.

An external audio device that supports SIMPLINK and ARC

must be connected using HDMI IN eARC/ARC port

When connected with a high-speed HDMI cable, the

external audio device that supports ARC outputs SPDIF

audio without additional audio cable and supports the

SIMPLINK function

ARC (Audio Return Channel)

Some USB Hubs may not work, if a USB device con-

nected using a USB Hub is not detected, connect it to

the USB port on the TV directly

Connect the external power source if your USB is needed.
