Hisense PX2-PRO Manual de usuario

Quick Setup Guide

Before using the Laser Cinema, please read this guide carefully and keep it for future reference.

Disclaimer: This Quick Setup Guide is intended as a general guideline to help you set up your Laser Cinema. Images throughout this document are for illustrative purposes only

and may differ from the actual product.

Model PX1

All material in this Quick Setup Guide is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US,

CANADA, MEXICO and International copyright and/or other intellectual property laws. Reproduction or transmission of the materials,

in whole or in part, in any manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd. is a

violation of Hisense Company Ltd. rights under the aforementioned laws.

No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or

otherwise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd.

Requests for permission to store, reproduce, transmit or distribute materials may be made to one of the following addresses:

U.S.A. Hisense USA Corporation

105 Satellite BLVD Suite I, Suwanee, GA 30024

MEXICO

IMPORTER:

Hisense Mexico S. de R.L. de C.V.

Blvd. Miguel de Cervantes Saavedra No 301

Torre Norte Piso 2, Col. Ampliación Granada

Miguel Hidalgo, Ciudad de México, C.P. 11520

RFC: HME110512IY3

TEL: (52) (55) 5531-3515

CANADA Hisense Canada Co., Ltd

2283 Argentia Road, Unit 16

Mississauga, ON, Canada

L5N 5Z2

Hisense, and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks of Hisense Company Ltd.

and its subsidiaries. All other trademarks are the property of their respective holders.

Table of Contents

Important Safety Information 3

Packaged Contents 5

Laser Cinema Diagram 6

STEP 1. Mount the Screen 7

STEP 2. Set up the Laser Cinema 7

STEP 3. Adjust the Display Image and the Screen 11

STEP 4. Use Your Remote 15

STEP 5 Proceed through the Screen Setup Menu 17

Begin to Enjoy Your Laser Cinema 18

Maintenance & Quick Problem-Solving Tips 19

Product Specifications 22

Certification and Compliance 23

Congratulations on the purchase of your new Laser Cinema! This Quick Setup Guide will walk you through

a few easy steps to set up your Laser Cinema.

For detailed instructions, please refer to the E-Manual.

Because we value your business, we want to keep you in the know of 'all things Hisense'. Using your mobile phone, scan the

Registration page QR code to register your Laser Cinema. Depending on the make and model of your phone, you may need to

download a QR code scanning app.

http://www.hisense-usa.com/support/

https://hisense.com.mx/support/register http://www.hisense- canada.com/

support/productReg.asp

U.S. Mexico Canada

Important Safety Information

SAFETY WARNINGS

Do not look directly at the lens when this device is on!

• This product comes with a laser module. Do not tear or modify this device in any manner; otherwise, it

may result in personal injury.

RG1 IEC 62471-5: 2015

λ = 459~471nm/519~531nm/635~651nm

Wavelength 459~471nm/519~531nm/635~651nm

CLASS 1 LASER PRODUCT IEC 60825-1: 2014

Caution—use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous

radiation exposure.

The Device Complies with 21 CFR 1040.10 and 1040.11 except for confromance as a Risk Group[0,1 or 2-Select appropriate RG]LIP as

defined in IEC 62471-5: Ed.1.0. For more information see Laser Notice No.57, dated May 8, 2019.

• If this device requires a repair, please wear laser eye protection with an optical density OD that is 4 or

higher and has a wave length of 459-651 nm.

• Do not place any water-containing vessel on this device, such as cosmetics or liquid medicine.

• If any object or water enters this device, please unplug this device and contact the service staff of Hisense.

• Do not place any exposed fire source (e.g. burning candle) on this device. Keep away from high temperature and heat.

• Do not expose the battery to direct sunlight or candle light.

• Keep air vents on both sides clear from any objects to prevent the device from overheating inside.

• To avoid a short circuit, product damage or electric shock, do not use any sharp object or metal to touch the ports or other

openings on the Laser Cinema.

• If this device has been in a warm environment, allow any built-up condensation to evaporate first BEFORE you switch the device

on.

• Do not allow a child to stand on or climb up this device.

• Do NOT place any object above or in front of the lens because the laser light could cause the object to become flammable.

• Clean the lens periodically with a clean cloth and make sure the Laser Cinema is turned off before you start.

Low Blue light Content

• The long-term exposure to blue light may damage your eyes, in particular the retina, causing visual fatigue or eye strain. Children

are particularly vulnerable to excessive blue light and the damage to them is irreversible. The product can decrease blue light ratio

to reduce blue light hazard.

Health recommendations

• Avoid long time continuous use product, ensure adequate break time.

• Looking at distant objects or exercises for the eye after use product.

• Laser Cinema

• 1 Remote control

• 2 AAA or AA batteries

• 2 pairs of gloves for handling the Laser Cinema

• 1 Power Cord

• 1 Wrench to adjust the bottom of the Laser Cinema

• 1 Audio Out Cable

• Hisense 4K Laser Cinema Quick Setup Guide

• Important Safety Information & Warranty Card

• Cleaning kit for the lens

• 2 C-shaped blocks

• C-shaped Block Installing Instruction

Packaged Contents

NOTE:

• The accessories may be different from the list above due to different models, countries/regions. Please refer to the actual

accessory bag.

• Screen is not included.

We strongly recommend that two people handle this device when moving it from one place to another. Be

sure to protect the lens when you handle this device.

Laser Cinema Diagram

Air vents

Power button

Lens with laser

Eye

protection

sensor

Eye protection sensor

Remote control receiver

Power Indicator

STEP 2 Set up the Laser Cinema

To begin setting up the Laser Cinema, we strongly recommend that TWO people move it from one place

to another because of the weight. Be sure to protect the lens when you handle this device.

STEP 1 Mount the Screen

If you purchased a screen from Hisense to include with your Laser Cinema, then refer to the Screen

Installation Guide that’s included in the package.

1. Now, to get started, we recommend that you connect all cables

to the ports on the back of the Laser Cinema before you position

it. (Audio, video, Ethernet cables and external devices are not

included.)

2. Position the Laser Cinema so it is parallel with the screen

surface.

3. Plug the power cord into a wall outlet.

4. Press the POWER button to turn on the Laser Cinema.

8 in8 in

6 in

WARNING: Insufficient ventilation space will cause this

device to overheat or become damaged.

• Do not block the air vents or place any object on this device.

• Do not place this device in any narrow, enclosed or poorly

ventilated space.

At a minimum, leave the amount of space shown in the diagram

below for this device to have proper ventilation.

Laser beam

Power Cord Wall Outlet

Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can

affect the quality of the picture image and color.

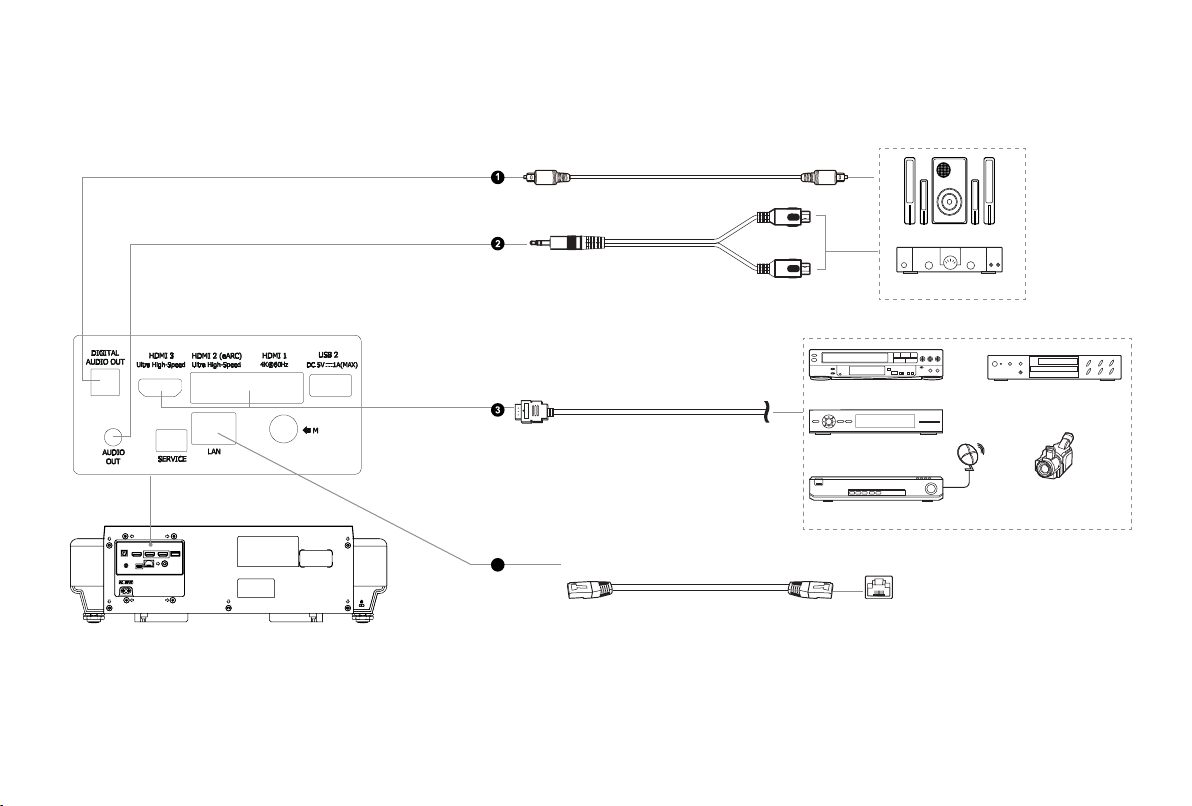

Ports to connect certain cables to

Ethernet (you will need a router for Internet connectivity)

Video Camera

DVD Player

External AV devices

VCR

Set-top Box

Satellite Receiver

HDMI

External audio devices

Audio Amplier

Speakers

Digital audio adapter

audio adapter

Red

White
