LG PQRCFCS0 Guía de inicio rápido

ENGLISH

Simple Wired Remote Controller

IMPORTANT

• Please read this installation manual completely

before installing the product.

• Installation work must be performed in

accordance with the national wiring standards

by authorized personnel only.

• Please retain this installation manual for future

reference after reading it thoroughly.

Owner's & Installation Manual

Models: PQRCFCS0

ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH

2Simple Wired Remote Controller

Simple Wired Remote Controller Owner’s & Installation Manual

TABLE OF CONTENTS

■Safety Precaution................................................................3~4

■Part Description ..................................................................5~6

■Installation Method .................................................................7

■Necessary function before using ...................................8~10

• Trial Operation..........................................................................................8

• Setting the Central Control Address ......................................................9

• ESP Function..........................................................................................10

■How to use the Mode Selection Button.........................11~17

• Cooling Operation..................................................................................11

• Heating Operation ..................................................................................12

• Automatic Operation..............................................................................13

• Dry(Dehumidification) Operation..........................................................14

• Fan Operation.........................................................................................14

• Fan Speed Selection ..............................................................................15

• Indoor Temperature Display..................................................................16

• Child Lock...............................................................................................17

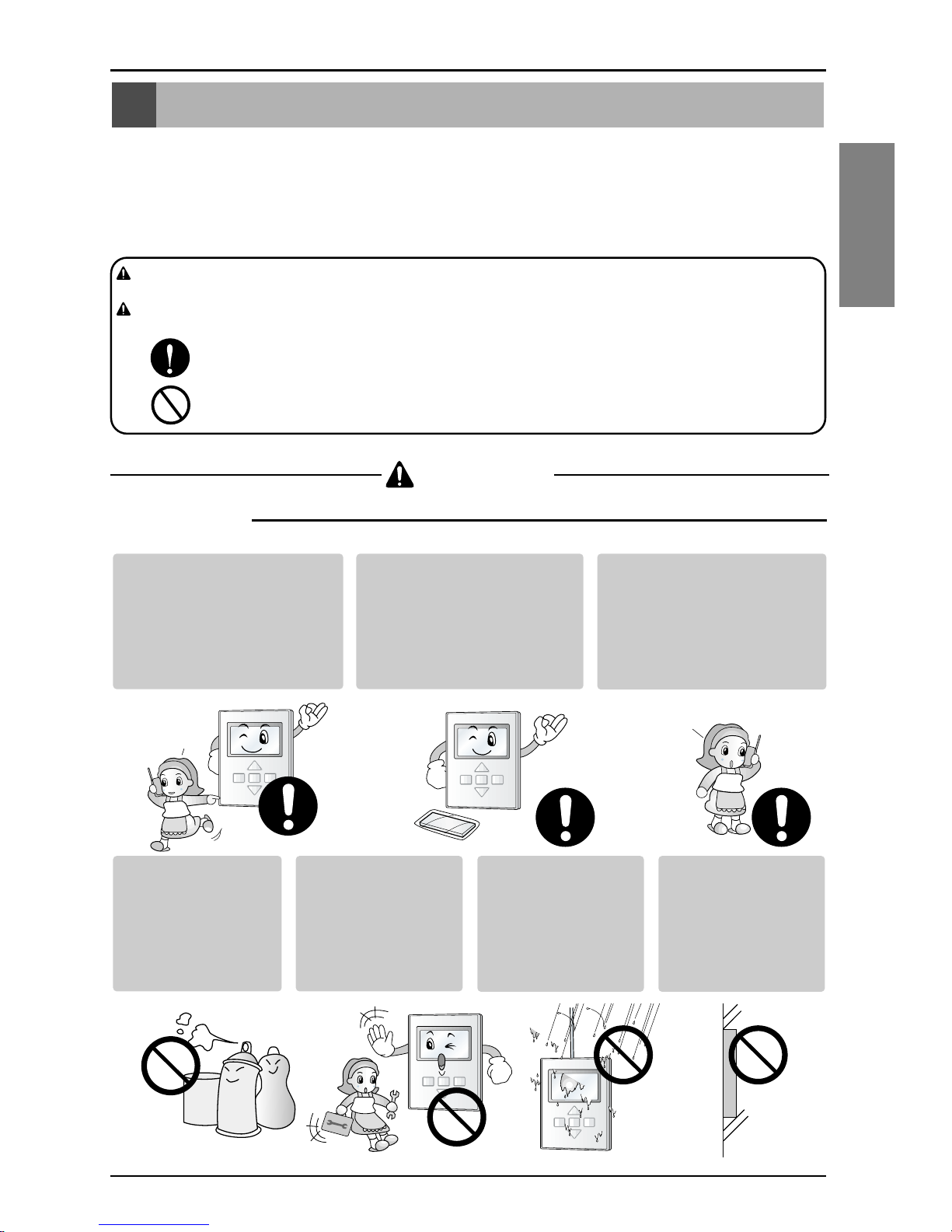

Safety Precaution

Owner’s & Installation Manual 3

ENGLISH

Entrust installation of the

product to the service center

because improper installation

may cause fire, an electric

shock, explosion, and physical

injury.

Use the original parts in

order to prevent fire, an

electric shock, explosion,

and product breakdown.

Entrust reinstallation of the

product to the service center

because improper reinstallation

or handling may cause fire, an

electric shock, explosion, and

physical injury.

Keep combustible

and/or inflammable

materials away from the

product in order to

prevent fire or product

breakdown.

Do not disassemble,

repair, or modify the

product at your

discretion in order to

prevent fire or an

electric shock.

Do not install the

product in wet and

humid areas in order to

prevent product

breakdown.

Do not expose the

product to the rain in

order to prevent product

breakdown.

■Installation

Service Center

Original Parts

Service Center

Safety Precaution

• The installation requires expert skills, and it should be installed by the service center or other shops specialized

in the installation and recognized by our company.

• For all the problems arising after installation by someone who has no relevant qualifications, our company will

not provide free service.

• The following safety cautions are provided to prevent unexpected dangers or losses.

: If the user does not follow the mandatory items, it may result in serious injury or death.

: If the user does not follow the mandatory items, it may cause personal injury or property

damage.

: Warning and Caution are to call the user’s attention to the possible danger. Read and follow

them carefully in order to prevent a safety accident.

: Warning and Caution are indicated in this guide and the product itself to help protect the users

from danger.

WARNING

CAUTION

WARNING

Safety Precaution

4Simple Wired Remote Controller

Do not modify or lengthen the

power cable at your discretion.

It may cause fire or an electric

shock.

Do not place a heating device

near the product. It may cause

fire.

Do not drop water on to the

product. It may cause an electric

shock or product breakdown.

Do not place something heavy on

the power cable. It may cause fire

or an electric shock.

Do not place a heavy thing on the

product. It may cause product

breakdown.

If the product was submerged

under water, ask the service

center for instruction. It may

cause fire or an electric shock

unless you do that.

■In-use

Service Center

Make sure children or senor

citizens use the product under

proper observation in order to

prevent safety accident.

Do not subject the product to

shock. It will cause product

breakdown.

Do not pick the product with a

sharp tool. It may cause

product breakdown with the

damage to its parts.

Do not clean the product with strong cleanser such

as solvent. Use soft clothes in order to prevent fire

or product deformation.

Do not touch the product with a wet hand. Do not

pull the lead cable. It may cause product breakdown

or an electric shock.

CAUTION

Part Description

Owner’s & Installation Manual 5

ENGLISH

PQRCFCS0

FAN

SPEED

ROOM

TEMP

Cooling Heating Auto Dry Fan

Defrost Preheat Out door

Slo

Med

Room Temp

Total on

Central Run

1. Wired Remote Controller

2. LCD Screen

3. Connecting Cable and Connector

Part Description

Accessory

Connecting Cable

(1EA) Fixing Screw (2EA) Use / Installation

Manual Installation Paper

Part Description

6Simple Wired Remote Controller

Simple Wired Remote Controller

PQRCFCS0

FAN

SPEED

ROOM

TEMP

Cooling Heating Auto Dry Fan

Defrost Preheat Out door

Slo

Med

Room Temp

Total on

Central Run

Each function will be shown on the display panel for three second or so when the initial power is on.

1. Operation Display Panel

2. On/Off Function

3. Fan Speed Button

4. Temperature Control Button

5. Room Temperature Button

Installation Method

Owner’s & Installation Manual 7

ENGLISH

CN-REMO

LO2K

J15

LO1K

LO1D C07D

C01K

J14

CN-DISP

CN-M CN-ZONEC

IC01A

5㎝

The position of the fixing screws

Main

indoor unit

Red Yellow Brown

Mainfraim

Fixing the

remote controller

Put the installation paper on the place and determine the

position and height of the fixing screws of the wired remote

controller.

•Refer to the printed side of the installation paper.

Plug the connecting cable into the indoor unit.

•The product is being shipped with the cable

connected only to the remote controller.

Fix the connecting cable with the cable rack.

Remove the installation paper before installing

the remote controller so that it can fit into the

right place.

* Do not embed the remote controller into the wall. (It may cause the breakdown of the temperature

sensor.)

* If you want to install a number of remote controller on the same place in a vertical line, install them at

regular intervals of 5cm. (It may cause the breakdown of the temperature sensor.)

❐Supply the power after connecting wired remote controller.

When you need to change wired remote controller, switch off the main power and change it

Before switch off the main power if changed the wired remote controller,you can't use the option

function of the indoor unit.

Installation Method

Necessary function before using

8Simple Wired Remote Controller

Necessary function before using

Out door

Room Temp

Total on

Central Run

Defrost Preheat

PQRCFCS0

FAN

SPEED

ROOM

TEMP

If you want to set the trial operation mode, press the

Room Temperature button and the fan speed button at

the same time for three seconds.

Then the product will begin the trial operation and the

display will be like the following picture.

If you want to unset the trial operation mode, just press

the On/Off button.

The trail operation will be shut down automatically

after 18 minutes and the standby mode will begin.

Trial Operation

The trial operation is to check the installation status of the product. The temperature will not be controlled. Instead

the product will operate in several modes such as cooling, strong wind, comp-on.

Necessary function before using

Owner’s & Installation Manual 9

ENGLISH

Out door

Room Temp

Total on

Central Run

Defrost Preheat

PQRCFCS0

FAN

SPEED

ROOM

TEMP

If you want to set the address on the temperature

display, press the two temperature control buttons

(▲/▼) at the same time for three seconds.

Press the temperature-decreasing button to change

the group number. Press the temperature-increasing

button to change the indoor unit number.

EX) Group Address: 2

Indoor Unit Number: 3

Set the address by pressing the two temperature

control buttons (▲/▼) at the same time for three

seconds.

•Multi-Model: Connect the outdoor unit with PI485 for the outdoor unit

•Single-Model: Connect the indoor unit with PI485 for the indoor unit

•If you connect the indoor unit to the central controller, you should set the network

address of the indoor unit so that the central controller could recognize it.

•The center-control address is composed of the group number and the indoor-unit

number.

Setting the Central-Control Address

Please set the address when using the central controller.

You don't need to set address If you don't use central controller.

10 Simple Wired Remote Controller

Necessary function before using

Out door

Room Temp

Total on

Central Run

Defrost Preheat

PQRCFCS0

FAN

SPEED

ROOM

TEMP

Lo Med

200 100

Setting the Low wind to 210 Setting the Medium wind to 175

Press the Room Temperature button and Temperature

incrreasing button ▲at the same time for three

seconds

Set the volume of each Fan speed(Low, Medium, Hi)

by using the temperature control button. Press the Fan

speed button to select the Fan speed.

The value of E.S.P could be adjusted from 1 to 255.

If you press the Off button while setting the ESP

function, it will be canceled. (The picture on the left

side is the example of setting the Hi wind to ESP 10.)

Press the Room Temperature button and the

temperature increasing button (▲) at the same time for

three seconds. Then the ESP setting will be activated

after the temperature display flashes three times.

E.S.P function is setting the volume of each Fan speed. It is for the convenience of installation. It is

recommended that you should not use this function whild using the remote controller.

EX)

* The E.S.P value is set at the proper value at the factory. So it is highly recommended that you should do not

change the E.S.P value at your discretion.

ESP Function

Otros manuales para PQRCFCS0

Tabla de contenidos

Idiomas:

Otros manuales de Mando a distancia de LG

LG AN-MR300 Manual de usuario

LG AN-SP700 Manual de operación

LG MR20GA Manual de usuario

LG AN-SP700 Manual de operación

LG RCB-100 Manual de usuario

LG MR22GN Manual de usuario

LG PQRCUCS0C Guía de inicio rápido

LG MultiSITE CRC1 Series Manual de usuario

LG PM20GA.AEU Manual de usuario

LG 457938 Manual de usuario

LG Magic Remote AN-MR19BA Manual de usuario

LG PQRCUSA0 Guía de inicio rápido

LG PQRCVCL0Q Guía de inicio rápido

LG PQRCUSA0 Manual de usuario

LG MultiSITE CRC1 Series Manual de usuario

LG PQRCUSA1 Guía de inicio rápido

LG AN-MR300Q Manual de operación

LG Magic Remote AN-MR650 Manual de usuario

LG PQCSB101S0 Guía del usuario

LG Magic Remote Premium Manual de usuario

LG AKB730354 Manual de usuario

LG Magic Remote AN-MR400P Manual de operación

LG PQRCFCS0C Guía de inicio rápido

LG PQWRCDF0 Guía de inicio rápido

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
