LG MAGIC REMOTE AN-MR300 Manual de usuario

OWNER’S MANUAL

MAGIC REMOTE

AN-MR300

Remote control (AN-MR3004)

RF Dongle (AN-MR300C)

www.lg.com

MY APPS

❶

❷❺

❻

❹

❼

❽

❾

❸

P/NO : MBM51168845(1204-REV01)

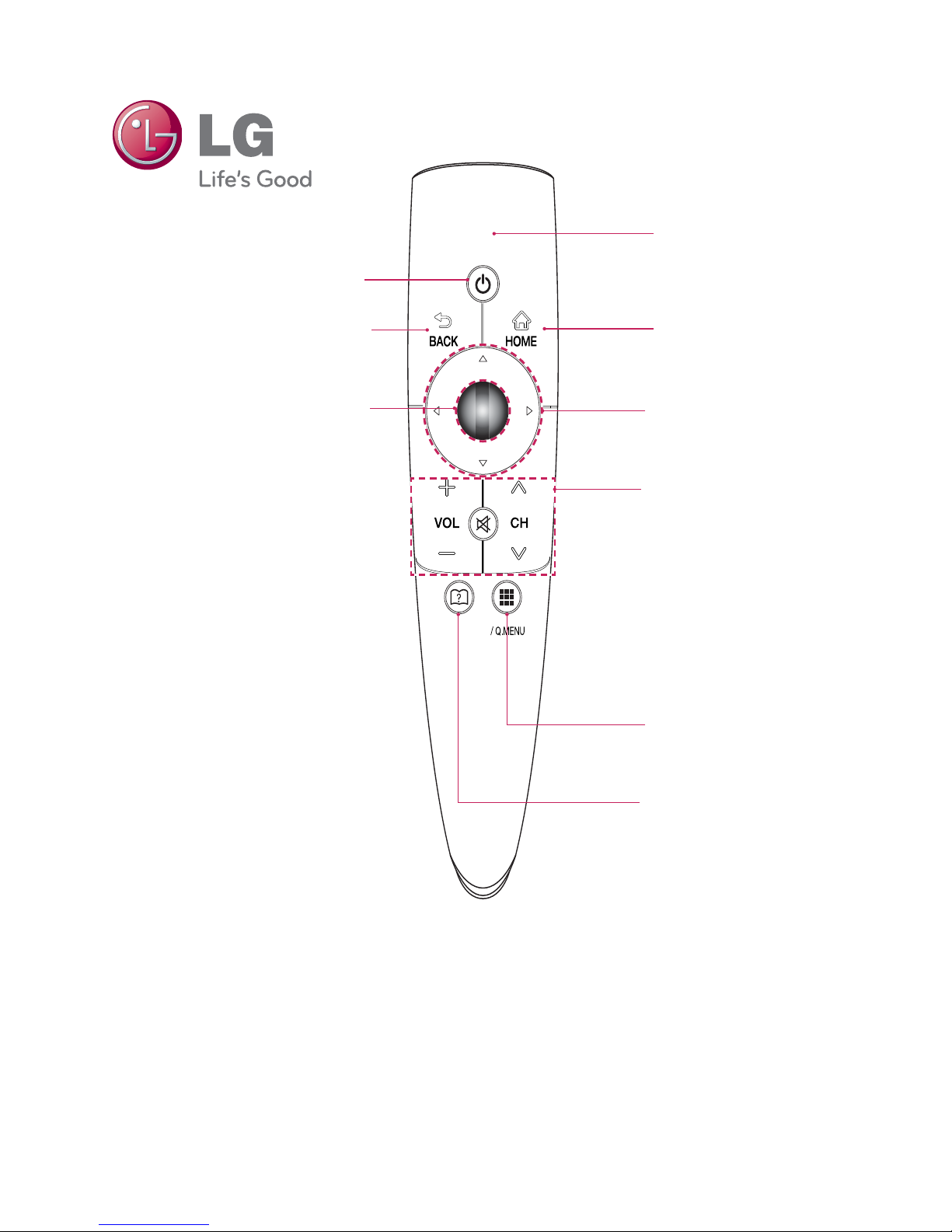

Remote Description

❶POWER : Turns the TV on or off.

❷BACK : Returns to the previous menu.

❸Wheel (OK) : The pointer will then appear on

the screen.

Selects menus or options and con-

firms your input. Scrolls through the saved chan-

nels. If you press the navigation button while mov-

ing the pointer on the screen, the pointer disap-

pears, and the Magic remote control works as a

regular remote control. To display the pointer again,

shake the Magic remote control from side to side.

When you click on the wheel while watching normal

programming, a guide will appear on the bottom of

your TV screen. If you follow the gesture commands

you can view previous channel and recently viewed list.

❹RF & Bluetooth transmitter indicator

Blinks when the remote is sending a signal to the TV.

❺HOME : Accesses the Home menu.

❻Navigation (up/down/left/right)

Scrolls through menus or options.

❼VOL (+/-) : Adjusts the volume level.

(

∧/∨) : Scrolls through the saved program or channels.

MUTE :

Mutes all sounds.

(

❽See MY APPS / Q.MENU.

❾See User guide.

Accessories

RF Dongle

PM6800 / PM6700 / PM4710 / PM4700 don’t need this

device. PDP TV is built in.

PRECAUTIONS TO TAKE

Use the remote control within the maximum communication

distance ( 10 m, 32.8 ft ).

A communication failure may occur due to nearby devices.

It is recommended that your wireless access point be located

more than 1 meter away from the TV ( 3.28 ft )

Do not dismantle or allow the battery to get too hot.

Do not drop battery or exert extreme impact that may cause the

case to be damaged.

There is danger of leakage if the battery is inserted backwards.

Cable IN

Lamp

ENGLISH

Magic remote control and

Alkaline Batteries (AA)

(Depending on country)

Owner’s

manual RF Dongle RF Dongle

Cable Velcro

Installing RF Dongle

Image shown may differ from your TV.

Locate the designated Velcro attachment location on the

TV. Then tear off the protection paper and attach the Velcro.

(The attachment location is different depending on the TV

model you own)

2 Connect the RF Dongle Cable plug on the RF Dongle to a

USB or USB Apps jack on the TV.

3 Attach the RF Dongle to the velcro as shown below and

then turn on the TV.

4 Make sure that your TV is turned on and then register the

Magic Remote Control with your TV after 20 seconds.

* If the RF Dongle for the wireless media box is attached,

attach the RF Dongle for the Magic remote control on the

below right of the back of the TV.

* To avoid wireless interference, keep the distance between

the Wi-Fi dongle and the remote RF dongle over 20 cm.

ꔛ

※

20cm

Velcro

86%

RF Speciﬁcation

The Magic remote control communicates with the RF Dongle

using a Bluetooth Version3.0 .

ꔛOutput Power (Max.) : 10 dBm or lower

ꔛ

Maximum Communication Distance :

Line of Open Sight approx. 10 m (30 ft)

ꔛFrequency Range : 2.400 GHz ~ 2.4835 GHz

ꔛData Rate (Max.) : 3 Mbps

Installing Batteries

ꔛ

To replace batteries, open the battery cover, replace

Alkaline batteries (1.5 V AA) matching and ends to the

label inside the compartment, and close the battery cover.

Don’t mix old or used batteries with new ones.

To use the pattern gesture function

Press the Wheel (OK) with the normal video screen on and

draw a pattern toward the screen.

Previous channel : Moves back to the previous channel.

Recent list : Shows channels recently watched.

* Gestures may not work when certain windows are open.

※Button labels on the remote control may differ depending

on the region.

ENGLISH
