1

M4L34

M4L10

Head

washer

AA

1X4X

Installation

A Insert the stand base into the styrofoam groove as shown in the gure.

B Insert the bar into the hole of the stand base along the groove until it reaches the parting line.

C Secure the four screws.

>10 kg A

M4L34

4X

B

C

www.lg.com

User Install Guide

*MFL718845022201rev01*

4

M4L10

1X

B

A

B

A

A B

Power cable

Power plug

Cable holder

3Hold the screen and secure the power plug.

ACheck the position of the power plug on the back cover of the screen.

BSecure it tightly to the back cover side.

2Check the orientation of the power cable and cable holder.

Secure the screen to the stand.

AInsert the stand hook into the back cover groove and tighten

while pushing the lower part, as shown in the gure.

(Push it until you hear a [click] sound.)

BSecure one screw to the cable holder.

5Secure the ring cover of the stand.

AAlign the screen back cover and ring cover [●mark] and install them.

BCheck if it sits tightly as shown in the gure.

ART10*

www.lg.com

1

4

Disassembly

Position the screen vertically. 2Push the top of the screen lightly in the

direction of the arrow to disassemble

a part of the cover space. 3Use a wedge or pull it with your hand

to completely disassemble the cover.

Position the screen horizontally and

disassemble the cable holder screw. 5Lower the rear lever and push the bottom

of the screen forward, as shown in the figure. 6Lift the screen, separate the top

of the screen, and hold the screen.

7Press the plug lock, push it in the direction of the arrow,

and then disassemble the screen completely. 8Lay the stand on the box packaging, remove the four screws,

and then disassemble the stand bar.

※ Caution

Avoid pushing it hard.

There is a risk of damage.

※ Do not lift the plug or pull it downward

when disassembling the screen.

Keep the disassembled screen

close to the stand at a distance

of 10 cm or less.

M4L10

1X

M4L34

4X

Plug lock

*MFL718019122304REV04*

Kg

90°

Head

washer

ղࢶQU

৮ࢿػ޷૑ࠂઁೞৈ

1BUIGJOEFS6OJUF৻ࢶઁ

QU"MJHOTUSPLFPVUTJEF

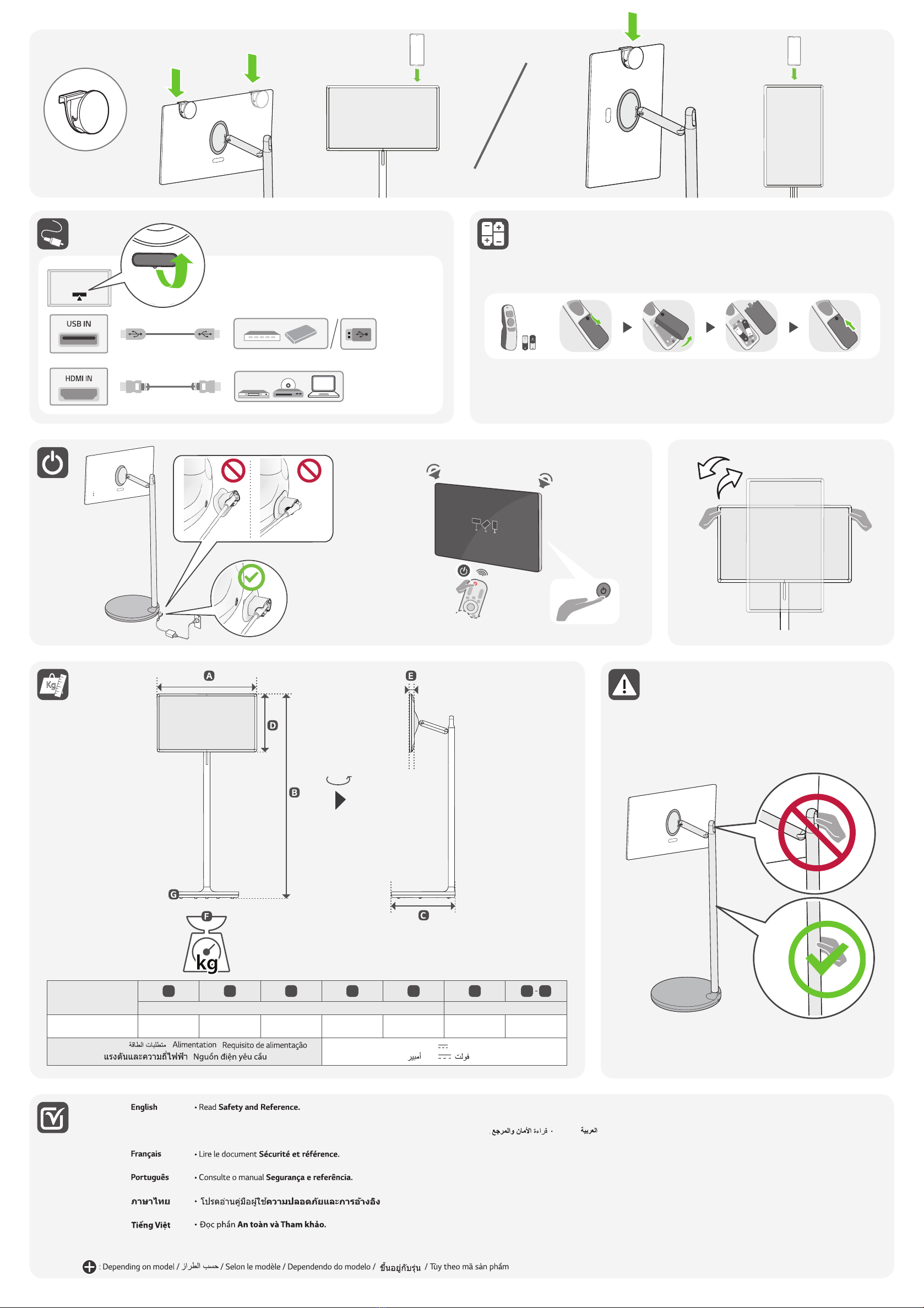

AB C D E F F G

(mm) (kg)

27ART10AKPL 621 1068 ~ 1268 397 361 29.9 17.5 4.8

Power requirement / / / /

/

19V 4.0A

4.0 19
