OWNER’S MANUAL
LED LCD TV
(CINEMA 3D TV)
TM2792S
Please read this manual carefully before operating the your TV
and retain it for future reference.
LED LCD TV (CINEMA 3D TV) MODEL
ENGLISH
2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
4 INSTALLATION PROCEDURE
5 ASSEMBLING AND PREPARING
5 Unpacking
7 - Separate purchase
8 Parts and buttons
9 Lifting and moving the TV
10 Setting up the TV
10 - Attaching the Stand
11 - Mounting on a table
12 - Tidying cables
13 - Detaching the Stand
14 WATCHING TV
14 Turning the TV on for the first time
16 MAKING CONNECTIONS
16 Connecting an antenna
17 Satellite connection
18 Connecting to a HD receiver, DVD, VCR
player or Gaming device
18 - HDMI connection
19 - HDMI to DVI connection
20 - Component connection
21 - Composite connection
22 - Euro Scart connection
23 Connecting to an audio system
23 - Digital optical audio connection
24 - Headphone connection
25 Connecting to a USB
26 Connecting to a CI Module
27 MHL connection
28 Connecting to a PC
29 - HDMI connection
30 - HDMI to DVI connection
31 - RGB connection
32 REMOTE CONTROL
34 MAGIC REMOTE CONTROL
FUNCTIONS
35 Registering Magic Remote Control
35 How to use Magic Remote Control
35 Precautions to Take when Using the
Magic Remote Control
36 USING THE USER GUIDE
37 MAINTENANCE
37 Cleaning Your TV
37 Screen and frame
37 Cabinet and stand
37 Power cord
38 Preventing “Image burn” or “Burn-in” on
your TV screen
39 TROUBLESHOOTING
39 General
39 Using 3D mode
40 SPECIFICATIONS
46 ANTENNA ISOLATOR
INSTALLATION GUIDE
46 Unpacking and Exterior of antenna
isolator
46 Connection method
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby “and the
double-D symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks & DTS
2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS,
Inc. All Rights Reserved.
ENGLISH
4INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV.
3 Connect an external device to the TV.
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
using.
New features may be added to this TV in the future.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking

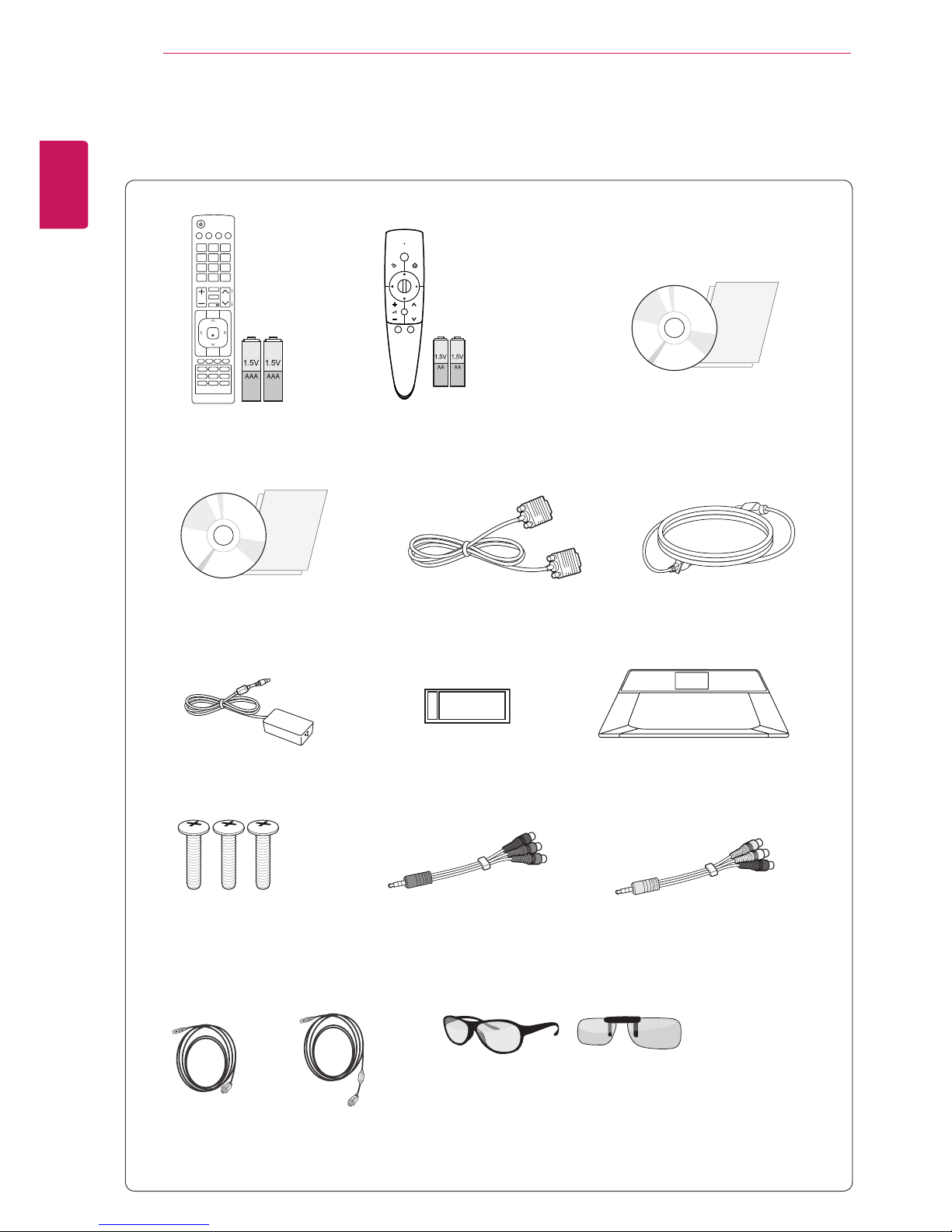

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION
ENGLISH
6ASSEMBLING AND PREPARING
Magic Remote Control.
Batteries (AA).
P
Remote control.
Batteries (AAA).
Power Cord.
CD (Owner's Manual).
Cards.
AC-DC Adapter. Stand Base.
RGB Cable.
Screws for Assembly.
3 EA
Composite video cable
Component video cable
TriDef 3D Game Software CD /
Quick Installation Guide
3D Glasses(Normal type / Clip type)
- The number of 3D glasses may differ depending on the
model or country.
- Image shown may differ from your TV.
Cable holder.
MHL passive cable
or
ENGLISH
7
ASSEMBLING AND PREPARING
Separate purchase
Dual play glasses
AG-F2**DP, AG-F3**DP
The illustrations in this manual may differ from the actual product and accessories.
Separate purchase items can be changed or modified for quality improvement without any
notification.
Contact your dealer to buying these items.
The model name or design may be changed depending on the upgrade of product
functions,manufacturer’s circumstances or policies.
NOTE
ENGLISH
8ASSEMBLING AND PREPARING

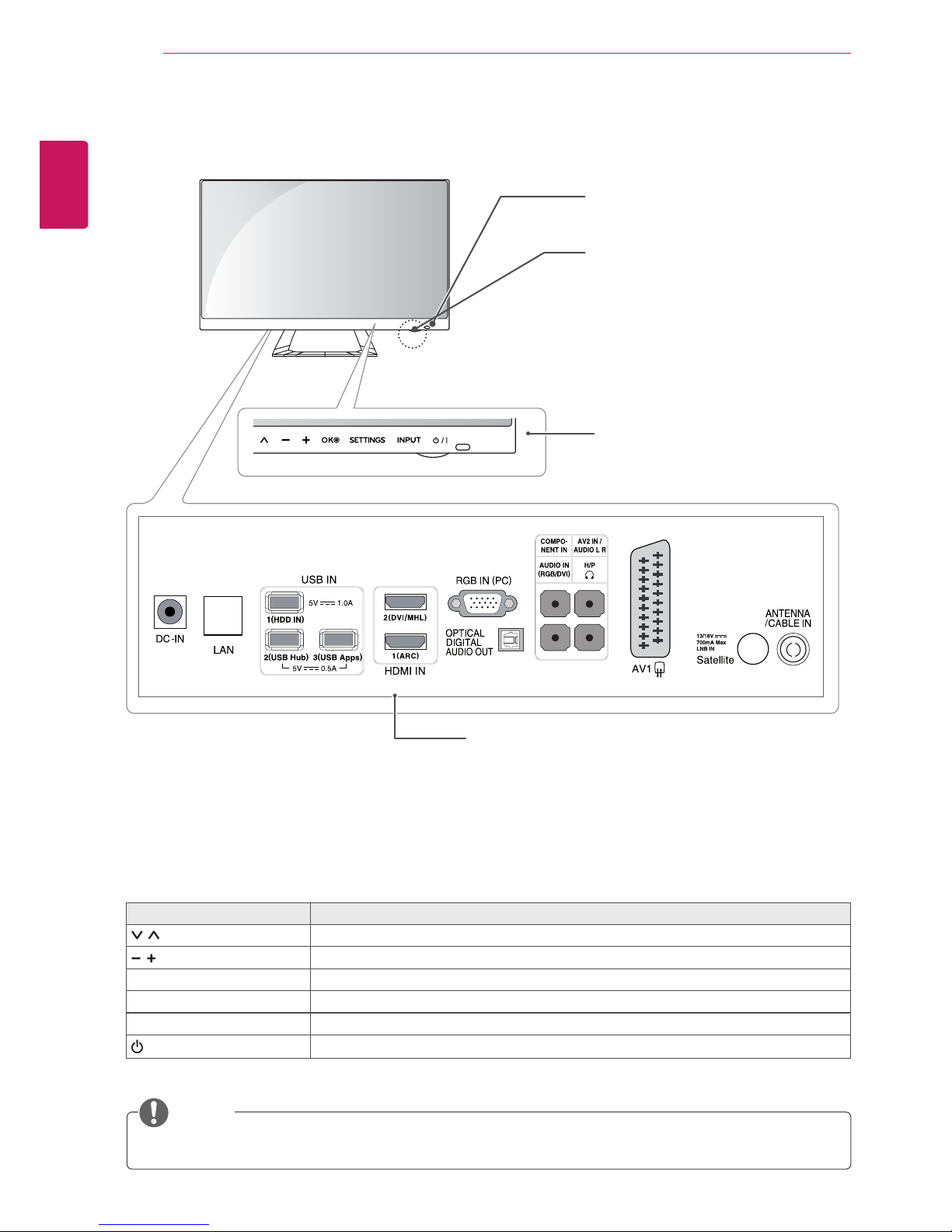

Parts and buttons
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
Touch button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ ITurns the power on or off.
Remote Control Sensor
Standby Light
Lighting On: Turned off
Lighting Off: Turned on
Connection panel (See p.16)
Touch Buttons
ENGLISH
9
ASSEMBLING AND PREPARING
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
Lifting and moving the TV

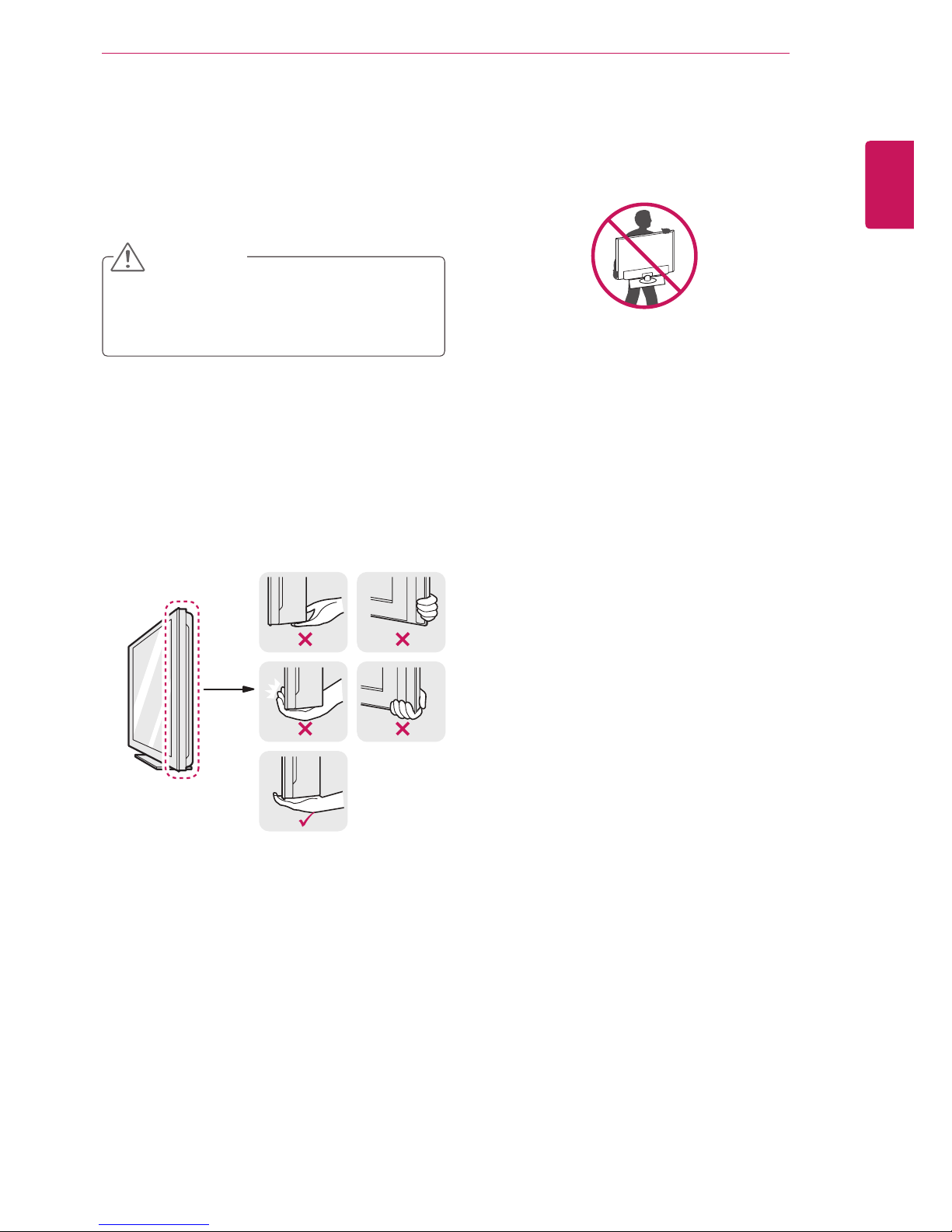

When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Avoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
CAUTION
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
ENGLISH
10 ASSEMBLING AND PREPARING

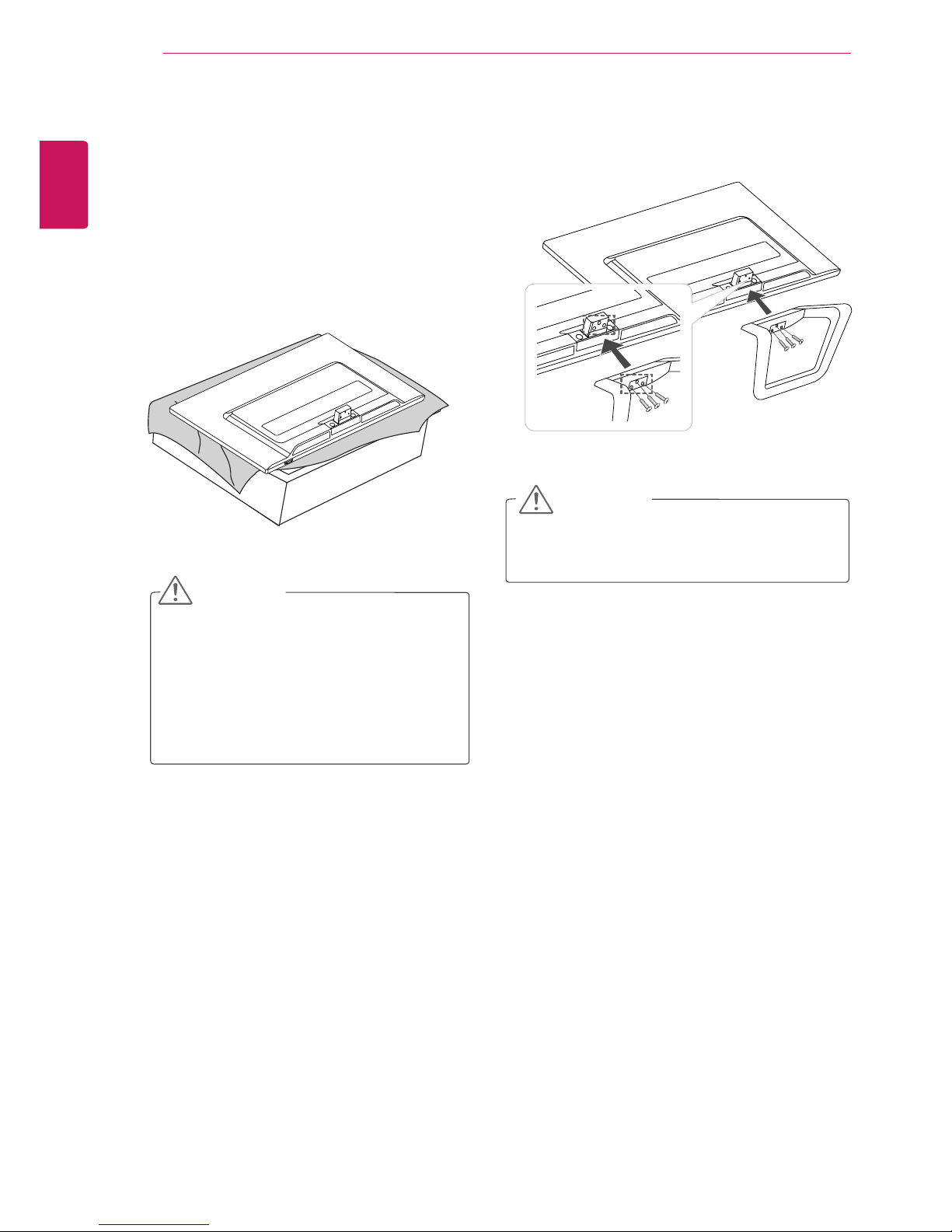

1 Place the TV with the screen side down on a
flat and cushioned surface.
2 Attach the stand base from the TV by 3
screws.
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
CAUTION
Setting up the TV
Attaching the Stand
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
When attaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
