OWNER’S MANUAL

LED LCD TV

M2252D

M2452D

M2752D

Please read this manual carefully before operating the your TV

and retain it for future reference.

LED LCD TV MODEL

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 INSTALLATION PROCEDURE

5 ASSEMBLING AND PREPARING

5 Unpacking

7 Parts and buttons

8 Lifting and moving the TV

9 Setting up the TV

9 - Attaching the Stand

13 - Mounting on a table

14 - Tidying cables

15 - Detaching the Stand

17 - Mounting on a wall

19 WATCHING TV

19 Turning the TV on for the first time

21 MAKING CONNECTIONS

21 Connecting an antenna or cable

21 - Connecting an antenna or basic cable

22 - Connecting with a cable box

23 Connecting to a HD receiver, DVD, VCR

player or Gaming device

23 - HDMI connection

24 - HDMI to DVI connection

25 - Component connection

26 - Composite connection

27 Connecting to an audio system

27 - Headphone connection

28 Connecting to a USB

29 Connecting to a PC

30 - HDMI connection

31 - HDMI to DVI connection

32 - RGB connection

33 REMOTE CONTROL

35 CUSTOMIZING SETTINGS

35 Accessing main menus

36 USING THE USER GUIDE

36 Accessing User Guide menu.

36 - Using the TV menu

36 - Using the Remote Control

37 MAINTENANCE

37 Cleaning Your TV

37 Screen and frame

37 Cabinet and stand

37 Power cord

38 Preventing “Image burn” or “Burn-in” on

your TV screen

39 TROUBLESHOOTING

39 General

40 SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby “and the

double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that

plays DivX video. Visit divx.com for more information and software tools to

convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be

registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device

setup menu. Go to vod.divx.com for more information on how to complete

your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium

content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274

ENGLISH

4INSTALLATION PROCEDURE

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.

2 Attach the stand to the TV.

3 Connect an external device to the TV.

 Image shown may differ from your TV.

 Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

 The available menus and options may differ from the input source or product model that you are

using.

 New features may be added to this TV in the future.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

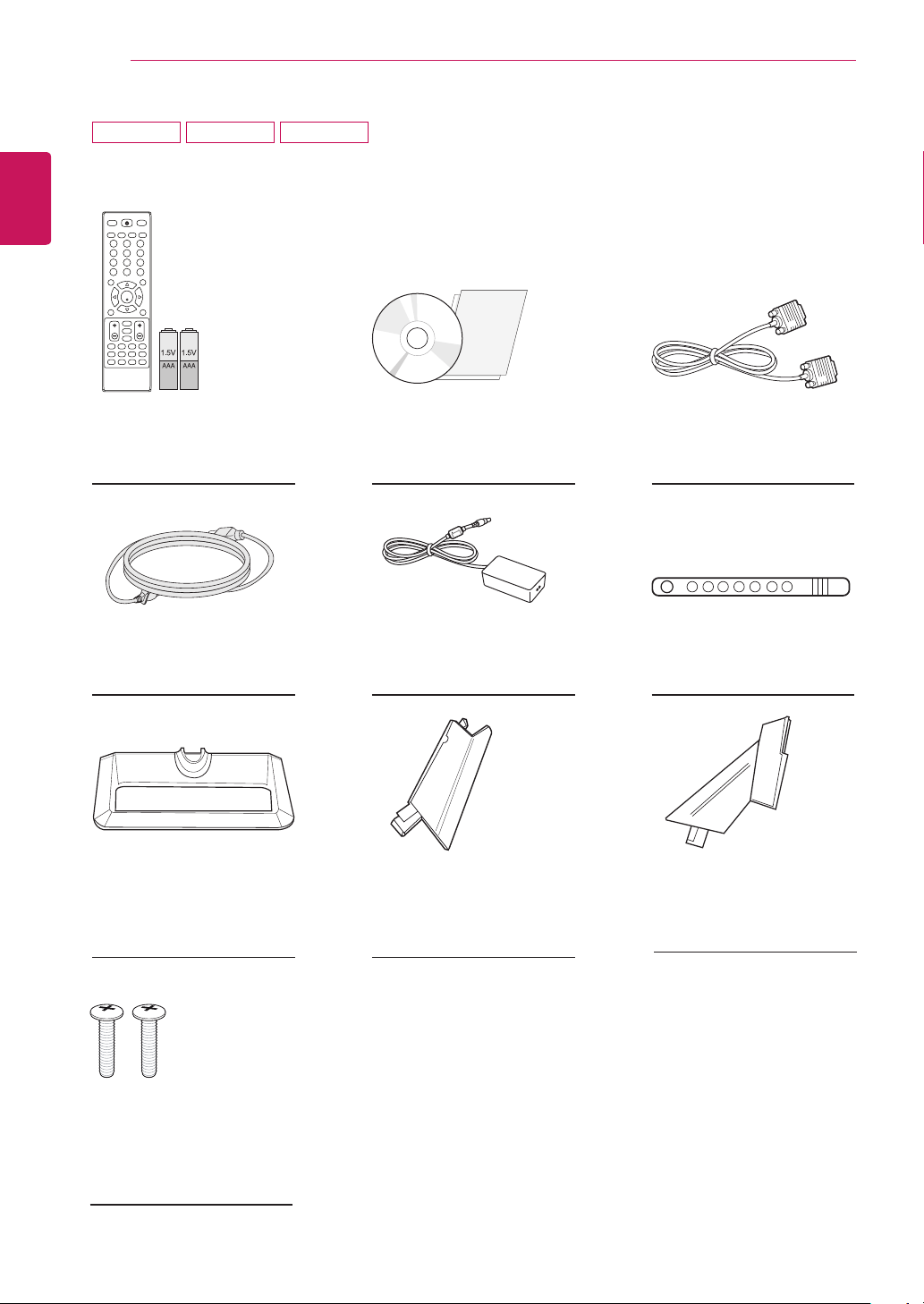

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual

product and accessories.

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to

upgrade of product functions.

NOTE

 Do not use any pirated items to ensure the safety and product life span.

 Any damages or injuries by using pirated items are not covered by the warranty.

CAUTION

 The items supplied with your product may vary depending on the model.

 Product specifications or contents of this manual may be changed without prior notice due to

upgrade of product functions.

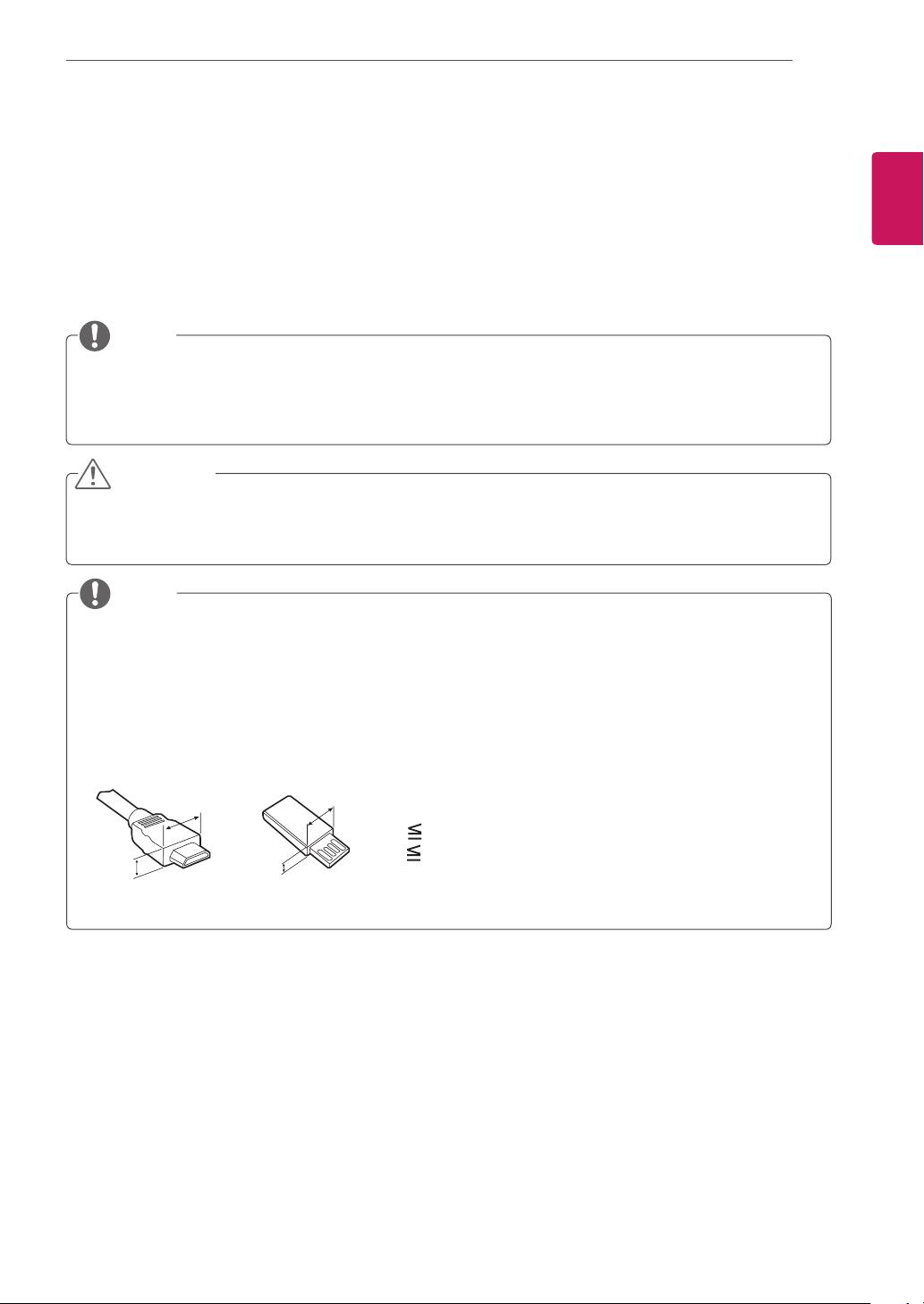

 For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

NOTE

*A 10 mm

*B 18 mm

ENGLISH

6ASSEMBLING AND PREPARING

Remote control.

Batteries (AAA).

Power Cord.

Stand Base.

- M2252D, M2452D: See p.9, See p.15

- M2752D: See p.11, See p.16

CD (Owner's Manual).

Cards.

AC-DC Adapter.

Stand Body. (Only M2252D /

M2452D model)

RGB Cable.

Cable Tie.

(See p.33, See p.34)

(See p.13) (See p.13)

(See p.9, See p.15)

(See p.32)

(See p.14)

M2252D M2452D M2752D

Stand Body. (Only M2752D

model)

(See p.11, See p.16)

Screws for Assembly.

2 EA (Only M2752D model)

(See p.11, See p.16)

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

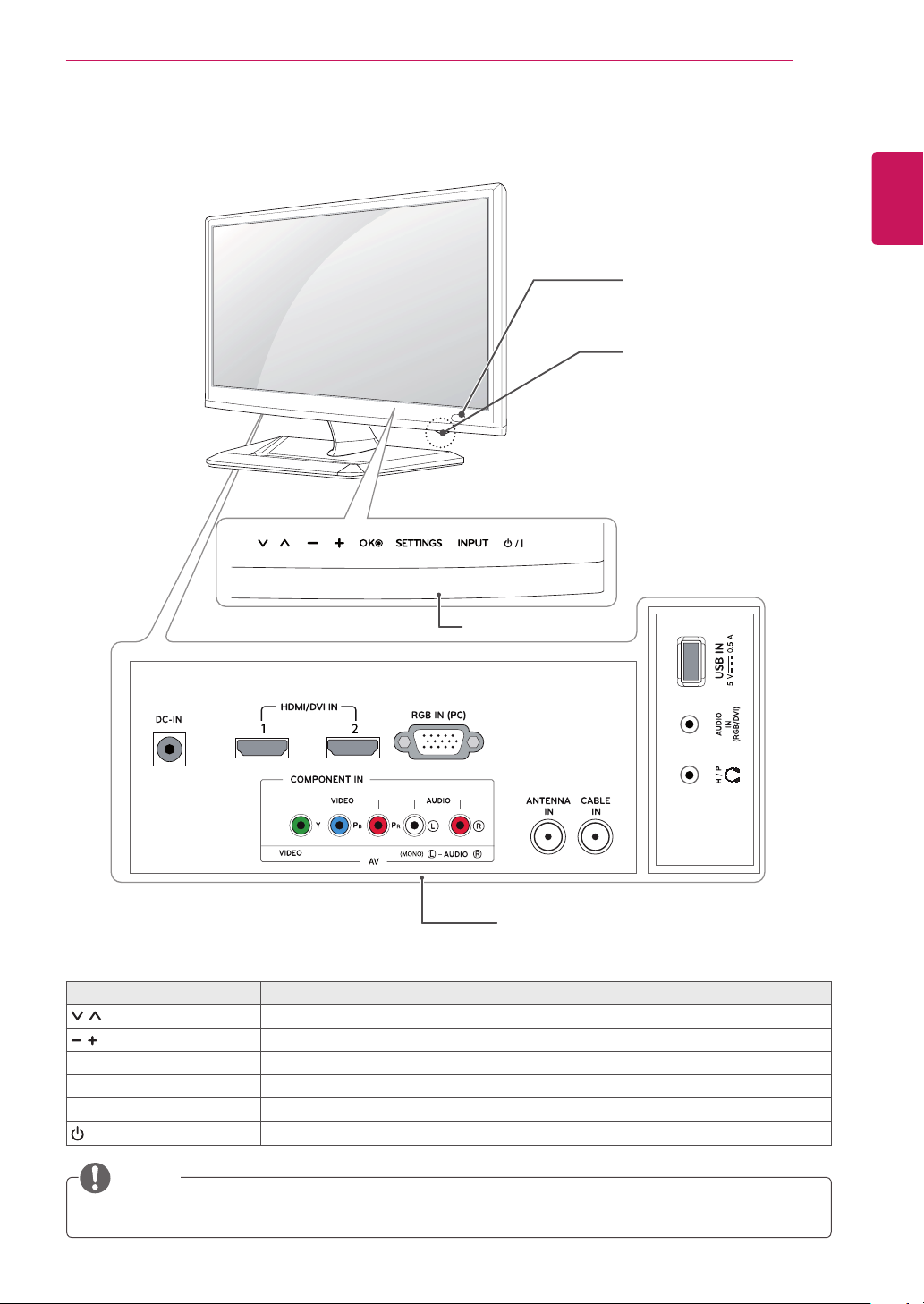

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ ITurns the power on or off.

Remote Control Sensor

Standby Light

 Lighting On: Turned off

 Lighting Off: Turned on

Connection panel (See p.21)

Touch Buttons

ENGLISH

8ASSEMBLING AND PREPARING

 When holding the TV, the screen should face

away from you to prevent the screen from

scratches.

 When transporting the TV, do not expose the

TV to jolts or excessive vibration.

 When transporting the TV, keep the TV

upright, never turn the TV on its side, or tilt

towards the left or right.

Lifting and moving the TV

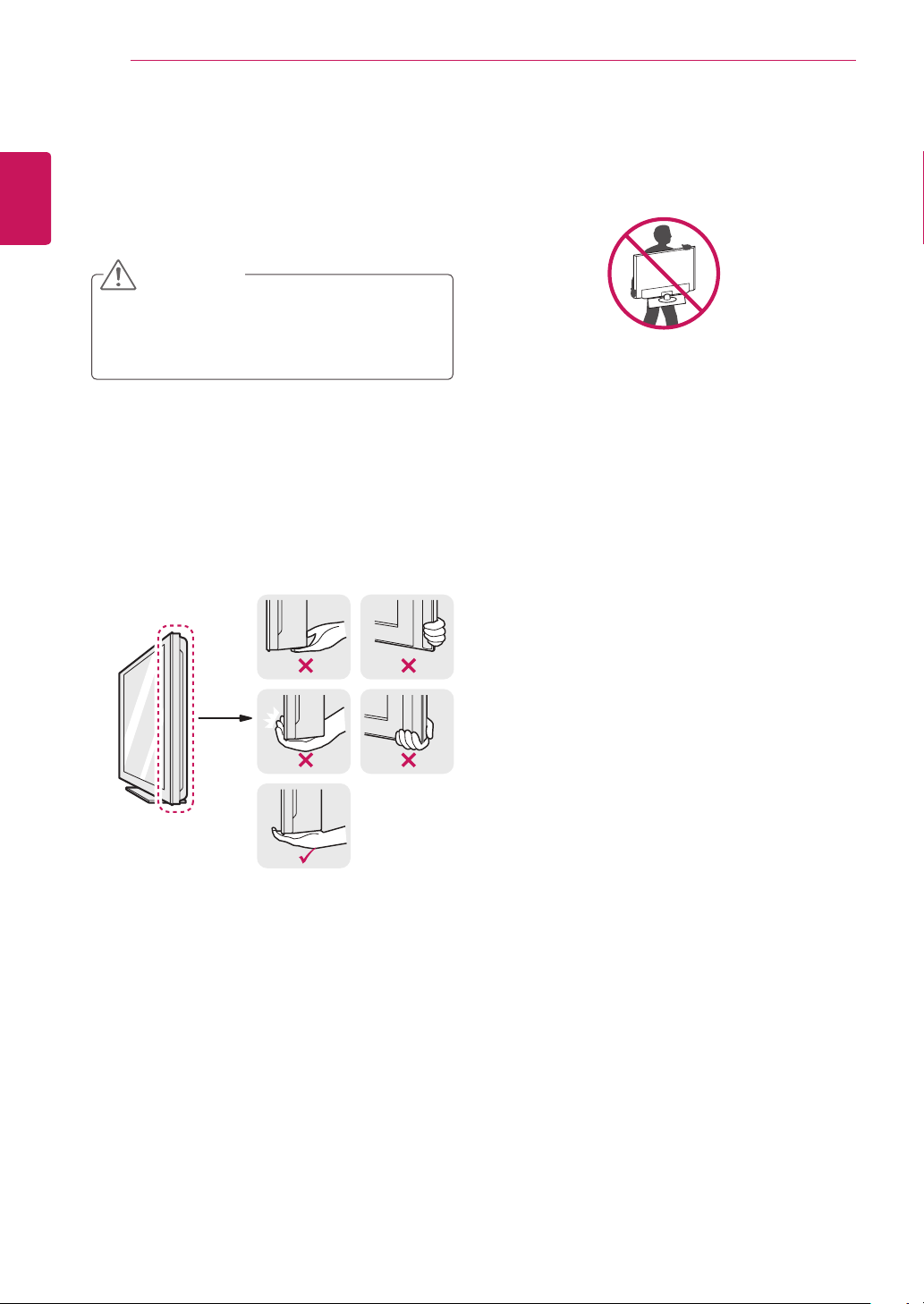

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for save transportation regardless of

its type and size.

Avoid touching the screen at all times, as

this may result in damage to the screen or

some of the pixels used to create images.

CAUTION

 It is recommended to move the TV in the

box or packing material that the TV originally

came in.

 Before moving or lifting the TV, disconnect

the power cord and all cables.

 Hold the top and bottom of the TV frame

firmly. Make sure not to hold the transparent

part, speaker, or speaker grill area.

ENGLISH

ASSEMBLING AND PREPARING

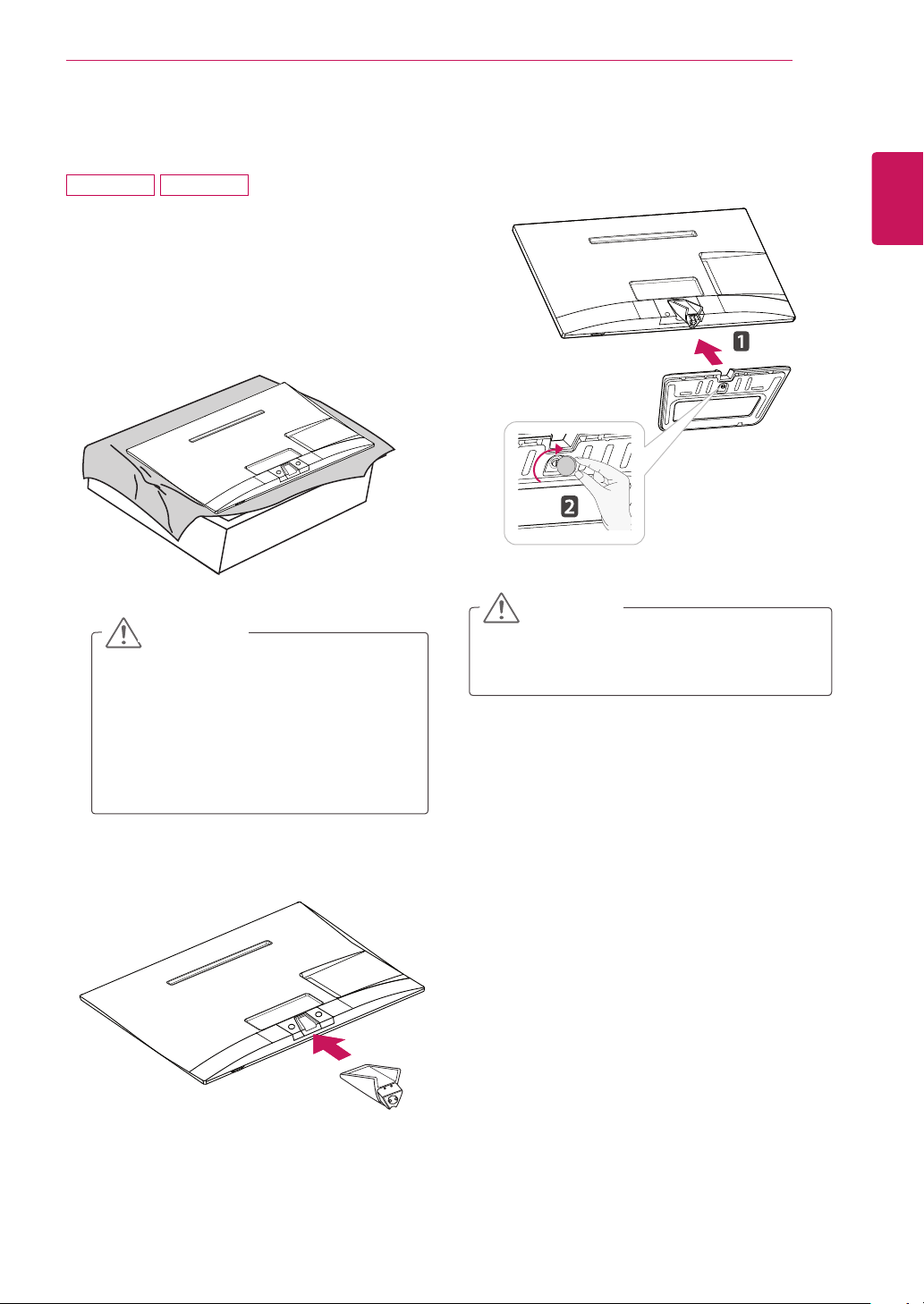

3 Attach the Stand Base from the Stand Body by

turning the screw to the right with a Coin.

Setting up the TV

Attaching the Stand

If you are not mounting the TV to a wall, use the

following instructions to attach the stand.

1 Place the TV with the screen side down on a

flat and cushioned surface.

2 Attach the Stand Body from the TV.

 Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

 When attaching the stand to the TV,

place the screen facing down on a

cushioned table or flat surface to protect

the screen from scratches.

CAUTION Tighten the screws firmly to prevent the TV

from tilting forward. Do not over tighten.

CAUTION

M2252D M2452D

ENGLISH

10 ASSEMBLING AND PREPARING

CAUTION

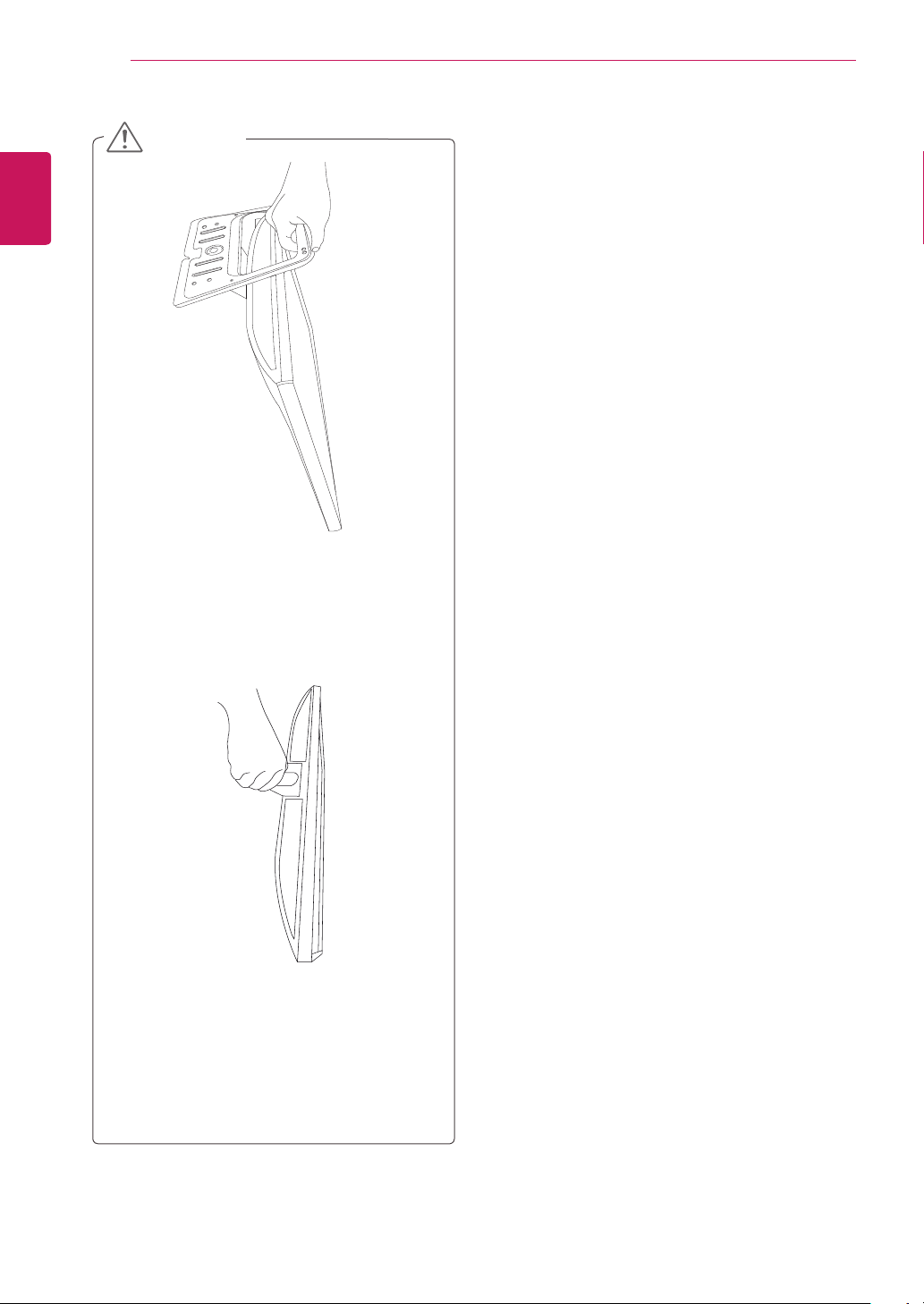

 Do not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

 The illustration shows a general example of

installation and may look different from the

actual product.

 Do not carry the monitor upside-down by

holding the stand body as this may cause it

to fall off, resulting in damage or injury.

 The illustration shows a general example of

installation and may look different from the

actual product.
