1Getting Started: SCS/TNe in a LAN environment

Card for IPDS and SCS/TNe -

SCS/TNe Emulation User’s Guide

Getting Started

SCS/TNe in a

LAN

environment

Thank you for purchasing the Card for IPDS and SCS/TNe.

The card provides high quality IBM host connectivity print output.

With the appropriate print server and host software, your printer or

Multifunction Product (MFP) becomes an IBM host workstation

printer capable of printing IPDS or SCS documents from an iSeries,

AS/400, or mainframe. For a more detailed product description, see

“Specifications, Requirements, Features” on page 275.

IMPORTANT:Unless otherwise stated, the term

printer in this manual refers to both printers and

MFPs.

SCS data is received in a LAN environment using the Telnet

extended protocol. The Card for IPDS and SCS/TNe adds support

for the TN3270E and the TN5250E protocols. A correctly configured

printer can receive, process, and print SCS print jobs received over

TCP/IP.

Documentation

Overview

This document deals only with setting up and using the SCS/TNe

emulation in the Card for IPDS and SCS/TNe. It will help you to

understand, use, and change option settings for receiving SNA

2Getting Started: Equipment Requirements and Specifications

Character String (SCS) jobs over the LAN and for formatting the

way SCS jobs are printed. Unless otherwise specified, references to

the AS/400 host also cover the iSeries host.

If you need information on the IPDS emulation provided in the

Card, please refer to the separate IPDS Emulation User’s Guide.

Information on how to install the Card is in separate documenta-

tion shipped with your printer.

If you need basic information on your printer and how to use it,

please refer to the printer’s specific documentation.

Equipment

Requirements

and

Specifications

Supported Products

With the appropriate option card installed, the following printers and

Muiltifunction Products (MFPs) are supported:

•Lexmark C770, C772, C780, C782, C920, C935 (IPDS color

printing, SCS monochrome printing)

•Lexmark T640, T642, T644, W840

•Lexmark X644e MFP, X646e MFP, X646ef MFP, X850e MFP,

X852e MFP, X854e MFP

IMPORTANT:Unless otherwise stated, the term

printer in this manual refers to both printers and

MFPs.

•Lexmark X782e MFP, X940e MFP, X945e MFP (IPDS color

printing, SCS monochrome printing)

3Getting Started: Equipment Requirements and Specifications

Required LAN Connection

To use the SCS/TNe Emulation, the printer must have one of the fol-

lowing LAN connections:

•Standard Network for connection to an Ethernet LAN (also

called STD Net).

•MarkNet internal print server (Ethernet).

If you need to update your Standard Network or MarkNet firmware,

refer to “Support” on page 4.

For further information on requirements and specifications, see the

appendix starting on page 275.

4Support: Customer Support

Support

Customer

Support

If you cannot find answers in this guide about using the SCS/TNe

emulation, refer to the web site below.

If you need to update your Standard Network, MarkNet internal print

server, or SCS/TNe firmware, go to http://support.lexmark.com.

You may also contact your point of purchase or your local Lexmark

office.

5Support: Customer Support

This page is intentionally left blank

6Important Configuration Basics: Introduction

Important Configuration Basics

Introduction SCS/TNe MENU options settings can be changed and saved in

three ways:

IMPORTANT:Unless otherwise noted, the term

printer refers to printers and MFPs, and the term

control panel refers to operator panels and touch

screens on these types of products.

•Use the control panel (“Understanding the Control

Panel” on page 9 - which also contains all basic infor-

mation on types of settings).

•Work with the settings remotely using a browser

(“Remote Configuration Using a Browser” on page 23

ff.)

•Work with the settings remotely using IDB option

strings (see “IDB Basics” on page 246 ff. and “Addi-

tional TN5250e Printer Commands Using IDB” on

page 258 ff). Using IDB in this way is a highly technical

process used only in connection with configurations

and re-configurations.

Detailed, specialized listings and descriptions of option settings can

be found in:

“Operations Reference - TN3270E SETUP” on page 83 and

“Operations Reference - TN5250E SETUP” on page 153.

7Important Configuration Basics: What are “IDB Options”, “IDB events etc.?

All of these descriptions include the available options and their val-

ues.

What are “IDB

Options”, “IDB

events etc.?

On many of the descriptions you may notice the use of terms like

IDB events, IDB options, IDB values, IDB User Parameters, IDB

Language, etc. Refer to “IDB Basics” on page 246 for additional

information. Note that in most cases, only technical specialists need

to understand and use IDBs.

Setup Options

vs. Printer Setup

Options

Setup Options

Changes to the option settings under the SCS/TNe MENU will only

affect the printing of SCS jobs received through a LAN connection.

These changes will not affect SCS jobs received through a Coax or

Twinax Adapter for SCS, nor will they affect IPDS, PostScript™ or

PCL™ jobs.

The SCS/TNe Emulation user default settings remain in effect until

you save new settings or restore the factory defaults by using one of

the SCSxxxx Defaults options under MENU/Menus > Option Card

Menu > SCS/TNe MENU > TNxxxE STEUP > TEST OPTIONS.

xxxx stands for 3270 or 5250.

8Important Configuration Basics: Setup Options vs. Printer Setup Options

IMPORTANT:

Restoring the factory defaults using the printer

MENU/Menus > Settings > Utilities Menu >

Restore Defaults does not affect the SCS/TNe

MENU settings.

Settings you choose in the SCS print job may override the user

default settings displayed in the printer operator panel.

This guide discusses setting up the SCS/TNe Emulation and chang-

ing the SCS/TNe Emulation settings.

Printer Setup Options

Changes to printer settings under the various printer menus, such

as Paper Menu and Settings, will affect the way PostScript and PCL

jobs are printed. Many of these printer settings will also affect SCS/

TNe jobs.

9SCS/TNe Options & Operator Panel: Introduction

Understanding the Control Panel

Introduction This chapter introduces the SCS/TNe MENU options as well as

illustrating how how the control panel works. Printers and MFPs dif-

fer, so both operator panels on printers and touch screens on MFPs

are illustrated here.

If you are familiar with the use of the control panel, skip this chapter,

but we recommend familiarizing yourself with the contents of

“Remote Configuration Using a Browser” on page 23 before pro-

ceeding with installation setups.

Descriptions of how to carry out installation setups are found in:

“Installation Setup for Mainframe Users” on page 27 ff. and

“Installation Setup for AS/400 and iSeries Users” on page 53 ff.

Detailed, specialized listings and descriptions of option settings are

found in:

“Operations Reference - TN3270E SETUP” on page 83 and

“Operations Reference - TN5250E SETUP” on page 153.

All descriptions include the available options and their values.

10Understanding the Operator Panel: Printer operator panel

Printer operator

panel

Access the SCS/TNe Emulation options and settings from the oper-

ator panel SCS/TNe MENU. To reach the menu:

Accessing the SCS/TNe

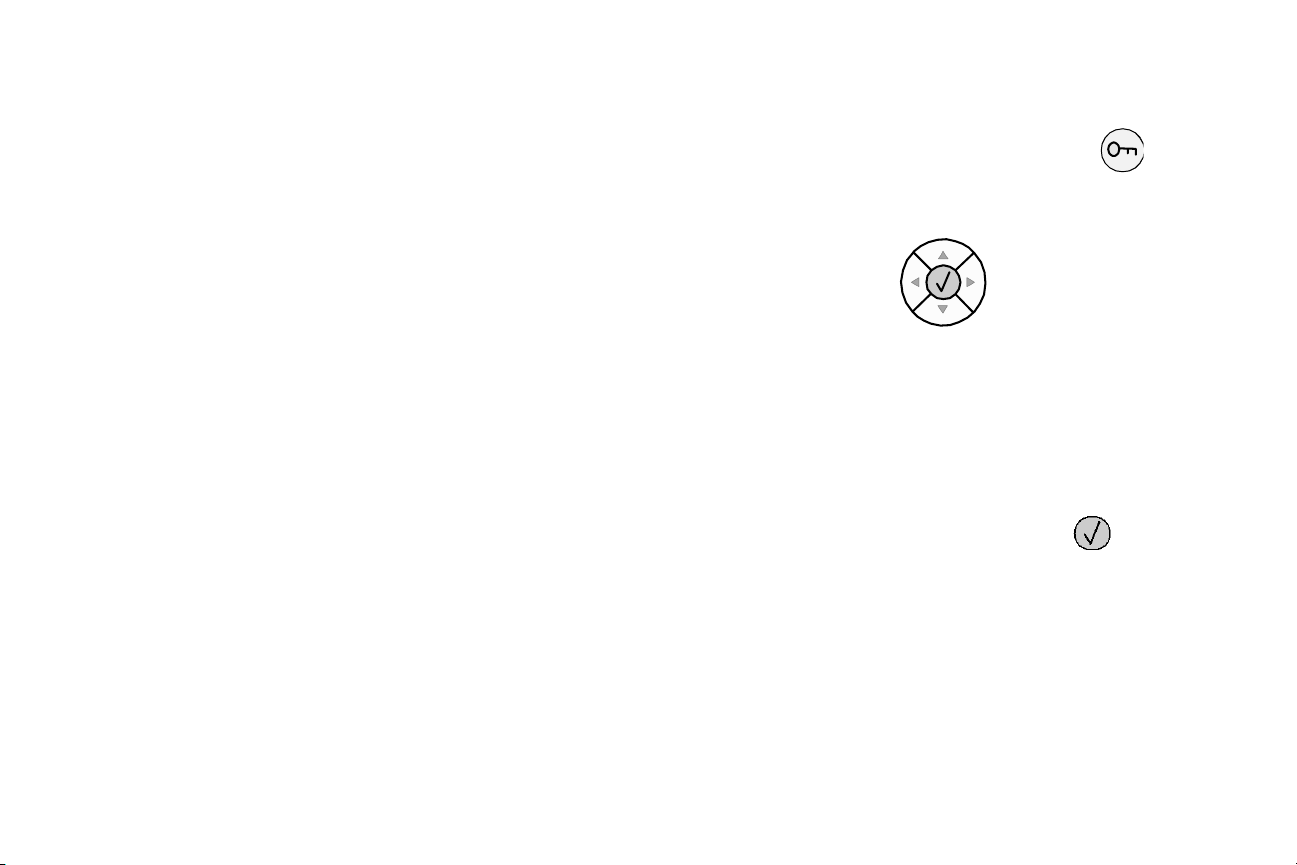

1From a Ready status, press the MENU button . on the

operator panel. This opens the menu index in the operator

panel’s screen.

2Use the navigation buttons or to scroll

through the main menus displayed on the screen.

3Each time you press a navigation button, the on-screen

checkmark moves to indicate the choice that will be

active when you select it.

4When the on-screen checkmark is displayed next to the

Option Card Menu, press the Select button .

5Navigate to SCS/TNe MENU, pressing Select when the on-

screen checkmark is displayed next to it.

The same method is used to scroll through lists of menu groups and

options. As you move through the menus, the top line in the screen

shows the menu or menu group name to which the displayed items

belong.




