LevelOne POH-1260 12 FE PoE Hub is equipped with 12 RJ-45 ports featuring PoE function to eliminate the

bulky power cable need while implementing your network infrastructure thus allowing greater flexibility in the

locating of network devices and significantly decreasing installation casts

POH-1260 is fully compliant with the IEEE 802.3af standard and acts as a patch panel between a switch and

other network devices to provide power and data, and it supplies PoE power of up to 30w per port over

existing Cat.5 Ethernet cable.

The compact 19’’, IU rack-mountable design enables the switch to be easily located in a server room in

order to centralize power management and simplify network integration for various applications. For all the

functions featured in POH-1260 users can get the benefits of flexible network solutions that can simplify the

installation of wireless Access Point, IP Cam, IP phone and other devices or applications in the network.

V1.0

Specification

Hardware Specification

Interface "Data" Input Ports: 12 x RJ-45 STP

"PoE (Data+Power)" Output Ports: 12 x RJ-45 STP

LEDs Power x 1 (Green), PoE Status x 12 (Green)

12 Ports ON means PoE Power forwarding

Network Cable

10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)

100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)

EIA/TIA- 568 100-ohm STP (100m)

Dimension (W x D x H) 480 x 160 x 44 mm (1U height)

Weight 2.4kgs

Operating Temperature 0 ~ 50 Degree C

Storage Temperature -40 ~ 70 Degree C

Humidity 5 ~ 95% (Non-condensing)

Power over Ethernet

PoE Standard IEEE 802.3af PoE / Mid-Span

PoE Function Auto Recovery , OVP , OCP, OTP

PoE Power Output Per Port DC 48V 30 watts

Power Pin Assignment 4/5(+), 7/8(-)

Total PoE Power Budget 375 Watts

Standards Conformance

Standards Compliance

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3af Power over Ethernet

Regulation Compliance FCC Part 15 Class A, CE

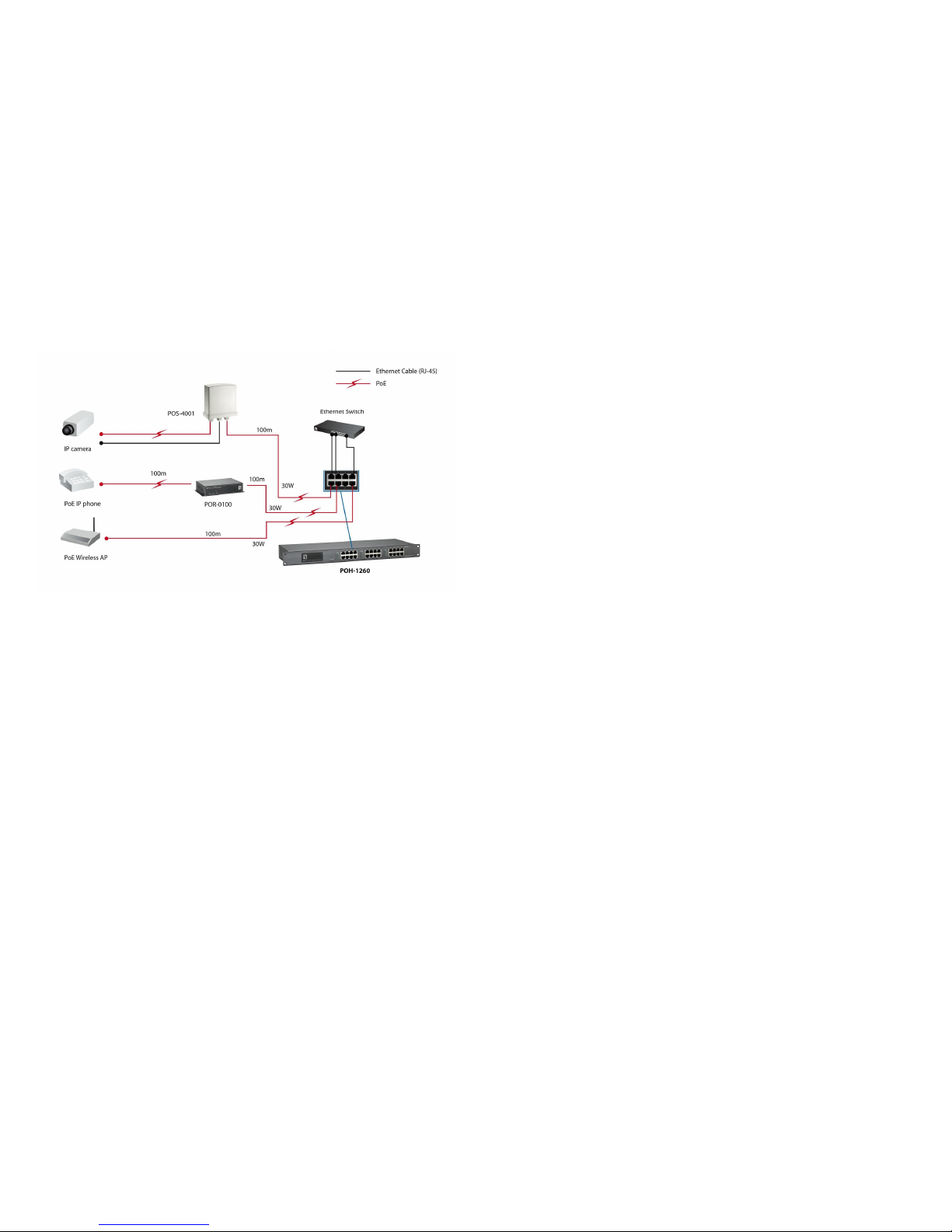

Application
