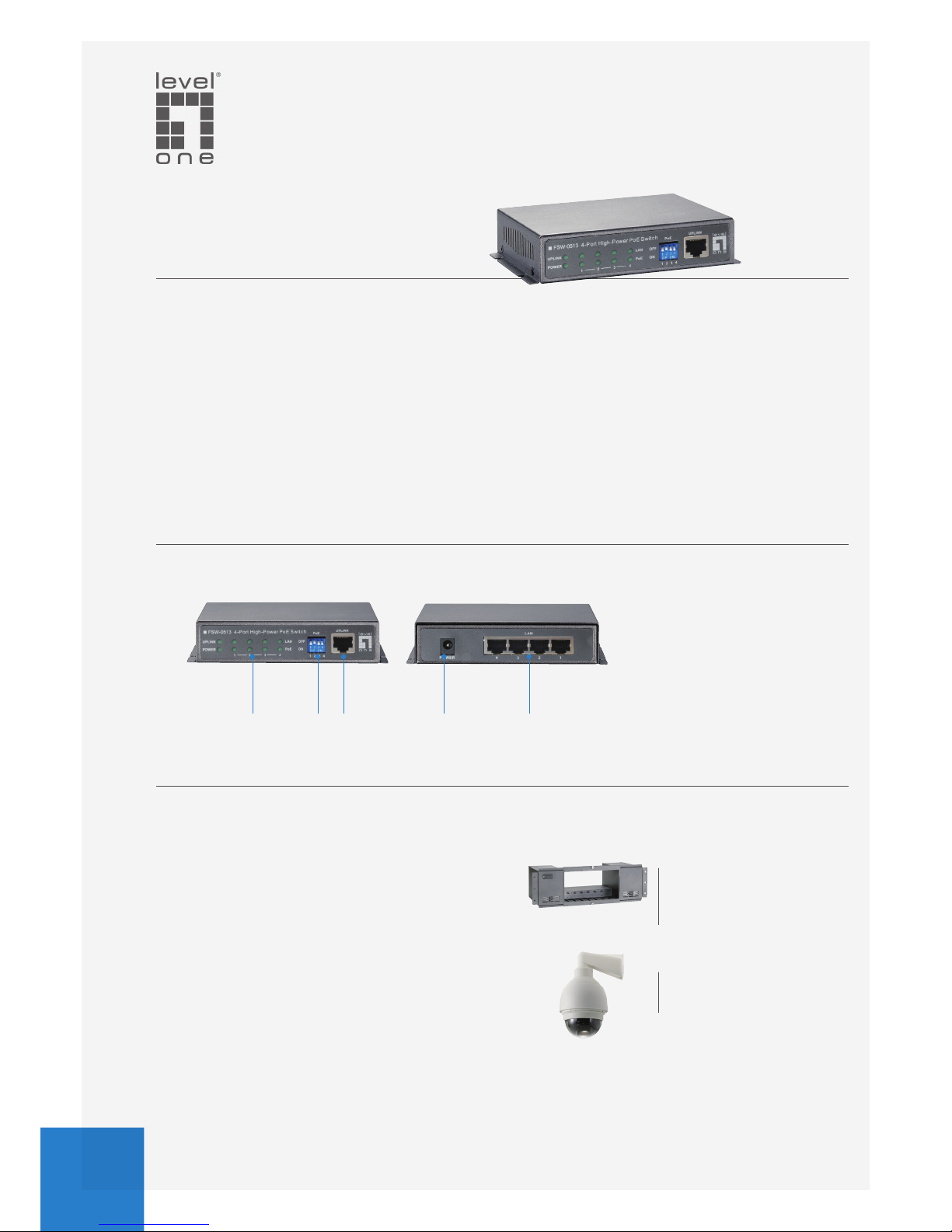

LevelOne FSW-0513 Manual de usuario

4-Port High Power PoE +

1 FE Switch FSW-0513 (-Z)

FSW-0513 (-Z) is a 10/100Mbps Fast Ethernet Switch

with 4 High-Power Power over Ethernet ports and one

uplink port. With a total power budget of 120W, FSW-

0513 (-Z) is excellent for deploying network devices

that require high-power such as outdoor security

dome cameras and access points. And with high-

power PoE, the reach of devices can be extended

hundreds of meters.

With 4 dip switches, each PoE port can be manually

set for On-O control. The internal PoE power supply

can send up to 48 Watts to a single port. FSW-0513 (-Z)

is compact in size, making it ideal for desktop users

with limited space. You also have option of installing

several FSW-0513 (-Z) in a 19” chassis (POC-6000) for a

large-scale rack-mount PoE solution.

Power Protection

FSW-0513 (-Z) supports power protections as

OVP (Over Voltage Protection), OCP (Over Current

Protection), robust short-circuit protection and surge

protection.

Key Features

- IEEE 802.3af PoE compatible to simplify deployment

and installation

- Supports auto-negotiation and auto-MDI/MDI-X

cable detection on each port

- Store-and-Forward architecture to ensure error-free

communications

- IEEE 802.3x ow control protects against lost packets

for reliable data transmission

- Simple Plug and Play installation

- Total PoE power budget: 120W, up to 48W per port

- Control Per PoE port on-o by dip switch

- Power protection: OVP/OCP/OTP

Works well with

1. LED Indicators

2. PoE On-O dip Switch

3. 10/100Mbps RJ-45 Uplink Port

4. External power socket

5. 10/100Mbps RJ-45 PoE Ports

H/W Version: 1

FCS-4041

2-Megapixel P/T/Z PoE Plus Speed

Dome Outdoor Network Camera

1 2 3 4 5

POC-6000

8-Bay High Power PoE Chassis for

FSW-0503(-Z) / FSW-0513(-Z) &

GEP-0520(-Z)

www.level1.com

one world_one brand_one level_

Ethernet Switches

LED Indicators

Power, Uplink, LAN 1~4 port, PoE 1~4 port

Power Input

100~240V DC / 50~60Hz 2.7A External Power Adapter

Power Consumption

120W

Dimensions (L x W x H)

120 x 90 x 28mm

Weight

0.8kg

Temperature

Operating: 0~45 Degree °C

Storage: -40~70 Degree °C

Humidity

Operating: 10~90% (Non-condensing)

Storage: 10~90% (Non-condensing)

Certications

FCC, CE

Technical Specications

Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex ow control)

IEEE 802.3af Power over Ethernet

Features

MAC Address: 1K

Buer Memory: 48KB

Transmission Method: Store and Forward

Backplane: 1Gbps

Filtering/Forwarding Rates

100Mbps port-148,000pps

10Mbps port-14,880pps

Transmission Media

10Base T Cat. 3, 4, 5 UTP/STP

100Base TX Cat. 5 UTP/STP

Network Interface

4 x 10/100Mbps RJ-45 PoE Ports

1 x 10/100Mbps RJ-45 Uplink Port

PoE Spec

PoE Compatible: IEEE 802.3af Power over Ethernet / PSE

PoE over current protection

PoE circuit sorting protection

PoE Power Output: Per Port 48V DC, Max. 48W (High Power)

Power Budget: Max. 120W

Power Pin Assignment: 4/5(+), 7/8(-)

Product Diagram

Port 1 Port 2 Port 3 Port 4 Enable Port

48W OFF OFF OFF 1 port

48W 48W OFF OFF 2 Ports

40W 40W 40W OFF 3 Ports

30W 30W 30W 30W 4 Ports

Enable PoE on

PoE output Power

FSW-0513 (-Z) output power table list

Ethernet Cable (RJ-45)

PoE

POR-1100

FSW-0513 (-Z)

100m 100m

FCS-5011

POR-1100

POM-1100

FCS-1091

BOH-1200

100m

48W

POR-1100

POR-1100POR-1100

100m100m

POR-1100POR-1100POR-1100

100m100m 100m

100m

Note: These distances are typical results when used with 18~19Ω 24 AWG Cat.5 Cable

Order Information FSW-0513: 4-Port High Power PoE + 1 FE Switch

FSW-0503-Z: 4-Port High Power PoE + 1 FE Switch (no power included)

Package Contents FSW-0513: FSW-0513 x 1, Power Adapter x 1, User Manual x 1

FSW-0513-Z: FSW-0513 x 1, User Manual x 1

Optional Accessories

V1.1

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

POC-6000

8-Bay High Power PoE Chassis for

FSW-0503(-Z) / FSW-0513(-Z) / GEP-0520(-Z)
