ThinkSystem Friction 2-Post Screw-in Rail Kit
Read guidelines first
Review the documentation that comes with the rack for safety and cabling information. Before you install the
server in a rack, read the following guidelines:
• Some illustrations might differ from your server. All types of server are removed and installed in a similar
manner.
• See the Maintenance Manual for the ma imum room air temperature.
• Do not block any air vents, usually 15 cm (6 inches) of air space provides proper airflow.
• Plan the device installation starting from the bottom of the rack.
• Install the heaviest device in the bottom of the rack.
• Do not e tend more than one device out of the rack at the same time.
• Do not place any objects on the top of the rack-mounted devices.
• Connect all power cords to properly wired and grounded electrical outlets.
• Do not overload the power outlet when installing multiple devices in the rack.
• The ma imum width of the mounting flange is 225.6 mm (8.9 inches).
Safety notice
CAUT ON:
Make sure the rails support your server model and use
safe practices when lifting
11
Rail Support Matrix
For the detailed information about the rail support, see the following website: https://en.resources.lenovo.com/
brochures/thinksystem-rail-support-matri
Part number
Find the rail part number on the label as shown, use the part number to identify your rail model in the Rail
Support Matri above.
1 Part number (10 digits)
22
The rail package contains the following items:
1 Document
2 Left rail
3 Right rail
4 Nine M5 screws (for square-hole and round-hole rack)
5 Nine cage nuts (for square-hole rack)
6 Nine clip nuts (for round-hole rack)
7 Nine 10-32 screws (for threaded rack)
8 Nine 12-24 screws (for threaded rack)
9 Four screws
33
nstallation steps
Remove nner Rails
Note: The graphic shown below is the right rail.
Step 1. Pull the inner rail outward until you see the release latch.
Step 2. Press the release latch.
Step 3. Pull out the inner rail away from the outer rail.
Step 4. Repeat step 1-3 on the left rail.
44
nstall nner Rails on System
Note: The graphic shown below is the right rail.
Step 1. Align the mounting holes in the inner rail with the corresponding rail mounting pins on the side of the server.
Step 2. Push the inner rail as shown until the mounting pins on the server lock into place with the inner rail.
Step 3. Repeat step 1-2 on the left rail.
Notes:
• Make sure the stamp “Front” always face toward the front when assembling the inner rail to the server or to the
slide-rail assembly.
• The number of the rail mounting pins on the side of the server might be different from the illustration depending on
the server model.
Step 4. Insert and fasten the four screws on the left and right rails if needed (depending on the server model).
55
Adjust the Position of the Sliding Brackets (optional)
Bracket position for different server depth:
1 Server depth: 480 mm-560 mm (default position)
2 Server depth: 675 mm-752 mm
3 Server depth: 700 mm-779 mm
4 Server depth: 725 mm-805 mm
Note: Based on the server dimension, you may need to adjust the bracket to make sure the center of gravity of the
server is within the rails. The steps are listed as below.
Step 1. Move rear sliding bracket to the back as shown.
Step 2. Pull the pins of front sliding bracket.
Step 3. Slide the front bracket so the pins lock into the corresponding holes on the rails.
66
nstall Rails to Rack
Notes: The graphic shown below is the right rail.
Use the same method to install the rails to all types of racks:
• For square-hole rack, use M5 screws and cage nuts
• For round-hole rack, use M5 screws and clip nuts
• For threaded rack, use only 10-32 or 12-24 screws (depending on the rack)
Step 1. Align the rail with the rack and install the screws to secure the front side of the rail.
Step 2. Adjust the rear sliding bracket against the rack; then, install the screws to secure the rail.
Step 3. Repeat step 1-2 on the left rail.

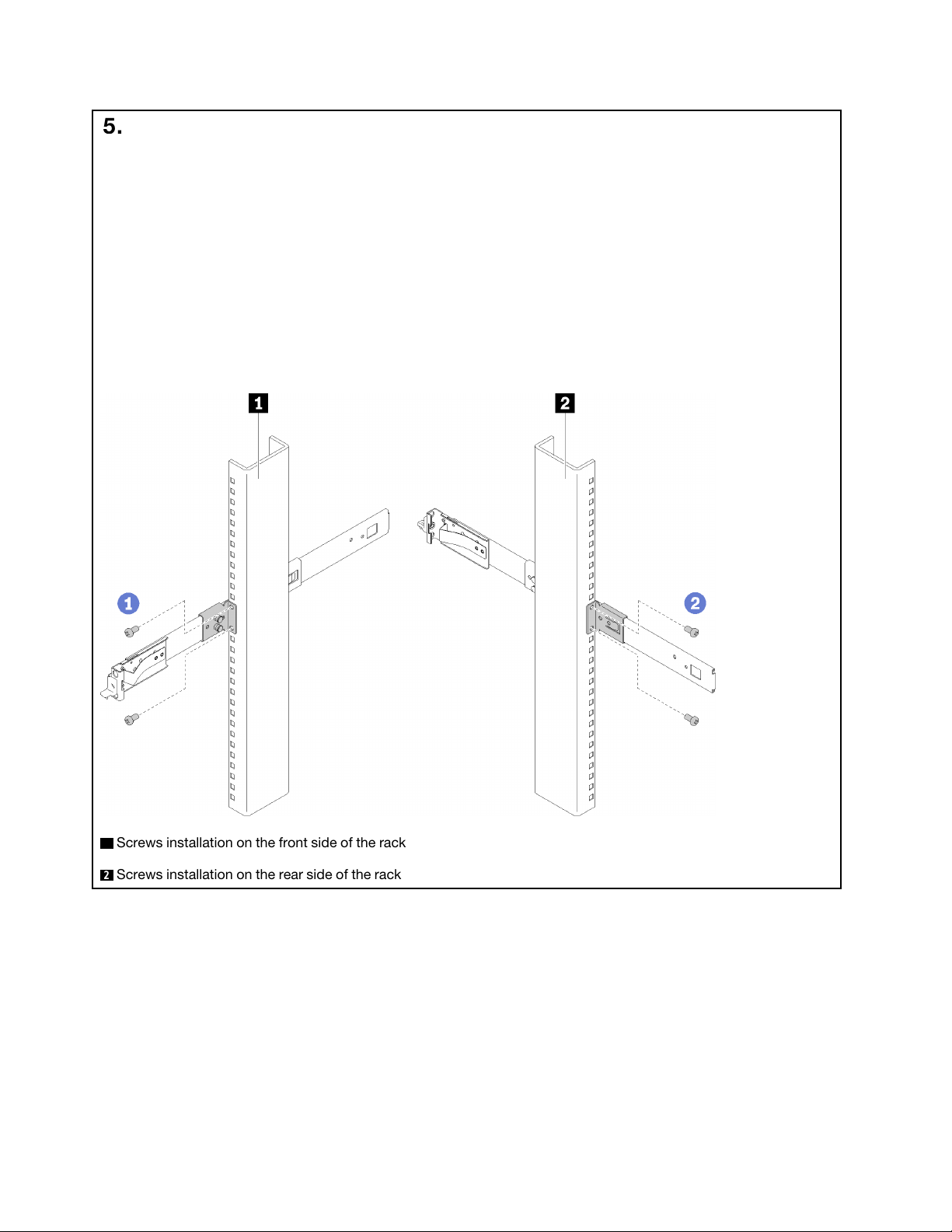

1 Screws installation on the front side of the rack
2 Screws installation on the rear side of the rack
88
Slide System into Rails in Rack
Step 1. Carefully lift the server and align the server with the slide rails. Position the server as shown and push the
server into the rack.
Step 2. Press the release latches.
Step 3. Push the server all the way into the rack until the server locks into place with a click.
99
Tighten Front Screws (optional)
Secure the server before you move the rack or place the rack in a vibration-prone area. Open the rack release latches
and tighten the screws to firmly secure the system.
1 Rack release latches
2 Front Screw
1100
