LELY COSMIX P Guía de configuración
innovators in agriculture
www.lely.com
Lely Industries N.V.
Installation and Operator Manual
5.2308.8512.0 B
EN –English Original
LELY COSMIX P
Concentrate Feeder
INTENTIONALLY BLANK
5.2308.8512.0 B
innovators in agriculture
5.2308.8512.0 B
TRADEMARKS, COPYRIGHT AND DISCLAIMER 3
TRADEMARKS, COPYRIGHT AND DISCLAIMER
Lely, Astronaut, Astri, Atlantis, Attis, AWS, C4C,Calm, Caltive, Capsule,
Commodus, Compedes, Cosmix, Dairywise, Discovery, F4C, Fertiliner,
Gravitor, Grazeway, Hibiscus, Hubble, I-flow, InHerd, Juno, L4C, Lely
Center, Lelywash, Lotus, Luna, Nautilus, Orbiter, Quaress, Qwes, Shuttle,
Splendimo, Storm, T4C, Tigo, Vector, Viseo, Voyager, Walkway and
Welger are registered trademarks of the Lely Group.
Lely reserves all rights with respect to its trademarks. Any unauthorized
use of any Lely-owned trademark or any use of a trademark that is
confusingly similar to, or likely to cause confusion with a Lely-owned
trademark, would constitute infringement of Lely’s exclusive rights. All
rights reserved.
The information given in this publication is provided for information
purposes only and does not constitute an offer for sale. Certain products
may not be available in individual countries and products supplied may
differ from those illustrated.
No part of this publication may be copied or published by means of
printing, photocopying, microfilm or any other process whatsoever
without prior permission in writing by Lely Holding S.à.r.l. Although the
contents of this publication have been compiled with the greatest
possible care, Lely cannot accept liability for any damage that might arise
from errors or omissions in this publication.
Copyright © 2016 Lely Industries N.V.
All rights reserved
Lely Industries N.V.
Cornelis van der Lelylaan 1
3147 PB Maassluis
the Netherlands
Phone: +31 (0)88 1228221
Fax: +31 (0)88 1228222
Website: www.lely.com
innovators in agriculture
5.2308.8512.0 B
LIST OF INCLUDED AMENDMENTS 5
LIST OF INCLUDED AMENDMENTS
No:
Issue Date
(yy/mm) Chapter(s) Remarks
3 16/08 4,5 •Lifting mechanism of the M-box changed.
•Air pressure ON / OFF valve added.
2 15/08 4,5,7 •Long distance (LD) tag functionality added: machine
5.2309.0040.X.
•Adjustment of the photocell (Qwes IR models) added.
•Feed presence sensor removed.
•Pressure reducer added to control box.
•Several other minor updates.
111/02 Initial issue.
innovators in agriculture
5.2308.8512.0 B
WARRANTY RESTRICTIONS 7
WARRANTY RESTRICTIONS
Excluded from this warranty are any cost or expenses due to:
•Abnormal use of the equipment which is not according to the
specifications stated in the Operator Manual or handled during the
Operators Service and Maintenance Certification program.
•The result of any intervention by technicians other than Lely service
technicians or technicians who have Lely’s approval to perform certain
duties.
•Incidents such as freezing, ice, fire, flood, inundation or any other
form of excessive water, lightning.
•Defect of the electrical system or grounding.
•Use of compressed air that does not meet the quality standards set by
Lely Industries.
•Damage to the electrical system as a result of vermin or the like.
•For USERS that have followed the Operators Maintenance and Service
Certification: Any damage resulting from abnormal use of the
equipment which is not according to the specifications stated in the
Operator Technical Training Manual is not covered by the warranty
scheme.
Warranty does not apply to consequential damage which does not
involve the machine itself.
All systems are tested. However in the event of a malfunction Lely cannot
be held responsible for consequential damage.
innovators in agriculture
5.2308.8512.0 B
PREFACE 9
PREFACE
Manual Contents
This manual contains the information necessary for the correct
installation and operation of a LELY COSMIX P Concentrate Feeder.
Study and understand this information thoroughly before configuration
of the concentrate feeder. Failure to do so could result in damage to
equipment. Please consult your local Lely service provider if you do not
understand the information in this manual, or if you need additional
information.
All information in this manual has been compiled with care. Lely shall not
be liable for errors or faults in this manual. The recommendations are
meant to serve as guidelines. All instructions, pictures and specifications
in this manual are based on the latest information that was available at
the time of publication. Your concentrate feeder may comprise
improvements, features or options that are not covered in this manual.
Applicability
The table below shows the type numbers of concentrate feeder for which
this manual is applicable.
Model designation
Model Type number
LELY COSMIX P Concentrate Feeder with Qwes ISO
neck identification
5.2308.0000.X
LELY COSMIX P Concentrate Feeder with Qwes IR
identification
5.2308.0010.X
LELY COSMIX P Concentrate Feeder with Qwes ISO
leg identification
5.2308.0020.X.
LELY COSMIX P Concentrate Feeder with Qwes LD
identification
5.2308.0040.X
Software version
The description, operation and procedures in this manual are based on
the following software versions:
•T4C version 3.1.3 or higher.
•E-Link version 1.08R or higher.
•ADS3830 PCB; 01.09.0 or higher.
innovators in agriculture
5.2308.8512.0 B
10 PREFACE
Standard Torque Loading of Parts
All the nuts, bolts and screws used on the machine are torque tightened
to standard torque loadings applicable to the construction materials
used.
If a part has a non-standard torque loading, it is specified in the
applicable part of the manual.
Registration
The Type and Serial Number Plate is attached to the control box of the
concentrate feeder, on the top. Always include the type and serial
number of your concentrate feeder when you contact your local Lely
service provider or order spare parts.

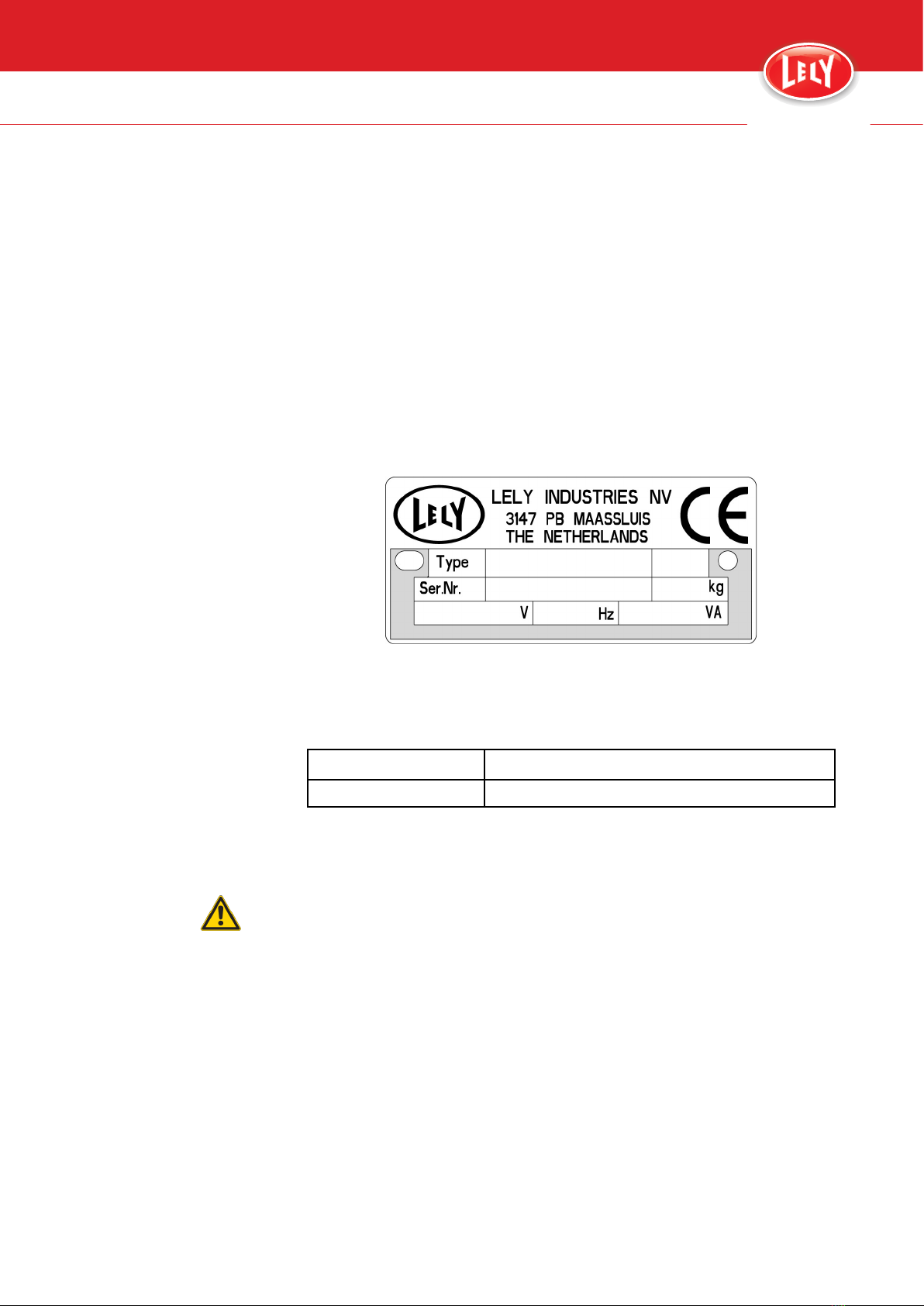

Figure 1. Type and Serial Number Plate
We suggest you complete the table below with the type and serial
numbers of your concentrate feeder. This makes sure you can easily find
the information.
Type number
Serial number
Maintenance Authorization
Only technicians certified by Lely Industries are authorized to do
maintenance on the concentrate feeder, except for the
maintenance done by the operator as indicated in the Operator
Manual.If people who are not certified by Lely Industries do
maintenance on the concentrate feeder, the warranty on the
concentrate feeder becomes invalid.
Contact Number Local Service Provider
We suggest you write the telephone number and email address of your
local service provider contact in the table below. This makes sure you can
easily find the information.
