Leica HDS7000 Manual de usuario

HDS7000

User Manual

Version 1.1

English

HDS7000, Introduction

Introduction

Purchase Congratulations on the purchase of a HDS7000 instrument.

This manual contains important safety directions as well as instructions for setting

up the product and operating it. Refer to "6 Safety Directions" for further informa-

tion.

Read carefully through the User Manual before you switch on the product.

Product

identification

The type and the serial number of your product are indicated on the type plate.

Enter the model and serial number in your manual and always refer to this informa-

tion when you need to contact your agency or Leica Geosystems authorised service

workshop.

Type: _______________

Serial No.: _______________

HDS7000, Introduction 3

Symbols The symbols used in this manual have the following meanings:

Trademarks • Windows is a registered trademark of Microsoft Corporation

All other trademarks are the property of their respective owners.

Type Description

Danger Indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

Warning Indicates a potentially hazardous situation or an unintended

use which, if not avoided, could result in death or serious injury.

Caution Indicates a potentially hazardous situation or an unintended

use which, if not avoided, may result in minor or moderate

injury and/or appreciable material, financial and environmental

damage.

)Important paragraphs which must be adhered to in practice as

they enable the product to be used in a technically correct and

efficient manner.

HDS7000, Table of Contents

Table of Contents

In this manual Chapter Page

1 Description of the System 8

1.1 Packing / Unpacking 8

1.2 Container Contents 9

1.3 Instrument Components 11

1.4 Cabling 16

1.4.1 Operate the HDS7000 with the Battery 16

1.4.2 Operate the HDS7000 with the Battery Charger

(AC Power Supply) 22

1.4.3 USB Ports 24

1.5 Field of View (FOV) 26

1.6 HDS

Cyclone

Software Suite 27

2 Setting Up the Instrument 30

2.1 General Information 30

2.2 Scanner Setup on Tripod 31

2.3 Setup Over a Benchmark with the Internal Laser Plummet 33

2.4 Instrument Height 36

2.5 Setting Up the Instrument with the Dolly 37

HDS7000, Table of Contents 5

3Scanning 38

3.1 Switching the System On/Off 38

3.2 Preparations 39

3.3 Ambient Conditions 42

3.4 Onboard Controls 45

3.5 Main Menu 51

3.6 Scanning 53

3.6.1 Level 57

3.6.2 Start Predefined Scan 59

3.6.3 Scan with User Defined Settings 60

3.6.4 Profile Scanning 68

3.6.5 Panorama 69

3.6.6 One Target Orientation (1-TO) 71

3.6.7 Setup a Predefined Scan 73

3.7 Scans 74

3.8 Help 83

3.9 Status 84

3.10 Settings 86

3.11 Hardware 89

3.12 Connections 92

3.12.1 Connecting the HDS7000 to a Network by Cable 94

3.12.2 Connecting the HDS7000 to a Notebook by Cable 96

3.12.3 Connecting the HDS7000 by Wi-Fi 99

3.13 Operating the HDS7000 using a Web Browser 100

HDS7000, Table of Contents

4 Troubleshooting 104

5 Care and Transport 108

5.1 Check & Adjust 108

5.2 Transport 109

5.3 Storage 110

5.4 Cleaning and Drying 111

5.5 Window Cleaning Procedure 112

5.6 Adjustment of the Circular Level 114

5.7 Service of the Tripod 115

6 Safety Directions 116

6.1 General Description 116

6.2 Intended Use 117

6.3 Limits of Use 119

6.4 Responsibilities 120

6.5 Hazards of Use 121

6.6 Laser Classification Scanner, Invisible Laser 130

6.7 Electromagnetic Compatibility EMC 132

6.8 FCC Statement, Applicable in U.S. 135

HDS7000, Table of Contents 7

7 Technical Data 140

7.1 General Technical Data of the Instrument 140

7.2 Laser Scanning System 141

7.3 Miscellaneous 144

7.3.1 Electrical 145

7.4 Environmental 146

7.5 Physical 147

7.6 Accessories 148

7.7 Wi-Fi 150

7.8 Conformity to National Regulations 151

8 International Limited Warranty, Software Licence Agreement 152

Index 154

HDS7000, Description of the System

1 Description of the System

1.1 Packing / Unpacking

Unpacking When in its transport container, the HDS7000 sits in with the Wi-Fi antenna in face-

up position.

)Pack the instrument the same way it is delivered.

To take the instrument out of its container,

grasp the handle and the base of the instru-

ment, and lift.

Use caution due to the weight of the instru-

ment (9.8 kg).

HDS7000_001

HDS7000, Description of the System 9

1.2 Container Contents

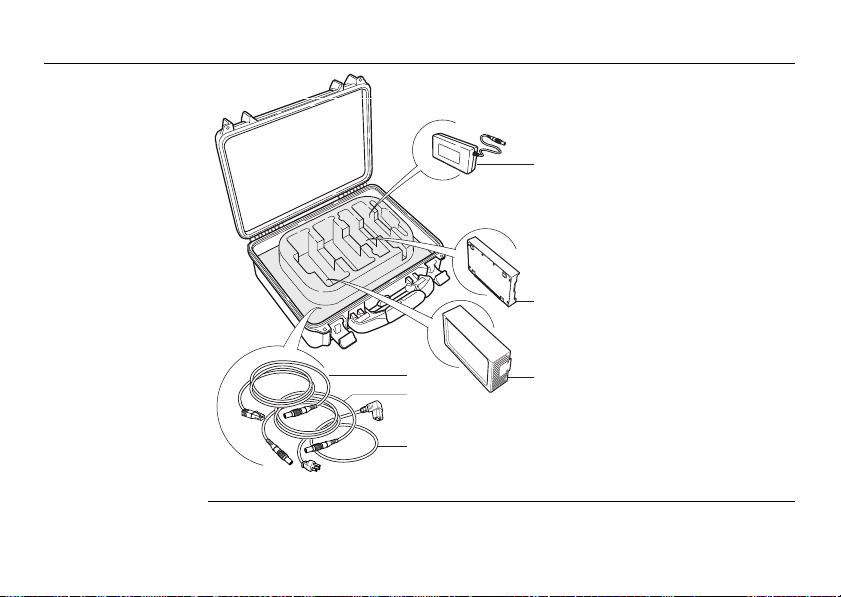

Transport

container for

HDS7000

a) USB plug

b) User Manual

c) HDS7000

d) Glass cleaning kit

HDS7000_002

HDS7000, Description of the System

Transport

container for

HDS7000 accesso-

ries

a) AC power supply / battery

charger

b) Charging cradle

c) HDS7000 battery

d) Ethernet cable

e) Extension cable for AC power

supply

f) Power cable for AC power

supply

HDS7000_003
