LEGRAND Arteor Manual de usuario

Cat. Nos: 5 742 02/12/21/30

Technical data sheet: F02619EN/01 Updated: 03/09/2020 Created: 17/04/2018

1/2

ArteorTM

Connected switch without neutral

with dimmer option

128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex

Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88

www.legrand.com

5. OPERATION3. DIMENSIONS (mm)

4. CONNECTION

Terminal type: with screws

Terminal capacity: 2 x 1.5 mm2or 2x2.5 mm2

Stripping length: 8 mm

Flat screwdriver: 3 mm

1. USE

Connected switch without neutral with dimmer option, configured by default as ON/OFF.

Can be combined with one or more wireless lighting controls (dimmer mode can be activated from the Home + Control app).

For local or remote control of your lighting.

Supplied with an active power compensator (Cat. No. 0 401 49), mandatory to ensure optimum operation with commercially-available lamps.

One compensator per lighting circuit is sufficient.

Easy to install in place of a standard switch in a box 35 mm deep (minimum).

Claws and/or screws fixing.

2. RANGE

Description White Champagne Magnesium Soft Alu

Product for use in conjunction with the starter pack (5 742 09/18/27/36).

With LED indicator (conguration) and RESET button (hidden) used to return

to factory settings.

Supplied with rocker plate.

5 742 02 5 742 30 5 742 21 5 742 12

A B C D

45 45 44.5 10

LED indicator:

- useful during installation

- blue LED illumination function can be activated from

the Home + Control app.

ON when pressed at the bottom and dimming when held

down until released.

OFF when pressed at the top and dimming when held

down until released.

OFF

RESET button used to return to factory settings

0 401 49

5 742 02

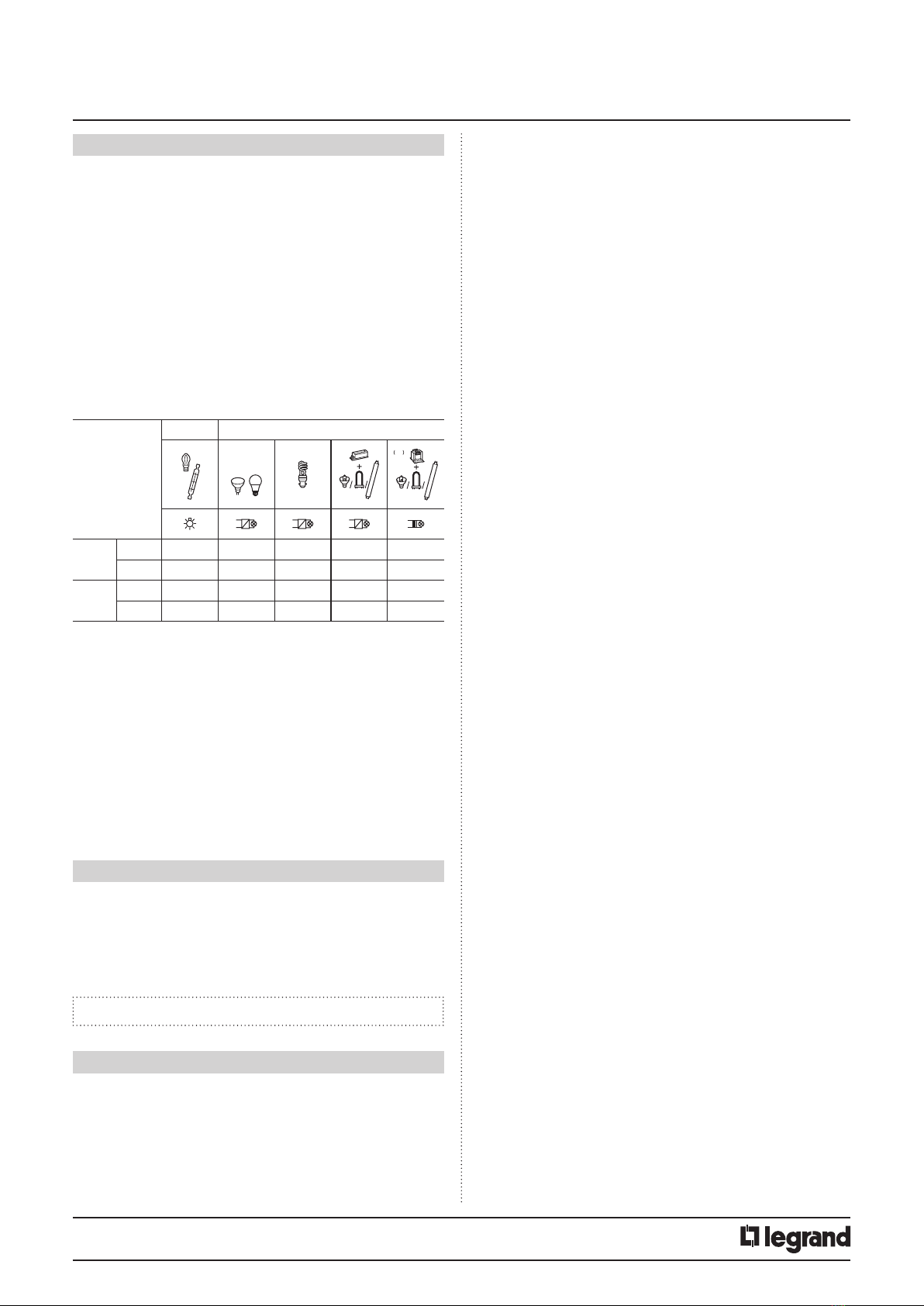

2/2

Cat. Nos: 5 742 02/12/21/30

ArteorTM

Connected switch without neutral

with dimmer option

Technical data sheet: F02619EN/01 Updated: 03/09/2020 Created: 17/04/2018

6. TECHNICAL CHARACTERISTICS

 6.1 Mechanical characteristics

Protection against impacts: IK 04

Protection against solid bodies/liquids:

IP 41 assembled product

6.2 Material characteristics

Rocker plate: ABS

Mechanism casing: PC

Halogen-free

UV-resistant

Self-extinguishing:

850°C/30 s for insulating parts holding live parts in place.

650°C/30 s for other insulating components.

6.3 Electrical characteristics

Voltage: 110-230 V~

Power: 300 W

Frequency: 50/60 Hz

Standby consumption: < 0.2 mW

(*)

Or 5 lamps max. For comfortable lighting, we recommend using bulbs of the

same type and make.

(**)The ferromagnetic transformers must be charged to more than 60% of their

power. When calculating the permissible power, the ferromagnetic transformer

efficiency must be taken into account. A load must be connected before

programming and using the product.

Zigbee technology 2.4 GHz to 2.4835 GHz

Power level: < 100 mW

Range: 200 m of unobstructed space

10 m between products indoors

 6.4 Climate characteristics

Usage temperature: + 5°C to + 45°C

Storage temperature: 0°C to + 45°C

7. CARE

Clean the surface with a cloth.

Do not use acetone, tar-removing cleaning agents or trichloroethylene.

Resistant to the following products:

Hexane (EN 60669-1), methylated spirit, soapy water, diluted ammonia,

pure bleach diluted to 10%, window-cleaning products, pre-impregnated

wipes.

8. STANDARDS AND APPROVALS

Compliant with installation and manufacturing standards.

See e-catalogue.

The undersigned, LEGRAND, declares that the radio-electric equipment

type (5 742 02/12/21/30) complies with directive 2014/53/EU.

The full text of the EU declaration of conformity is available on the

following website: www.legrandoc.com

R L

LED **

240 V~

Max. 300 W (*)50 W 50 W 300 VA 300 VA

Min. 7 W 5 W 9 W 10 VA 35 VA

100 V~

Max. 150 W (*)25 W 25 W 150 VA 150 VA

Min. 7 W 5 W 9 W 10 VA 35 VA

Caution: Always test before using special cleaning products.
