Document Number 411-0052-31 Rev A – May 2022
Installation Guide for
Vaddio Drop-Down Mounts
This guide covers the following mounts:
n535-2000-280 Drop-Down Mount for ePTZ Cameras - Short
n535-2000-281 Drop-Down Mount for ePTZ Cameras - Long
n535-2000-290 Drop-Down Mount for Small PTZ Cameras - Short
n535-2000-291 Drop-Down Mount for Small PTZ Cameras - Long
n535-2000-292 Drop-Down Mount for Large PTZ Cameras - Short
n535-2000-293 Drop-Down Mount for Large PTZ Cameras - Long
n535-2000-294 Offset Drop-Down Mount for Sony BRC Cameras, H900, Panasonic AW-HE130,
Canon XU-80W
n535-2000-296 Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
n535-2000-045 Offset Drop-Down Pole for RoboTRAK Mount
What's Included
Some product photos do not show all included parts.
535-2000-280 and 535-2000-281, Drop-Down Mounts for ePTZ Cameras
nTile support brace
nWasher, 5 in. (12.7 cm)
nMounting flange
nPipe, 15.5 in. (39 cm) or 27.5 in. (70 cm), depending on part
number
nHex nut, 1.5” x .375”
nAdapter, 1 in. NPT to 1-14
nePTZ mount adapter nut
nScrews, 6-32 Phillips panhead, 0.25 in. (0.6 cm), qty. 2
535-2000-290 and 535-2000-291, Drop-Down Mounts for Small PTZ Cameras
nTile support brace
nWasher, 5 in. (12.7 cm)
nMounting flange
nPipe, 12 in. (30 cm) or 24 in. (60 cm), depending on part
number
n1/4”-20 screw
nHex nut, 1.5” x .55”, qty. 2
nHex nut, 1.5” x .375”
nSmall camera platform
535-2000-292 and 535-2000-293, Drop-Down Mounts for Large PTZ Cameras
nTile support brace
nWasher, 5 in. (12.7 cm)
nMounting flange
nPipe, 12 in. (30 cm) or 24 in. (61 cm), depending on part number
n1/4”-20 screw
nHex nut, 1.5” x .55”, qty. 2
nHex nut, 1.5” x .375”
nLarge camera platform
535-2000-294 Offset Drop-Down Mount for Sony, Panasonic, Canon (camera not included)
nTile support brace
nWasher, 5 in. (12.7 cm)
nMounting flange
nPipe with offset, 26 in. (66 cm)
n1/4”-20 screw
nHex nut, 1.5” x .55”, qty. 2
nHex nut, 1.5” x .375”
nLarge camera platform
535-2000-296 Offset Drop-Down Mount for RoboSHOT and HD-Series
nTile support brace
nWasher, 5 in. (12.7 cm)
nMounting flange
nPipe with offset, 26 in. (66 cm)
n1/4”-20 screw
nHex nut, 1.5” x .55”, qty. 2
nHex nut, 1.5” x .375”
nVaddiocamera platform
535-2000-045 Offset Drop-Down Pole for RoboTRAK Mount (double-decker
mount is shipped with RoboTRAK systems)
nTile support brace
nWasher, 5 in. (12.7 cm)
nMounting flange
nPipe with offset, 26 in. (66 cm)
n1/4”-20 screw
nHex nut, 1.5” x .55”, qty. 2
nHex nut, 1.5” x .375”
Tools You Will Need
Before you start, be sure you have what you need:
nPencil
nAppropriate tool for cutting a hole in the ceiling
n#2 Phillips screwdriver
nLadder or other means of access to the ceiling
You May Also Need...
If you are installing the enclosure in a suspended tile ceiling, you will need a safety wire kit to suspend the
assembly. We recommend the Speed Connect Hardware Kit from Chief, part number CMSHDW.
Selecting the Installation Area
nConsider camera viewing angles and lighting conditions.
nConsider line-of-sight obstructions.
nIf you are installing the mount in a drywall or other hard ceiling, be sure you know the locations of the
ceiling joists.
Installation Guide for Vaddio Drop-Down Mounts
2
Assembling the Mount
Attach the mounting flange to the upper end of the pipe. The threaded portion of this end is longer than
on the lower end. Then attach the camera platform or ePTZ camera mount, as applicable:
For ePTZ camera mounts:
1. Use the two 6-32 screws to secure the camera wall mount to the adapter nut. The wall mount was
shipped with the camera, not the Drop-Down Mount kit.
2. Attach the adapter nut to the lower end of the pipe.
For mounts with camera platforms:
1. Attach the largest hex nut to the lower end of the pipe. This will act as a jam nut. Tighten it all the way.
2. Attach the camera platform to the lower end of the pipe. Tighten it until it touches the jam nut, then
loosen it to align it with the cable pass-through opening.
3. Turn the jam nut until it is tight against the camera platform nut.
3
Installation Guide for Vaddio Drop-Down Mounts
Preparing the Ceiling
Follow the applicable procedure for the type of ceiling in which you are installing the enclosure.
Warning
Follow standard safety practices when using ladders or lifts. Failure to do so can result in injury or death.
We like you, we don't want you to be injured or killed, and we hope you understand the gravity of the
situation.
Note
All above-ceiling work must conform to local building codes and should be performed by qualified
personnel.
Suspended tile ceiling:
Warning
The drop-down mount weighs 7.1 to 11.1 lbs. (3.2 to 5 kg) without the camera. Suspend the tile brace
with hanger wire. Failure to do so may result in injury, equipment damage, and ceiling damage.
1. Remove the ceiling tile where the mount will be installed.
2. Place the tile brace on the back of the ceiling tile and trace a circle for the opening.
3. Cut a 1 in. (2.5 cm) opening for the drop-down pole.
4. Place the tile back in the ceiling grid.

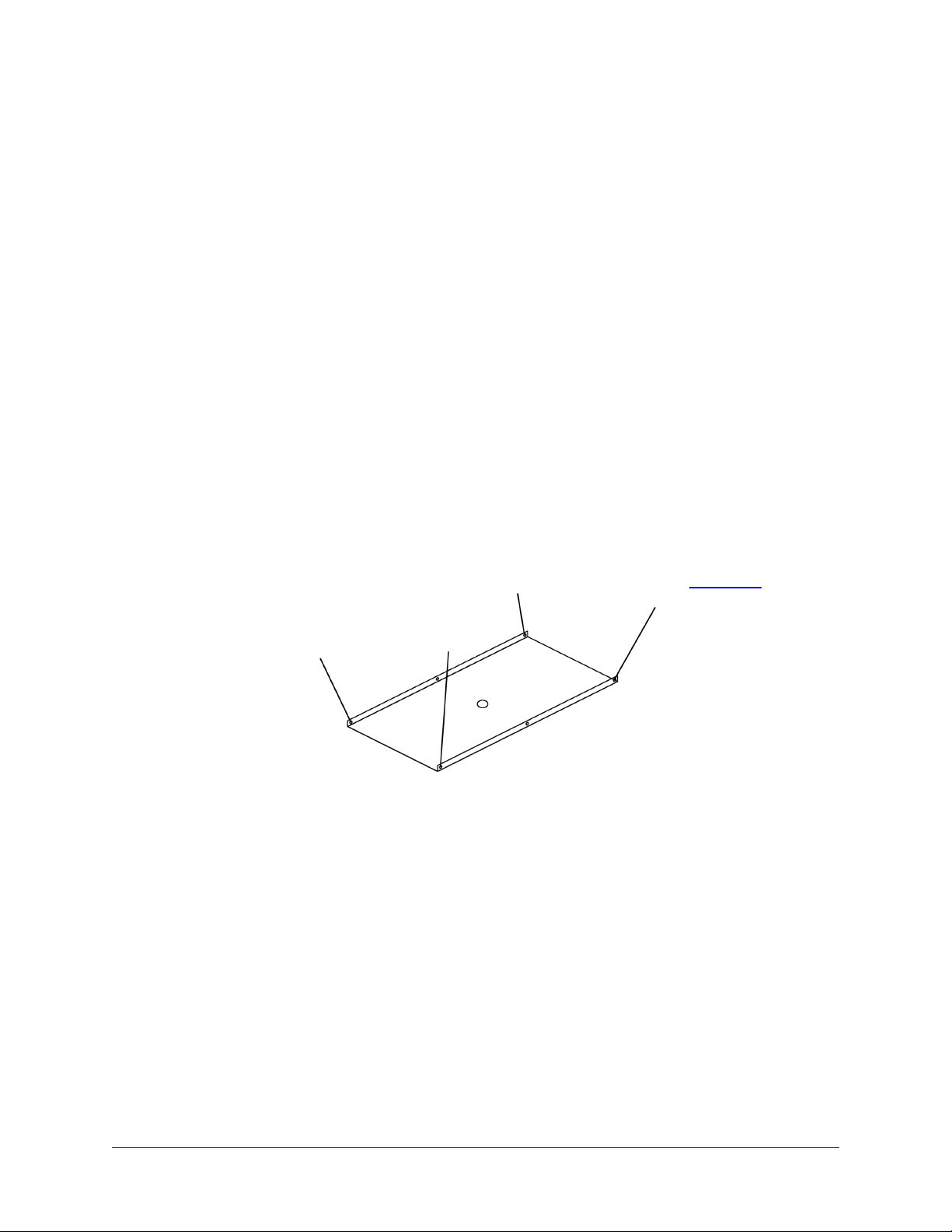

5. Place the tile brace above the tile, aligning it to the hole in the tile.
6. Secure the tile brace to the building structure (not the tile grid)and level it using appropriate hanger
wire – we recommend the Speed Connect Hardware Kit from Chief, part number CMSHDW.
7. Pull the camera cables.
Drywall or other hard ceiling:
1. Check before you trace the cutting line for the opening:
oIs the location free from obstructions such as electrical conduits?
oIs the location clear of the ceiling joists?
2. Cut the opening.
3. Raise the pipe into the opening and use the mounting flange as a template to mark the locations for
mounting screws.
4. If the ceiling is drywall (gypsum board):Drill holes for the drywall anchors and install them.
If the ceiling is wood: Drill holes for the wood screws.
5. Pull the camera cables.
Installation Guide for Vaddio Drop-Down Mounts
4
Vaddio is a brand of Legrand AV Inc. · www.legrandav.com · Phone 800.572.2011 / +1.763.971.4400 · Fax
Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for
identification purposes and are trademarks of their respective owners. All patents are protected under
existing designations. Other patents pending.
©2022 Legrand AV Inc.
Installing the Mount
1. Raise the mount and guide the cables into the top of the pipe.
2. For ePTZ drop-down mounts, pull the cables out through the bottom of the pipe.
For other mounts, guide the cables out through the cable pass-through above the camera platform.
3. Secure the mount:
If installing in a tile ceiling, raise the mount into position, place the large washer over the pipe, and
secure the pipe with one of the large hex nuts.
If installing in a hard ceiling, attach the mounting flange to the ceiling with the appropriate type of
screws.
Installing the Camera
1. Connect the cable(s) to the camera.
2. Secure the camera:
For ePTZ cameras:Slide the camera into the mount. If the camera is designed to pivot in the mount,
secure it with the camera mounting screws shipped with the camera. Then guide excess cable into
the drop-down tube.
For mounts with camera platforms: Guide excess cable into the drop-down tube while positioning
the camera. Then secure the camera to the platform with the included 1/4-20 camera mounting screw
(s).
3. Rotate the drop-down pipe as needed to adjust the camera’s position. If installing in a tile ceiling,
optionally secure the drop-down pipe using the remaining large hex nut as a jam nut.
