LEGRAND SANUS WSBWM1-B2 Manual de usuario

WSBWM1-B2

UNIVERSAL EXTENDABLE

SOUNDBAR WALL MOUNT

INSTRUCTION MANUAL

WE’RE HERE TO HELP

If you have any questions along the way, our install experts are standing by to help.

Or, chat at: US: SANUS.com/chatSP

Call us at: US: +1 (800) 359-5520

Call us at: EMEA: +31 (0) 495 580 852

Call us at: UK: +44 (0) 800 056 2853

Texto en español, página 16 Deutscher Text Seiten 18 Svensk text sida 20

中文文字说明请参见第 22 页

Texte français page 17 Nederlandse tekst op pagina 19

Русский текст: стр. 21 日本語は 23 ページ

Drill Bit

20 lbs.

(9.07 kg)

CAUTION: To avoid potential personal injuries and property damage:

• Please read through these instructions completely to be sure you’re comfortable with this easy install process.

• This product is designed for use with wood studs, solid concrete and concrete block walls, and drywall only.

• Do not use this product for any purpose not explicitly specified by manufacturer.

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service.

Before getting started, let’s make sure this product is perfect for you!

IMPORTANT SAFETY INSTRUCTIONS

READ ENTIRE MANUAL PRIOR TO USE. SAVE THESE INSTRUCTIONS.

Weight Limit

DO NOT EXCEED

Tools Needed

Drywall Install

Pencil Level Electric Drill

HammerDrill Bit

13/32 in.

(10 mm)

Concrete

Concrete Install

13/32 in.

(10 mm)

Wood Stud Install

Drill Bit

1/8 in.

(3 mm)

Wood

DIMENSIONS

Screwdriver

SUPPLIED PARTS AND HARDWARE

NOTE: Not all hardware included in this kit will be used.

WARNING:

This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, DO NOT

return the damaged item to your dealer; Contact Sanus (See back page).

Never use damaged parts!

Wall Plate

(qty. 2)

Under Mounting Bracket

(qty. 2)

Left Soundbar Bracket

(qty. 1) 6

Right Soundbar Bracket

(qty. 1)

Soundbar Screws

(Only one size fits your Soundbar)

(qty. 2 each)

M6 ScrewM4 Short Screw

Washer

(qty. 4) 15 (qty. 2)

Spacer

(qty. 2)

Short Keyhole Screw

M4 Screw

(qty. 2)

M5 X 8mm Screw

(qty. 2)

#08 Screw

(qty. 4)

Fischer Doutec 10

Drywall/Concrete Anchor

(qty. 4)

Washer (#8 Screw)

2.5 mm

(M4 X 10 mm)

M4 Long Screw

(M4 X 16 mm)

M5 Long Screw

(M5 X 16 mm)

M5 Short Screw

(M5 X 10 mm) (M6 X 16 mm)

Keyhole Nut

Long Keyhole Screw

(qty. 2)(qty. 2)

1/4-20 Screw

Soundbar Screws

(Only one size fits your Soundbar)

(qty. 2 each)

M6 Screw

M4 Short Screw

(M4 X 10 mm)

M4 Long Screw

(M4 X 16 mm)

M5 Long Screw

(M5 X 16 mm)

M5 Short Screw

(M5 X 10 mm)

(M6 X 16 mm)

1/4-20 Screw

(qty. 2)

Short Keyhole Screw

Keyhole Nut

Long Keyhole Screw

(qty. 2)

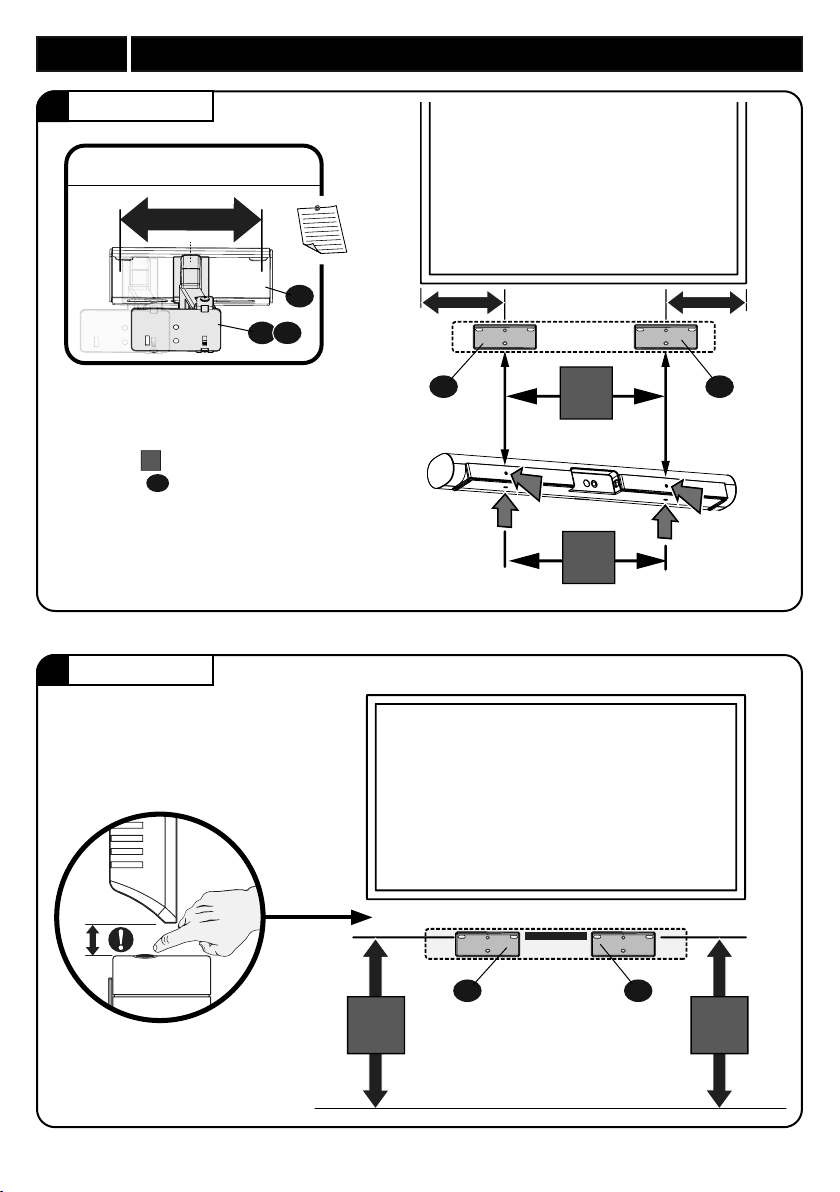

1WIDTH LOCATION

2HEIGHT LOCATION

STEP  DETERMINE YOUR WALL PLATE LOCATION

H H

The width W between the center of the

wall plates 1 should match the width

of the space between the soundbar

mounting holes.

5.74 in (145 mm)

WOOD STUD LATERAL SHIFT

5 6

IMPORTANT

For DRYWALL ONLY, or UNSURE of stud location

Go to STEP 2B on PAGE 7

For CONCRETE Block / Solid Concrete

Go to STEP 2C on PAGE 9

Wall plates

1 MUST be placed

at equal heights.

Note the orientation

of Wall plates 1.

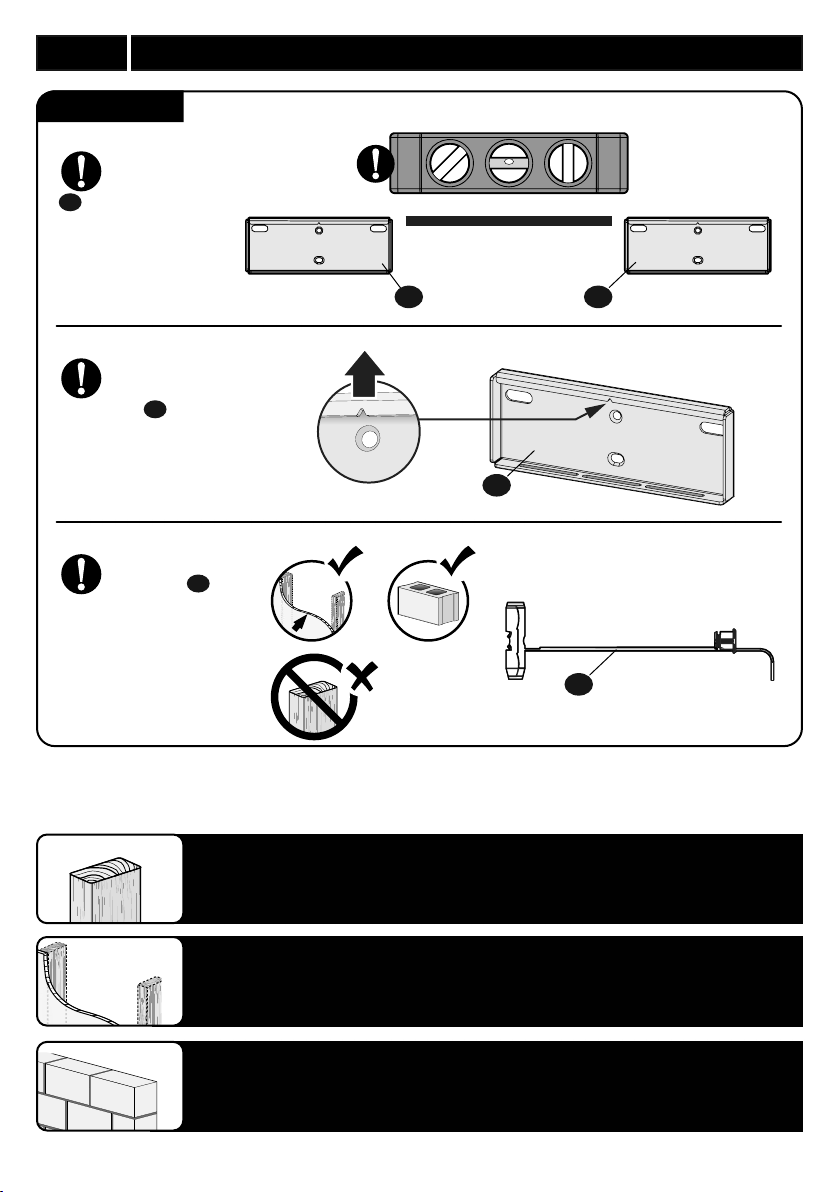

STEP  ATTACH WALL PLATES TO WALL

For WOOD STUD

Go to STEP 2A on PAGE 6

Follow the step for your wall type:

Use anchors 4

for drywall or concrete only.

DO NOT USE

with wood studs.

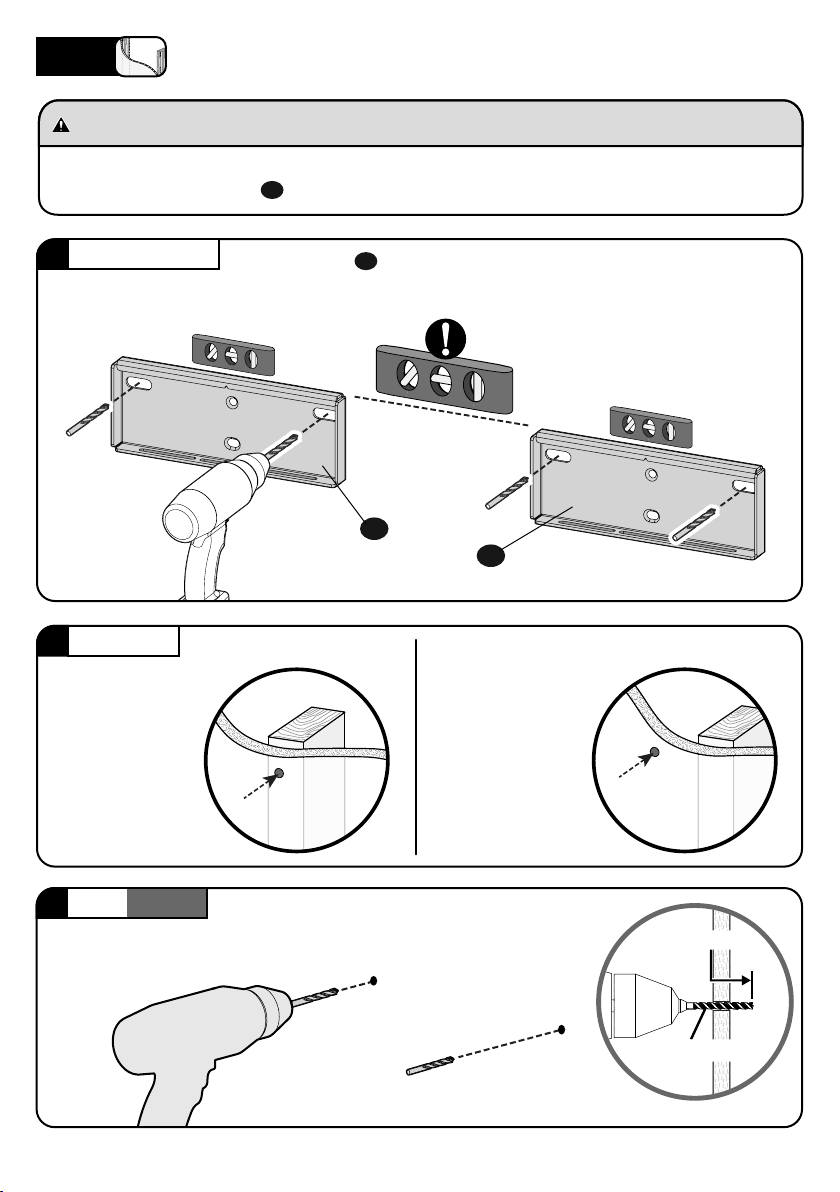

2A Wood Stud Installation

Use wall plates 1 as a guide.

Drill 1/8 in. (3 mm) holes to a depth

of 2 inches.

Max. 5/8 in. (1.5 cm)

Min. 3 ½ in. (8.9 cm)

Min. 1 ½ in. (3.8 cm)

NOTE: This installation is for mounting

the wall plate to a confirmed wooden stud.

See Step 2B for drywall installation without

a confirmed wooden stud.

CAUTION: Avoid potential personal injury or

property damage!

●Drywall covering the wall must not exceed 5/8 in. (1.5 cm)

●Minimum wood stud size:

nominal 2 x 4 in. (5.1 x 10.2 cm) actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)

●Stud centers must be verified

2 in. (51 mm)

1/8 in.

(3 mm)

1LOCATE

4DRILL

2VERIFY 3MARK

5SECURELY TIGHTEN

2B Drywall Installation, or UNSURE of stud location

●Drywall covering the wall must not exceed 1/2 in. (1.2 cm).

●IMPORTANT: Ensure wall plates 1 are level before drilling.

CAUTION: Avoid potential personal injury or property damage!

If pilot hole

is located

ON A STUD,

proceed to

Step 5 on PAGE 8.

Use wall plates 1 as a guide.

Drill 1/8 in. (3 mm) pilot holes to verify your wall.

If pilot hole is located

in DRYWALL ONLY,

proceed to

Step 3 below.

Drill 13/32 in. (10 mm) holes in pilot holes

located in drywall.

13/32 in. (10 mm)

1 in. (25 mm)

1DRILL PILOT HOLES

2VERIFY WALL

3DRILL DRYWALL

DRYWALL

5SECURELY TIGHTEN

IMPORTANT:

Use anchors 4 for DRYWALL ONLY.

DO NOT use with wood studs.

Drywall

Only

Illustrated

Wood Stud

Illustrated

4INSERT DRYWALL ANCHORS

3SECURELY TIGHTEN

c d

2C Concrete Installation

CAUTION: Avoid

potential personal injury or

property damage!

●Minimum solid concrete

thickness: 8 in. (20.3 cm)

●Minimum concrete block size:

8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)

●IMPORTANT: Ensure wall plates

1 are level before drilling.

13/32 in.

(10 mm)

3 in. (7.6 cm)

1DRILL

2INSERT CONCRETE ANCHORS

A

STEP  ATTACH SOUNDBAR TO SOUNDBAR MOUNTS

BACKMOUNTED SCREWS

11 11

1OPEN

2ATTACH

10 10

No Spacer 12 Spacer 12 Needed

STEP 3B: (PAGE 10)

Back-mount Holes with KEY HOLE SLOTS

STEP 3A: (PAGE 10)

Back-mount Holes with THREADED INSERTS

STEP 3C: (PAGE 10)

Bottom-mount Holes

3A, 3B

Back-mount Holes with

THREADED INSERTS

Look at the mounting holes on the BACK or BOTTOM

of your soundbar to determine your install method

3A, 3B or 3C.

Spacer

Screw

Washer
