Lefroy Brooks M2-4701 Instrucciones de montaje
INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
M2-4701
FLEETWOOD LEVER 4-HOLE KITCHEN MIXER
WITH BLACK PULL-OUT HAND SPRAY
2
Contents
Dimensions 3
InstalLation Procedure 4
Parts List 7
Fault Finder 8
Safety Tips, Care and Maintenance 9
Guarantee 10
Ø2 3/16"
(Ø55mm)
1/16"-1 11/16"
(1mm-43mm)
4"
(102mm)
102 1 15/16"
(50mm)
3 1/8"
(79mm)
6" -12"
(152.4mm-305mm)
R5"
(R127mm)
2 1/16"
(52mm)
1/2"
(12mm)
Ø3/4"
(Ø19mm)
Ø1"
(Ø25mm)
7 1/16"
(179mm)
13 5/8"
(346mm)
10"
(254mm)
Ø2 3/16"
(Ø55mm)
1/4-18UNEF-2A
1/2-14NPSM-2A
G1/2
9/16-24UNEF-2A
1/14-18NPSM-2A
4 15/16"
(125.7mm)
Ø1"
(Ø25.4mm)
3
Dimensions in Inches (& Millimetres)
Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without
notice as part of the company’s product development process.
1 2
4
Steps 1-4
InstallationProcedure
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.

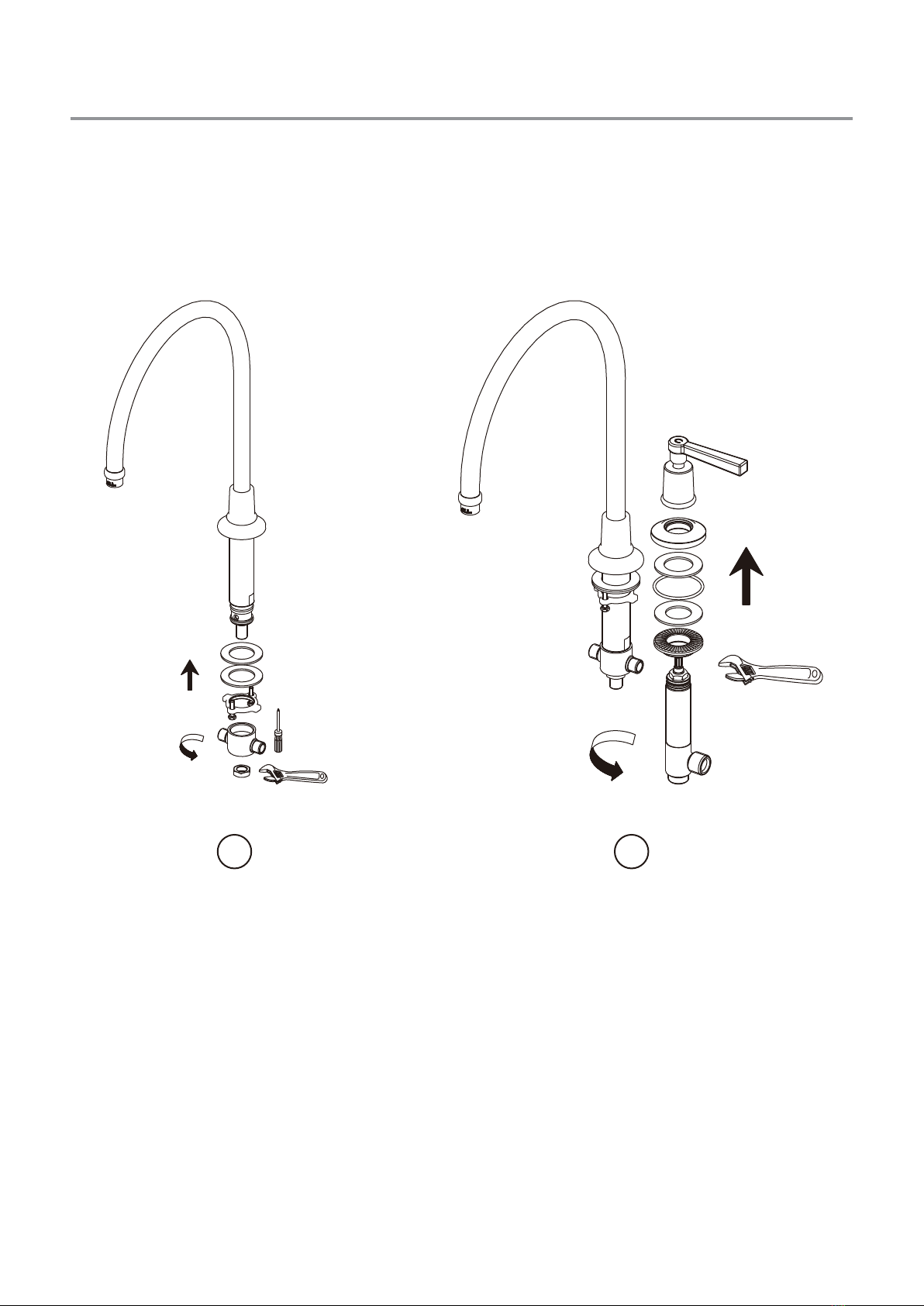

1Position the spout in the second hole of sink.
Insert spout into the mounting hole in deck from above. From underneath the sink, install the
washers and lock nut.
Slide on adapter over bottom of spout shank, and tighten with lock nut.
2Place the handle body through side hole.
Re-assemble the mounting hardware onto valve shank.
Use Phillips screwdriver for final tightening.
34
5
InstallationProcedure Steps 3-4
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.

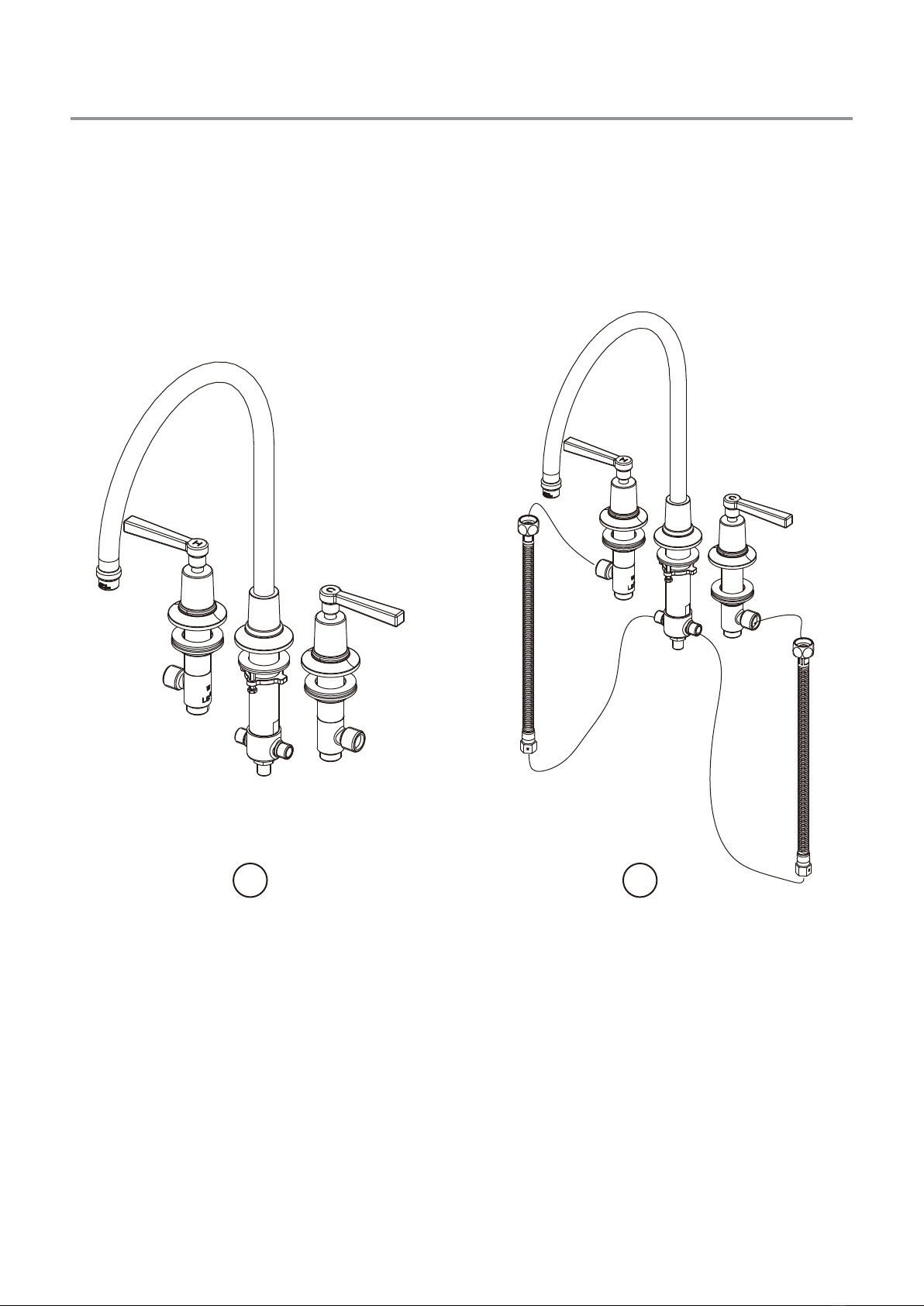

3Install the other handle assembly and body.
4Connect flexible hoses.
Copper nuts are supplied in case you want to connect copper pipes instead.
Warning! When installing flexible hose, please notice:
1. There should be no torsion or deformation
2. Do not fold into a V or L shape.
3. Do not use if there is any crack or deformation.
5 6 7
6
InstallationProcedure Steps 5-7
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.

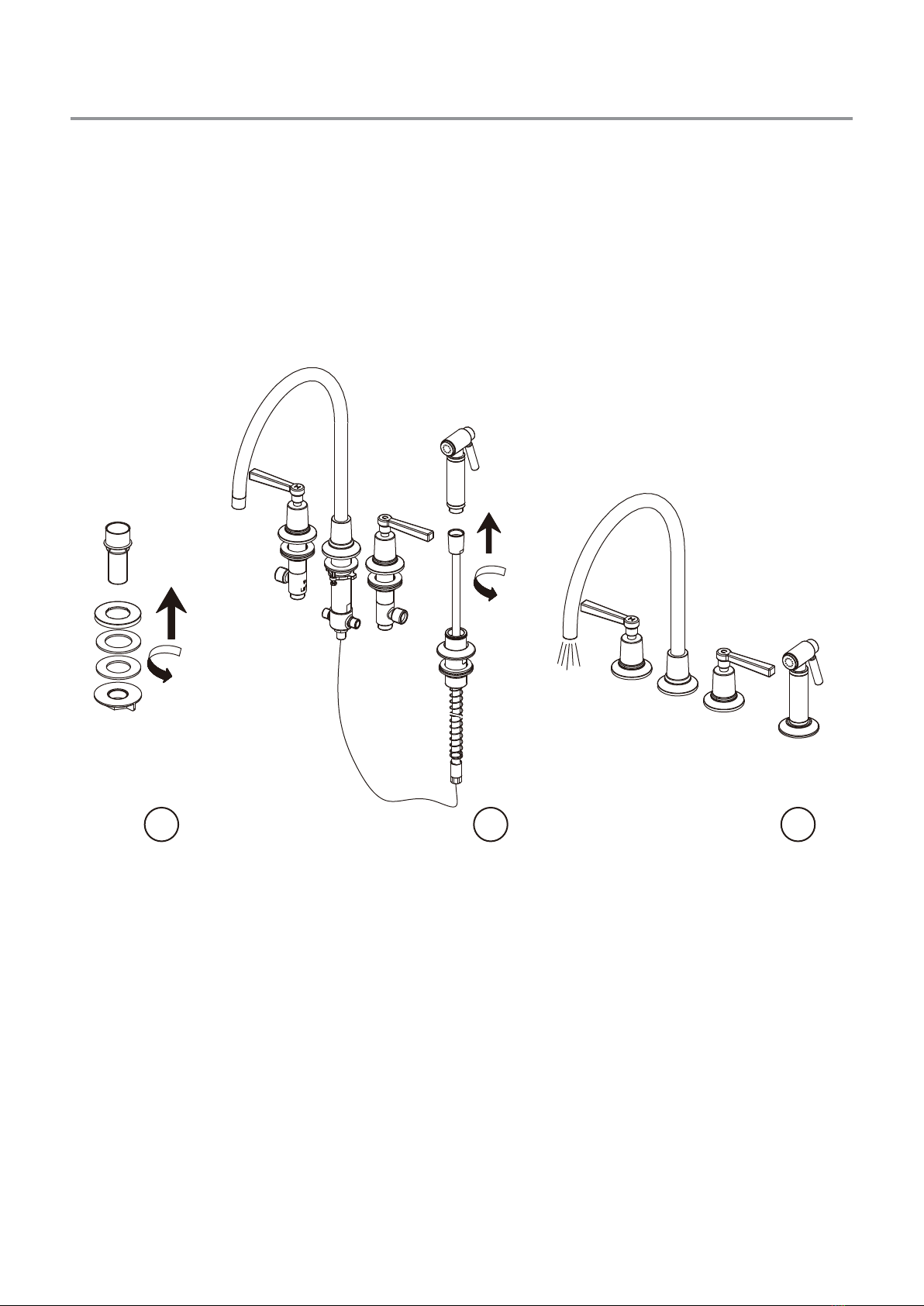

5Install spray holder in sink deck: insert the spray holder from above into the mounting hole.
Tighten with lock nut.
6Insert spray hose through spray holder and install the hose adaptor to the shank.
Screw side spray onto spray hose.
7After installing faucet, remove aerator and open the hot and cold water supplies.
Check for leaks.
Turn on faucet handles for one minute to flush debris from faucet.
Close the handles and re-assemble the aerator.
1
6
4
8
2
9
11
10
12
13
15
14
25
33
31
21
18
23
24
26
28
27
29
30
32
35
19
34
17
20
22
36
37
38
3
39
40
5
7
16
1 Handle ( H ) (029686H-T)
2 Canopy (018295)
3 Stem extension (110409)
4 Clip (012242)
5 Washer (013570)
6 Screw (008486)
7 Adaptor (057507)
8 Cartridge ( H ) (507175W)
9 Escutcheon (071473)
10 Oil-seal (010017)
11 Washer (013158)
12 Nut (009834)
13 Body (061893W)
14 Oil seal (010519N)
29 Connector (014083W)
30 Nut (070053)
31 Spout assembly (139349W)
32 O-ring (004015N)
33 O-ring (004109N)
34 Canopy (000116)
35 Clip (012003)
36 Side spray (533137W)
37 Handle ( C ) (029686C-T)
38 Cartridge ( C ) (507176W)
39 Flexible hose (105750W)
40 Copper nuts (504003)
15 Aerator insert (553661N)
16 Aerator housing (305856-54)
17 Escutcheon (303467)
18 O-ring (004617)
19 Diverter (501013N)
20 Diverter seat (213009W)
21 O-ring (004074N)
22 Washer (013018)
23 Screw (008045)
24 Nut (009012)
25 O-ring (004026N)
26 Connecting tube (035231N)
27 Body (066121W)
28 O-ring (063091N)
7
PartsList Exploded view
8
FaultFinder
Fault Cause Rectification
Leaks around handle. Cartridge has come loose or
damaged.
Tighten/reinstall the cartridge or
replacement the cartridge if it is
damaged.
Leaks around the base of spout. Gasket is misfitted or damaged. Check for gasket placement.
Aerator leaks or has an inconsistent
water flow pattern.
Aerator is dirty or misfitted. Unscrew the aerator to check rubber
packing or replace the aerator.
Too low flow of the side spray. Spray heads clogged. Remove and clean spray heads.
May need to replace if clogged.
9
SafetyTips,CareandMaintenance
Safety Tips
If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to
applying flame, otherwise you will void the warranty.
Cover drain openings to avoid losing small parts.
When cutting or soldering pipe, use safety glasses to protect your eyes.
Important Points
Prior to beginning installation. turn off the cold and hot water lines and open the old faucet to release
built-up pressure.
Overtightening nuts may cause damage.
Wrap all threaded connections with pipe tape available at your local plumbing supply store.
Always wrap in a clockwise direction. The fittings should be installed by a state-licenced plumber.
Please note:
When there is a difference in water pressure between hot and cold supplies to the mixing valve, the
pressures should be equalized by a plumber in accordance with best practice and legislation.
Maintenance
Your new bathroom faucet is designed for years of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid abrasive cleaners, wire wool and harsh chemicals as
these will dull the finish and void your warranty.
Routine Maintenance
The frequency and extent of attention required will vary according to prevailing site and operational
conditions, however a 12 monthly maintenance schedule is recommended.
If the product has operated satisfactorily for some time, but performance has been degraded, please
check the Fault Finder section to identify the problem.
Maintenance Check List
s 7ORNORDAMAGEDSEALSANDWASHERS
s $AMAGEDSEALFACES
s 4HREADWEAR
s )NCORRECTADJUSTMENT
s #OMPONENTFAILURE
s $EBRISORLIMESCALEBUILDUP
10
Guarantee
Guarantee of Quality
This product is guaranteed against faulty materials and workmanship for 12 months from date
of purchase. For the guarantee to be valid, the unit must be installed by a competent person, in
accordance with the instruction booklet.
Any part found to be defective during the guarantee period, will (at our option) be repaired or
replaced, free of charge, provided the unit has been installed, and properly used in
accordance with the instruction booklet.
Our products correspond to the valid technical and water supply standards as well as the relevant
approvals requirements. We guarantee them to be free of design and production faults at the time
of delivery and that with correct use and care in accordance with our printed instructions they will
function reliably.
Guarantee period
sThe guarantee is valid in private homes for 5 years from the purchase date. Proof of purchase
has to be provided when making a guarantee claim.
sBy use in commercial or institutional applications the guarantee is valid for 1 year after first use.
To make a guarantee claim, proof of purchase or, the beginning of use is required.
Not Covered by this Guarantee
Damage or defects arising from incorrect installation, improper use or lack of maintenance.
Installed product damaged in transit Consequential loss, damage or product removal and installation
costs.
Lefroy Brooks is not responsible for any on site labour charges.
