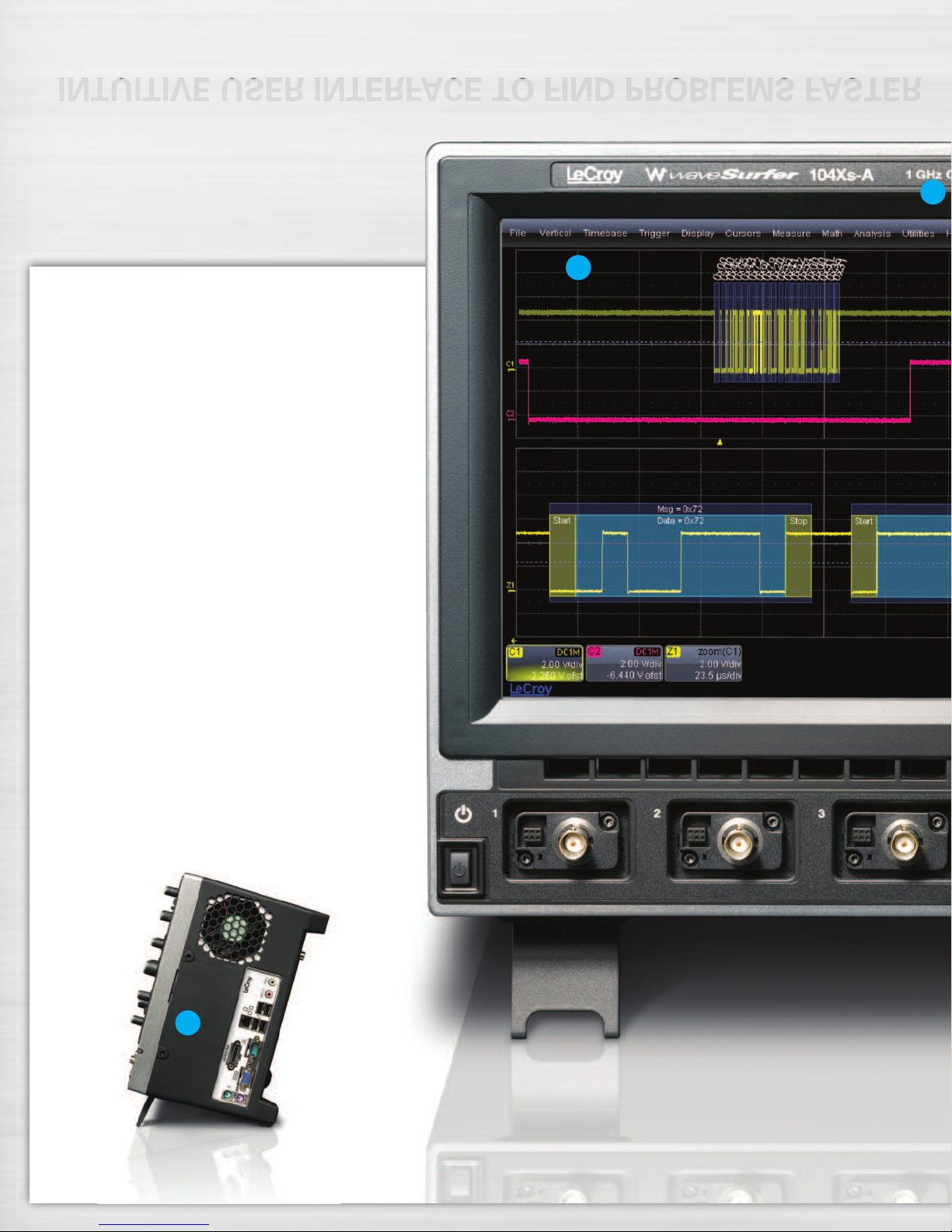

WAVESURFER Xs-A SPECIFICATIONS
WaveSurfer WaveSurfer WaveSurfer WaveSurfer WaveSurfer WaveSurfer
24Xs-A 44Xs-A 42Xs-A 64Xs-A 62Xs-A 104Xs-A
Bandwidth (@ 50 Ω) 200 MHz 400 MHz 600 MHz 1 Hz
Rise Time 1.75 ns 875 ps 500 ps 300 ps
Input Channels 442424
Display 10.4" Color flat-panel TFT-LCD, 800 x 600 SV A, touch screen
Sample Rate (single-shot) 2.5 S/s 2.5 S/s
(5 S/s Interleaved)
Sample Rate (RIS mode) 50 S/s
Standard Record Length 5 Mpts/Ch (all channels)
Standard Capture Time Up to 2 ms at full sample rate on all four channels
Vertical Resolution 8-bits
Vertical Sensitivity (V/div) 2 mV/div–10 V/div (1 MΩ); 2 mV/div–1 V/div (50 Ω)
Vertical (DC ain) Accuracy ±1.0% of full scale (typical); ±1.5% of full scale ≥10 mV/div (warranted)
BW Limit 20 MHz 20 MHz, 200 MHz
Maximum Input Voltage 50 Ω: 5 Vrms, 1 MΩ: 400 V max. 50 Ω: 5 Vrms
(DC + Peak AC ≤5 kHz) 1 MΩ: 250 V max.
(DC + Peak AC
≤10 kHz)
Input Coupling AC, DC, ND (DC and ND for 50 Ω)
Input Impedance 1 MΩ|| 16 pF, or 50 Ω1 MΩ|| 20 pF,
or 50 Ω
Probing System BNC or ProBus
Probes One PP009 (5 mm) per channel (standard) One PP011 (5 mm)
per channel
(standard)
Timebase Range 200 ps/div–1000 s/div (roll mode from 500 ms/div–1000 s/div)
Timebase Accuracy ≤5 ppm @ 25 °C (typical) (≤10 ppm @ 5–40 °C)
Trigger Modes Normal, Auto, Single, and Stop
Trigger Sources Any input channel, External, Ext/10, or line; slope and level unique to each source (except for line trigger)
Trigger Coupling DC, AC, HFRej, LFRej
Pre-trigger Delay 0–100% of full scale
Post-trigger Delay 0–10,000 divisions
Trigger Hold-off 1 ns to 20 s or 1 to 1,000,000,000 events
Internal Trigger Level Range ±4.1 div from center
External Trigger Range EXT/10 ±4V; EXT ±400 mV
Triggering
Standard Edge, litch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV – 720p, 1080i, 1080p)
Measure, Zoom, and Math Tools
Standard Parameter Up to 6 of the following parameters can be calculated at one time on any waveform: Amplitude, Area, Base
Measurements (Low), Delay, Duty, Fall Time (90%-10%), Fall Time (80%-20%), Frequency, Maximum, Mean, Minimum,
Overshoot+, Overshoot-, Period, Peak-Peak, Phase, Rise Time (10%-90%), Rise Time (20%-80%), RMS, Skew,
Standard Deviation, Top (High), Width+, Width-. Measurements can be gated.
Zooming Use front panel QuickZoom button, or use touch screen or mouse to draw a box around the zoom area.
Standard Math Operators include Sum, Difference, Product, Ratio, and FFT (up to 25 kpts with power spectrum
output and rectangular, VonHann, and FlatTop windows). 1 math function may be defined at a time.
Physical
Dimensions (HWD) 260 mm x 340 mm x 152 mm Excluding accessories and projections (10.25" x 13.4" x 6")
Net Weight 7.26 kg. (16.0 lbs.)

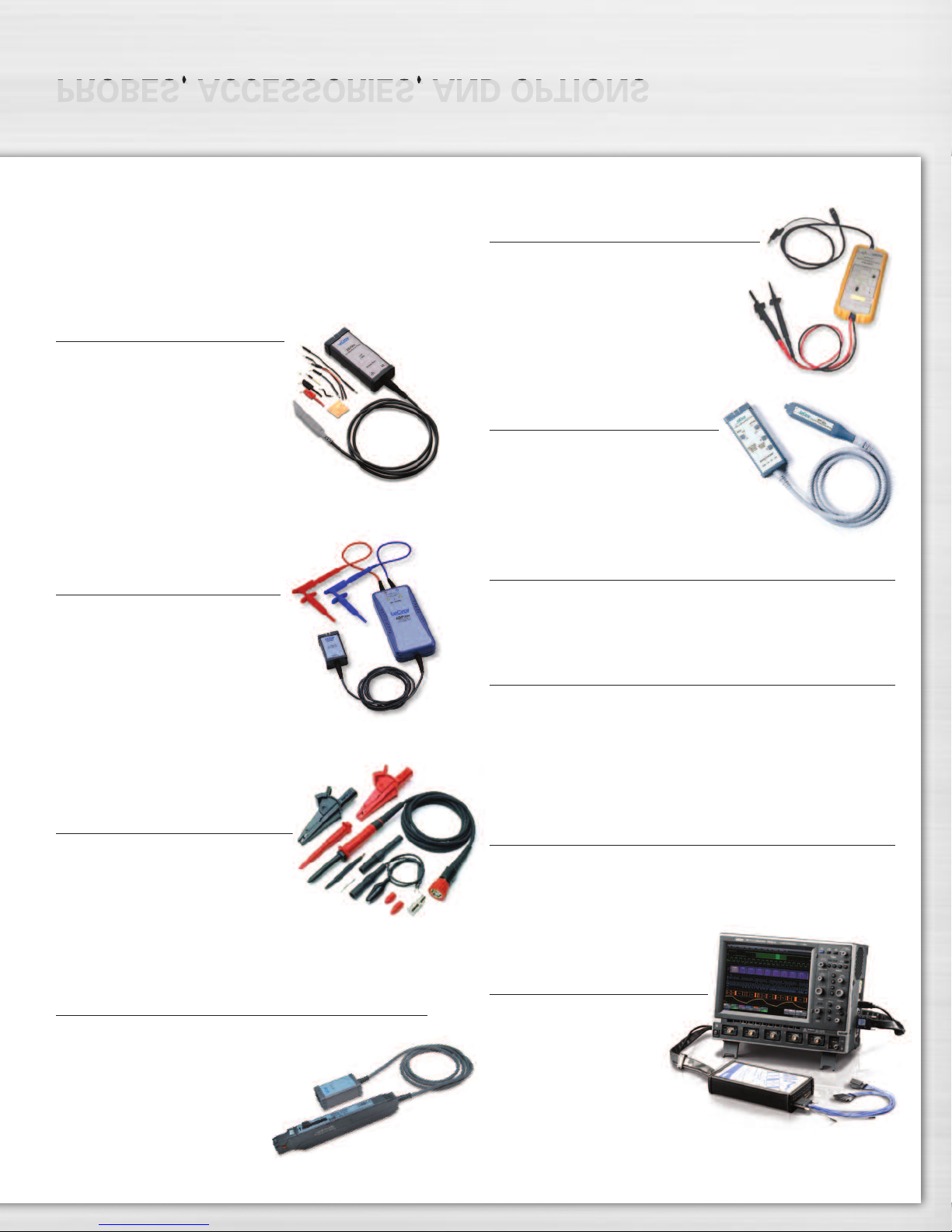

Options
Advanced (WS Xs-ADVTRI ) Runt, Slew Rate, Interval (Signal or Pattern), Dropout, Qualified (State or Edge)
Extended Math Adds the following additional math functions: Absolute Value, Averaging (summed and continuous), Derivative,
(WSXs-MATHSURF Option) Envelope, Enhanced Resolution (to 11-bits), Floor, Integral, Invert, Reciprocal, Rescale (change scale and units),
Roof, Square, and Square Root. Also adds chaining of two math functions and 1 Mpts FFTs.
