LeCroy WaveAce PP013 Manual de usuario

WaveAce Oscilloscope

Passive Probes

Models:

PP013

PP014

PP015

PP016

Instruction Manual

Revision A – November, 2008

Warranty

LeCroy warrants this oscilloscope accessory for normal use and operation within

specification for a period of one year from the date of shipment. Spare parts,

replacement parts and repairs are warranted for 90 days.

In exercising its warranty, LeCroy, at its option, will either repair or replace any

assembly returned within the warranty period to the Customer Service Department of an

authorized service center. However, this will be done only if the product is determined

by LeCroy’s examination to be defective because of workmanship or materials, and the

defect is not caused by misuse, neglect, accident, abnormal conditions of operation; or,

damaged by attempted repair or modifications by a non-authorized service facility.

The customer will be responsible for the transportation and insurance charges for the

return of products to the service facility. LeCroy will return all products under warranty

with transportation charges prepaid.

This warranty replaces all other warranties, expressed or implied, including, but not

limited to, any implied warranty of merchantability, fitness, or adequacy for any

particular purposes or use. LeCroy shall not be liable for any special, incidental, or

consequential damages, whether in contract or otherwise.

Corporate Headquarters

700 Chestnut Ridge Road

Chestnut Ridge, NY 10977-6499

Tel: (845) 425-2000 Fax: (845) 425-8967

Internet: www.lecroy.com

LeCroy, ActiveDSO, JitterTrack, WaveLink, WavePro, WaveMaster, WaveSurfer, and

Waverunner are registered trademarks of LeCroy Corporation. Other product or brand

names are trademarks or requested trademarks of their respective holders. Information

in this publication supersedes all earlier versions. Specifications subject to change

without notice.

Manufactured under an

ISO 9000 Registered

Quality Management

System

Visit www.lecroy.com to

view the certificate.

This electronic product is

subject to disposal and recycling

regulations that vary by country

and region. Many countries

prohibit the disposal of waste

electronic equipment in standard

waste receptacles.

For more information about

proper disposal and recycling of

your LeCroy product, please

visit www.lecroy.com/recycle.

WA-PP-OM-E Rev A

916677-00 Rev A

Instructions

Introduction

The probes (PP013, PP014, PP015, PP016) described in this manual

are passive probes to be used with LeCroy WaveAce oscilloscopes

Safety Information

This symbol appears on the product:

It refers you to additional information contained in this manual. The

corresponding information in the manual is similarly denoted.

To avoid personal injury and to prevent fire or damage to the probe or

any products connected to it, review and comply with the following

safety precautions.

WARNING -- ELECTRIC SHOCK HAZARD

Do not remove the probe case. Removal of the probe case may

expose you to electric shock.

Do not disassemble the probe. Disassembling the probe may

expose you to electric shock.

Do not disconnect the probe from the scope during

measurement. Disconnecting the probe during measurement

may expose you to electric.

Connect the probes grounding terminal to the ground potential of

the device under test. Failure to connect to ground potential may

expose you to electric shock.

Connect to properly grounded instruments. This probe is to be

used only with test instruments having input connectors with the BNC

shield (ring) connected to earth ground.

Connect the probe properly: Connect the probe to the measurement

instrument before connecting the probe to test circuit. Do not

disconnect the probe from the test instrument while the input is

connected to the test circuit.

Do not connect the probe ground terminal to any point in the test

circuit that is at a potential other than earth ground.

Do not apply to the input any potential that exceeds the

maximum ratings of the probe. Refer to specifications.

Do not use in wet or explosive atmospheres.

For indoor use only. This probe is intended for indoor use and

should be operated in a clean, dry environment.

Do not use the probe if any part is damaged. All maintenance

should be referred to qualified service personnel.

WA-PP-OM-ERevA 3

WaveAce Passive Probes

Avoid physical injury. The probe tip is extremely sharp. Use

care when handling to prevent injury, including accidental skin

puncture.

Use of the probe and/or the test instrument it is connected to in a

manner not specified by the manufacturer may impair the protection

mechanisms.

Accessories

The following table lists the standard accessory kit which is included

with all WaveAce Passive Probes (PP013, PP014, PP015, PP016).

Part Quantity

Standard Ground Lead 1

Sprung Hook 1

Color Coding Rings (set) 2

Adjustment Tool 1

Ground Attachment 1

Replacement Probe Tip 2

BNC Adaptor 1

IC Test Tip 2

The part number for the Standard Accessory Replacement Kit is

PKIT3-5MM-101

Specifications

PP013 PP014 PP015 PP016

Attenuation 1:1 10:1 1:1 10:1 1:1 10:1 10:1

Bandwidth (MHz) 15 60 15 100 10 200 300

Input R (MΩ) 1 10 1 10 1 10 10

Input C (pF) 46 15 46 15 46 12 12

Compensation Range (pF) NA 10-50 NA 10-50 NA 10-35 10-35

Maximum Input Voltage 600 V (DC + AC

eak)

Cable Length 1.2 m

Connector Type BNC

Temperature (Operating) 5 to 40 °C

Temperature (Non-Operating) -20 to 60 °C

Humidity (Operating) 80% RH (5 to 31 °C)

Altitude (Operating) Up to 2000 m (6562 ft)

4 WA-PP-OM-E Rev A

Instructions

Note: The maximum input voltage derates when frequency

response is approximately 30 kHz or higher. See voltage derating

curve on the next page.

EC Declaration of Conformity

The PP010 probe meets intent of the European Council Directive

73/23/EEC for product safety per the following standard:

EN 61010-031:2002 Safety requirements for hand-held

probe assemblies for electrical test and

measurement

Installation (Overvoltage) Category I

(All mains isolated terminals)

Pollution Degree 2

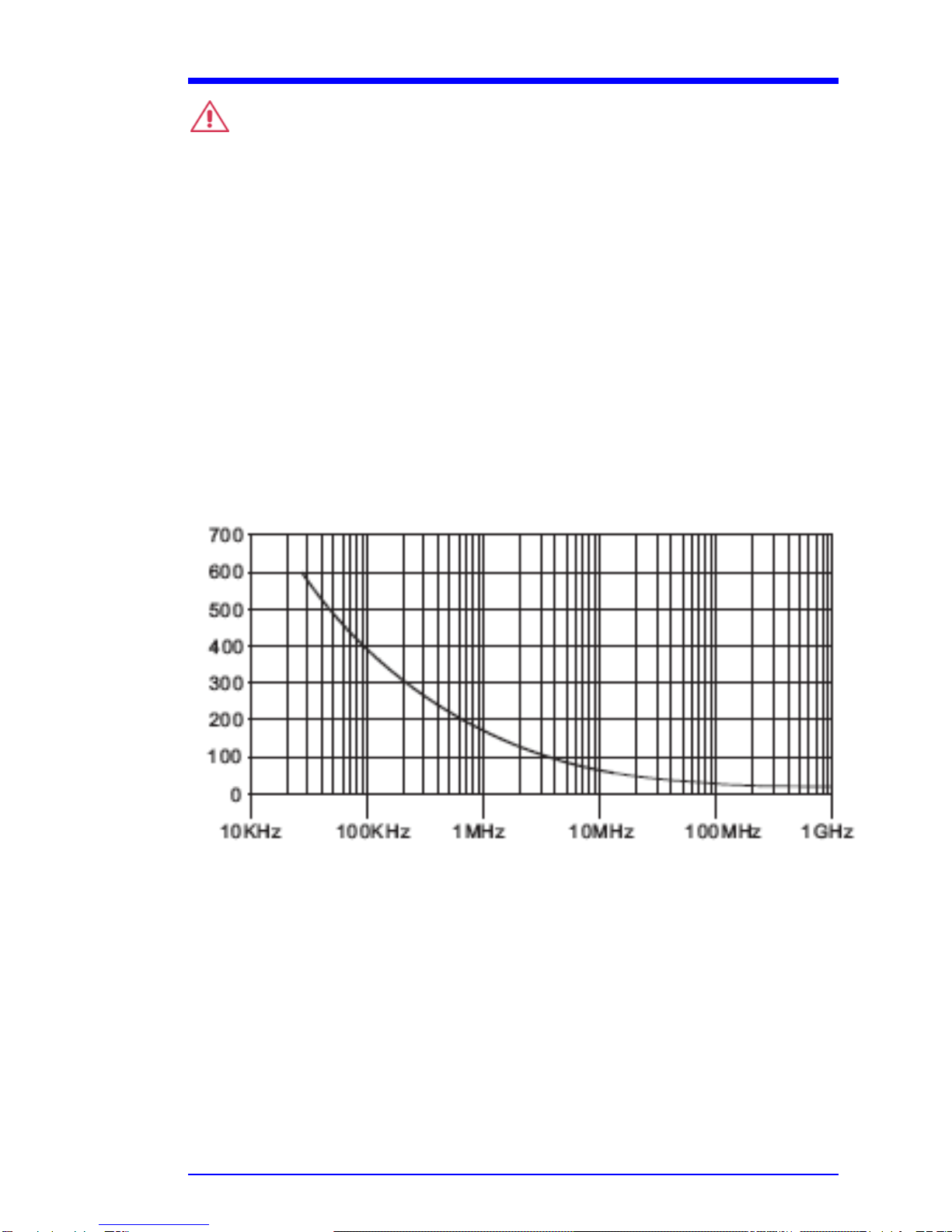

Voltage Derating

Probe Compensation

Proper compensation of the probe is required to assure good

amplitude accuracy in the dynamic portions of the waveform being

measured. LF compensation matches the probe to differences in

oscilloscope input capacitance. The LF compensation should always

be checked and adjusted as needed when first connecting a passive

probe to the oscilloscope input.

WA-PP-OM-ERevA 5

WaveAce Passive Probes

LF compensation is performed by connecting the input of the probe to

a low frequency square wave, such as the oscilloscope calibrator

signal set to 1 kHz. The compensation is adjusted by rotating the

trimmer pot accessible through the small hole in the center of the

housing near the BNC connector. Use the tool supplied with the probe

for this adjustment. For 10:1/1:1 probes the adjustment should be

done with the probe in 10:1 mode.

6 WA-PP-OM-E Rev A
