Laserworld Evolution Series Manual de usuario

Manual / Bedienungsanleitung/

Mode d‘emploi

Evolution Series

ES-100G

Please spend a few minutes to read this manual fully

before operating this laser!

Bitte lesen Sie diese Bedienungsanleitung sorgfältig

vor Inbetriebnahme dieses Showlasersystems!

Avant d’utiliser cet appareil pour la première fois nous vous recommandons

de lire cette notice d’utilisation!

02/2016

English

Deutsch

Français

Manual: Evolution Series ES-100G

page 2 / 24

Rechtlicher Hinweis:

Die Firma Laserworld (Switzerland) AG behält sich das Recht vor, Änderungen an

ihren Produkten vorzunehmen, die der technischen Weiterentwicklung dienen. Die-

se Änderungen werden nicht notwendigerweise in jedem Einzelfall dokumentiert.

Diese Betriebsanleitung und die darin enthaltenen Informationen wurden mit der

gebotenen Sorgfalt zusammengestellt. Die Firma Laserworld (Switzerland) AG über-

nimmt jedoch keine Gewähr für Druckfehler, andere Fehler oder daraus entstehende

Schäden. Die in dieser Bedienungsanleitung genannten Marken und Produktnamen

sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Titelhalter.

Legal notice:

Thank you for purchasing this Laserworld

product. Due to continual product developments and technical improvements, La-

serworld (Switzerland) AG reserves the right to make modications to its products.

This manual and its content have been made with due care but Laserworld (Swit-

zerland) AG cannot however, take any responsibility for any errors, omissions or any

resulting damages forthwith. The brands and product names mentioned in this ma-

nual are trade marks or registered trade marks of their respective owners.

Information juridique :

L’entreprise Laserworld (Switzerland) AG se réserve le droit d’eectuer des modica-

tions concernant leurs produits et ainsi de répondre au développement technique.

Ces modications ne seront pas nécessairement annoncées en tout cas spécique.

Ce mode d’emploi et les informations contenues dedans ont été établis avec le soin

minutieux qui s’impose dans ce cas.

Laserworld (Switzerland) AG ne pourra pas être tenue responsable pour d’éventuelles

erreurs d’impression ou dommages en résultants.

En cas de doutes, veuillez toujours contacter Laserworld (Switzerland) AG . Les noms

de marques et de produits utilisés dans ce mode d’emploi sont des marques de fab-

rique ou des marques déposées.

L’utilisation est réservée à un usage professionnel selon décret n°2007-665 du

2 mai 2007 relatif à la sécurité des appareils à laser sortant!

Article 4 bis :

« Les usages spéciques autorisés pour les appareils à laser sortant d’une classe su-

périeure à 2 sont les usages professionnels suivants :

(…)

9° Spectacle et achage :

Toutes les applications de trajectoire, de visualisation, de projection ou de reproduc-

tion d’images en deux ou trois dimensions. »

Manual: Evolution Series ES-100G

page 3 / 24

Content:

1. Product and package contents

2. Preliminary warning notices

3. Initial operations, safety instructions

4. Working on the device

5. Service notes

6. Warnings and other notices on the device

7. Device connections

8. Operation

Final statement

Technical data sheet

Laser specications

Manual: Evolution Series ES-100G

page 4 / 24

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 1 x manual 1x Interlock connector

1 x power cable 2 x key

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see in-

formation on device & in this manual.

2. Make sure that the device is not connec-

ted to mains during installation.

3. Installation has to be done by technical

experienced and qualied persons ac-

cording to safety regulations of the res-

pective country.

4. Always ensure that maximum permissib-

le exposure (MPE) is not exceeded in are-

as accessible to the public or members of

sta.

5. In some countries an additional ins-

pection by technical control institutes

could be necessary.

6. Connect an easily accessible inter-

lock connector or circuit breaker

to the projector.

7. The power supply should be easily acces-

sible.

8. When installing the laser, mount it with

a minimum distance of 15 cm from walls

and objects.

9. For safe setup e.g. on walls or ceilings

please use a safety cord. The safety cord

should be able to withstand tenfold the

weight of the device. Please follow the

accident prevention regulations of pro-

fessional associations and/or comparable

regulations for accident prevention.

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.

2. Do not use the device if there are any visible damages on housing, connector panels,

power supplies or power cords.

3. Never look directly into the light source of a laser projector. Danger of damage to the

eyes or even blindness in extreme circumstances!

4. Do not operate the device at high humidity, in the rain or in dusty environments.

5. Protect device against dripping or splashing water. Do not place any liquid lled

containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered

with in any way.

Manual: Evolution Series ES-100G

page 5 / 24

10. If the device has been exposed to great

temperature changes, do not switch it

on immediately. Condensation (or any

moisture/water formed) may damage

device.

11. Never use dimmer, RC or other electroni-

cally switched sockets. Whenever possib-

le, do not use the laser projector together

with large appliances (especially fog ma-

chines) on the same mains!

12. Ensure sucient ventilation and do not

place the device on any warm or heat ra-

diating surface. Especially the ventilati-

on openings must not be covered!

13. Ensure that device does not get over-

heated. Make sure that the device is not

exposed to spotlights (especially moving

heads). Heat of spotlights could overheat

laser in a little while and leads to a degra-

dation of performance.

14. This unit is intended for indoor use only.

4. Working on the device

1. This product has no user serviceable parts inside and should

only be maintained and serviced by a qualied engineer.

2. Be sure that the mains plug is not connected to the power

supply while installing or opening the device (e.g. for

cleaning).

3. Take o all reecting things like rings, watches etc. befo-

re starting to work with or at the projector.

4. Only use non-reecting tools to work on device.

5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wave-

length of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of

the laser system dramatically and expires

any warranty claim.

• Quick on/o switching of this device will

reduce durability of the laser diode dra-

matically.

• Avoid sharp knocks and shocks to this

device and ensure sucient protection

during transportation. Look after your La-

serworld product.

• To increase durability of your laser,

protect device against overheating:

-Always ensure sucient ventilation.

-Do not face spotlights (especially mo-

ving heads) to the device.

-Check temperature after approx. 30

minutes with each new installation.

If necessary install the projector at a

place with dierent temperature.

-Keep the device dry. Protect it from

moisture, rain and damp.

-Switch o device when it is not nee-

ded. Diodes are switched on and can

wear out even if there is no visible la-

ser output.

• Please ensure the fans and heatsinks are

clear from dust and debris otherwise the

Manual: Evolution Series ES-100G

page 6 / 24

risk of overheating may occur. If the unit

and airways appear to be blocked then

please contact a qualied service engi-

neer to maintain and service the product.

• The devices of Ecoline, Evolution, Club

and Proline Series are not meant for pro-

fessional applications. After approx. one

hour of operation, the device should cool

down for about 15 minutes.

• Removal of the warranty label as well

as damages to the device caused by

improper handling, neglect of the sa-

fety instructions and service notes will

void the warranty.

6. Warnings and other notices on the device

Laser radiation!

Avoid exposure to

beam

Caution of

radiation if cover

is removed

Power supply &

consumption

Model type

Wavelength

Output power

Production year

Use in enclosed spaces only!

Laser class 3b

Warnings and other notices on the device

Manual: Evolution Series ES-100G

page 7 / 24

8. Operation

1. Connect the power cable to the device and then to the mains

2. Insert key and turn it‚ON‘

3. Press„ON“ to switch on your device

4. Please make sure, that the Interlock adapter is inserted

5. Your device runs in auto mode:

6. Your device runs in music mode:

Control the music-sensitivity by the trim pot at the front side of the device. The LED is

ashing when the device is triggered.

7. Device connections

connection for

power supply

DMX addresspower switch

DMX outDMX in

LED signal

fan

key switch

Interlock interface

Manual: Evolution Series ES-100G

page 8 / 24

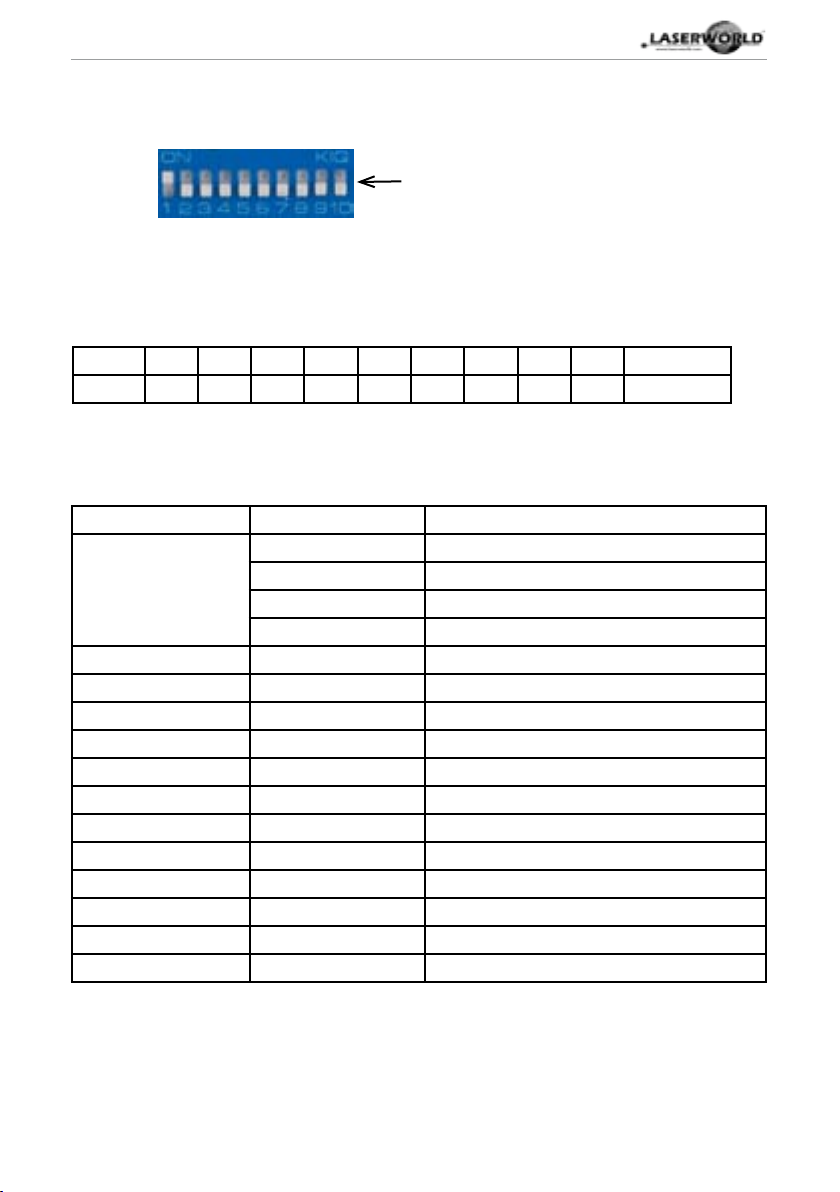

7. Your device runs in DMX mode if ‘10‘ is switched o:

Connect a DMX controller to operate the laser.

Use the switches 1 - 9 to set the DMX address of the laser. Each switch represents a num-

ber. To dene a number use the preceding number and multiply it by 2:

The laser uses 13 DMX channels, so make sure that the next device uses an address that

doesn’t overlap with this range.

Channel Value Function

1 0 - 69 Laser o

70-139 Sound mode

140 - 191 Automatic mode

192 - 255 DMX mode

2 0 - 255 Patterns / Animations

3 0 - 255 Strobo

4 0 - 255 Point speed, Line speed

5 0 - 255 X-position

6 0 - 255 Y-position

7 0 - 255 Size

8 0 - 255 no function

9 0 - 255 no function

10 0 - 255 X-Rotation

11 0 - 255 Y-Rotation

12 0 - 255 Z-Rotation

13 0 - 255 image buildup

Please note that not each pattern can be combined with each eect.

8. To turn o the device switch it o („OFF“), switch the key to„OFF“ and disconnect the

power cable from the mains.

Switch 12345678910

Number 1 2 4 8 16 32 64 128 256 Mode Switch

Manual: Evolution Series ES-100G

page 9 / 24

Final statement

Laserworld products are tested and product packaging is inspected before leaving

our warehouse. Users must to follow the local safety regulations and warnings within

this manual and adhere to any regulations within its place of use. Damages through

inappropriate use will void any liability or warranty of our products. Due to continual

product developments, please check for the latest update of this product

manual at www.laserworld.com. If you do have any further questions, then please

contact your dealer/place of purchase or use our contact section on our website.

For service issues, please contact your dealer/place of purchase and ensure only ge-

nuine Laserworld spare parts are used in any service repairs.

Errors and omissions excepted and products are subject to change.

Laserworld (Switzerland) AG

Kreuzlingerstrasse 5

8574 Lengwil

SWITZERLAND

Registered oce:

8574 Lengwil / Switzerland

Company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

CEO: Martin Werner

VAT no. (Switzerland): 683 180

UID (Switzerland): CHE-113.954.889

VAT no. (Germany): DE258030001

WEEE-Reg.-No. (Germany): DE 90759352

www.laserworld.com

[email protected]

representative according to EMVG:

Ray Technologies GmbH

Managing Director: Karl-Heinz Käs

Mühlbachweg 2

83626 Valley / Germany

Manual: Evolution Series ES-100G

page 10 / 24

Inhaltverzeichnis:

1. Lieferumfang & Hinweise

2. Einleitende Warnhinweise

3. Schritte zur Inbetriebnahme, Sicherheitshinweise

4. Sicherheitshinweise für Arbeiten am Gerät

5. Pege- und Wartungshinweise

6. Warnhinweise und Spezikationen am Gerät

7. Geräteanschlüsse & Bedienelemente

8. Bedienung

Abschließende Erklärung

Technische Daten

Laserleistungsdaten

Otros manuales para Evolution Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Instrumento de medición de Laserworld

Laserworld

Laserworld BLUE-200-473 Manual de usuario

Laserworld

Laserworld GREEN-8000 532 Manual de usuario

Laserworld

Laserworld Pure Micro Series Manual de usuario

Laserworld

Laserworld GREEN-150E Manual de usuario

Laserworld

Laserworld ES-400 G Manual de usuario

Laserworld

Laserworld BLUE-300-473 Manual de usuario

Laserworld

Laserworld BLUE-500-473 Manual de usuario

Laserworld

Laserworld GREEN-200E Manual de usuario

Laserworld

Laserworld Ecoline Series Manual de usuario

Laserworld

Laserworld Club Series Manual de usuario

Laserworld

Laserworld GREEN-3500 Manual de usuario

Laserworld

Laserworld RED-200-640 Manual de usuario

Laserworld

Laserworld RGB-1.2 Manual de usuario

Laserworld

Laserworld GREEN-4000 532 Manual de usuario

Laserworld

Laserworld Purelight Series Manual de usuario

Laserworld

Laserworld CS-1000RGB Manual de usuario

Laserworld

Laserworld REEN-150E Manual de usuario

Laserworld

Laserworld GREEN-50E Manual de usuario

Laserworld

Laserworld Pro-700RGB Manual de usuario

Laserworld

Laserworld GREEN-6000 Manual de usuario

Laserworld

Laserworld Ecoline Series Manual de usuario

Laserworld

Laserworld GREEN-800 Manual de usuario

Laserworld

Laserworld GREEN-2000 Manual de usuario

Laserworld

Laserworld GREEN-12000 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
