Laserworld Evolution Series Manual de usuario
Manual / Bedienungsanleitung /
Mode d´emploi
Evolution Series
ES-600B
Please spend a few minutes to read this manual fully
before operating this laser!
Bitte lesen Sie diese Bedienungsanleitung sorgfältig
vor Inbetriebnahme dieses Showlasersystems!
Avant d’utiliser cet appareil pour la première fois nous vous recommandons
de lire cette notice d’utilisation!
04/2016
English
Deutsch
Français
Manual: Evolution Series ES-600B
page 2 / 27
Rechtlicher Hinweis:
Die Firma Laserworld AG behält sich das Recht vor, Änderungen an ihren Produkten vorzu-
nehmen, die der technischen Weiterentwicklung dienen. Diese Änderungen werden nicht
notwendigerweise in jedem Einzelfall dokumentiert.
Diese Betriebsanleitung und die darin enthaltenen Informationen wurden mit der gebote-
nen Sorgfalt zusammengestellt. Die Firma Laserworld AG übernimmt jedoch keine Gewähr für
Druckfehler, andere Fehler oder daraus entstehende Schäden.
Die in dieser Bedienungsanleitung genannten Marken und Produktnamen sind Warenzeichen
oder eingetragene Warenzeichen der jeweiligen Titelhalter.
Legal notice:
Thank you for purchasing this Laserworld product. Due to continual product developments
and technical improvements, Laserworld (Switzerland) AG reserves the right to make modi-
cations to its products.
This manual and its content have been made with due care but Laserworld (Switzerland) AG
cannot however, take any responsibility for any errors, omissions or any resulting damages
forthwith.
The brands and product names mentioned in this manual are trade marks or registered trade
marks of their respective owners.
Information juridique :
L’entreprise Laserworld (Switzerland) AG se réserve le droit d’eectuer des modications con-
cernant leurs produits et ainsi de répondre au développement technique. Ces modications
ne seront pas nécessairement annoncées en tout cas spécique. Ce mode d’emploi et les in-
formations contenues dedans ont été établis avec le soin minutieux qui s’impose dans ce cas.
Laserworld (Switzerland) AG ne pourra pas être tenue responsable pour d’éventuelles erreurs
d’impression ou dommages en résultants.
En cas de doutes, veuillez toujours contacter Laserworld (Switzerland) AG . Les noms de
marques et de produits utilisés dans ce mode d’emploi sont des marques de fabrique ou des
marques déposées.
L’utilisation est réservée à un usage professionnel selon décret n°2007-665 du 2 mai
2007 relatif à la sécurité des appareils à laser sortant!
Article 4 bis :
« Les usages spéciques autorisés pour les appareils à laser sortant d’une classe supérieure à 2
sont les usages professionnels suivants :
(…)
9° Spectacle et achage :
Toutes les applications de trajectoire, de visualisation, de projection ou de reproduction
d’images en deux ou trois dimensions. »
Manual: Evolution Series ES-600B
page 3 / 27
Content:
1. Product and package contents
2. Preliminary warning notices
3. Initial operations, safety instructions
4. Working on the device
5. Service notes
6. Warnings and other notices on the device
7. Device connections
8. Operation
Final statement
Technical data sheet
Laser specications
Manual: Evolution Series ES-600B
page 4 / 27
1. Product and package contents
Please check if all listed parts are included and undamaged. Included in delivery:
1 x laser projector 1 x Interlock adapter
1 x power cable 2 x key
1 x manual
3. Initial operations, safety instructions
1. Make sure to use correct voltage; see in-
formation on device & in this manual.
2. Make sure that the device is not connec-
ted to mains during installation.
3. Installation has to be done by technical
experienced and qualied persons ac-
cording to safety regulations of the res-
pective country.
4. Always ensure that maximum permissib-
le exposure (MPE) is not exceeded in are-
as accessible to the public or members of
sta.
5. In some countries an additional ins-
pection by technical control institutes
could be necessary.
6. Connect an easily accessible inter-
lock connector or circuit breaker
to the projector.
7. The power supply should be easily acces-
sible.
8. When installing the laser mount it with
a minimum distance of 15 cm from walls
and objects.
9. For safe setup e.g. on walls or ceilings
please use a safety cord. The safety cord
should be able to withstand tenfold the
weight of the device. Please follow the
accident prevention regulations of pro-
fessional associations and/or comparable
regulations for accident prevention.
2. Preliminary warning notices
1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, connector panels,
power supplies or power cords.
3. Never look directly into the light source of a laser projector. Danger of damage to the
eyes or even blindness in extreme circumstances!
4. Do not operate the device at high humidity, in the rain or in dusty environments.
5. Protect device against dripping or splashing water. Do not place any liquid lled
containers near to this device.
Any warranty claims are void if the warranty label is removed or tampered
with in any way.
Manual: Evolution Series ES-600B
page 5 / 27
10. If the device has been exposed to great
temperature changes, do not switch it
on immediately. Condensation (or any
moisture/water formed) may damage
device.
11. Never use dimmer, RC or other electroni-
cally switched sockets. Whenever possib-
le, do not use the laser projector together
with large appliances (especially fog ma-
chines) on the same mains!
12. Ensure sucient ventilation and do not
place the device on any warm or heat ra-
diating surface. Especially the ventilati-
on openings must not be covered!
13. Ensure that device does not get over-
heated. Make sure that the device is not
exposed to spotlights (especially moving
heads). Heat of spotlights could overheat
laser in a little while and leads to a degra-
dation of performance.
14. This unit is intended for indoor use only.
4. Working on the device
1. This product has no user serviceable parts inside and should
only be maintained and serviced by a qualied engineer.
2. Be sure that the mains plug is not connected to the power
supply while installing or opening the device (e.g. for
cleaning).
3. Take o all reecting things like rings, watches etc. befo-
re starting to work with or at the projector.
4. Only use non-reecting tools to work on device.
5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wave-
length of the laser.
5. Service notes
• Moisture and heat can reduce lifetime of
the laser system dramatically and expires
any warranty claim.
• Quick on/o switching of this device will
reduce durability of the laser diode dra-
matically.
• Avoid sharp knocks and shocks to this
device and ensure sucient protection
during transportation. Look after your La-
serworld product.
• To increase durability of your laser,
protect device against overheating:
• Always ensure sucient ventilation.
• Do not face spotlights (especially moving
heads) to the device.
• Check temperature after approx. 30 mi-
nutes with each new installation. If neces-
sary install the projector at a place with
dierent temperature.
• Keep the device dry. Protect it from mois-
ture, rain and damp.
• Switch o device when it is not needed.
Diodes are switched on and can wear out
even if there is no visible laser output.
Manual: Evolution Series ES-600B
page 6 / 27
• The devices of Ecoline, Evolution, Club
and Proline Series are not meant for pro-
fessional applications. After approx. one
hour of operation, the device should cool
down for about 15 minutes.
• Please ensure the fans and heatsinks are
clear from dust and debris otherwise the
risk of overheating may occur. If the unit
and airways appear to be blocked then
please contact a qualied service engi-
neer to maintain and service the product.
• Removal of the warranty label as well
as damages to the device caused by
improper handling, neglect of the sa-
fety instructions and service notes will
void the warranty.

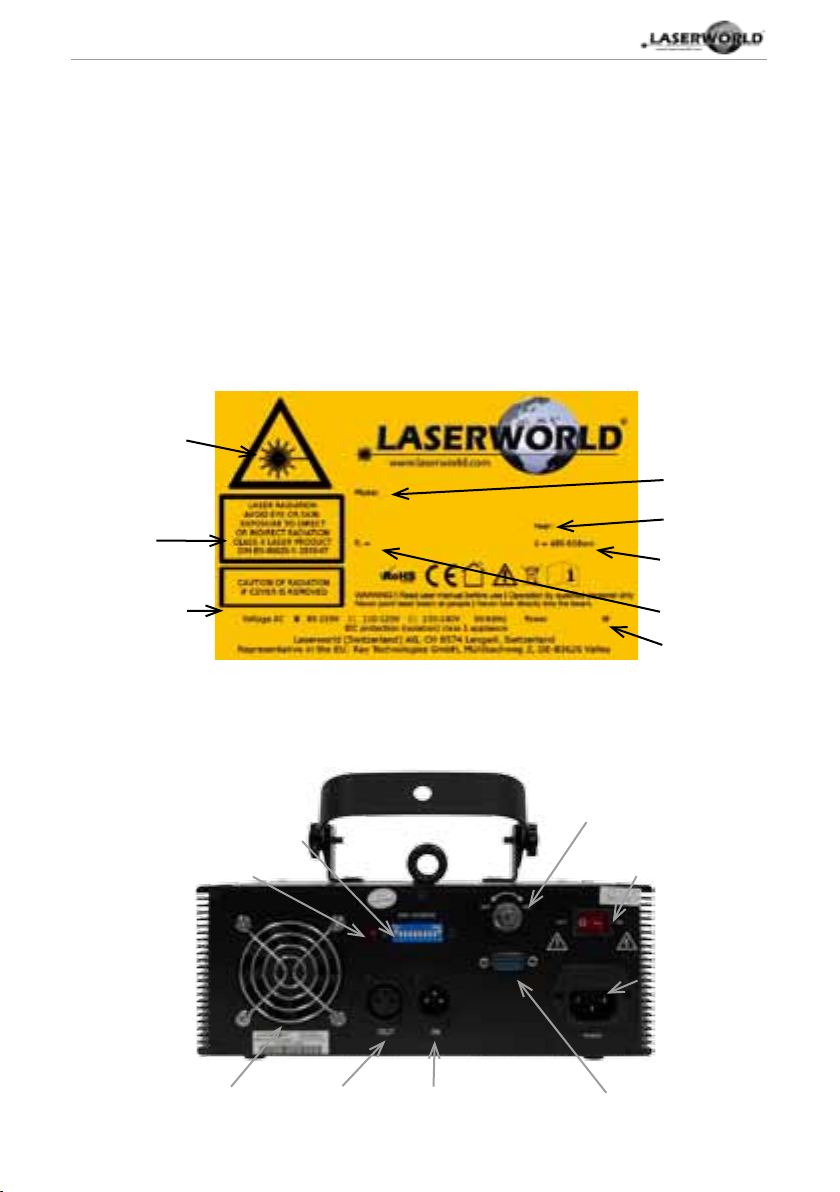

6. Warnings and other notices on the device
Laser radiation!
Avoid exposure
to beam.
Laser class 4
Caution of
radiation if cover
is removed Power supply
& consumption
Model type
Wavelength
Output power
Production
year
Please read manual before operation
Use in enclosed spaces only!
7. Device connections
Connection for
power supply
DMX in
DMX out
Fan
Key switch
Interlock
LED signal
DMX address
Power switch
Manual: Evolution Series ES-600B
page 7 / 27
8. Operation
1. Connect the power cable to the device and then to the mains
2. Insert key and turn it„ON“
3. Press„ON“ to switch on your device
4. Please make sure, that the Interlock adapter is inserted.
5. Your device runs in auto mode:
6. Your device runs in music mode:
Control the music-sensitivity by the trim pot at the front side of the device. The LED is
ashing when the device is triggered.
Microphone &
Sensitivity
Manual: Evolution Series ES-600B
page 8 / 27
7. Your device runs in DMX mode if ‘10‘ is switched o:
Connect a DMX controller to operate the laser.
Use the switches 1 - 9 to set the DMX address of the laser. Each switch represents a num-
ber. To dene a number use the preceding number and multiply it by 2:
The laser uses 12 DMX channels, so make sure that the next device uses an address that
doesn’t overlap with this range.
Channel Value Function
1 0 - 63 Laser o
64 - 127 Sound mode
128 - 191 Automatic mode
192 - 255 DMX mode
2 0 - 255 Patterns
3 0 - 255 Strobe (with increasing speed)
4 - -
5 0 - 255 horizontal movement (not for all patterns)
0 - 161 movement on the X axis
161 - 189 see above; right to left
190 - 219 see above; left to right
220 - 255 see above; changing movements
6 0 - 255 vertical movement (not for all patterns)
0 - 160 movements on the Y axis
161 - 189 see above; bottom to top, automatically
190 - 219 see above; top to bottom, automatically
220 - 255 see above; changing movements
7 11 - 255 Zoom / size (not for all patterns)
0 - 10 -
11 - 90 increasing size
Switch 12345678910
Number 1 2 4 8 16 32 64 128 256 Mode Switch
Manual: Evolution Series ES-600B
page 9 / 27
Channel Value Function
91 - 146 see above; small to large, automatically
147 - 200 see above; large to small, automatically
201 - 255 see above; small to large to small, automatically
8 - -
9 > 200 Reset (shortly over 200)
10 0 - 255 Rotation Y (height)
0 - 150 static rotation
151 - 255 automatic rotation
11 0 - 255 Rotation X (width): analogue to channel 10
12 0 - 255 Rotation Z
0 - 180 see above; static rotation
181 - 217 see above; automatic rotation clockwise
218 - 255 see above; automatic rotation counter clockwise
Please note that not each pattern can be combined with each eect.
8. To turn o the device switch it o („OFF“), switch the key to‚OFF‘ and disconnect the
power cable from the mains.
Manual: Evolution Series ES-600B
page 10 / 27
Final statement
Laserworld products are tested and product packaging is inspected before leaving our
warehouse.
Users must to follow the local safety regulations and warnings within this manual and adhere
to any regulations within its place of use. Damages through inappropriate use will void any
liability or warranty of our products.
Due to continual product developments, please check for the latest update of this product
manual at www.laserworld.com. If you do have any further questions, then please contact
your dealer/place of purchase or use our contact section on our website.
For service issues, please contact your dealer/place of purchase and ensure only genuine
Laserworld spare parts are used in any service repairs.
Errors and Omissions excepted and products are subject to change.
Laserworld (Switzerland) AG
Kreuzlingerstrasse 5
8574 Lengwil
SWITZERLAND
Registered oce:
8574 Lengwil / Switzerland
Company number: CH-440.3.020.548-6
Commercial Registry Kanton Thurgau
CEO: Martin Werner
VAT no. (Switzerland): 683 180
UID (Switzerland): CHE-113.954.889
VAT no. (Germany): DE258030001
WEEE-Reg.-No. (Germany): DE 90759352
www.laserworld.com
representative according to EMVG:
Ray Technologies GmbH
Managing Director: Martin Werner
Mühlbachweg 2
83626 Valley / Germany
Otros manuales para Evolution Series
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Equipo de iluminación de Laserworld
Laserworld
Laserworld Ecoline SeriesEL-200RGY Manual de usuario
Laserworld
Laserworld PRO-350R-650 Manual de usuario
Laserworld
Laserworld EL 200 LED Manual de usuario
Laserworld
Laserworld CS-150G DMX Manual de usuario
Laserworld
Laserworld CT-6215 Manual de usuario
Laserworld
Laserworld Club Series Manual de usuario
Laserworld
Laserworld PL-12.000G Manual de usuario
Laserworld
Laserworld Club Series Manual de usuario
Laserworld
Laserworld PRO-200G Manual de usuario
Laserworld
Laserworld CS-400G Manual de usuario
Laserworld
Laserworld GREEN-8000 Manual de usuario
Laserworld
Laserworld Club Series Manual de usuario
Laserworld
Laserworld EL-50G DMX Manual de usuario
Laserworld
Laserworld GREEN-300E Manual de usuario
Laserworld
Laserworld SwissLas Purelight PL-8000G compact Manual de usuario
Laserworld
Laserworld Proline PRO-800RGB Manual de usuario
Laserworld
Laserworld Pro-150B-473 Manual de usuario
Laserworld
Laserworld GREEN-12000 Manual de usuario
Laserworld
Laserworld BLUE-5000-445 F Manual de usuario
Laserworld
Laserworld RB-1.5 Manual de usuario
Manuales populares de Equipo de iluminación de otras marcas
Commercial Electric
Commercial Electric 54568141 Manual de usuario
CREE LIGHTING
CREE LIGHTING 304 Series Manual de usuario
Goobay
Goobay 49867 Manual de usuario
ECOMAN ITALIA
ECOMAN ITALIA LED T8 Manual de usuario
Alkalite
Alkalite Krypton KT-81 Manual de usuario
Clas Ohlson
Clas Ohlson GU10 Manual de usuario
