Lanzar Distinct DCT202 Manual de usuario

Full FET Class AB Amplifier

INTRODUCTION & FEATURES

FEATURES & CONTROLS

specification

installation & precautions

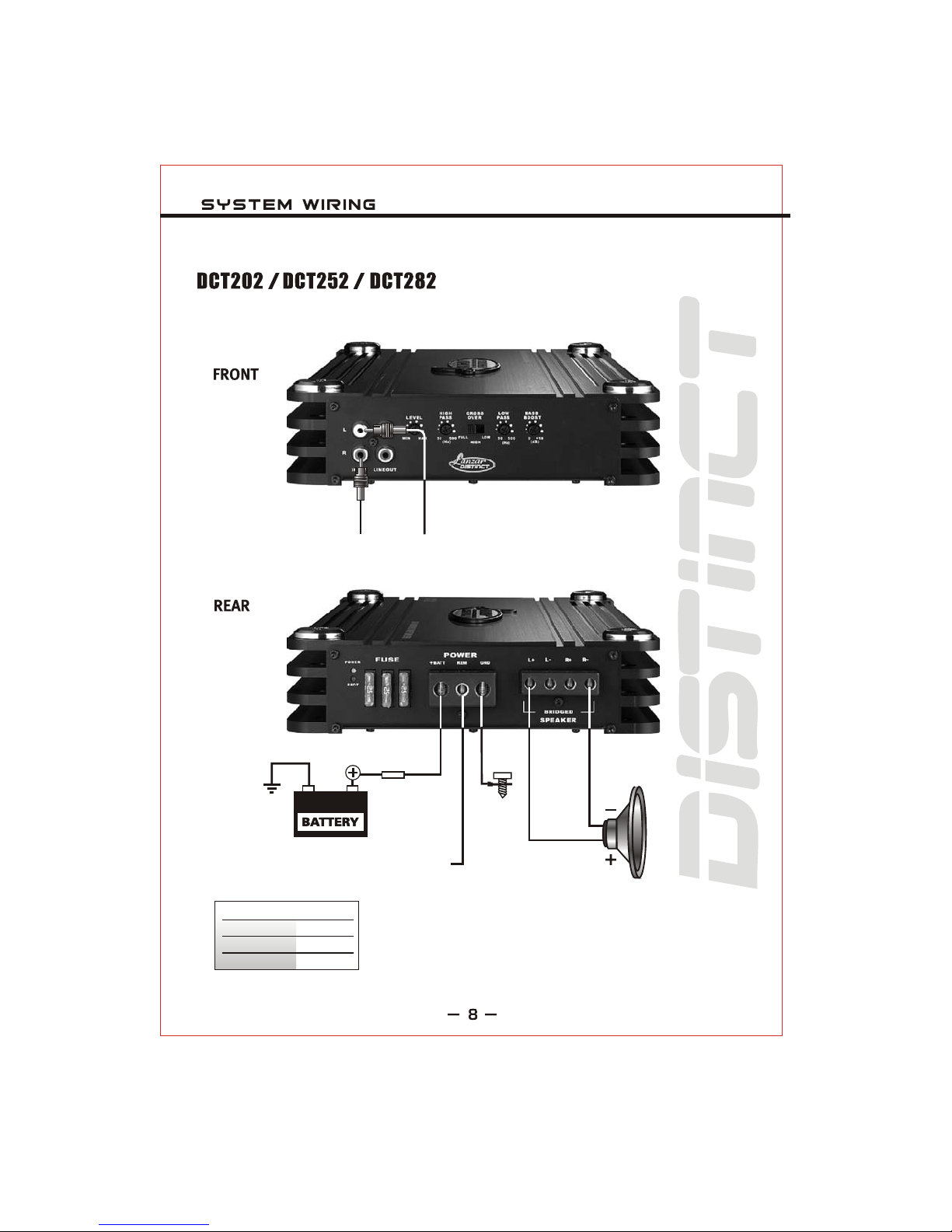

SYSTEM WIRING

2channel SYSTEM WIRING

4channel SYSTEM WIRING

TROUBLESHOOTING

wiring

......................................................... 2

.................................................. 3-4

................................................................................ 5

........................................ 5

........................................................................6-13

.............................................6-8

............................................9-12

.....................................................................13

.....................................................................................................14

MOSFET switches maintain rated power over a wide range of

battery voltages

PWM(Pulse-Width-Modulated) System.

2 Ohm Stable Stereo operation

Stereo, Bridge Mode and Tri-Mode System Application Compatible

Variable input level controls for each pair of channels

Variable high and low pass crossover controls

Thermal and speaker short protection circuitry

Power and Protection LED indicators

Bass Boost Circuitry

Nickel plated power, RCA and speaker connectors

High-efficiency, heavy aluminum heatsink

Congratulations on your purchase of a LANZAR amplifier. You have

purchased a quality product designed and engineered to give you

many years of un compromised musical service. LANZAR amplifiers

are designed with the latest technology available, incorporating

a DC to DC Switching Power Supply, which provides headroom for

even the most demanding peaks and dynamic ranges found on

modern CD's and recordings.

When Crossover Mode Selector is in

Low Pass Mode, this control limits the

frequencies which will be distributed to

the speakers to those below the value

to which this is set within the range

50 Hz - 500 Hz.

LOW PASS FILTER

When Crossover Mode Selector is in High Pass

Mode, this control limits the frequencies which will

be distributed to the speakers to those above the

value to which this is set within the range

50 Hz - 500 Hz.

HIGH PASS FILTER

Determines the mode of built-in crossover:

low pass(permits only low frequency signals to

pass to speakers), high pass (permits only high

frequency signals to pass to speakers), or flat.

CROSSOVER MODE SELECTOR

Provide instant information on status of amplifier,

including short-circuit and thermal overload alerts.

POWER & PROTECTION INDICATORS

Enables the matching of input

levels to the output levels from

the head unit(or other signal

source).

INPUT LEVEL CONTROL

Increases sound level in lower

frequencies by 18dB.

BASS BOOST CONTROL

INPUT RCAJACKS

These inputs arefor signal

cables from thesource.

Always use highquality

shielded RCAcables.

LINE OUTRCAJACKS

The LINE OUTallows you to

build multiple amplifiersystems

with out havingto use splitter

cords to distributethe signal.

Now it issimple a matterof

bringing one setof RCAs into

the first amplifier, then using

the line outRCA jacksas the

feed to thenext amplifier.

SPEAKER TERMINAL.

20A x2

25A x2

25A x3

DCT202

DCT252

DCT282

MODEL FUSES

When Crossover Mode Selector is in High and

Low Pass Mode, this control limits the frequencies

which will be distributed to the speakers to those

above the value to which this is set within the range

50 Hz - 500 Hz.

HIGH & LOW PASS FILTER

Determines the mode of built-in crossover:

low pass(permits only low frequency signals to

pass to speakers), high pass (permits only high

frequency signals to pass to speakers), or flat.

CROSSOVER MODE SELECTOR

Provide instant information on status of amplifier,

including short-circuit and thermal overload alerts.

POWER & PROTECTION INDICATORS

Enables the matching of input

levels to the output levels from

the head unit(or other signal

source).

INPUT LEVEL CONTROL

Increases sound level in lower

frequencies by 18dB.

BASS BOOST CONTROL

INPUT RCAJACKS

These inputs arefor signal

cables from thesource.

Always use highquality

shielded RCAcables.

LINE OUTRCAJACKS

The LINE OUTallows you to

build multiple amplifiersystems

with out havingto use splitter

cords to distributethe signal.

Now it issimple a matterof

bringing one setof RCAs into

the first amplifier, then using

the line outRCA jacksas the

feed to thenext amplifier.

SPEAKER TERMINAL.

INPUT RCAJACKS

INPUT LEVEL CONTROL

HIGH & LOW PASS FILTER

CROSSOVER MODE SELECTOR

Frequency Response

Input Sensitivity

S/N Ratio

Channel Separation

Low Pass Filter

Bass Boost Control

Dimensions(inches)

Fuse(s)

RMS at 2Ohms

At 4 OhmsBridged

Speaker Impedance

T.H.D4 Ohms Power

Peak at 4Ohms

10Hz ~40kHz

>90dB

>65dB

50Hz~500Hz

0 ~+18dB

(60 Hz fixed)

8.66"x2.15"x9.45"

20A x2

950W x 2

2000W x 1

2 Ohm

0.5%

1000W x 2

100mV~4V

High Pass Filter 50Hz~500Hz

10Hz ~40kHz

>90dB

>65dB

50Hz~500Hz

0 ~+18dB

(60 Hz fixed)

8.66"x2.15"x11.42"

25A x2

1050W x 2

3000W x 1

2 Ohm

0.5%

1500W x 2

100mV~4V

50Hz~500Hz

10Hz ~40kHz

>90dB

>65dB

50Hz~500Hz

0 ~+18dB

(60 Hz fixed)

8.66"x2.15"x15.35"

25 x 3

1400W x 2

4000W x 1

2 Ohm

0.5%

2000W x 2

100mV~4V

50Hz~500Hz

10Hz ~40kHz

>90dB

>65dB

50Hz~500Hz

0 ~+18dB

(60 Hz fixed)

8.66"x2.15"x13.38"

30A x2

750W x 4

2000W x 2

2 Ohm

0.5%

1000W x 4

100mV~4V

50Hz~500Hz

1. Find a suitable location in the vehicle to mount the amplifier.

2. Make sure there is sufficient air flow around the intended mounting location.

3. Bolt the amplifier to the mounting surface.

4. Connect the power ground terminal to the nearest point on the chassis of the car.

Keep this ground wire less than one meter (39") in length. Use 4 gauge or 0 gauge wire.

5. Connect the remote terminal to the remote output of the head unit using 14 gauge.

6. Connect an empty fuse holder within 300mm (12") of the battery and 4 gauge

or larger high quality cable from this fuse to the amplifier location.

7. Make sure there is no fuse in this fuse holder. Then make the connection to the "BATT"

connection on the amplifier.

8. If multiple amplifiers are being used, use cables (each with its own fuse at the battery)

or a #0 or a #2 cable from the fuse holder at the battery to a distribution block at or

near the amplifier's location.

9. Connect all line inputs and outputs using high-quality RCA-RCA cables.

10. Insert fuse(s) at the battery fuse holder(s).

11. Recheck all connections before powering up.

12. Set all level controls to their least sensitive positions and set all crossover controls,

switches, etc. to the desired frequency or position.

13. Once the system is powered up, set the volume control on the head unit to about the

2 o'clock position, and then set all the amplifiers' level controls for maximum output level.

14. Further fine tuning of the various controls may be necessary to obtain the desired

results.

LEFT

SPEAKER

RIGHT

SPEAKER

IMPEDANCE

2~4 OHM

TO OUTPUT FROM HEAT UNIT

2channel stereo configuration

20A x2

25A x2

25A x3

DCT202

DCT252

DCT282

MODEL FUSES

TO CAR STEREO

AUTO ANTENNA

FUSE

SPEAKER

IMPEDANCE

4~8 OHM

2channel bridged mode configuration

TO OUTPUT FROM HEAT UNIT

20A x2

25A x2

25A x3

DCT202

DCT252

DCT282

MODEL FUSES

TO CAR STEREO

AUTO ANTENNA

FUSE

TO CAR STEREO

AUTO ANTENNA

SPEAKER

IMPEDANCE

4~8 OHM

LEFT

SPEAKER

2channel tri-mode configuration

TO OUTPUT FROM HEAT UNIT

20A x2

25A x2

25A x3

DCT202

DCT252

DCT282

MODEL FUSES

RIGHT

SPEAKER

FUSE
