Lantech IGS-0016 Manual de usuario

Lantech

IGS-0016

16 10/100/1000T Industrial Unmanaged

Ethernet Switch

IES-0016

16 10/100TX Industrial Unmanaged

Ethernet Switch

User Manual

V1.0

Sep-2019

Recommendation for Shielded network cables

STP cables have additional shielding material that is used to reduce external interference. The

shield also reduces the emission at any point in the path of the cable. Our recommendation is

to deploy an STP network cable in demanding electrical environments. Examples of

demanding indoor environments are where the network cable is located in parallel with

electrical mains supply cables or where large inductive loads such as motors or contactors are

in close vicinity to the camera or its cable. It is also mandatory to use an STP cable where the

power device (like IP camera) is used outdoors or where the network cable is routed outdoors.

Content

Overview............................................................1

Introduction............................................................. 1

Model Lists ............................................................. 1

Packing List............................................................ 2

Safety Precaution ................................................... 2

Hardware Description.........................................3

Front Panel............................................................. 3

Top View ................................................................ 3

Dimensions............................................................. 4

Wiring the Power Inputs.......................................... 5

Wiring the Fault Alarm Contact ............................... 5

LED Indicators........................................................ 7

RJ-45 Pin Assignments........................................... 8

Cabling................................................................. 10

Mounting Installation........................................11

DIN-Rail Mounting ................................................ 11

Wall-Mount Plate Mounting................................... 13

Hardware Installation .......................................14

Installation Steps .................................................. 15

Troubleshooting ...............................................16

Overview

Introduction

The unmanaged industrial switch is a cost-effective solution and meets

the high reliability requirements demanded by industrial applications.

Model Lists

Model name

10/100/1000T

ports

10/100TX

ports

PoE ports

IGS-0016

IES-0016

For latest product specifications, please refer to Lantech official site.

Packing List

1 x 16-port Industrial Ethernet Switch

1 x Terminal Block

Safety Precaution

Attention

If DC voltage is supplied by an external circuit, please use a

protection device on the power supply input.

Hardware Description

In this paragraph, we will introduce the Industrial switch’s dimensions,

port, cabling information, and wiring installation.

Front Panel

The Front Panel of the IGS-0016/ IES-0016 are shown as below.

Front Panel of the Industrial Switch

Top View

The top panel of the Industrial Switch is equipped one terminal block

connector of two DC power inputs.

Top panel of the Industrial Switch Converter

Dimensions

. The dimensions of IGS-0016/IES-0016 are 49 x 152 x 105 mm (W x H

x D). The figure below gives the dimensions and views of each side of

the 16-port Industrial Ethernet Switch.

Wiring the Power Inputs

Please follow the steps below to insert the power wire.

1. Insert the positive and negative wires into the V+ and V- contacts on the

terminal block connector.

2. To tighten the wire-clamp screws for preventing the DC wires to loose.

Wiring the Fault Alarm Contact

The fault alarm contact is in the middle of terminal block connector as the

picture shows below. Inserting the wires, it will detect the fault status

which the power is failure or port link failure (for managed model) and form

an open circuit.

Note

The wire gauge for the terminal block should be in the range

between 12~ 24 AWG.

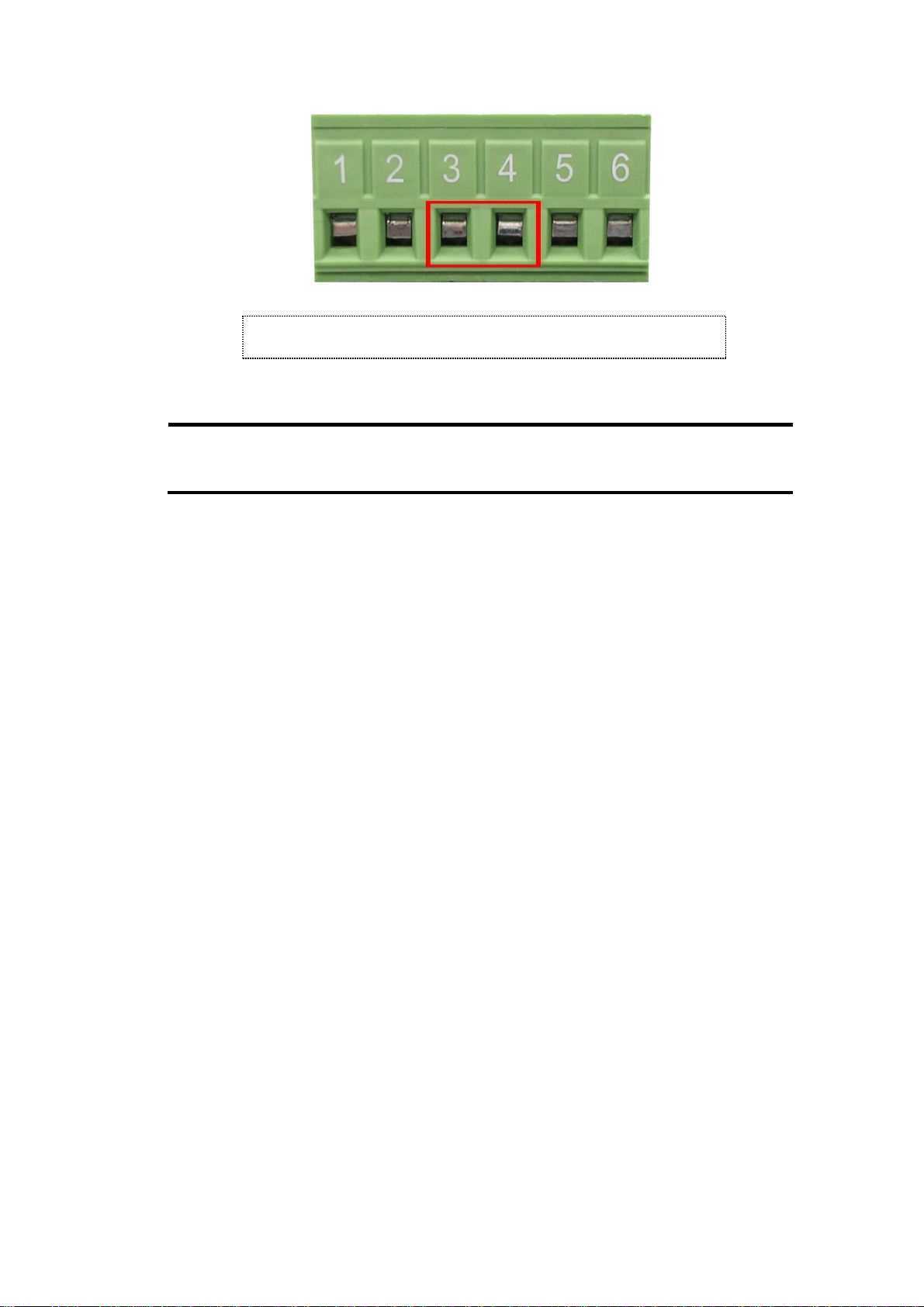

Insert the wires into the fault alarm contact (No. 3 & 4)
