LaCie 8BIG RACK THUNDERBOLT 2 Manual de usuario

LaCie 8big Rack Thunderbolt 2 User Manual 1

LACIE 8BIG RACK THUNDERBOLT 2 USER MANUAL

CLICK HERE TO ACCESS AN UP-TO-DATE ONLINE VERSION

of this document. You will find the most recent content as well as expandable illustrations, easier

navigation, and search capability.

LaCie 8big Rack Thunderbolt 2 User Manual 2

INTRODUCTION

WHAT IS IN THIS MANUAL

Welcome to the User Manual for the

LaCie 8big Rack Thunderbolt™1) 2. The

LaCie 8big is a rackmount

direct-attached storage, or DAS.

Connect it to a computer that supports

Thunderbolt 2 technology for transfer

rates that reach up to 20Gb/s. LaCie

has constructed the LaCie 8big to

handle bandwidth-intensive content such as 4K video and 3D graphics. This means that professional editors,

photographers, and graphic artists get the highest performing storage for their most challenging projects.

Use this manual to guide you through the process of connecting your LaCie storage. For questions on

installation, consult the Getting Help page.

LaCie 8big Rack Thunderbolt 2 User Manual 3

BOX CONTENTS

Quick Install Guide1.

Drive stickers2.

Hard drives (the amount of hard drives can vary by model)3.

Inner rack rails (A1, A2) and outer rack rails (B1, B2)4.

Inner rack rail screws (M4x4); outer rack rail screws (M5x10) and washers (W)5.

Power supply cables (certain models are shipped with one power supply cable)6.

Thunderbolt cable (2m)7.

LaCie 8big Rack Thunderbolt 28.

Cable management arm kit9.

An additional plastic bag with screws has been provided to fasten hard drives to the drive drawers. If you must

secure hard drives to the hard drive trays, make certain to use the included screws.

Important info: Save your packaging. In the event that the product should need to be repaired or serviced,

it must be returned in its original packaging.

LaCie 8big Rack Thunderbolt 2 User Manual 4

Software suite

Visit LaCie 8big Rack Thunderbolt 2 software to download your free suite of utilities including:

LaCie RAID Manager (manage the LaCie 8big storage)

■

Intego® Backup Manager Pro (configure automated backups)

■

LaCie Private-Public (protect data with AES 256-bit encryption)

■

MINIMUM SYSTEM REQUIREMENTS

Client types

Mac OS X 10.9 and later

■

A computer that supports Thunderbolt 2 technology or first generation Thunderbolt technology. To take

■

advantage of the higher performance offered by Thunderbolt 2 technology, your computer must have a

Thunderbolt 2 technology port (see LaCie 8big Rack Thunderbolt 2: Advanced Storage Technology).

Important info:

Your LaCie product's performance can be affected by such external forces as type of cable, hardware,

distance, and setup.

For optimal performance: use the cables provided with your device or, cables supported by LaCie; make

certain to follow the installation instructions provided in the Quick Install Guide and this user manual.

LaCie 8big Rack Thunderbolt 2 User Manual 5

LACIE 8BIG RACK THUNDERBOLT 2: ADVANCED

STORAGE TECHNOLOGY

THUNDERBOLT 2 TECHNOLOGY

The LaCie 8big Rack Thunderbolt 2 uses Thunderbolt 2 technology, the fastest, most versatile connection for

your computer. While first generation Thunderbolt technology transfer rates are 10Gb/s bi-directional,

Thunderbolt 2 technology provides 20Gb/s bi-directional. Additionally, Thunderbolt 2 technology gives priority to

the video stream, apportioning the required bandwidth for playback. This is a critical advantage when working

with high-end video and 3D graphics.

For example, a film editor is working with two streams, 4K video at 12Gb/s and data at 4Gb/s. Whereas first

generation Thunderbolt technology may experience difficulty with the video signal, Thunderbolt 2 technology

allows it to pass without a problem, dividing the bandwidth as needed for playback.

Important cable info: When connecting your Thunderbolt enclosure to a computer or compatible devices,

use cables specifically constructed to support Thunderbolt technology.

Important info: A Thunderbolt enclosure must be connected to a computer that supports Thunderbolt

technology. While the ports on the back of the device can easily seat Mini DisplayPort cable ends for daisy

chaining displays, the Thunderbolt storage will only work when connected to a computer that supports

Thunderbolt technology.

LaCie 8big Rack Thunderbolt 2 User Manual 6

LACIE 8BIG RACK THUNDERBOLT 2 TECHNOLOGY: HIGH-END

HARDWARE FOR PERFORMANCE AND REDUNDANCY

Featuring hardware RAID and redundant components, the LaCie 8big is a rarity in the world of high-end DAS.

While most DAS must choose between high transfer rates or data protection, the LaCie 8big offers both

extraordinary performance and built-in protection. Its powerful RAID engine saves your computer from

expending critical processing resources on storage management, which is crucial for video and graphics

applications that place heavy demands on computer CPUs. Further, hardware RAID solutions offer advanced

RAID configurations to suit the needs of your working environment (see RAID).

The LaCie 8big Rack Thunderbolt 2 features:

1U Rackmount form factor

■

Aluminum front and all-metal enclosure

■

A RAID-on-Chip (RoC) processor to manage the RAID

■

Hardware RAIDs 0, 1, 10, 5, 6, and JBOD

■

Eight SATA channels, up to 6Gb/s per channel

■

Two Thunderbolt 2 technology ports, up to 20Gb/s bi-directional per port

■

Hot-swappable hard drives, fans, and power supplies to reduce downtime

■

Redundant power supply bays

■

A warning system with physical and email alerts

■

Intelligent RAID rebuild with a spare hard drive

■

LaCie 8big Rack Thunderbolt 2 User Manual 7

SYSTEM OVERVIEW

The LaCie 8big Rack Thunderbolt 2 is a 1U-sized hard drive enclosure. It houses up to eight 3.5-inch hard drives

in its front chassis.

Enclosures shipped with hard drives feature high-performance Seagate Desktop HDD.

In case of hard drive failure or, the need to expand storage capacity, each individual hard drive is hot-swappable

and field replaceable. New or replacement hard drives must meet the following requirements:

SATA I or higher

■

3.0Gb/s or higher

■

Spin up to 7200 RPM

■

For further information on compatible hard drives, visit LaCie technical support.

SPECIFICATIONS

Storage management

The LaCie 8big storage is managed by the software utility LaCie RAID Manager. See Software.

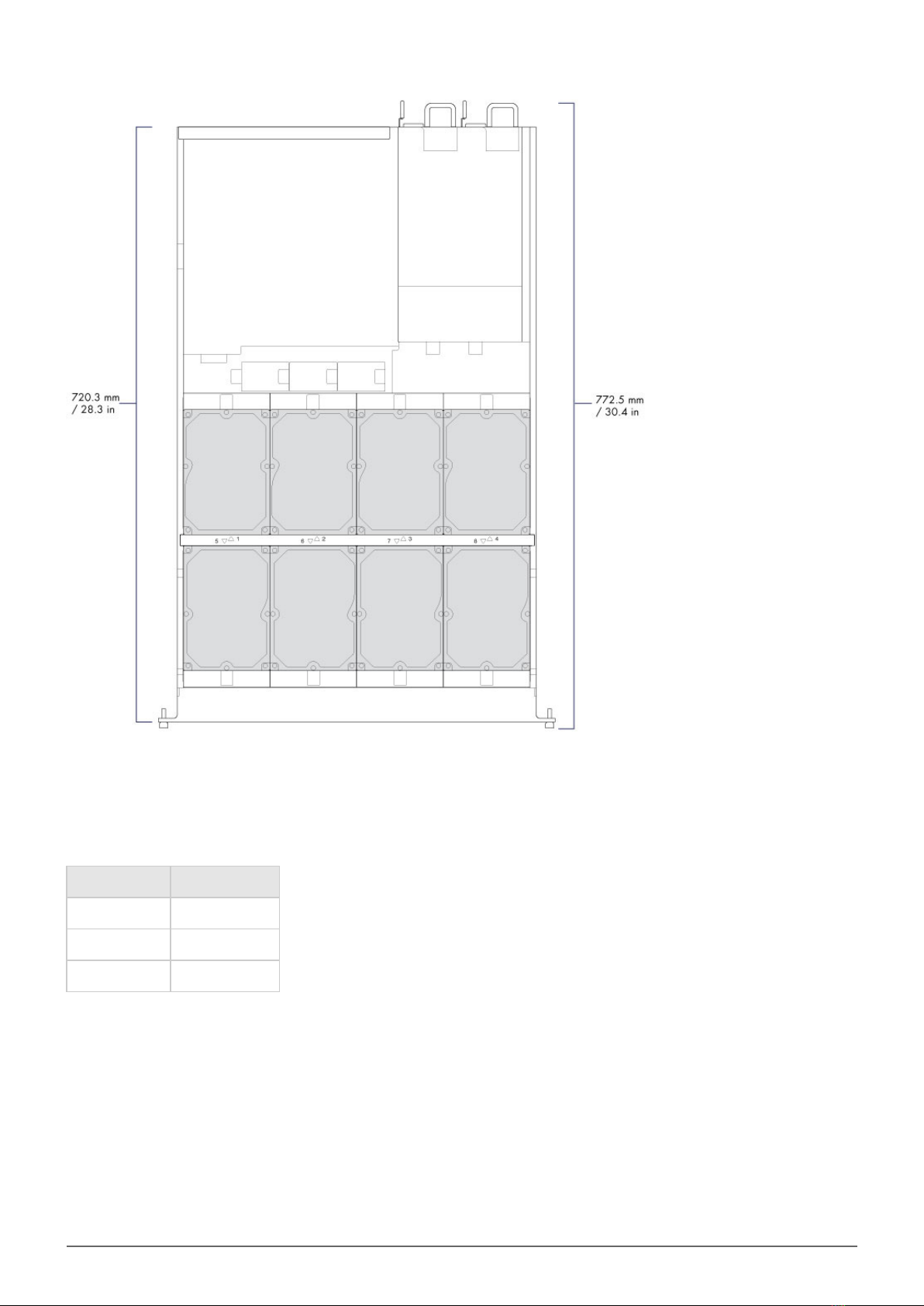

Enclosure dimensions

LaCie 8big Rack Thunderbolt 2 User Manual 8

Enclosure weight

Hard drives Weight

0 15 Kg / 33 lbs

4 18 Kg / 40 lbs

8 20 Kg / 44 lbs

LaCie 8big Rack Thunderbolt 2 User Manual 9

Temperature ranges

Ambient environment Temperature range

Standard (operating) +5ºC to +40ºC

Storage (non-operating) -20ºC to +60ºC

Important info: The maximum operating ambient temperature for the LaCie 8big is 40°C. Should the

environment remain above 40°C for an extended period of time, there is a strong risk that the enclosure will

automatically spin down the hard drives and enter idle mode (see Operation). This is a safety precaution to

protect the hard drives.

Humidity

Environment Humidity range

Standard (operating) 10% to 60% non-condensing

Storage (non-operating) 5% to 85% non-condensing

Electrical

Power supply: 100-240V; 50/60Hz; 250W

Acoustics

State Noise (dBA)

Idle 50 @ 1 m

Operational 53 @ 1 m

Operational max 69 @ 1 m

Note: These measurements have been made under normal conditions, one meter/three feet from the front

of the product. It may vary with conditions and product configuration.

LaCie 8big Rack Thunderbolt 2 User Manual 10

VIEWS

Front panel view

Rackmount brackets: Attaches the LaCie 8big Rack Thunderbolt 2 to standard, 19-inch computer1.

equipment racks. See Setting Up.

Power button: Push to turn the system on or to enter idle mode. See Operation.2.

Thunderbolt host LED: The LED will turn blue when it is connected to a computer that is compatible with3.

Thunderbolt 2 technology or first generation Thunderbolt technology. See System LEDs.

Thunderbolt daisy chain LED: The LED will turn blue when the LaCie 8big is connected to compatible4.

Thunderbolt devices and displays. See Daisy Chain and System LEDs.

Status LED: Indicates that the device is powered on and provides status signals. See System LEDs.5.

Hard drive LEDs: Indicates the status and activity for the hard drives in the enclosure. See System LEDs.6.

Identification button: Pushing this button will cause the identification LEDs on the front and rear of the7.

LaCie 8big to blink amber. The alarm will also sound. The flashing LEDs allow you to identify the LaCie 8big

among a group of racked devices. There is another identification button on the rear of the device that can

also be pushed to turn on the identification LEDs and sound the alarm. Both buttons work in tandem, allowing

you to turn the visual and audio identifications on and off. For example, you can use the identification button

on the front of the device to turn them on and then turn them off via the rear identification button.

Mute button: Push the button to turn off the sound for an audio alarm. An audible alarm will sound when8.

someone pushes an identification button or, if the unit senses a problem with the hardware, such as a faulty

power supply unit or elevated temperatures. When the Mute button is pushed, its LED will turn amber,

indicating that the alarm is on but the sound has been turned off.

For details on LED behavior. See System LEDs.
